ShineLong Slim Light Ultra-thin 0-10V Dimming Ceiling Space-saving for Hospital Hotel LED Panel Light
SL-P1112-X-26B
Panel lights are modern lighting fixtures that are commonly used in indoor environments such as offices, stores and homes. They are known for their clean design and even light distribution, which can effectively reduce shadows and glare. Panel lights usually utilize LED light sources, which offer the benefits of energy efficiency and long life. Many panel lights also offer dimming functions, making it easy for users to adjust the brightness as needed to create a comfortable light environment.
Delivery
EXW, FOB
minimum order
30 pieces
Supply Ability
9999pieces / Month
Country of Origin
Shenzhen, Guangdong, China
Stock Time
7Day
Quantity:
ShineLong CE Rohs High Lumen Ultra-thin 0/1-10V Dimmable Slim LED Panel Light
ShineLong CE Rohs High Bright Slim 0/1-10V Dimmable LED Panel Light is a slim fixture designed for efficient lighting needs. Its slim design is not only aesthetically pleasing, but can also be easily installed in a variety of spaces. With the 0/1-10V dimming function, users can freely adjust the brightness to meet the lighting needs of different environments, making it an ideal choice for offices, schools and commercial spaces.
Key Features
1. Protection level: IK06, IP54 certification
2. Certification: CE, RoHS certified
3. Material: high quality aluminum + PMMA
4. Luminous efficiency: 100lm/w ±10%, up to 125lm/w ±10%.
5. Input Voltage: DC30-42V
6. Dimming support: support 1-10V dimming, DALI dimming driver
7. Design features: ultra-narrow bezel, support UGR <19 low glare
8. Lighting features: open and light, side light-emitting design, no dark areas, anti-yellowing
9. Color rendering index: high color rendering index Ra>80, SDCM<4
10. Service life: L80B50 (Ta=25℃) up to 50,000 hours, 5 years warranty.
11. Color temperature (CCT): 3000K (3045 ± 175K), 4000K (3985 ± 275K), 5000K (5029 ± 283K), 6000K (6065 ± 415K)
12. Installation: support for hanging installation, ceiling mounting, surface mounting, embedded installation

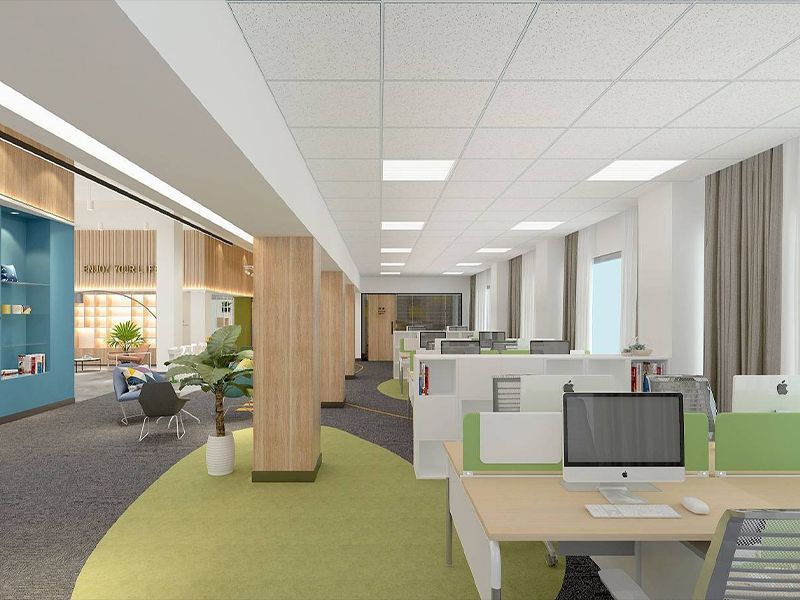

13. Application Scenario: Office, Hospital, University, School, Supermarket, Exhibition Hall, Exhibition Center
2. Certification: CE, RoHS certified
3. Material: high quality aluminum + PMMA
4. Luminous efficiency: 100lm/w ±10%, up to 125lm/w ±10%.
5. Input Voltage: DC30-42V
6. Dimming support: support 1-10V dimming, DALI dimming driver
7. Design features: ultra-narrow bezel, support UGR <19 low glare
8. Lighting features: open and light, side light-emitting design, no dark areas, anti-yellowing
9. Color rendering index: high color rendering index Ra>80, SDCM<4
10. Service life: L80B50 (Ta=25℃) up to 50,000 hours, 5 years warranty.
11. Color temperature (CCT): 3000K (3045 ± 175K), 4000K (3985 ± 275K), 5000K (5029 ± 283K), 6000K (6065 ± 415K)
12. Installation: support for hanging installation, ceiling mounting, surface mounting, embedded installation
13. Application Scenario: Office, Hospital, University, School, Supermarket, Exhibition Hall, Exhibition Center
Product Details
Data Sheet
| Light Source | SMD2835/ 4014 |
| CRI | >80 |

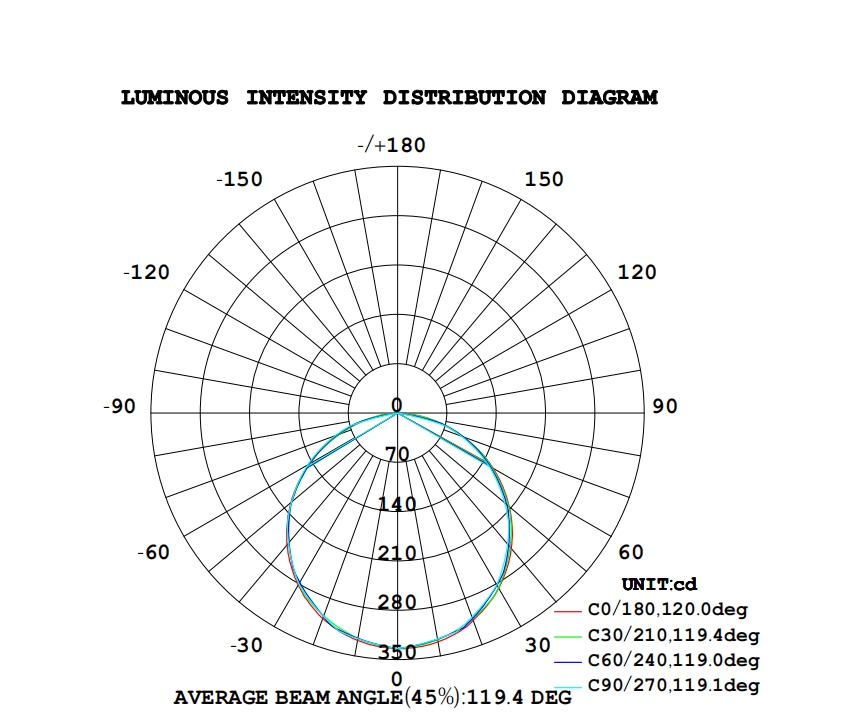

Beam Angle | 120° |
| CCT | 3000K/ 4000K/ 5000K/ 6000K |
| DC Input | 30-42V |
| SDCM | < 4 |
| Waterproof | IP54 |
| IK Rate | IK06 |
| Warranty | 5 Years |
| Operating Temperature | -20~+40℃ |
All Models
Article Number | Dimension (mm) | Power (W) | Lumen (lm) |
SL-P1112-X-26B | 295*295*7 | 12 | 1100 |
SL-P1225-X-26B | 295*595*7 | 25 | 2500 |
SL-P2240-X-26B | 595*595*7 | 40 | 4000 |
| SL-P2240-X-26B2 | 620*620*7 | 40 | 4000 |
| SL-P1440-X-26B | 1195*295*7 | 40 | 4000 |
| SL-P2460-X-26B | 1195*595*7 | 60 | 6000 |
The “X” represents CCT, it can be W(3000K/4000K), P(5000K), C(6000K)
Cover Standard Premium
Frosted 100lm/w 125lm/w
Please note:
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
3. Efficacy tolerance is ±10% and wattage tolerance is ±10%
4. UGR<19 light efficiency will be reduced by 5-8%
5. lP54 waterproof just for front
5. lP54 waterproof just for front
Product Performance

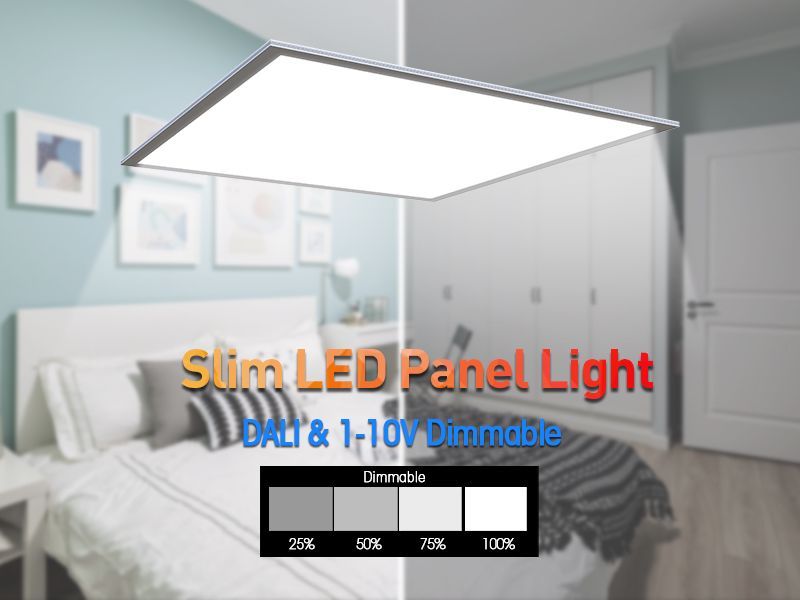

▪ 0/1-10V DIMMABLE FUNCTION:
Allows users to flexibly adjust the light intensity according to actual needs. With a simple dimming control, users can precisely adjust the brightness of the fixture within the range of 0 to 10 volts, realizing stepless changes from full brightness to full darkness. This high degree of flexibility allows the luminaire to adapt to the needs of different scenarios, helping users create the ideal lighting environment.
Allows users to flexibly adjust the light intensity according to actual needs. With a simple dimming control, users can precisely adjust the brightness of the fixture within the range of 0 to 10 volts, realizing stepless changes from full brightness to full darkness. This high degree of flexibility allows the luminaire to adapt to the needs of different scenarios, helping users create the ideal lighting environment.

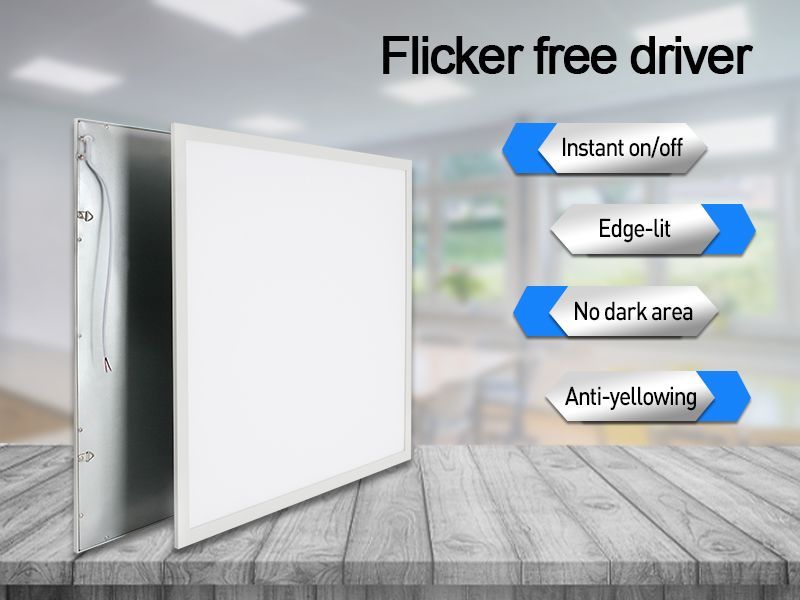

▶ Reliable, smooth and durable
ShineLong slim square edge-lit LED panel light is equipped with a flicker-free driver for smooth, eye-care lighting suitable for extended use, while the instant on/off feature provides instant brightness without delay. The edge-lit design ensures even, glare-free light distribution, eliminating dark spots and enhancing the aesthetics of any space. Thanks to its yellowing-resistant material, it stays clear and bright for a long time, making it a durable and efficient choice for any environment.

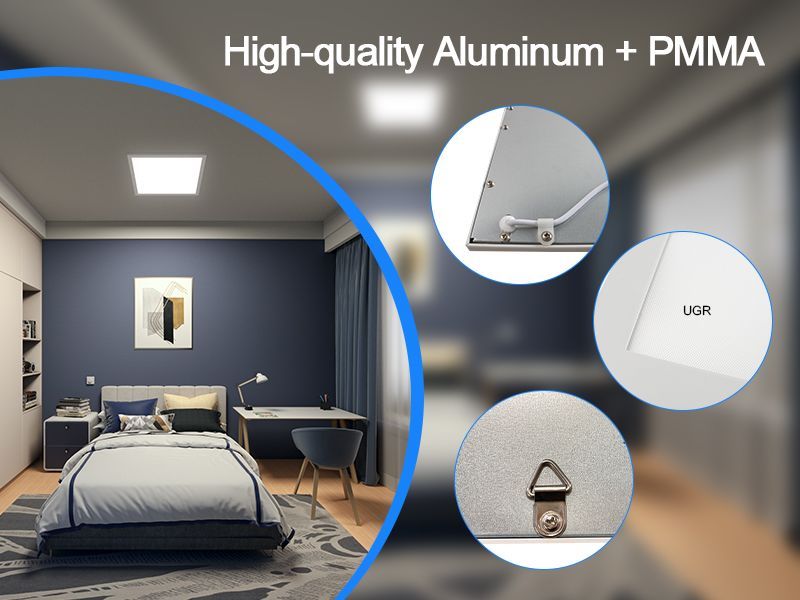

▶ High quality material
This high lumen slim commercial ceiling lighting for EU AU LED panel light is made of high quality aluminum and PMMA (polymethylmethacrylate) material, which ensures the durability and excellent performance of the fixture. The aluminum frame offers excellent heat dissipation, is lightweight and sturdy, and lasts for a long time.The PMMA light diffuser improves light diffusion, ensures even light distribution and reduces glare.

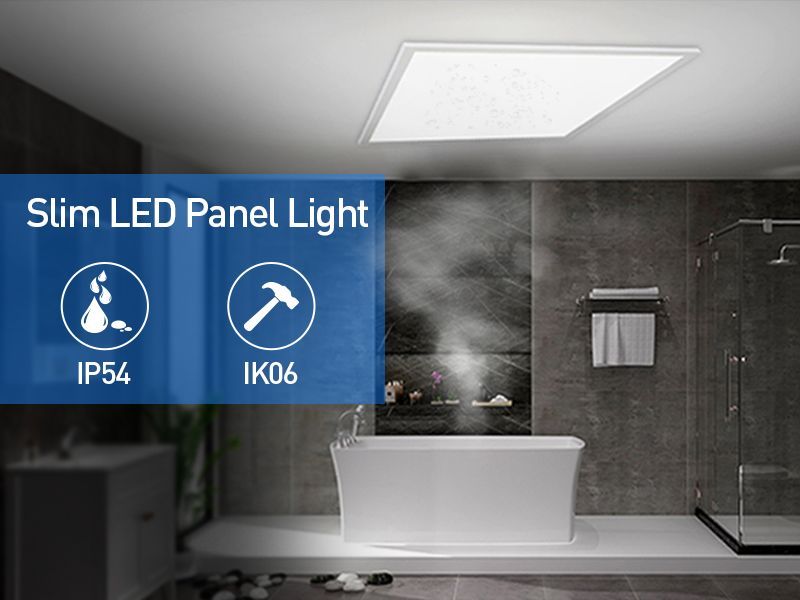

▶ Strong protection

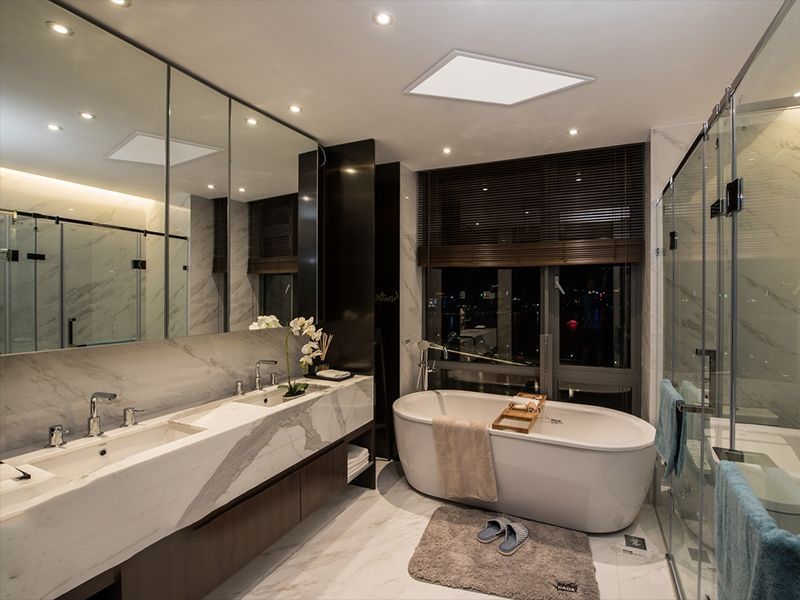

The IP54 protection rating means that the luminaire is effectively protected against dust and splashing water, making it suitable for installation in wet or dusty areas such as bathrooms, kitchens or industrial plants. And the IK06 impact rating ensures excellent impact resistance, able to withstand minor impacts that may occur in everyday environments.

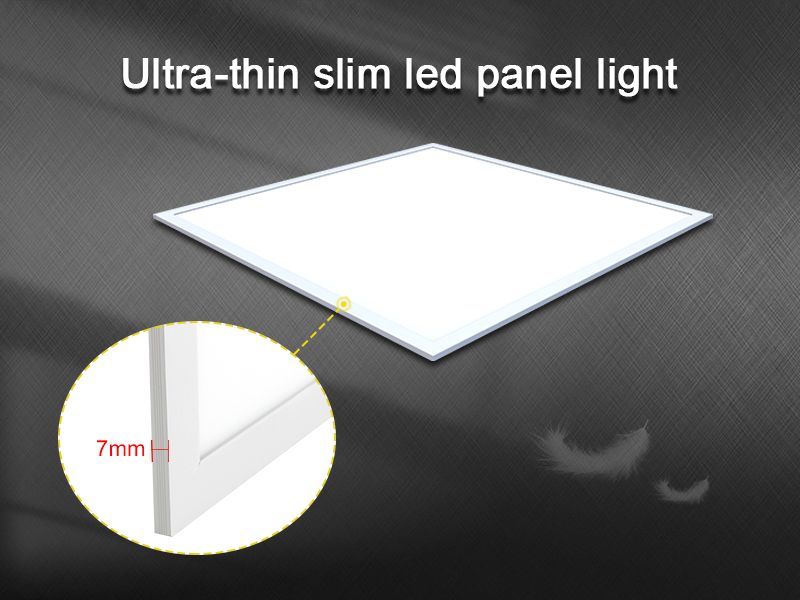

▶ Ultra slim design
ShineLong Ultra Slim 7mm 0-10V Dimming LED Panel Light with Extreme Slim Design offers a modern and minimalist look that suits the lighting needs of a variety of spaces. Its thickness of only 7mm allows the fixture to fit easily into any ceiling, making it particularly suitable for environments where space is limited or appearance is important, such as offices, meeting rooms, hallways, and home locations.

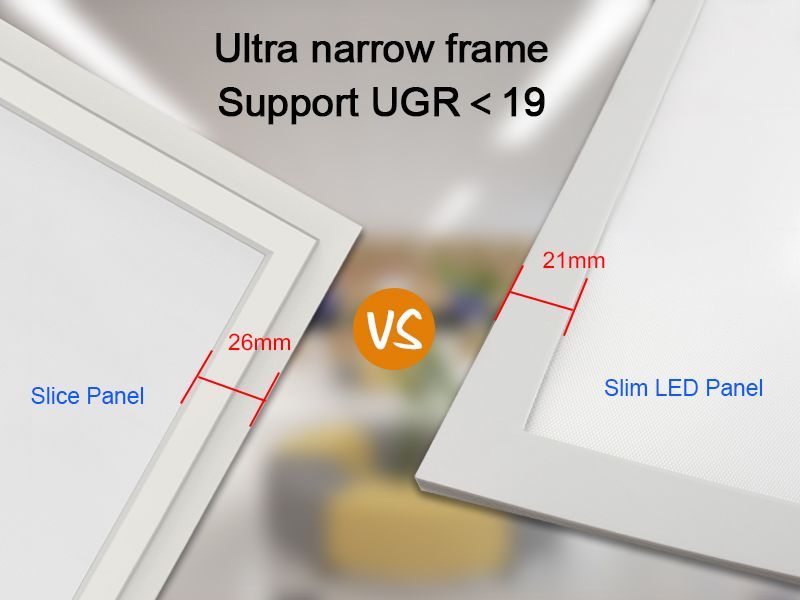

▶ Ultra narrow frame
With a bezel of only 21mm, which is slimmer than Slice Panel's 26mm, this Slim LED panel light dramatically increases lighting efficiency, providing a more sophisticated and space-saving solution without sacrificing lighting quality. Meanwhile, Slim LED Panel Light supports UGR<19, which can provide comfortable lighting without glare, avoiding eye irritation, and suitable for places with long time use.

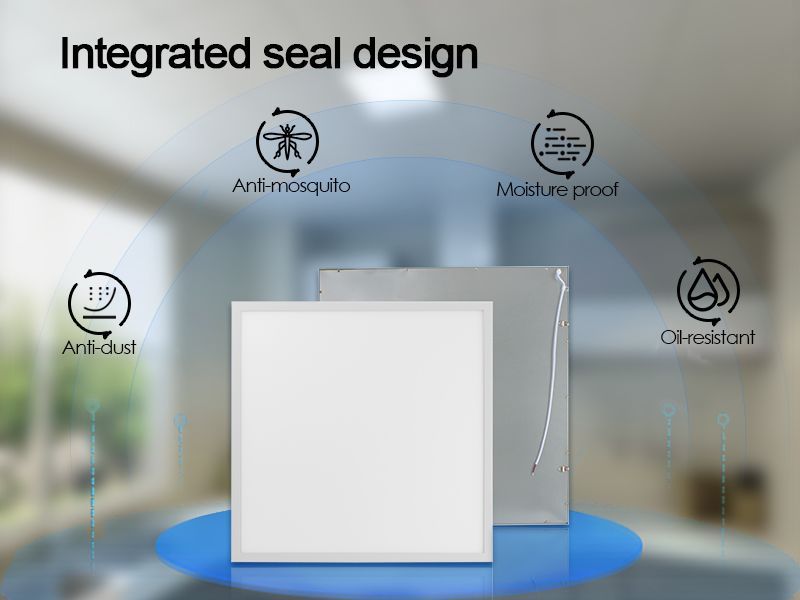

▶ Integrated sealing design
This LED panel light adopts integrated sealing design, effectively preventing dust, mosquitoes, moisture and oil from entering, ensuring that the lamps and lanterns remain clean and in good working condition for a long time.

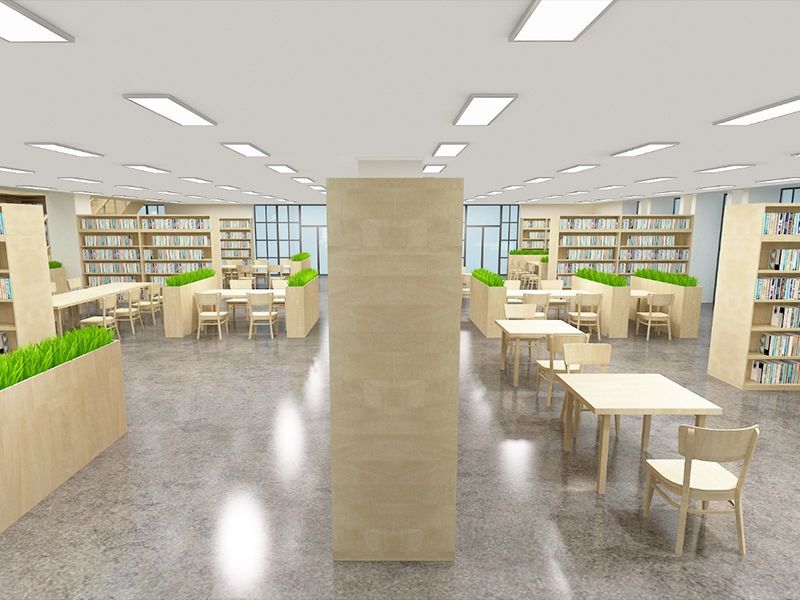

Application Scenarios
