ShineLong 2FT 4FT 5FT Dimmable 0-10V Reflex Flexible Track Integrated LED Indirect Linear Light
SL-LD70X2-20-XD
Linear light is a slender LED light with high brightness, energy saving and long life, uniform and soft light and adjustable color temperature. It is waterproof, flexible in installation, customizable and widely used in construction and home decoration.
Delivery
EXW, FOB
minimum order
30 pieces
Supply Ability
9999pieces / Month
Country of Origin
Shenzhen, Guangdong, China
Stock Time
7Day
Quantity:
Dimmable 0-10V LED Linear Lighting Reflex LED Indirect Linear Light
ShineLong diffuse reflective line light is made of high quality material with even and soft light, suitable for a variety of commercial and home lighting scenarios to enhance the texture and atmosphere of the space.
Highlight
1. Multi-dimming support: adapt to different brightness requirements, flexible adjustment of light intensity.
2. High CRI: High color reproduction, ensure the real and natural color of objects.
3. Flicker-free: Provide stable light source to avoid visual fatigue.
4. 100lm/watt: high energy efficiency, luminous efficiency reaches 100 lumens/watt, energy saving and environmental protection.
5. Anti-glare: reduce the glare of light source, enhance visual comfort.
6. Lifespan > 50,000 hours: long service life, reducing replacement frequency and maintenance costs.
2. High CRI: High color reproduction, ensure the real and natural color of objects.
3. Flicker-free: Provide stable light source to avoid visual fatigue.
4. 100lm/watt: high energy efficiency, luminous efficiency reaches 100 lumens/watt, energy saving and environmental protection.
5. Anti-glare: reduce the glare of light source, enhance visual comfort.
6. Lifespan > 50,000 hours: long service life, reducing replacement frequency and maintenance costs.
Product Details
Data Sheet
| DIP Switch Power Available | 0.6m(10W/15W/20W), 1.2m(25W/30W/36W), 1.5m(35W/40W/45W) |
| DIP switch CCT Available | 3000K/4000K/5000K or 4000K/5000K/6000K |
| Material | Integrated Aluminum Housing |
| Light Efficacy | 100lm/w ±10% |
| Input Voltage | AC200-240V 50/60Hz |
| High Power Factor | >0.95 |
| High CRI | Ra>80, SDCM<4 |
| CCT | 3000K: 3045±175K, 4000K: 3985±275K, 5000K: 5029±283K, 6000K: 6065±415K |
| Light Source | SMD2835 |
| Beam Angle | 120° |
| Warranty | 5 Years |
| Operating Temperature | -20~+40℃ |
| THD | <15% |
Product Performance

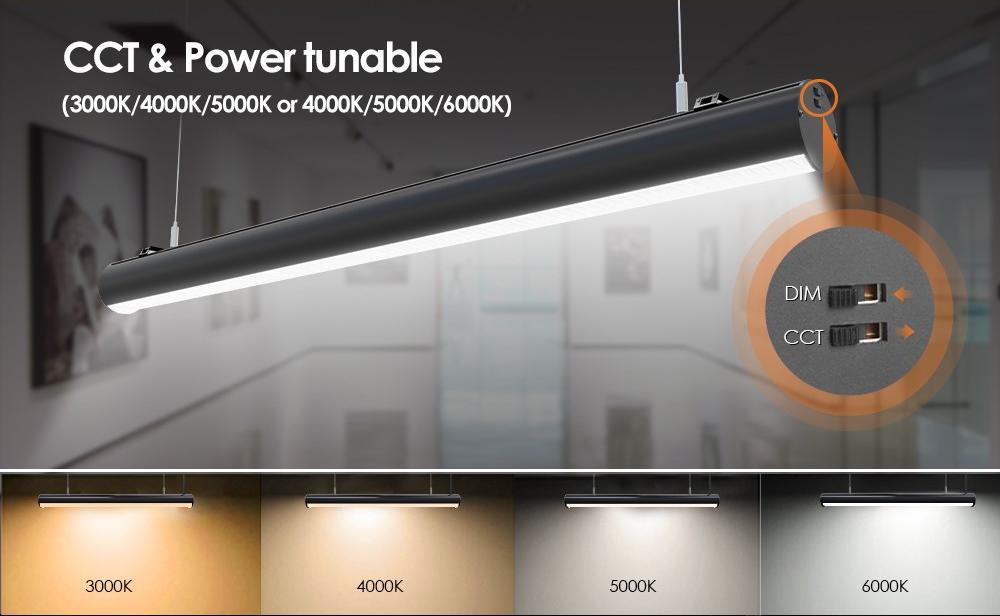

▶ Adjustable brightness and color temperature
The Reflex LED Indirect Light has excellent adjustable features that allow it to adjust brightness and color temperature to suit different lighting needs. With the dual adjustable design of CCT and DIM, users can easily select the ideal light environment to create a comfortable and natural lighting atmosphere. The color temperature adjustment range offers a variety of options for a wide range of scenarios: 3000K/4000K/5000K or 4000K/5000K/6000K, meeting diverse needs from warm to cool white light.

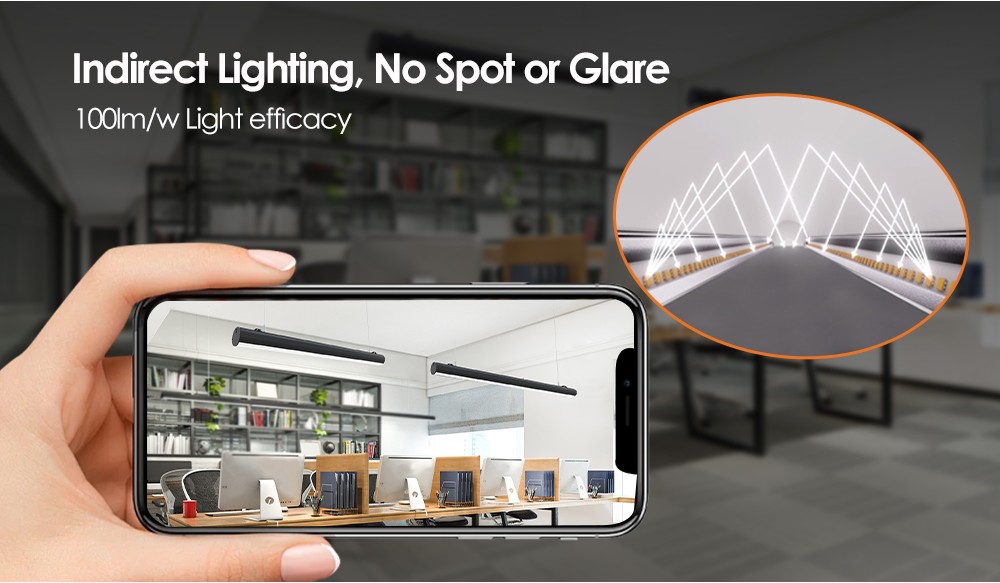

▶Strobe-free and anti-glare
ShineLong line LED lights are designed for indirect lighting, the uniform and soft light output effectively avoids the phenomenon of light spot and glare. The lamp adopts advanced LED technology with high luminous efficacy of 100lm/w, which ensures efficient lighting while reducing energy consumption and electricity expenses. The light is stable and flicker-free, protecting your eyes. The overall design is simple and modern, suitable for a variety of decorative styles.
▶Soft light for eyes
Its high color rendering index (CRI) reaches Ra>80, which can truly restore the color of objects and present a more natural light effect. Meanwhile, the color difference is less than 4 SDCM to ensure the consistency of light, especially suitable for families with children and pets. The soft light can effectively reduce eye irritation and protect their vision health.
▶High quality aluminum housing
The one-piece aluminum housing is both aesthetically pleasing and functional. High-quality aluminum not only gives the luminaire a lightweight and sturdy structure, but also has excellent heat dissipation properties. The aluminum housing is specially treated with corrosion and oxidation resistance to maintain excellent performance and appearance over time, even in humid or complex environments.
▶ Two mounting options
This Reflex Indirect LED Light offers a variety of flexible mounting options, allowing users to choose the appropriate installation method based on the layout of the space. Firstly, ceiling mounting is suitable for most ceiling configurations, where the light sits close to the ceiling, saving space. Secondly, suspension installation is more suitable for environments pursuing a sense of design. The lamps are installed by suspension, bringing a sense of fashion while also adjusting the suspension height to flexibly create the ideal light distribution. Meet different decorative styles and functional needs.
More Information
| Article Number | Power(W) | Lumen(lm) |
| SL-LD70X2-20-XD | 20 | 2000 |
| SL-LD70X4-36-XD | 36 | 3600 |
| SL-LD70X5-45-XD | 45 | 4500 |
