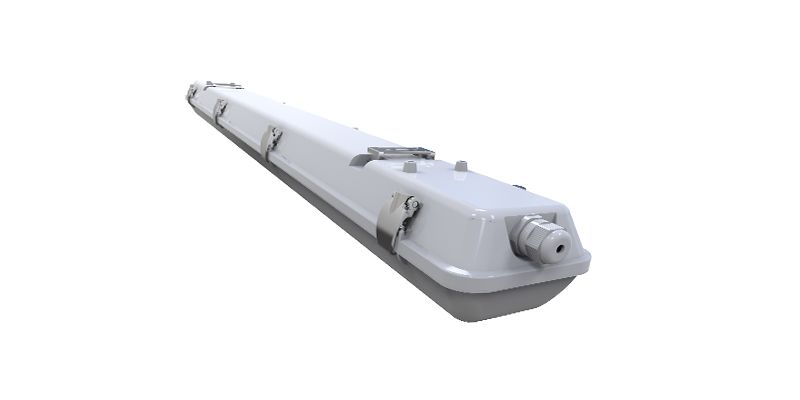

ShineLong Alpha Microwave Sensor for Office Warehouse Waterproof Triproof LED Light

SL-P65X2-20-XM
Tri-proof light is a kind of lighting equipment designed for harsh environments with waterproof, dustproof and corrosion-resistant features. They are usually made of high-strength materials and can work properly under extreme conditions, ensuring the provision of stable and reliable lighting effects, as well as energy-saving and environmentally friendly, with a long service life, and are suitable for use in industry, warehouses, workshops and other places.
Delivery
EXW, FOB
minimum order
30 pieces
Supply Ability
9999pieces / Month
Country of Origin
Shenzhen, Guangdong, China
Stock Time
7Day
Quantity:
Contact Now
add to cart

ShineLong Alpha Motion Sensor Waterproof IP65 LED Triproof Light

Designed for outdoor and wet environments, the ShineLong Alpha Motion Sensor Waterproof IP65 LED Tri-proof Light features an IP65 waterproof rating to ensure consistent performance in all weather conditions. The built-in motion sensor automatically detects human activity and provides a smart lighting solution to ensure safety and energy savings.

Key Features

1. IP65 waterproof, IK09 protection
   Offers excellent dustproof, waterproof, and impact resistance, suitable for harsh environments.
2. Full PC housing (frosted & striped cover option) with S304 stainless steel clips
   Durable design ensures long lifespan and reliability.
3. No dark area, anti-sulfur seal, anti-yellowing, non-cracking
   Ensures uniform lighting, extends service life, and maintains a clean appearance.
4. SMD2835 LED light source with global patent protection
   Uses high-quality light source for superior energy efficiency and reliability.
5. ENEC certified flicker-free driver
   Provides stable and safe lighting, reducing eye strain.
6. High efficacy, 120-140lm/w (+10%)
   Delivers higher energy efficiency and lower power consumption.
7. L80B10 lifespan of 50,000 hours (@ 25°C)
   Ensures consistent performance and long-lasting light output.
8. Retrofit to 2*18W, 2*36W, 2*58W fluorescent fittings
   Easily upgrades and replaces traditional fluorescent lights, saving energy.




Product Details

Data Sheet

  Light Source  SMD2835
  CRI  >80
  Beam Angle
  120°
  CCT  3000K/ 4000K/ 5000K/ 6000K
  AC Input  200-240V 50/60Hz
  DC Output  30-40V
  SDCM < 4
  Waterproof  IP65
  IK Rate  IK09
  Power Factor  >0.95
  Warranty  5 Years
  Operating Temperature  -20~+40℃



                                        All Models

Article Number
Power (W)
Lumen(lm)
Working Current(mA)
SL-P65X2-20-XM
20
2400
450
SL-P65X2-30-XM
30
3600
700
SL-P65X4-40-XM
40
4800
950
SL-P65X4-50-XM5060001200
SL-P65X5-50-XM5060001200
SL-P65X5-60-XM6072001400









  * Where the first “X” represents diffuser type, it can be F(Frosted), S(Striped)
  The second “X” represents CCT, it can be W(3000K/4000K), P(5000K), C(6000K)






Cover                              Standard                      Premium

Frosted                            120lm/w                        140lm/w

Striped                             130lm/w                        150lm/w

Please note:
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
3. Efficacy tolerance is ±10% and wattage tolerance is ±10%
4. lf CRl> 90, light efficiency will be reduced by 10-15%

Product Performance

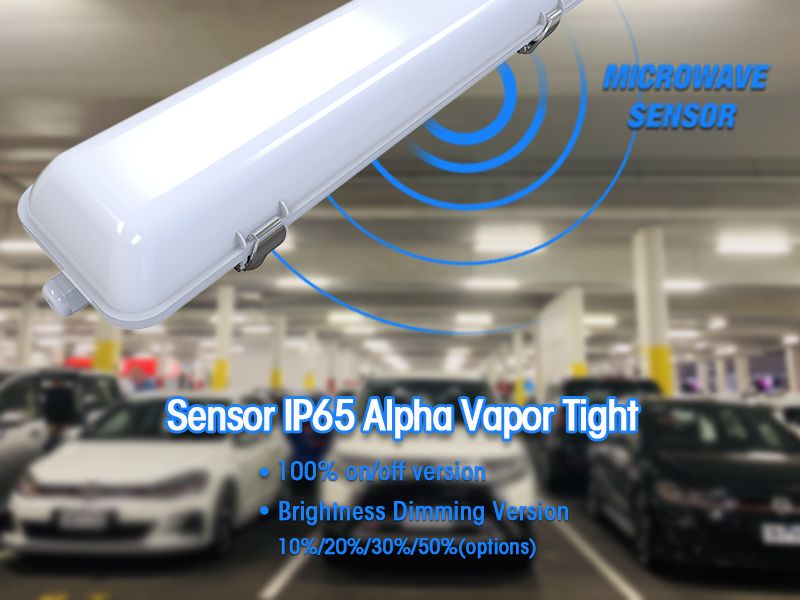

▪ Microwave Sensor Function:
The microwave sensing feature is an advanced smart lighting technology designed to improve energy efficiency and user experience. The feature utilizes a microwave sensor that transmits and receives microwave signals to accurately monitor surrounding activity. Once the sensor detects the movement of a person or object, the luminaire will automatically turn on; in the case of no activity, the luminaire will automatically turn off after a set delay time. This automated design effectively reduces energy waste and lowers electricity bills.
The technology's high sensitivity enables it to penetrate non-metallic objects, making installation locations more flexible and free from obstacles.

▶ SMD 2835

The LED Alpha vapor tight IP65 microwave sensor triproof light combines advanced technology and durability for superior performance. The light utilizes globally patented SMD2835 LED technology and 99.99% gold wire soldering to ensure superior conductivity and reliability. The innovative design prevents yellowing and cracking, which are common problems with traditional fixtures, and allows the Alpha light to maintain a clear, professional appearance in any environment. It also provides uniform illumination with no dark areas, creating a brighter, safer atmosphere. A sulfur-free seal further protects the luminaire from environmental contaminants, ensuring consistent performance even in harsh conditions.


▶ Powerful protection

Designed for superior durability and reliability, ShineLong Alpha vapor-tight waterproof tri-proof light has an IP65 waterproof rating that prevents the ingress of dust and water. This ensures optimum performance even in challenging environments such as outdoor environments or wet areas. Additionally, the lamp is IK09 rated for protection against shock and mechanical stress, enabling it to withstand harsh conditions and accidental collisions.


▶ Two housing options

ShineLong Alpha vapor tight triproof LED light for warehouse is equipped with a Mitsubishi high-transmittance PC cover, which improves both performance and aesthetics. With a frosted finish, the light has a luminous efficacy of up to 120lm/w, providing plenty of brightness while minimizing glare. Alternatively, the striped shade option increases luminous efficacy to 140lm/w, maximizing energy efficiency without compromising on lighting quality. In addition to its superior lighting capabilities, the Alpha lamp has been constructed with safety in mind. It has a 94V0 fire rating and is D-Mark certified, ensuring that the materials used are resistant to fire hazards.


▶ Flicker free

IP65 IK09 LED Alpha water-proof dust-proof damp-proof vapor tight triproof light comes with an ultra-long life strobe-free driver to reduce eye fatigue. In addition, the Alpha fixtures utilize 3*18AWG UL certified and 3*1.0mm² VDE certified rubberized cable for safety and durability. The luminaire supports series connections up to 1200W, allowing multiple luminaires to be used in series, making it easy and flexible to meet the lighting needs of different locations. This feature makes the LED Alpha ideal for large locations and applications that require extended lighting systems, such as industrial workshops, warehouses and shopping malls.


▶ Customizable instal fittings


Multiple usage scenarios
