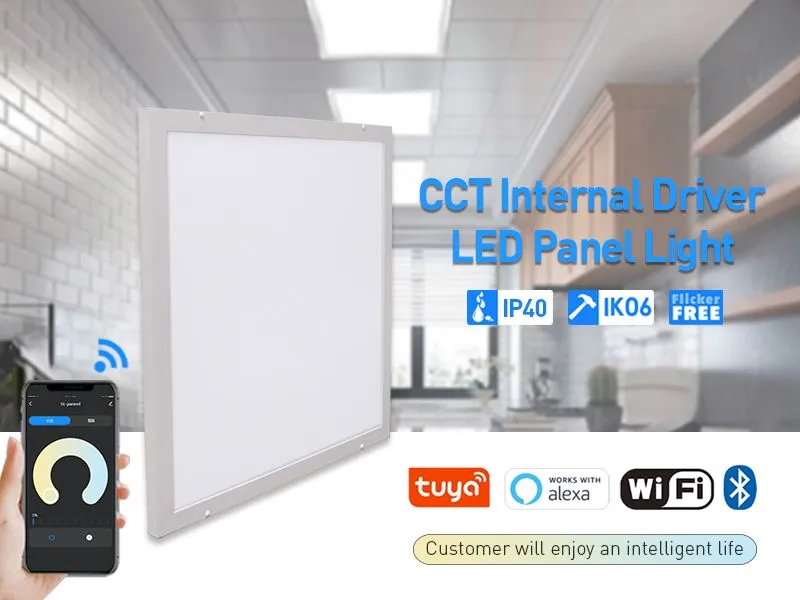

ShineLong CCT Internal Driver CE RoHS Certified IK06 IP40 Space-saving LED Panel Light
SL-P2240-X-BX26
Panel lights are modern lighting fixtures that are commonly used in indoor environments such as offices, stores and homes. They are known for their clean design and even light distribution, which can effectively reduce shadows and glare. Panel lights usually utilize LED light sources, which offer the benefits of energy efficiency and long life. Many panel lights also offer dimming functions, making it easy for users to adjust the brightness as needed to create a comfortable light environment.
Delivery
EXW, FOB
minimum order
30 pieces
Supply Ability
9999pieces / Month
Country of Origin
Shenzhen, Guangdong, China
Stock Time
7Day
Quantity:
ShineLong CCT Internal Driver Home Office Kitchen Study LED Ceiling Panel Light
ShineLong CCT Internal Driver LED Ceiling Panel Light provides the ideal lighting solution for your home, office, kitchen and den. Its adjustable color temperature design allows you to switch between warm and cool light at any time, adapting to the needs of different environments, while saving energy and efficiency, with even and soft light, not harsh on the eyes. The built-in driver design makes installation easier and brings a fresh and simple visual effect to modern spaces.
Key Features
1. Ultra-thin design: 16mm thickness, adjustable color temperature, built-in driver LED panel light
2. Certification: CE, RoHS certified, with IK06 impact resistance and IP40 dustproof protection level
3. Driver: integrated built-in non-strobe driver
4. Dimming function: support SCR dimming, provide three color temperature adjustment
5. intelligent control: support Wifi and Bluetooth, compatible with Tuya controller
6. instantly bright: edge light, no dark area, anti-yellowing
7. Luminous efficiency: 100lm/w +10%, up to 125lm/w ± 10%
8. Material: high quality aluminum + PMMA light guide plate
9. Service life: L80B10 life (Ta = 25 ℃) up to 70,000 hours, warranty 5 years
10. Installation: Ceiling mounting or frameless surface mounting.
3. Driver: integrated built-in non-strobe driver
4. Dimming function: support SCR dimming, provide three color temperature adjustment
5. intelligent control: support Wifi and Bluetooth, compatible with Tuya controller
6. instantly bright: edge light, no dark area, anti-yellowing
7. Luminous efficiency: 100lm/w +10%, up to 125lm/w ± 10%
8. Material: high quality aluminum + PMMA light guide plate
9. Service life: L80B10 life (Ta = 25 ℃) up to 70,000 hours, warranty 5 years
10. Installation: Ceiling mounting or frameless surface mounting.
Product Details
Data Sheet
| Light Source | SMD2835 |
| CRI | >80 |

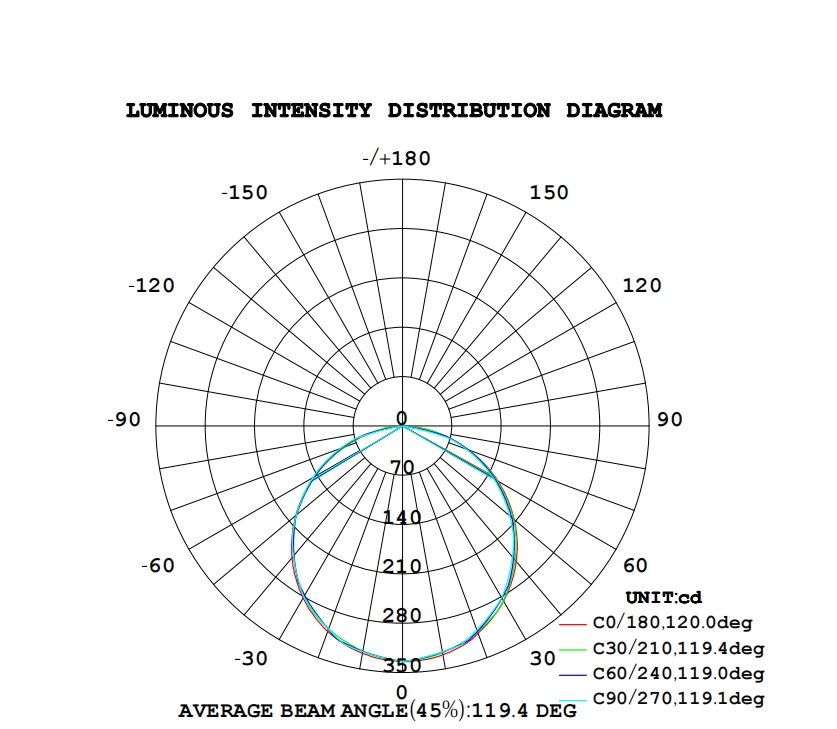

Beam Angle | 120° |
| CCT | 3000K/ 4000K/ 5000K/ 6000K & 4000K/ 5000K/ 6000K |
| AC Input | 200-240V 50/60Hz |
| SDCM | < 4 |
| Waterproof | IP40 |
| IK Rate | IK06 |
| Power Factor | >0.95 |
| Warranty | 5 Years |
| Operating Temperature | -20~+40℃ |
All Models
Article Number | Dimension (mm) | Power (W) | Lumen (lm) | Working Current (mA) |
SL-P2240-X-BX26 | 595*595*16 | 40 | 4000 | 950 |
| SL-P2240-X-BX26-A | 620*620*16 | 40 | 4000 | 950 |
SL-P1440-X-BX26 | 620*620*16 | 40 | 4000 | 950 |
* Where the “X” represents CCT, it can be W(3000K/4000K), P(5000K), C(6000K)
Cover Standard Premium
Frosted 100lm/w 125lm/w
Please note:
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
3. Efficacy tolerance is ±10% and wattage tolerance is ±10%
4. lf CRl> 90, light efficiency will be reduced by 10-15%
Product Performance

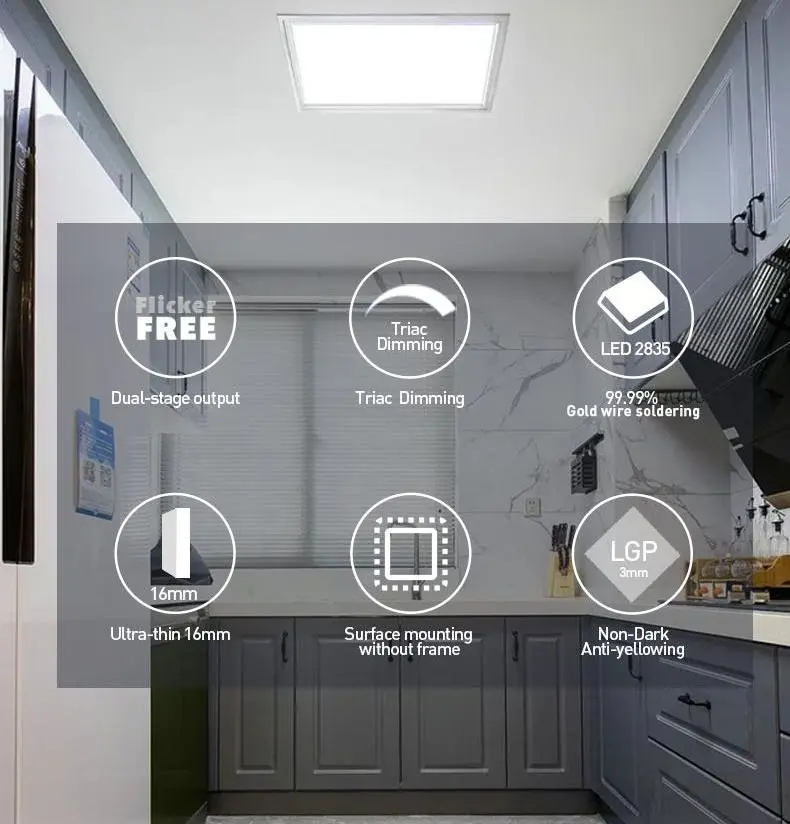

▶ High quality lighting
This CCT internal driver LED panel light ensures to provide stable and comfortable lighting through FlickerFREE strobe-free technology. With dual-stage output and Triac dimming function, the light brightness can be adjusted flexibly, easily adapting to different scene needs. Equipped with LED 2835 lamp beads and 99.99% high purity gold wire welding, which guarantees the high brightness and long-lasting performance of the lamps. The thickness of the lamp is only 10mm, ultra-thin design with frameless installation style, suitable for various indoor space applications. High-quality 3mm light guide plate with anti-yellowing characteristics, so that the lamps and lanterns after a long time of use is still bright as before.
▶ Flexible adjustment
ShineLong CE RoHS certified IK06 IP40 internal driver LED panel light supports 3000K to 6000K color temperature range and 0%-100% brightness adjustment, users can freely adjust the light color and brightness to fit different daily scenes. Whether you need bright light when cooking, soft light when taking a bath, or weak illumination when waking up at night, this fixture can easily satisfy and provide the best visual comfort. Flexible color temperature and brightness options allow the light to fit a variety of activities, delivering a personalized and differentiated lighting experience.

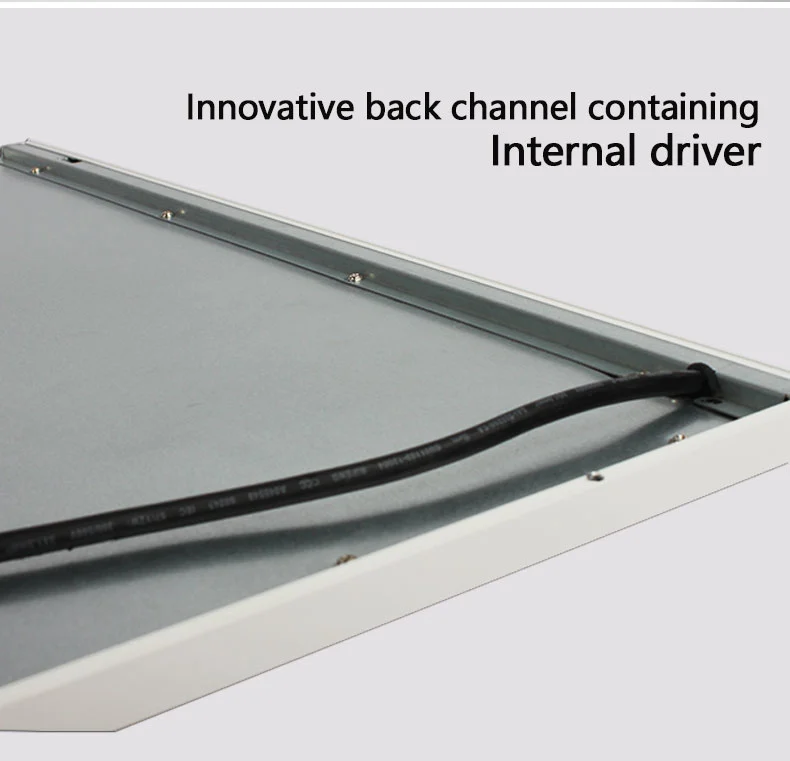

▶ Innovative design
The home office kitchen study ceiling LED panel light features a unique rear channel design that cleverly integrates the driver inside the body of the light, which improves space utilization and ensures the overall aesthetics of the luminaire. The internal driver design reduces the need for external fittings, making the luminaire easier and faster to install, while reducing the installation space occupied. The innovative structure optimizes the heat dissipation performance, extends the service life of the luminaire and improves the stability of the light.

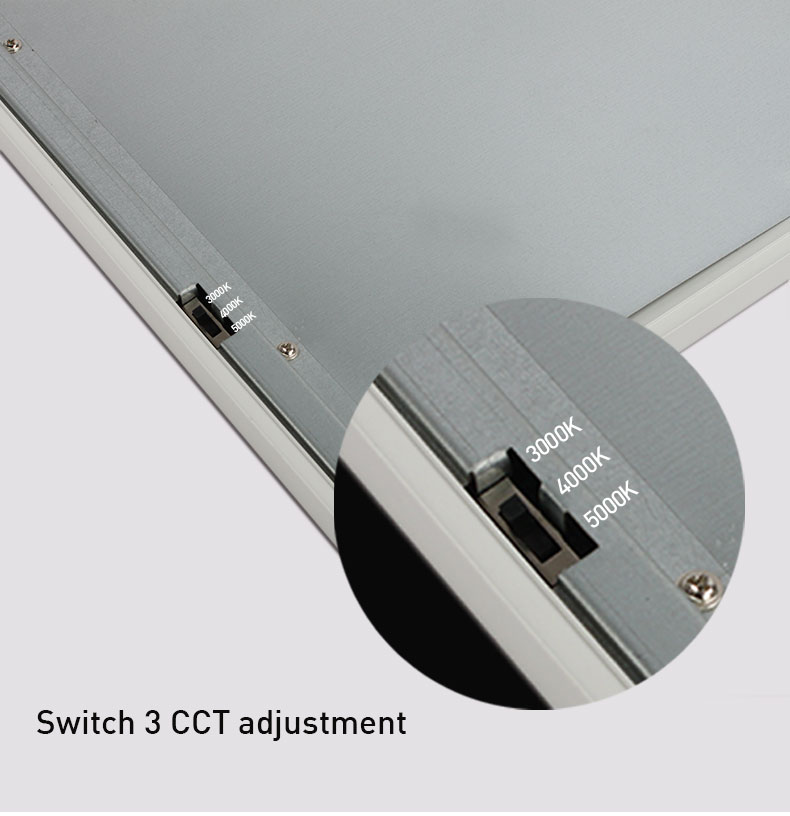

▶ Three-speed color temperature adjustment
ShineLong CCT internal driver space-saving LED ceiling panel light is equipped with three adjustable color temperature function, users can easily choose 3000K, 4000K and 5000K color temperature, flexible to deal with different use of the scene. 3000K is a warm yellow light, suitable for creating a warm, relaxing environment; 4000K is a neutral light, which is suitable for daily life, but also provides clear lighting; 5000K is a cool white light, which is able to Provide bright, clear lighting, especially suitable for kitchens, work and other places that require efficient lighting.

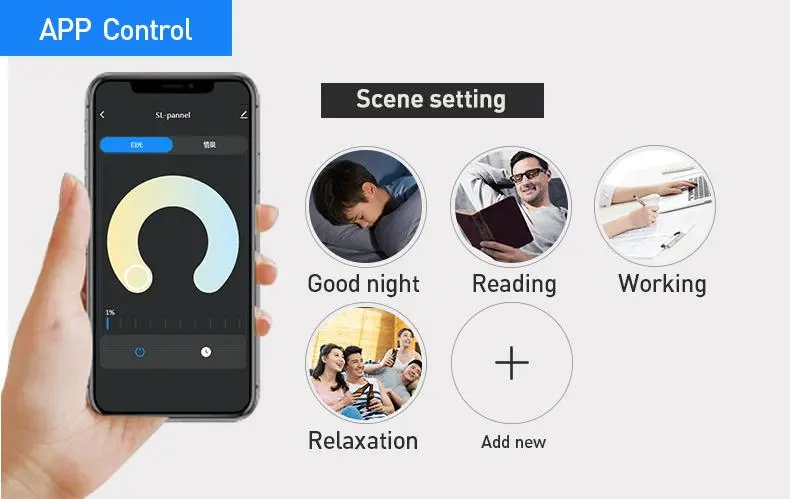

▶ Smart APP control
This IK06 IP40 approved brightness internal driver LED panel light supports intelligent control via APP, allowing you to adjust the lighting anytime and anywhere. Users can choose preset lighting modes according to different needs, such as “Good night”, “Reading”, “Working” and “Relaxation”. Reading”, ‘Working’ and ‘Relaxation’. Through the app, new lighting scenes can also be created and added to respond to more of life's demands.
▶ Installation

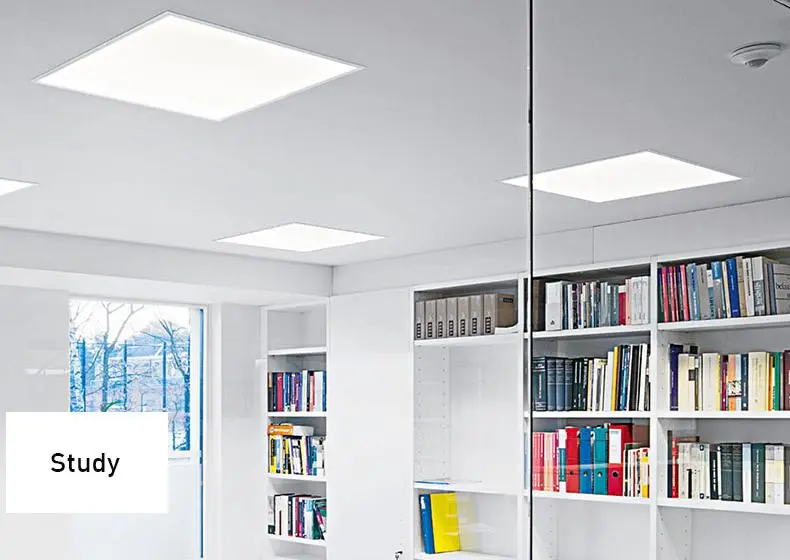

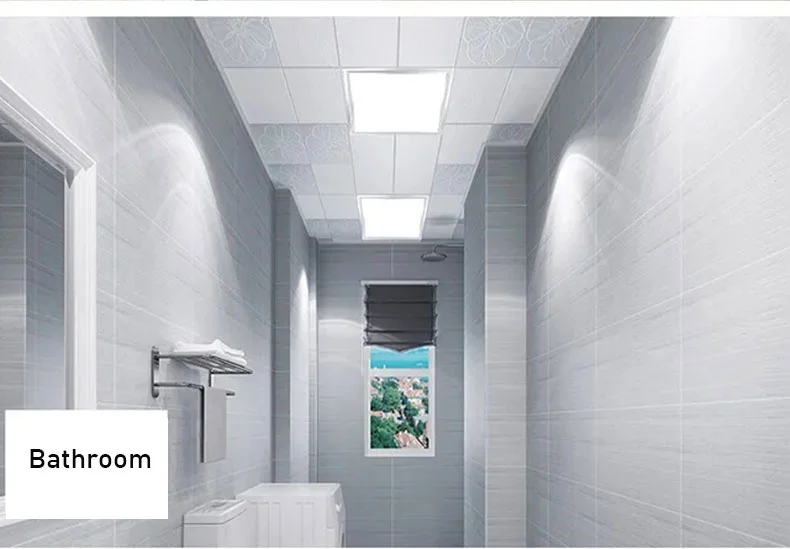

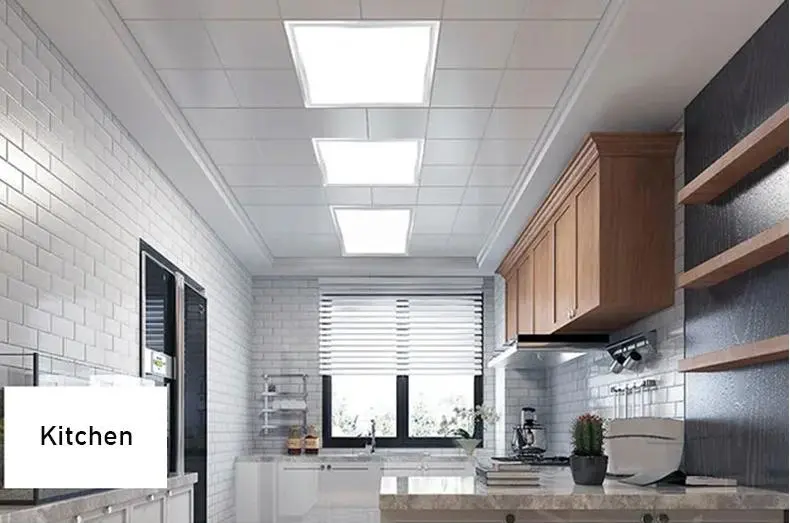

Applications
