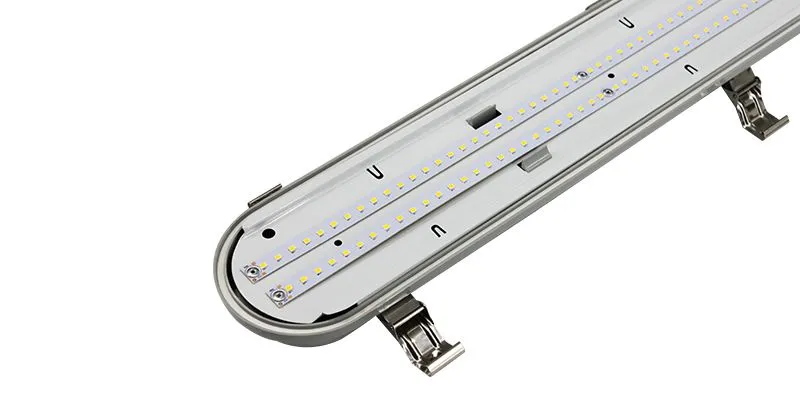

ShineLong Eco Alpha Light Dimmable IP65 IK09 Emergency LED Triproof Light
SL-P65X4-20-XB
Tri-proof light is a kind of lighting equipment designed for harsh environments with waterproof, dustproof and corrosion-resistant features. They are usually made of high-strength materials and can work properly under extreme conditions, ensuring the provision of stable and reliable lighting effects, as well as energy-saving and environmentally friendly, with a long service life, and are suitable for use in industry, warehouses, workshops and other places.
Delivery
EXW, FOB
minimum order
30 pieces
Supply Ability
9999pieces / Month
Country of Origin
Shenzhen, Guangdong, China
Stock Time
7Day
Quantity:
ShineLong Eco-Alpha IP65 IK09 3Hours Emergency LED Triproof Light
ShineLong Eco-Alpha IP65 IK09 3-Hour Emergency LED Triproof Light has IP65 waterproof rating and IK09 impact rating, which is able to withstand water, dust and mechanical impacts, suitable for a variety of indoor and outdoor locations. A built-in 3-hour emergency power supply ensures that the luminaire will still provide reliable lighting in the event of a power outage or unexpected situation.
Key Features
1. Protection level: IP65 waterproof, IK09 anti-impact protection
2. shell material: full PC shell (optional frosted or striped models), with 304 stainless steel buckle
3. Durability: no dark areas, anti-sulfuration sealing, anti-yellowing, not easy to crack
4. Light source: SMD2835 LED light source, with global patent protection.
5. drive certification: UL Class P certified driver
6. luminous efficiency: high efficiency, 120-140lm/W (± 10%)
7. Lifetime: L80B10 life of 50,000 hours (@ Ta = 25 ℃)
8. Replacement effect: can replace 1 * 36W, 2 * 36W, 2 * 58W fluorescent lamps
3. Durability: no dark areas, anti-sulfuration sealing, anti-yellowing, not easy to crack
4. Light source: SMD2835 LED light source, with global patent protection.
5. drive certification: UL Class P certified driver
6. luminous efficiency: high efficiency, 120-140lm/W (± 10%)
7. Lifetime: L80B10 life of 50,000 hours (@ Ta = 25 ℃)
8. Replacement effect: can replace 1 * 36W, 2 * 36W, 2 * 58W fluorescent lamps
Product Details
Data Sheet
| Light Source | SMD2835 |
| CRI | >80 |

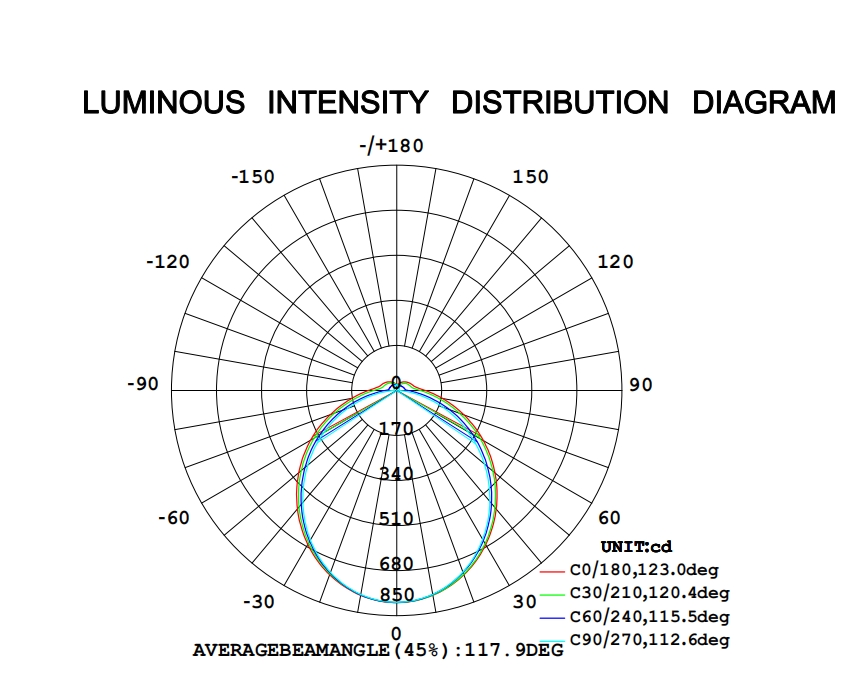

Beam Angle | 120° |
| CCT | 3000K/ 4000K/ 5000K/ 6000K |
| AC Input | 100-277V 50/60Hz |
| DC Output | 30-40V |
| SDCM | < 4 |
| Waterproof | IP65 |
| IK Rate | IK09 |
| Power Factor | >0.95 |
| Warranty | 5 Years |
| Operating Temperature | -20~+40℃ |
All Models
Article Number | Power (W) | Lumen(lm) | Working Current(mA) |
SL-P65X4-20-XM | 20 | 2400 | 450 |
SL-P65X4-40-XM | 40 | 4800 | 950 |
SL-P65X5-40-XM | 40 | 4800 | 950 |
| SL-P65X5-60-XM | 60 | 7200 | 1400 |
* Where the first “X” represents diffuser type, it can be F(Frosted), S(Striped)
The second “X” represents CCT, it can be W(3000K/4000K), P(5000K), C(6000K)
Cover Standard Premium
Frosted 120lm/w 140lm/w
Striped 130lm/w 150lm/w
Please note:
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
3. Efficacy tolerance is ±10% and wattage tolerance is ±10%
4. lf CRl> 90, light efficiency will be reduced by 10-15%
Product Performance

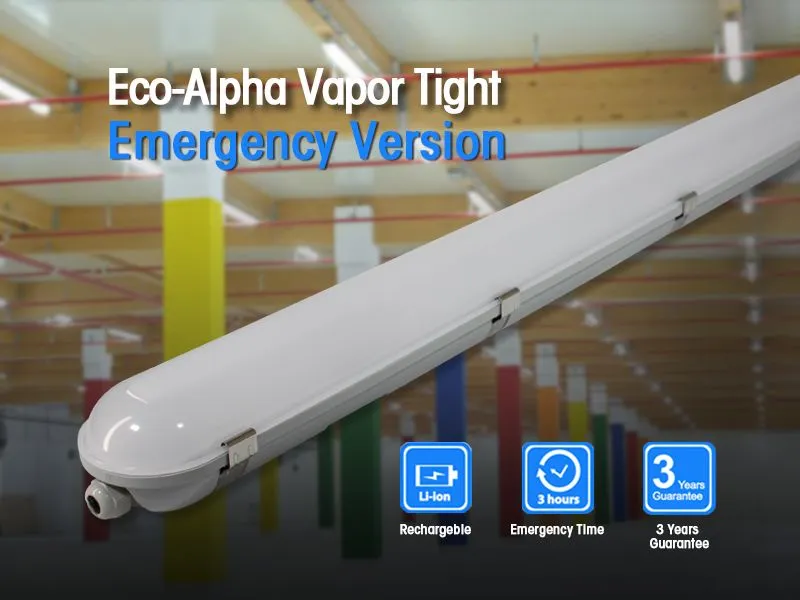

▪ Emergency Function:
The emergency function of a tri-proof light is to provide backup lighting in the event of a power outage or power failure to ensure safety and visibility. Generally, tri-proof lights with emergency function have a built-in battery backup, so when the power supply is interrupted, the light will automatically switch to emergency mode to provide continuous lighting. Emergency lighting time is typically 1 to 3 hours, depending on battery capacity and settings. This feature ensures that a reliable light source is available even in unexpected situations, reducing the risk of accidents.
The emergency function of a tri-proof light is to provide backup lighting in the event of a power outage or power failure to ensure safety and visibility. Generally, tri-proof lights with emergency function have a built-in battery backup, so when the power supply is interrupted, the light will automatically switch to emergency mode to provide continuous lighting. Emergency lighting time is typically 1 to 3 hours, depending on battery capacity and settings. This feature ensures that a reliable light source is available even in unexpected situations, reducing the risk of accidents.

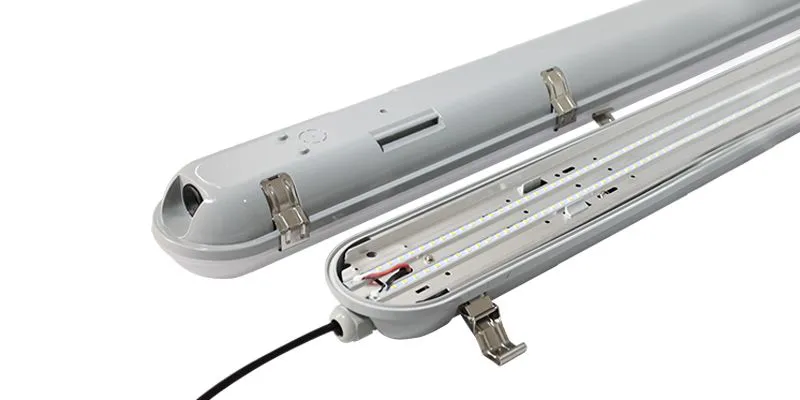

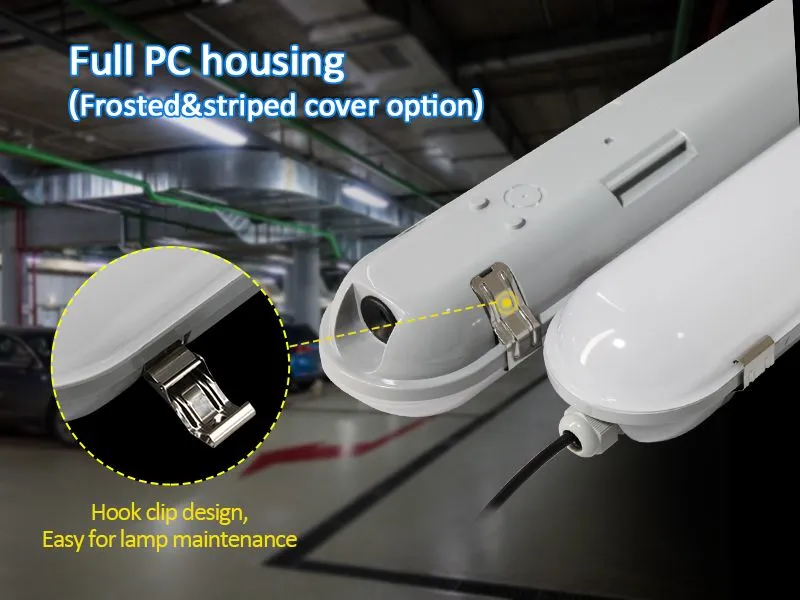

▶ Full PC housing
ShineLong LED eco-alpha vapor tight color temperature optional triproof light is designed with an all-PC housing with a choice of frosted or striped shades to meet different lighting needs. This high-quality PC material is not only lightweight but also extremely strong and resistant to dust, moisture and corrosive substances. In addition, the housing has superior impact resistance, ensuring that it will not be easily damaged in daily use. The unique hook clip can be opened and closed by a simple operation to complete the rapid maintenance of the lamps, greatly reducing the maintenance time and maintenance costs.

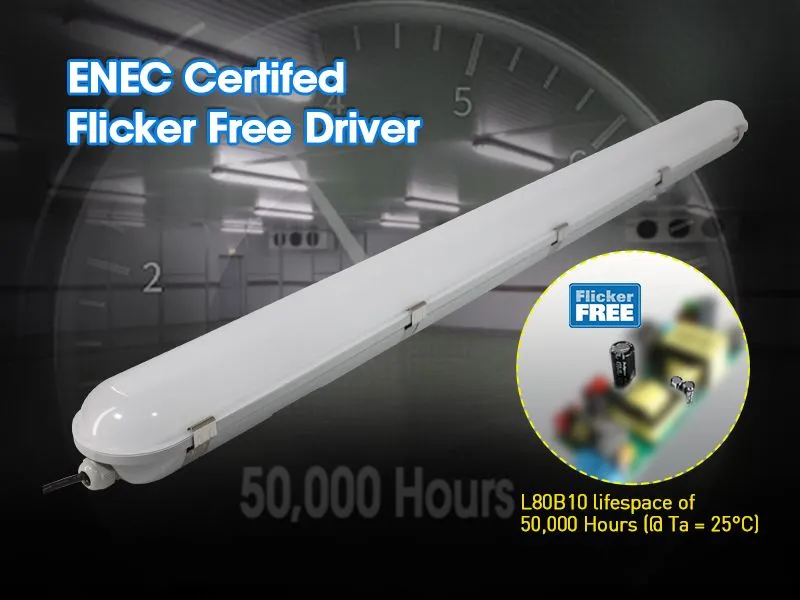

▶ Flicker free
ShineLong eco-alpha IP65 IK09 3hours emergency office warehouse store LED tri-proof light is equipped with ENEC-certified strobe-free drivers that meet the high standards of the European market, providing superior lighting quality and ensuring stable, flicker-free light. In addition, the L80B10 for Eco-Alpha luminaires has a lifetime of up to 50,000 hours (@ Ta = 25°C), i.e., a time period in which light degradation is less than 20% and 90% of the luminaire is still functioning. This long service life makes it an ideal choice for long-term investments.

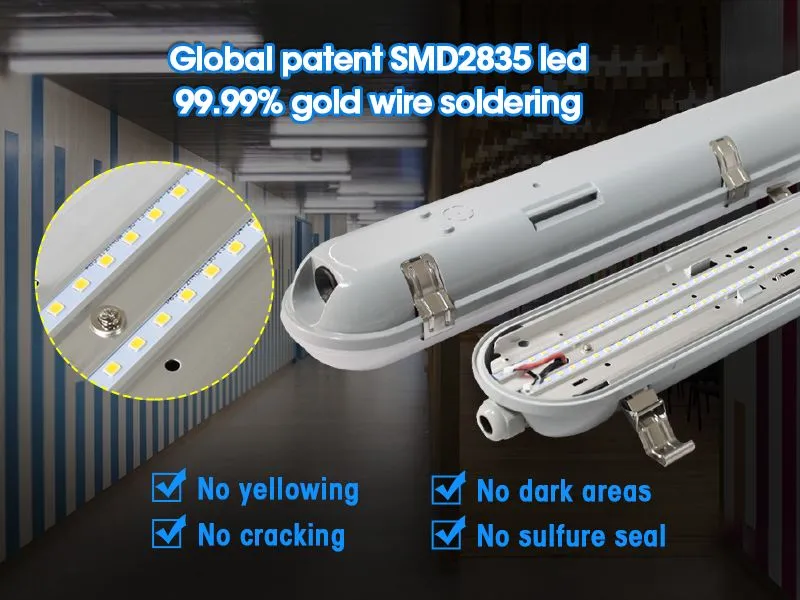

▶ Technical expertise
Eco-alpha PC IP65 LED profile waterproof emergency battery triproof light utilizes a globally patented SMD2835 LED chip with 99.99% high purity gold wire soldering technology. This high quality LED chip effectively avoids common problems such as yellowing, cracking and dark areas. The high purity gold wire soldering further enhances the stability and oxidation resistance of the fixture. In addition, the special anti-sulfuration sealing design provides additional protection for the LED chips against sulfide intrusion that can lead to light decay or performance degradation.

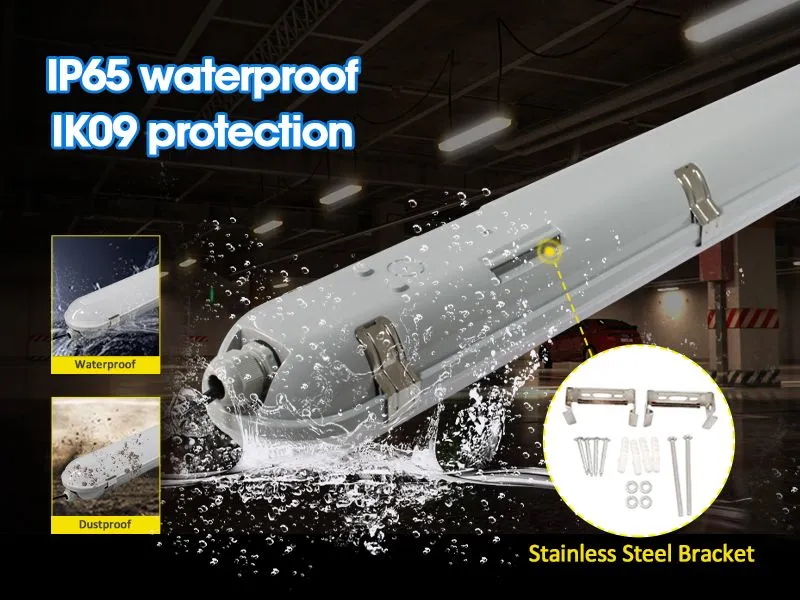

▶ Powerful protection
ShineLong IP65 IK09 high efficiency waterproof dustproof eco-alpha triproof light features an IP65 waterproof rating and an IK09 impact rated design to resist water, dust, and external impacts.The IP65 rated fixture is perfect for installing in parking lots, basements, and outdoor locations without being affected by moisture. The stainless steel bracket further enhances the durability and robustness of the product, with excellent corrosion resistance, even in salt spray environments or humid areas.
