ShineLong Eco Mini II PC Dali Dimming IP65 Waterproof LED Triproof Light
SL-M65X2-20-XL-D
Tri-proof light is a kind of lighting equipment designed for harsh environments with waterproof, dustproof and corrosion-resistant features. They are usually made of high-strength materials and can work properly under extreme conditions, ensuring the provision of stable and reliable lighting effects, as well as energy-saving and environmentally friendly, with a long service life, and are suitable for use in industry, warehouses, workshops and other places.
Delivery
EXW, FOB
minimum order
30 pieces
Supply Ability
9999pieces / Month
Country of Origin
Shenzhen, Guangdong, China
Stock Time
7Day
Quantity:
ShineLong Eco-Mini II PC Dali Control IP65 Waterproof LED Triproof Light
ShineLong Eco-Mini II PC Dali Dimming IP65 Waterproof LED Triproof Light utilizes advanced DALI control technology and supports flexible brightness adjustment to meet different lighting needs. The rugged IP65 protection rating ensures that it still performs well in wet, dusty and even harsh industrial environments, making it ideal for use in garages, warehouses and industrial workshops.
Key Features
1. Certification standard: CE, RoHS
2. Protection level: IP65 waterproof, IK09 protection
3. Dialing code to change the power
4. Dial tone to change color temperature
5. Cost-effective: linkable, no tools required
6. No dark zone: sulfur-free sealing, anti-yellowing, not easy to crack
7. material: full PC shell (frosted cover), with S304 fixture
8. High efficiency: 130lm/w (±10%), up to 140lm/w (±10%)
9. High color rendering index: Ra>80, SDCM<4
10. flicker-free built-in driver
11. High power factor: >0.95
12. Input voltage: AC200-240V 50/60Hz
13. Service life: L80B10 (Ta = 25 ℃) > 50,000 hours, warranty 5 years
14. Installation: hanging and ceiling mounting, easy maintenance.
15. Applicable places: parking lots, warehouses, train stations, corridors, galleries
2. Protection level: IP65 waterproof, IK09 protection
3. Dialing code to change the power
4. Dial tone to change color temperature
5. Cost-effective: linkable, no tools required
6. No dark zone: sulfur-free sealing, anti-yellowing, not easy to crack
7. material: full PC shell (frosted cover), with S304 fixture
8. High efficiency: 130lm/w (±10%), up to 140lm/w (±10%)
9. High color rendering index: Ra>80, SDCM<4
10. flicker-free built-in driver
11. High power factor: >0.95
12. Input voltage: AC200-240V 50/60Hz
13. Service life: L80B10 (Ta = 25 ℃) > 50,000 hours, warranty 5 years
14. Installation: hanging and ceiling mounting, easy maintenance.
15. Applicable places: parking lots, warehouses, train stations, corridors, galleries
Product Details
Data Sheet
| Light Source | SMD2835 |
| CRI | >80 |
Beam Angle | 120° |
| CCT | 3000K/ 4000K/ 5000K/ 6000K |
| AC Input | 200-240V 50/60Hz |
| DC Output | 35-170V |
| SDCM | < 4 |
| Waterproof | IP65 |
| IK Rate | IK09 |
| Power Factor | >0.95 |
| Warranty | 5 Years |
| Operating Temperature | -20~+40℃ |
All Models
Article Number | Power (W) | Lumen(lm) |
SL-M65X2-20-XL-D | 20 | 2600 |
SL-M65X4-36-XL-D | 35 | 4680 |
SL-M65X5-45-XL-D | 45 | 5850 |
* The"X"represents CCT, it can be W(3000K/4000K), P(5000K), C(6000K), D(3000K/4000K/5000K or 4000K/5000K/6000K)
Cover Standard Premium
Frosted 130lm/w 140lm/w
Please note:
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
3. Efficacy tolerance is ±10% and wattage tolerance is ±10%
Product Performance
▪ DALI (Digital Addressable Control Interface) Control Function:
DALI is a digital communication protocol used to control lighting equipment, which can realize point-to-point control of lamps and lanterns, enabling users to adjust the light freely according to the actual demand.
Through DALI control, users can realize the dimming function and adjust thebrightness precisely, and the DALI system also supports group control, so that multiple lamps and lanterns can be grouped and managed uniformly. Users can also set up different lighting scenes according to specific occasions. Meanwhile, the timer controlfunction allows the luminaires to be switched on and off automatically according to a preset time, further improving energy efficiency. The status feedback function of the DALI system enables real-time monitoring of the luminaires' operating status, timely detection of faults and easy maintenance.
DALI is a digital communication protocol used to control lighting equipment, which can realize point-to-point control of lamps and lanterns, enabling users to adjust the light freely according to the actual demand.
Through DALI control, users can realize the dimming function and adjust thebrightness precisely, and the DALI system also supports group control, so that multiple lamps and lanterns can be grouped and managed uniformly. Users can also set up different lighting scenes according to specific occasions. Meanwhile, the timer controlfunction allows the luminaires to be switched on and off automatically according to a preset time, further improving energy efficiency. The status feedback function of the DALI system enables real-time monitoring of the luminaires' operating status, timely detection of faults and easy maintenance.
▶ Multiple functions
ShineLong eco-mini II PC IP65 waterproof IK09 protection LED tri-proof light fixture combines four major advantages: no dark areas, anti-yellowing, anti-cracking & sulfur-free sealing. The no-dark-area design ensures that the entire space is uniformly bright. The fixture has been specially treated to provide excellent anti-yellowing properties and remains clear and transparent even after prolonged use. The lamp body is made of high quality material with anti-cracking characteristics. The sulfide-free sealing design not only improves environmental friendliness, but also avoids the effects that sulfide may have on the light source and lamp body in traditional lamps, further extending the life of the lamp.
▶ High quality materials
This IP65 IK09 flicker free Eco-Mini II PC Dali Dimming LED tri-proof light features a high-quality PC housing with an IP65 protection rating for dust and water resistance, making it suitable for use in a variety of complex locations such as parking lots, garages, warehouses and industrial facilities. The luminaire's IK09 impact rating ensures that it remains structurally stable in the event of an external impact. In addition, the #304 stainless steel mounting bracket is corrosion resistant and not easily rusted. Designed with waterproof cable glands, it effectively improves the sealing of the electrical connections and prevents moisture from entering.
▶ Adjustable design

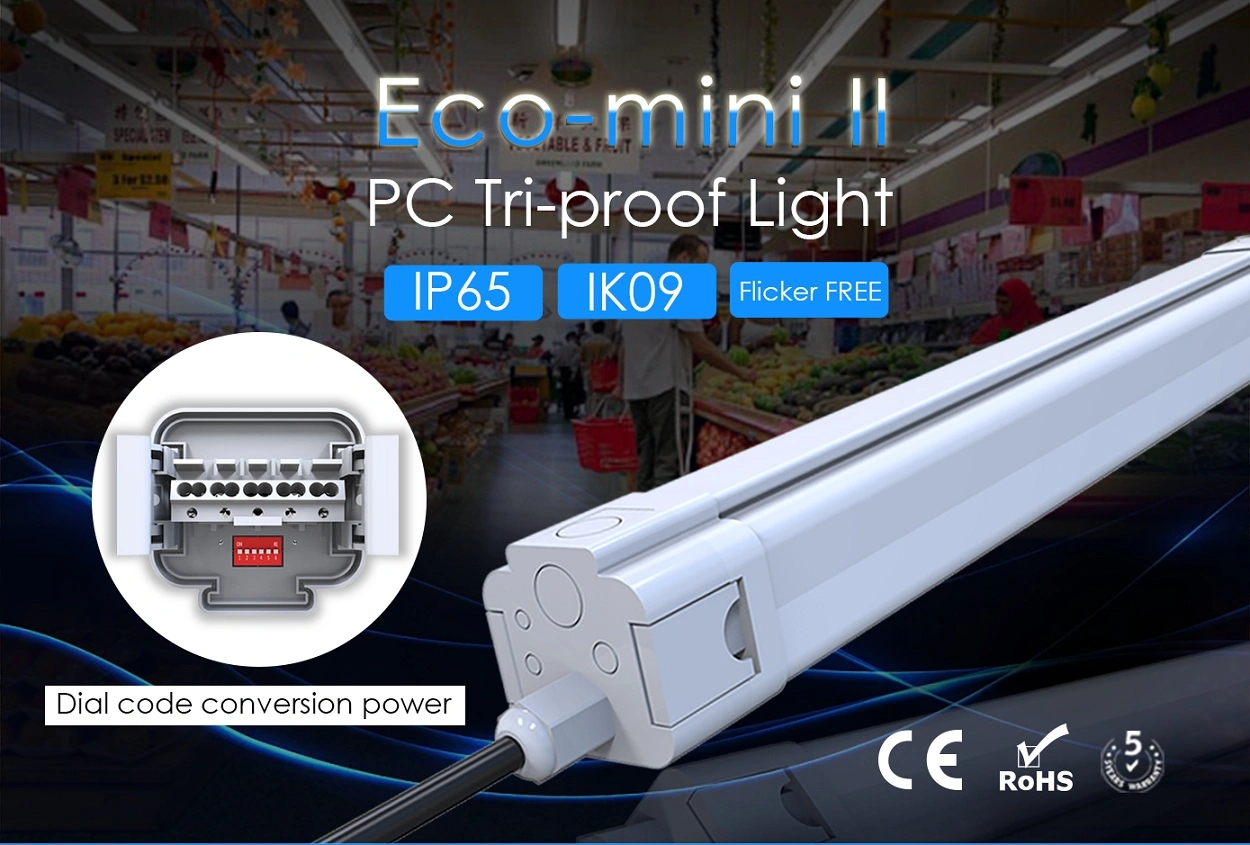

Eco-mini color temperature optional IP65 IK09 dali dimmable LED triproof light adopts DIP switch design, which makes power and color temperature adjustment more convenient, and users can switch between warm and cold light flexibly. This luminaire has a high luminous efficacy of 130~140 lm/w, which ensures the output of bright and clear lighting effect with low energy consumption.
Combined with the double adjustable characteristics of power and color temperature, this luminaire shows great flexibility and adaptability in installation and use. Users can precisely adjust the light source according to specific needs, which not only saves operating costs, but also improves the use of experience.
Combined with the double adjustable characteristics of power and color temperature, this luminaire shows great flexibility and adaptability in installation and use. Users can precisely adjust the light source according to specific needs, which not only saves operating costs, but also improves the use of experience.
▶ Flicker free
IP65 Eco Mini II PC IP65 waterproof dial code conversion power LED triproof light fixture has a built-in strobe-free driver to ensure stable light output, especially suitable for use in long-time working environments, such as industrial plants, garages and warehouses. Adopting high quality SMD2835 LED light source, which is protected by global patent. The lamp bead welding adopts 99.99% pure gold welding wire, which improves the adhesion of the lamp bead. The gold soldering wire not only enhances the conductivity, but also has excellent oxidation and high temperature resistance, avoiding performance degradation due to frequent switching or high temperature environment, and prolonging the service life of the lamps and lanterns.

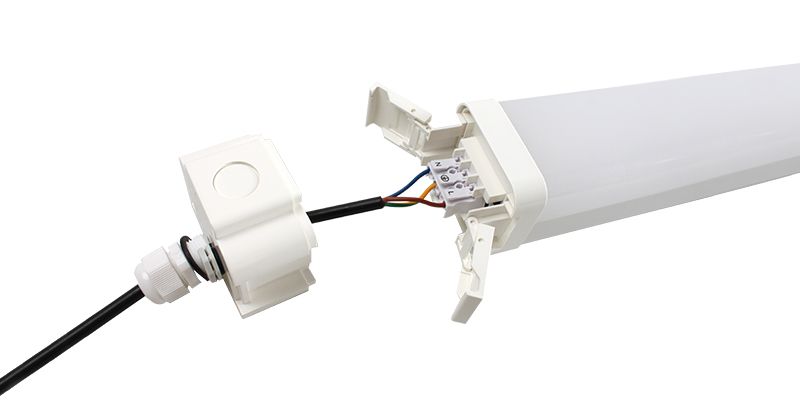

▶ Multiple connection methods
▶ Two options
Suitable for Many Locations
