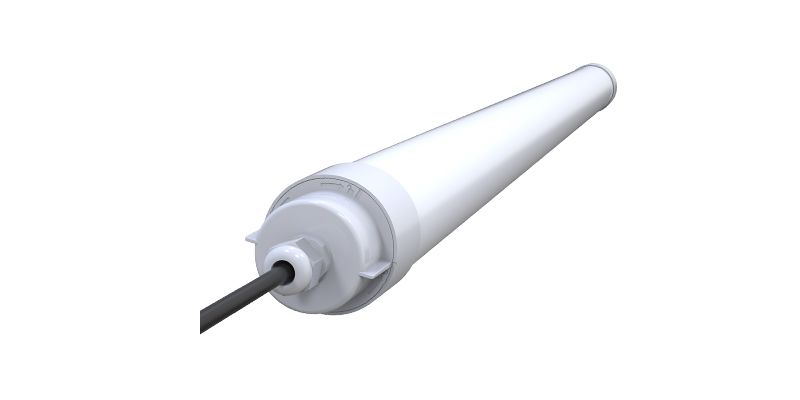

ShineLong Eco-Rancher IP66/IP69K Plastic 1-10V Dim and DIP Switch Tri-proof Light
SL-P66X2-20-XD-D
Tri-proof light is a kind of lighting equipment designed for harsh environments with waterproof, dustproof and corrosion-resistant features. They are usually made of high-strength materials and can work properly under extreme conditions, ensuring the provision of stable and reliable lighting effects, as well as energy-saving and environmentally friendly, with a long service life, and are suitable for use in industry, warehouses, workshops and other places.
Delivery
EXW, FOB
minimum order
30 pieces
Supply Ability
9999pieces / Month
Country of Origin
Shenzhen, Guangdong, China
Stock Time
7Day
Quantity:
ShineLong Eco-Rancher Optional IP66 IP69K 1-10V Dim LED Triproof Light
ShineLong Eco-Rancher Optional IP66/IP69K 1-10V dimmable LED triproof light is not only waterproof, dustproof and corrosion-resistant, but also supports 1-10V dimmable function, which can satisfy diversified lighting needs. It is thinner than Rancher series and has higher illumination rate, which is suitable for farms and other places.
Key Features
1. Certification standards: CE, RoHS compliant
2. Protection level: IP66 waterproof, IK09 protection level
3. Power supply: built-in power switch
4. Color temperature adjustment: adjustable color temperature switch
5. Connectivity: can be connected in series, cost-effective, tool-free installation
6. anti-aging performance: no dark zone design, anti-sulfur encapsulation, anti-yellowing, non-cracking
7. Material: full PC shell (frosted cover) with $ 316 stainless steel fixture
8. High luminous efficacy: 130lm/W +10%, up to 140lm/W ±10%.
9. color rendering: high color rendering index (Ra>80), SDCM less than 4
10. Strobe-free driver: built-in strobe-free driver (non-dimming / 1-10V dimming / microwave sensor function optional)
11. high power factor: power factor >0.95
12. Input voltage: AC200-240V, 50/60Hz
13. Lifetime and Warranty: L80B10 (Ta = 25 ℃) > 50,000 hours, 5 years warranty
14. Installation: support hanging and ceiling mounting, easy to install and maintain.
15. Applicable places: applicable to parking lots, warehouses, railway stations, corridors, corridors.
2. Protection level: IP66 waterproof, IK09 protection level
3. Power supply: built-in power switch
4. Color temperature adjustment: adjustable color temperature switch
5. Connectivity: can be connected in series, cost-effective, tool-free installation
6. anti-aging performance: no dark zone design, anti-sulfur encapsulation, anti-yellowing, non-cracking
7. Material: full PC shell (frosted cover) with $ 316 stainless steel fixture
8. High luminous efficacy: 130lm/W +10%, up to 140lm/W ±10%.
9. color rendering: high color rendering index (Ra>80), SDCM less than 4
10. Strobe-free driver: built-in strobe-free driver (non-dimming / 1-10V dimming / microwave sensor function optional)
11. high power factor: power factor >0.95
12. Input voltage: AC200-240V, 50/60Hz
13. Lifetime and Warranty: L80B10 (Ta = 25 ℃) > 50,000 hours, 5 years warranty
14. Installation: support hanging and ceiling mounting, easy to install and maintain.
15. Applicable places: applicable to parking lots, warehouses, railway stations, corridors, corridors.
Product Details
Data Sheet
| Light Source | SMD2835 |
| CRI | >80 |
Beam Angle | 120° |
| CCT | 3000K/ 4000K/ 5000K/ 6000K |
| AC Input | 200-240V 50-60Hz |
| DC Output | 35-170V |
| SDCM | < 4 |
| Waterproof | IP66 |
| IK Rate | IK09 |
| Power Factor | >0.95 |
| Warranty | 5 Years |
| Operating Temperature | -20~+40℃ |
All Models
Article Number | Power (W) | Lumen(lm) |
SL-P66X2-20-XD-D | 20 | 2600 |
SL-P66X4-35-XD-D | 35 | 4680 |
SL-P66X5-45-XD-D | 45 | 5850 |
*The"X"represents CCT, it can be W(3000K/4000K), P(5000K), C(6000K), D(3000K/4000K/5000K or 4000K/5000K/6000K)
Cover Standard Premium
Frosted 130lm/w 140lm/w
Please note:
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
3. Efficacy tolerance is ±10% and wattage tolerance is ±10%
Product Performance

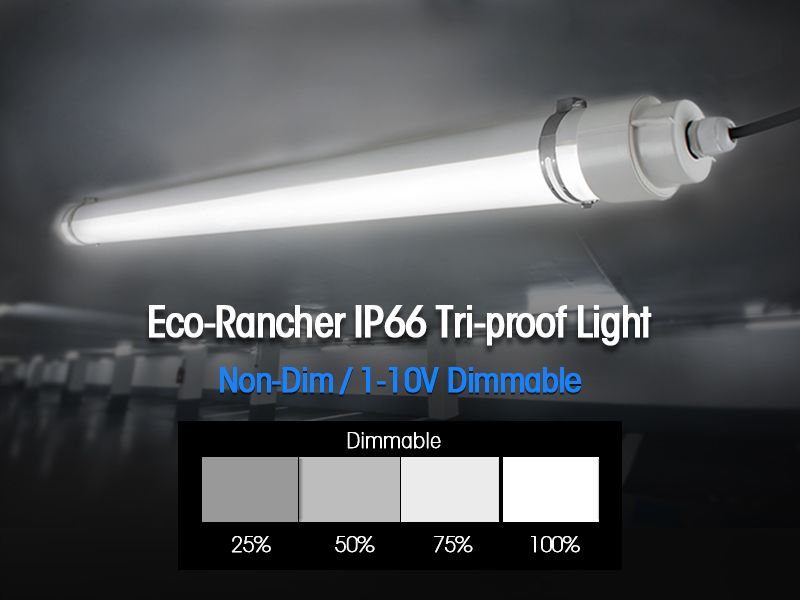

▪ 0/1-10V DIMMABLE FUNCTION:
Allows users to flexibly adjust the light intensity according to actual needs. With a simple dimming control, users can precisely adjust the brightness of the fixture within the range of 0 to 10 volts, realizing stepless changes from full brightness to full darkness. This high degree of flexibility allows the luminaire to adapt to the needs of different scenarios, helping users create the ideal lighting environment.
Allows users to flexibly adjust the light intensity according to actual needs. With a simple dimming control, users can precisely adjust the brightness of the fixture within the range of 0 to 10 volts, realizing stepless changes from full brightness to full darkness. This high degree of flexibility allows the luminaire to adapt to the needs of different scenarios, helping users create the ideal lighting environment.
▶ Powerful protection
The ShineLong Eco-Rancher LED triproof light is IP66 waterproof and IK09 impact rated, providing excellent water, dust and moisture resistance for use in high humidity or harsh environments such as parking lots, warehouses and food processing plants. Sealed to keep out moisture and dust, reducing maintenance and extending service life, the IK09 rated impact resistant housing is durable enough to withstand physical impact in industrial environments, making the Eco-Rancher series suitable for lighting in harsh environments.
▶ Flexible and adjustable
Eco-Rancher 1-10V Dim LED tri-proof fixtures are equipped with DIP switches to support flexible adjustment of power and color temperature. With simple switch settings, users can switch between multiple power modes to meet the lighting needs of different scenarios. With the color temperature adjustable from cool white to warm white, the Eco-Rancher IP66 has a high luminous efficacy of 130-140 lm/w, which not only reduces the energy consumption but also improves the light output efficiency, providing users with a high-quality lighting experience.
▶ Easy installation
The Eco-Rancher IP66 IK09 triproof light is designed with a swivel end cap that simplifies the wiring process and makes installation and maintenance easier. The luminaire has been rigorously tested to meet the L80B10 standard, which means it has a service life of more than 50,000 hours at an ambient temperature of 25°C with a light decay of less than 20%.
▶ High-quality material
ShineLong Eco-Rancher LED vapor tight waterproof light is made of high quality PC material housing with excellent resistance to high temperature, corrosion and embrittlement. This high quality PC housing remains stable in high temperature environments and is not easily deformed or damaged. Its corrosion-resistant properties enable the luminaire to withstand moisture and chemicals and maintain a long-lasting shine and appearance. Anti-brittle properties ensure that the luminaire is less likely to crack in low temperatures, prolonging its service life.
▶ Tool free
The Eco-Rancher IP66/IP69K protection 0-10V dimming LED triproof light is designed to be easy to use, and can support single-lamp connection and series connection for more efficient installation layout. With the ability to connect multiple units in series, the Eco-Rancher is ideal for large workshops, underground parking lots, and other locations that require continuous illumination, and it also supports tool-less installation, which further enhances installation efficiency and convenience.
▶ Two options
Multiple Applications
