ShineLong High Efficiency High CRI Quick Replacement Customized Size LED Advertising Panel Light
SL-P1115-X-AX20
Panel lights are modern lighting fixtures that are commonly used in indoor environments such as offices, stores and homes. They are known for their clean design and even light distribution, which can effectively reduce shadows and glare. Panel lights usually utilize LED light sources, which offer the benefits of energy efficiency and long life. Many panel lights also offer dimming functions, making it easy for users to adjust the brightness as needed to create a comfortable light environment.
Quantity:
ShineLong Four Side Open Easy to Change Picture LED Advertising Panel Light

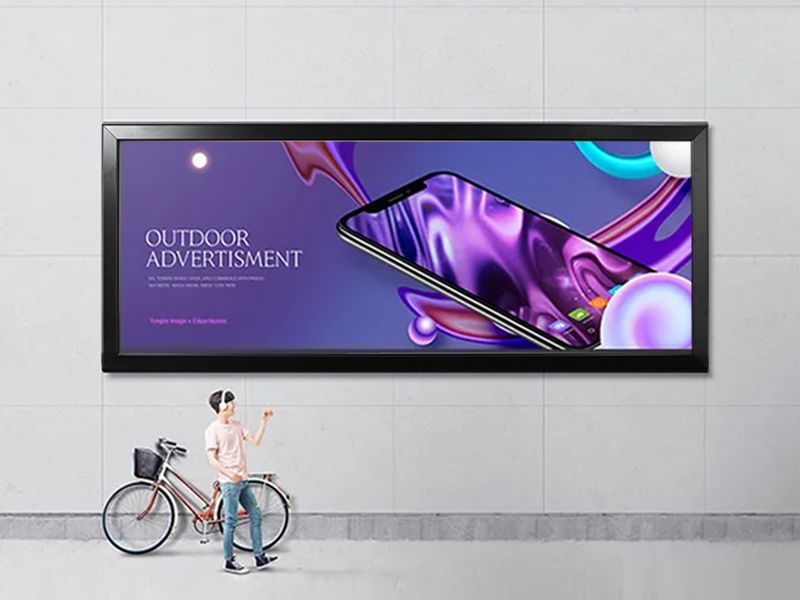

ShineLong LED Advertising Panel Light is the ideal solution for display advertising, combining an ultra-thin design with high brightness and uniform light effects to make every message clear and eye-catching. Adopting energy-saving LED technology, it is durable and reliable, suitable for shopping malls, airports, subways and other public places. Its flexible installation and stylish appearance not only enhance brand image, but also bring unrivaled visual impact.
Key Features
1. Lightbox thickness 16mm, ultra thin
2. Easy and convenient to changing advertising picture by self
3. Customize the size as required
4. High efficiency SMD4014, high brightness, long lifespan
5. PMMA high light transmission plate
6. High Efficacy, 100 lm/w (±10%)
7. L80B10 lifespace of 50,000 hours (@ Ta = 25°C)
2. Easy and convenient to changing advertising picture by self
3. Customize the size as required
4. High efficiency SMD4014, high brightness, long lifespan
5. PMMA high light transmission plate
6. High Efficacy, 100 lm/w (±10%)
7. L80B10 lifespace of 50,000 hours (@ Ta = 25°C)
Product Details
Data Sheet
| Light Source | SMD4014 |
| CRI | >80 |

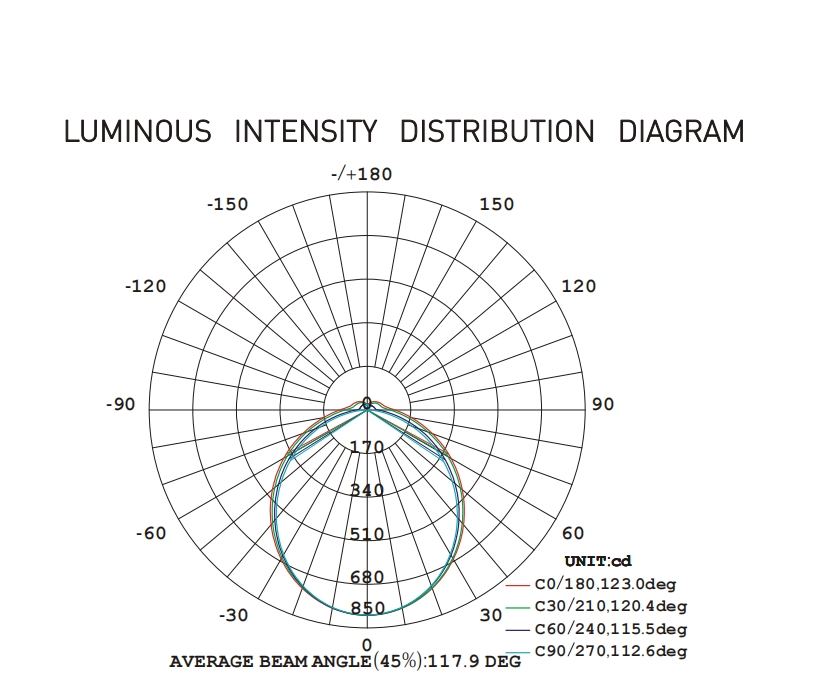

Beam Angle | 120° |
| CCT | 3000K/ 4000K/ 5000K/ 6000K |
| AC Input | DC24V |
| SDCM | < 4 |
| Waterproof | IP20 |
| Warranty | 5 Years |
| Operating Temperature | -20~+40℃ |
All Models
Article Number | Power (W) | Lumen (lm) | Working Current (mA) |
SL-P1115-X-AX20 | 15 | 1500 | 625 |
SL-P1330-X-AX20 | 30 | 3000 | 1250 |
* The “X” represents CCT, it can be W(3000K/4000K), P(5000K), C(6000K)
Cover Standard
Frosted 100lm/w
Please note:
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
3. Efficacy tolerance is ±10% and wattage tolerance is ±10%
Product Performance

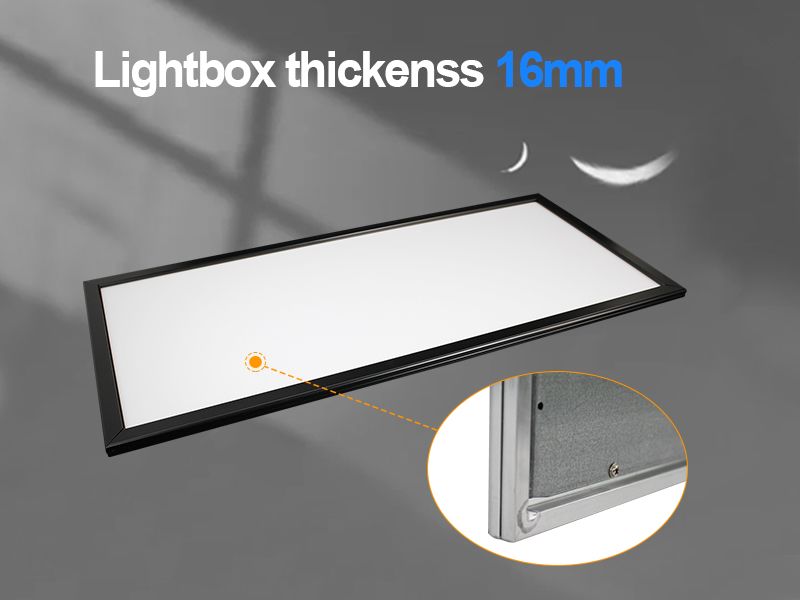

▶ Ultra-thin 16mm light box design
Known for its ultra-thin 16mm thickness design, this LED advertising panel light displays a minimalist modern aesthetic that blends easily into any environment. Not only is it simple and elegant, it is also space-saving, making it ideal for use in high-traffic public areas, retail stores, or office spaces where minimalist style is desired.

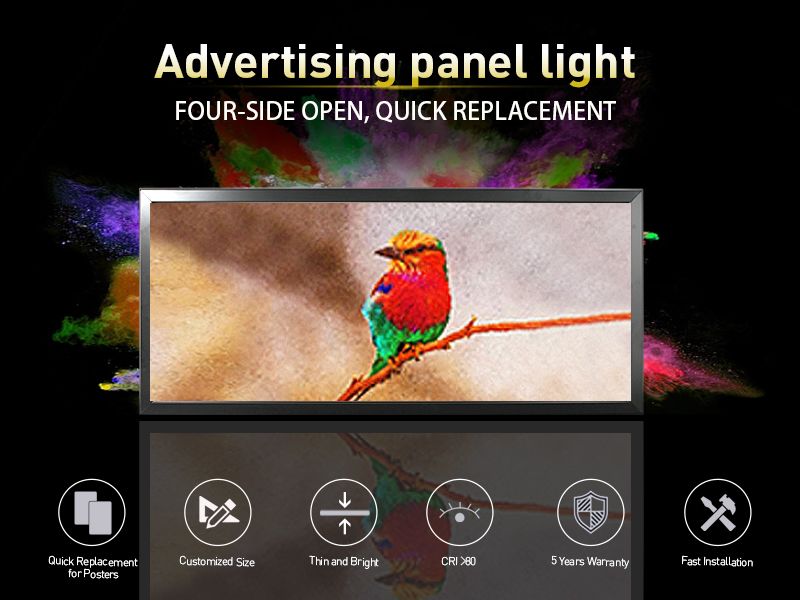

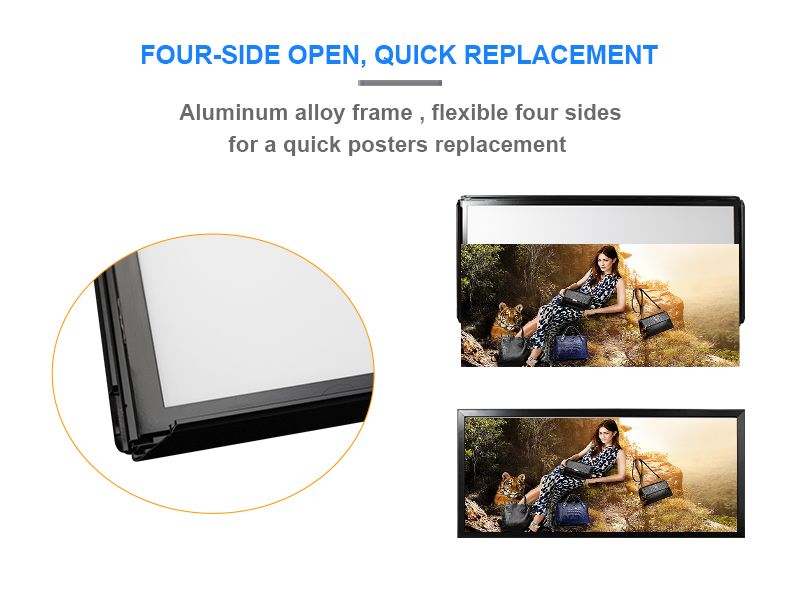

▶ Four-side opening design
ShineLong LED advertising panel light is designed with an aluminum alloy frame and equipped with a flexible four-side opening function, which greatly simplifies the poster replacement process. Users do not need to disassemble the whole light box, just gently open any side to quickly change the advertisement content, making the operation more efficient and convenient. This design is ideal for places where posters are frequently updated, such as shopping malls, theaters, exhibition halls or brand counters. The aluminum alloy material not only ensures a lightweight and sturdy frame, but also provides excellent durability.

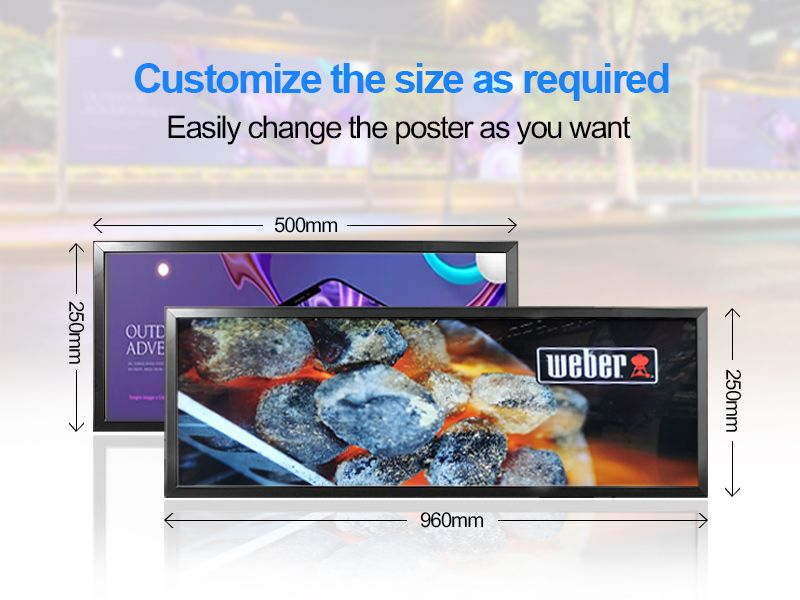

▶ Size customization
This LED advertising panel light supports a variety of customized sizes, such as 500mm*250mm and 960mm*250mm, which can be flexibly adapted to different places and display needs. From narrow and long display spaces in shopping malls to specific spaces in brand counters, it can be easily installed to provide the best display effect for your advertising content.

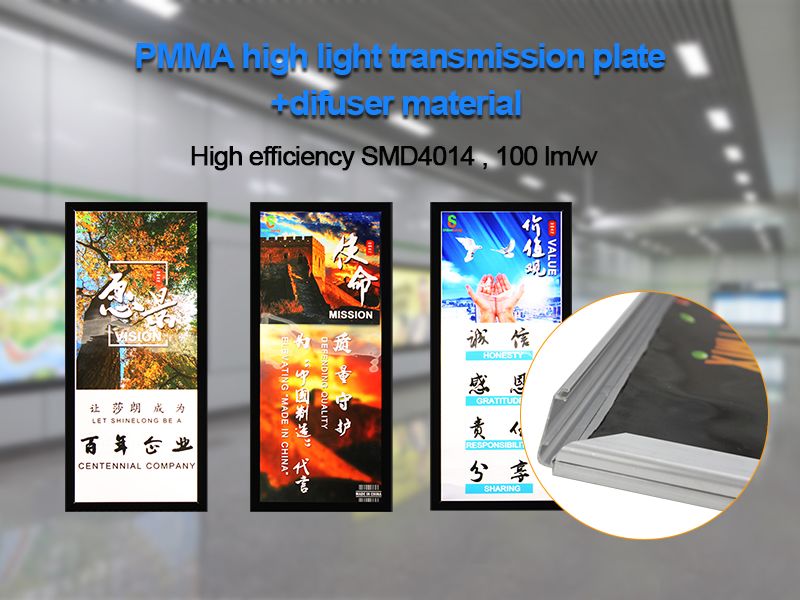

▶ High efficiency light source
Advertising LED panel light adopts PMMA high light transmittance light guide plate with high-quality diffusion material to ensure that the light is evenly and softly distributed on the whole panel. Whether it is text or images, it can present clear and sharp visual effects and attract the audience's attention. Equipped with high-efficiency SMD4014 light source, the light efficiency is as high as 100lm/W, which not only provides bright and energy-saving lighting, but also reduces energy consumption and cost for long-term use.

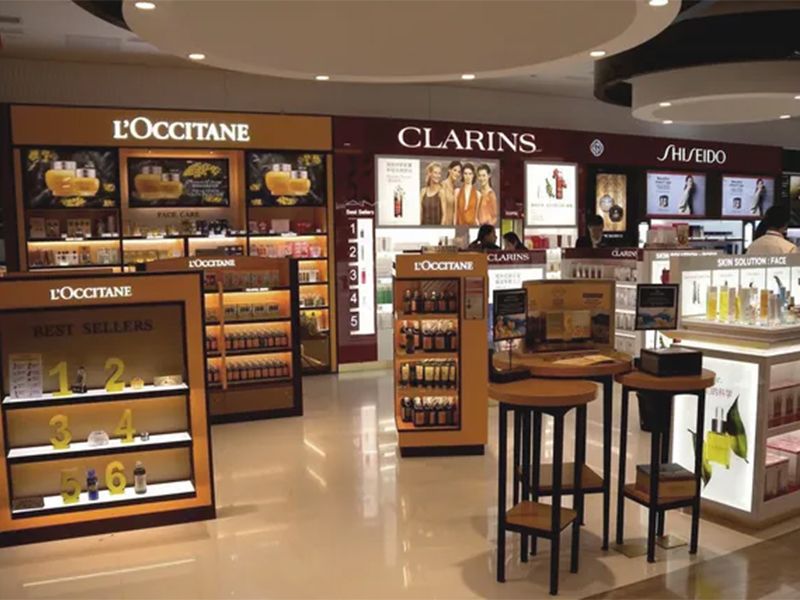

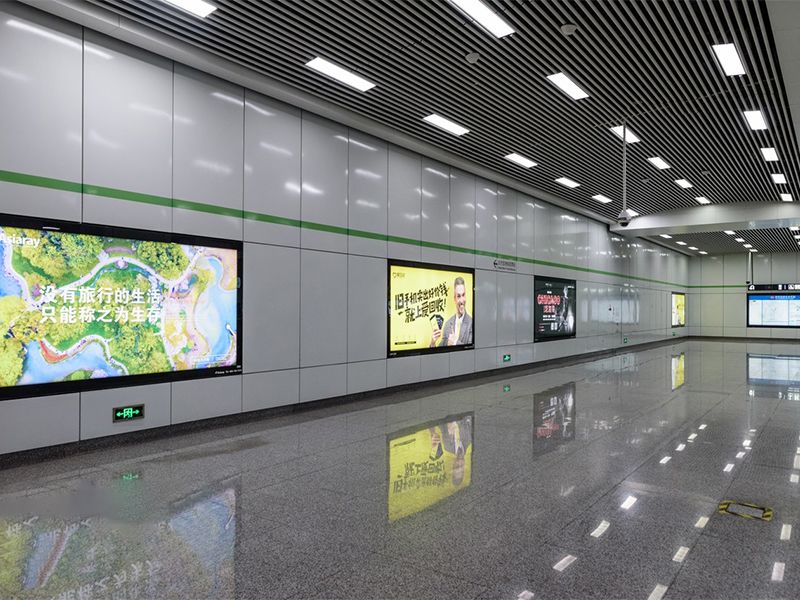

Application Scenarios
