ShineLong Internal Driver Square Ultra-thin Surface Lighting LED Panel Light
SL-P1120-X-BX12
Panel lights are modern lighting fixtures that are commonly used in indoor environments such as offices, stores and homes. They are known for their clean design and even light distribution, which can effectively reduce shadows and glare. Panel lights usually utilize LED light sources, which offer the benefits of energy efficiency and long life. Many panel lights also offer dimming functions, making it easy for users to adjust the brightness as needed to create a comfortable light environment.
Delivery
EXW, FOB
minimum order
30 pieces
Supply Ability
9999pieces / Month
Country of Origin
Shenzhen, Guangdong, China
Stock Time
7Day
Quantity:
ShineLong Internal Driver Instant ON/OFF No Dark Area LED Panel Light
ShineLong Internal Driver LED Panel Light is an integrated driver premium panel light designed for modern commercial and office spaces, ensuring energy efficiency and elegant visual effects. The ultra-slim design and easy installation make the space more neat and tidy, which is ideal for all kinds of indoor environments.
Key Features
1. Ultra-thin design: 23.5mm built-in driver LED panel light
2. Certifications: CE, RoHS certified, IK06, IP40 rated (optional IP54)
3. luminous efficiency: 100lm/W + 10%, up to 125lm/W
4. Driver: built-in non-strobe driver
5. Instant on/off: side-illuminated design, no dark area, prevent yellowing
6. Material: high quality aluminum + PMMA
7. color rendering index: high color rendering index (Ra>80), color difference (SDCM<4)
8. power factor: >0.95
9. Input Voltage: AC200-240V, 50/60Hz
10. service life: L80B10 (Ta = 25 ° C) life of 70,000 hours, with a 5-year warranty
11. Installation: no frame, surface mounting
2. Certifications: CE, RoHS certified, IK06, IP40 rated (optional IP54)
3. luminous efficiency: 100lm/W + 10%, up to 125lm/W
4. Driver: built-in non-strobe driver
5. Instant on/off: side-illuminated design, no dark area, prevent yellowing
6. Material: high quality aluminum + PMMA
7. color rendering index: high color rendering index (Ra>80), color difference (SDCM<4)
8. power factor: >0.95
9. Input Voltage: AC200-240V, 50/60Hz
10. service life: L80B10 (Ta = 25 ° C) life of 70,000 hours, with a 5-year warranty
11. Installation: no frame, surface mounting
Product Details
Data Sheet
| Light Source | SMD2835 |
| CRI | >80 |

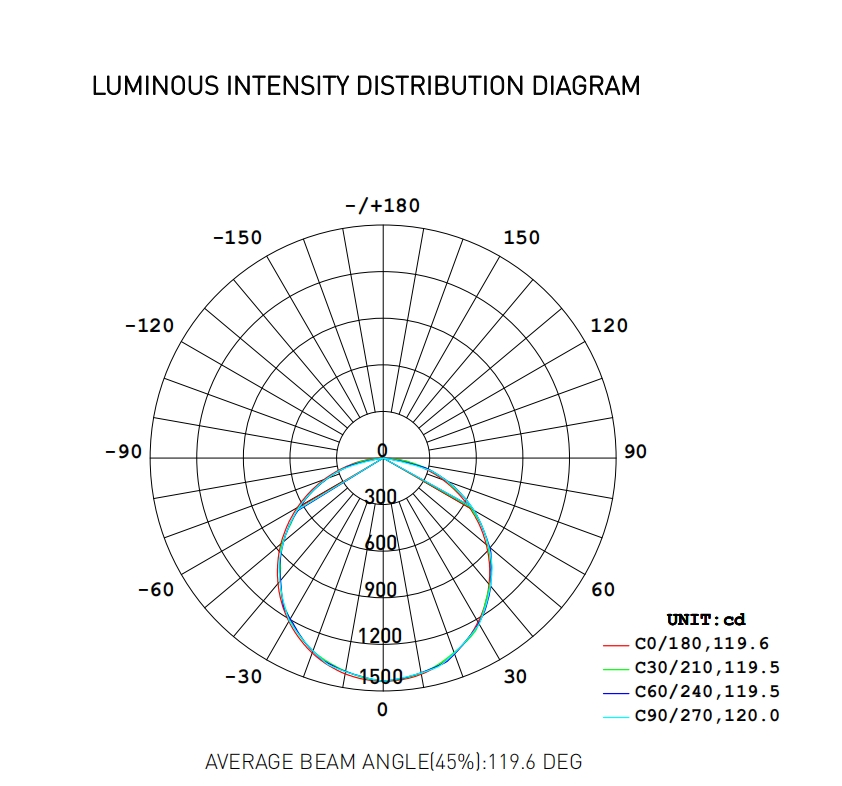

Beam Angle | 120° |
| CCT | 3000K/ 4000K/ 5000K/ 6000K |
| AC Input | 200-240V 50/60Hz |
| SDCM | < 4 |
| Waterproof | IP40 |
| IK Rate | IK06 |
| Power Factor | >0.95 |
| Warranty | 5 Years |
| Operating Temperature | -20~+40℃ |
All Models
Article Number | Dimension (mm) | Power (W) | Lumen (lm) | Working Current (mA) |
SL-P1120-X-BX12 | 295*295*23.5 | 20 | 2000 | 500 |
SL-P2240-X-BX12 | 595*595*23.5 | 40 | 4000 | 950 |
SL-P2240-X-BX12-A | 620*620*23.5 | 40 | 4000 | 950 |
SL-P1440-X-BX12 | 295*1195*23.5 | 40 | 4000 | 950 |
*Where the"X"represents CCT, it can be
W (3000K/4000K), P (5000K), C (6000K)
Cover Standard Premium
Frosted 100lm/w 125lm/w
Please note:
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
3. Efficacy tolerance is ±10% and wattage tolerance is ±10%
4. If UGR ＜19, light efficiency will be reduced by 5-8%
5. lf CRl> 90, light efficiency will be reduced by 10-15%
Product Performance

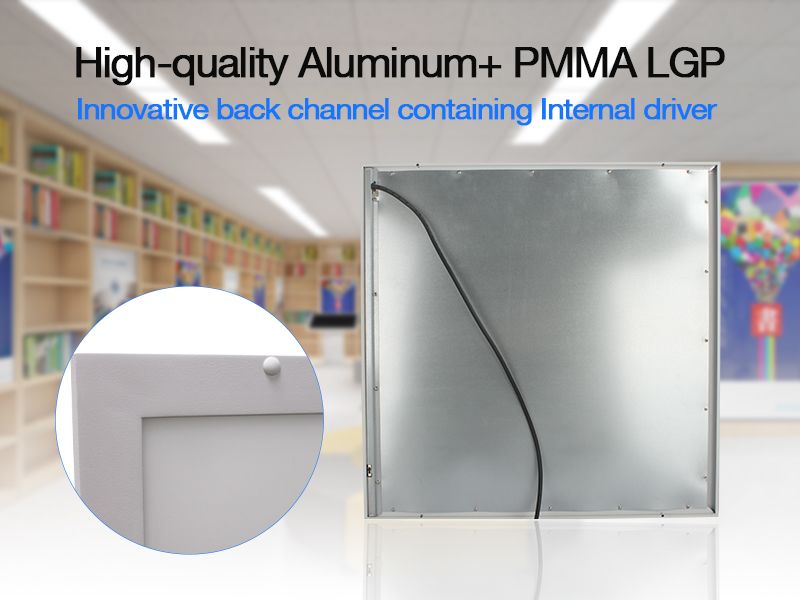

▶ Innovation structures

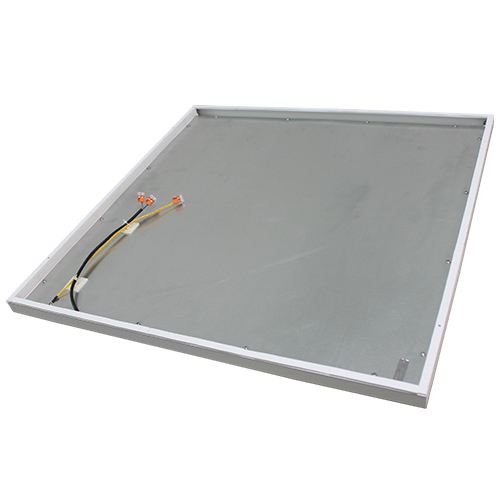

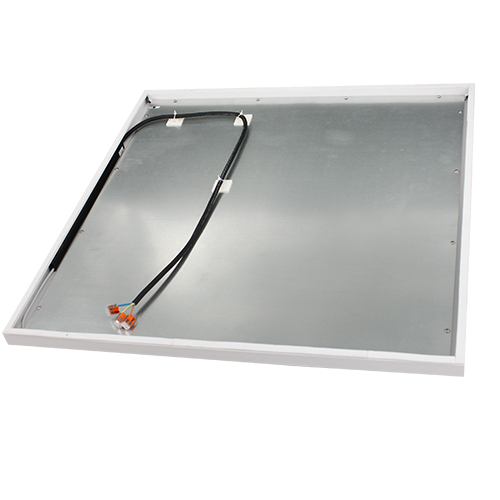

This ultra-thin LED panel light uses a combination of high-quality aluminum and PMMA light guides to ensure ruggedness and excellent light uniformity. Aluminum offers durability and excellent heat dissipation. While the PMMA light guide plate effectively improves light transmittance, making the lighting softer and more even, reducing glare and visual fatigue. At the same time, this panel light is designed with an innovative back structure and a built-in driver, which makes the overall structure more compact and simple, and improves installation convenience and safety.
▶ Flexible adaptation
ShineLong internal driver LED panel light supports a color temperature adjustment range of 3000K to 6000K, combined with stepless brightness control from 0% to 100%. 3000K warm color light creates a warm atmosphere for relaxing occasions, while 6000K cool color light is more suitable for moments that require concentration.

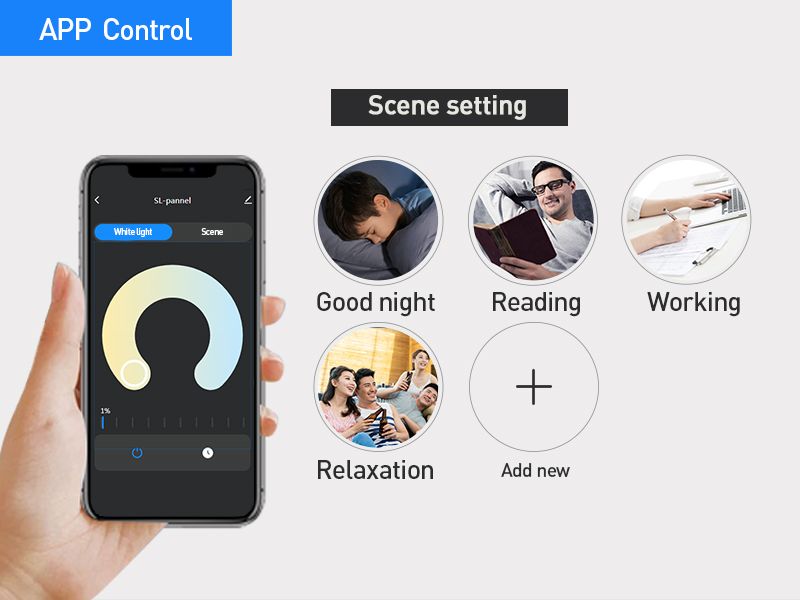

▶ APP intelligent contro
The commercial internal driver square LED panel light supports APP smart control, which can easily set multiple scene modes and help you quickly switch to the ideal lighting effect in different environments. Through APP, you can choose “Good Night”, “Relax”, “Read” and “Work” modes. No need to adjust manually to get the right light atmosphere.
▶ High efficienc
This LED panel light offers a light efficiency of up to 100lm/W to 125lm/W, ensuring energy savings while providing powerful brightness. Instant on/off technology allows the light to go on and off quickly, making it easy to use. Edge-emitting technology ensures even light distribution with no dark areas, illuminating every corner. Anti-yellowing material effectively avoids yellowing and keeps the luminaire bright for a long time. Whether it's a home, office or commercial space, this luminaire provides efficient, long-lasting lighting.

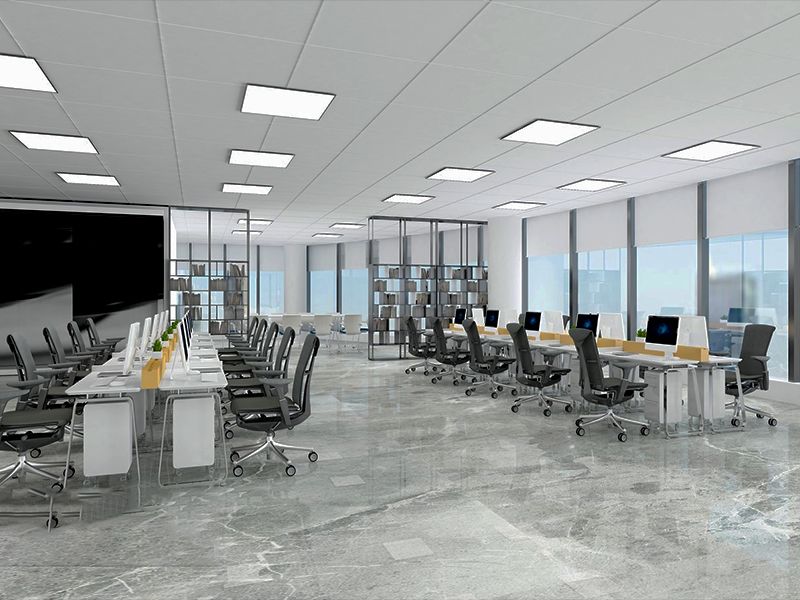

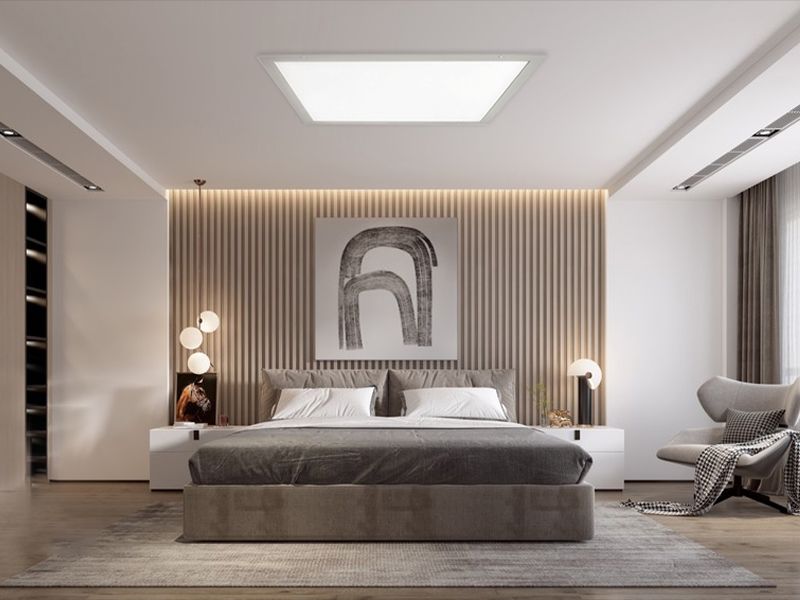

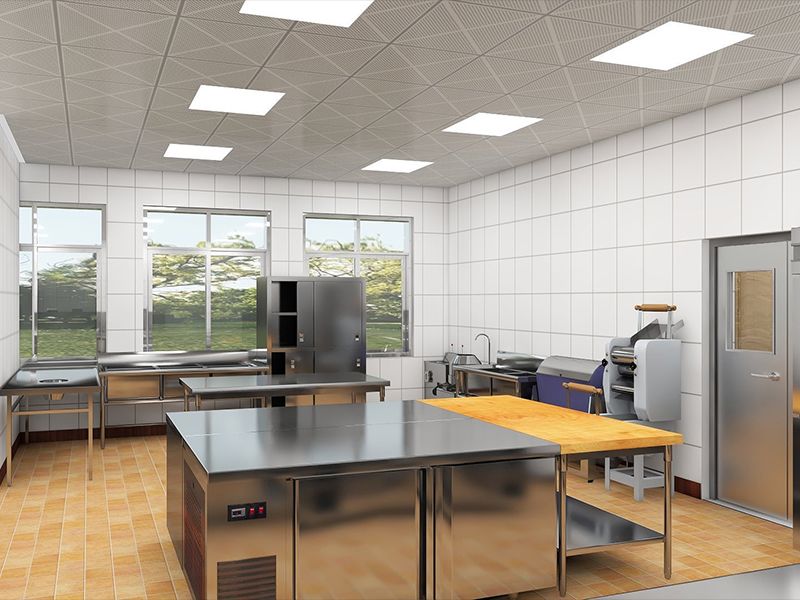

Application Scenarios
