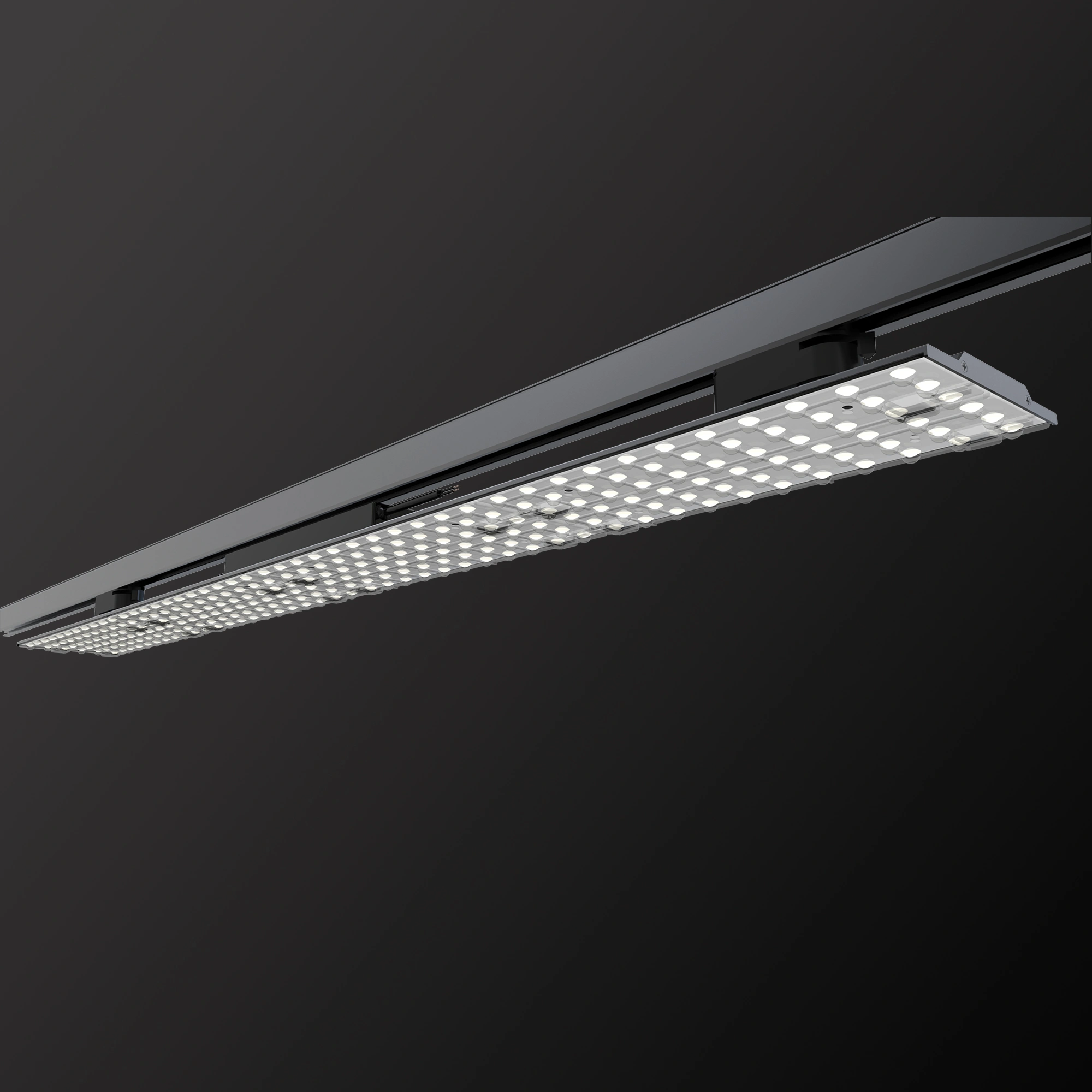

ShineLong LED Slimbay Linear Light Commercial 40w/60w/75w Aluminum Modern Light Fixture
SL-B40X2-40-X
Linear light is a slender LED light with high brightness, energy saving and long life, uniform and soft light and adjustable color temperature. It is waterproof, flexible in installation, customizable and widely used in construction and home decoration.
Delivery
EXW, FOB
minimum order
30 pieces
Supply Ability
9999pieces / Month
Country of Origin
Shenzhen, Guangdong, China
Stock Time
7Day
Quantity:
ShineLong Slimbay Light 140lm/w Aluminum Modern LED Linear Light
ShineLong Slimbay Light is a modern design and high performance LED lighting product designed to provide superior lighting solutions for all types of spaces. Its slim profile not only saves space, but also seamlessly blends into a variety of interior styles.
Key Features
1. Ultra-thin design (8.5mm): the product thickness is only 8.5mm, saving space.
2. UGR less than 19: Uniform beam light color rendering index (UGR) is less than 19, reducing glare.
3. Beam Angle (2*45° Lens): Equipped with two 45 degree lenses to provide precise illumination angle.
4. Black Aluminum + Lens (White optional): Made of high quality aluminum.
5. SMD2835 LED LIGHT SOURCE: using SMD2835 type LEDs with global patent protection.
6. Flicker-free internal driver: protects eyesight and provides a more stable light source.
7. High efficiency (140lm/w±10%): light efficiency up to 140 lumens per watt, reduce energy consumption.

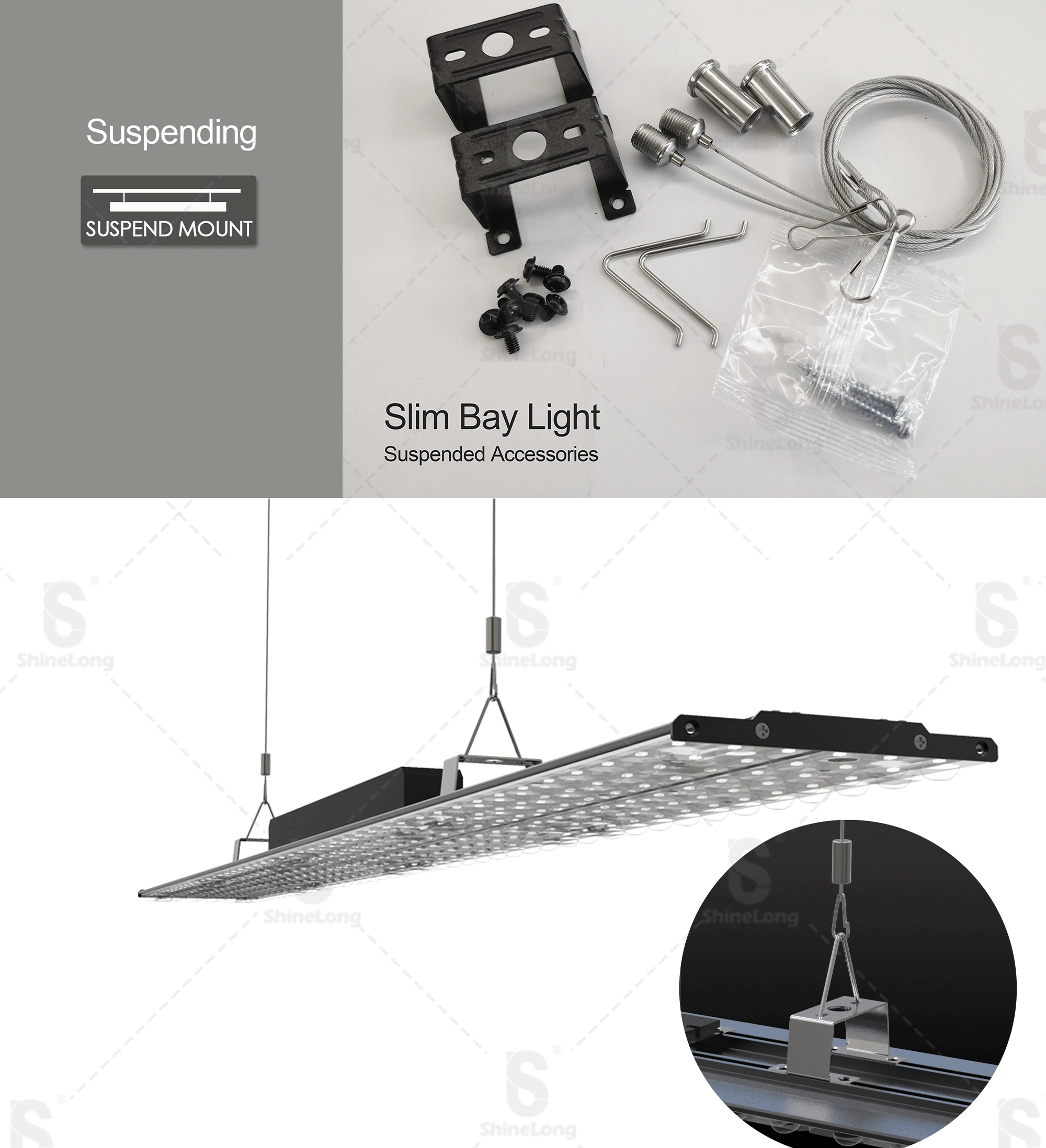

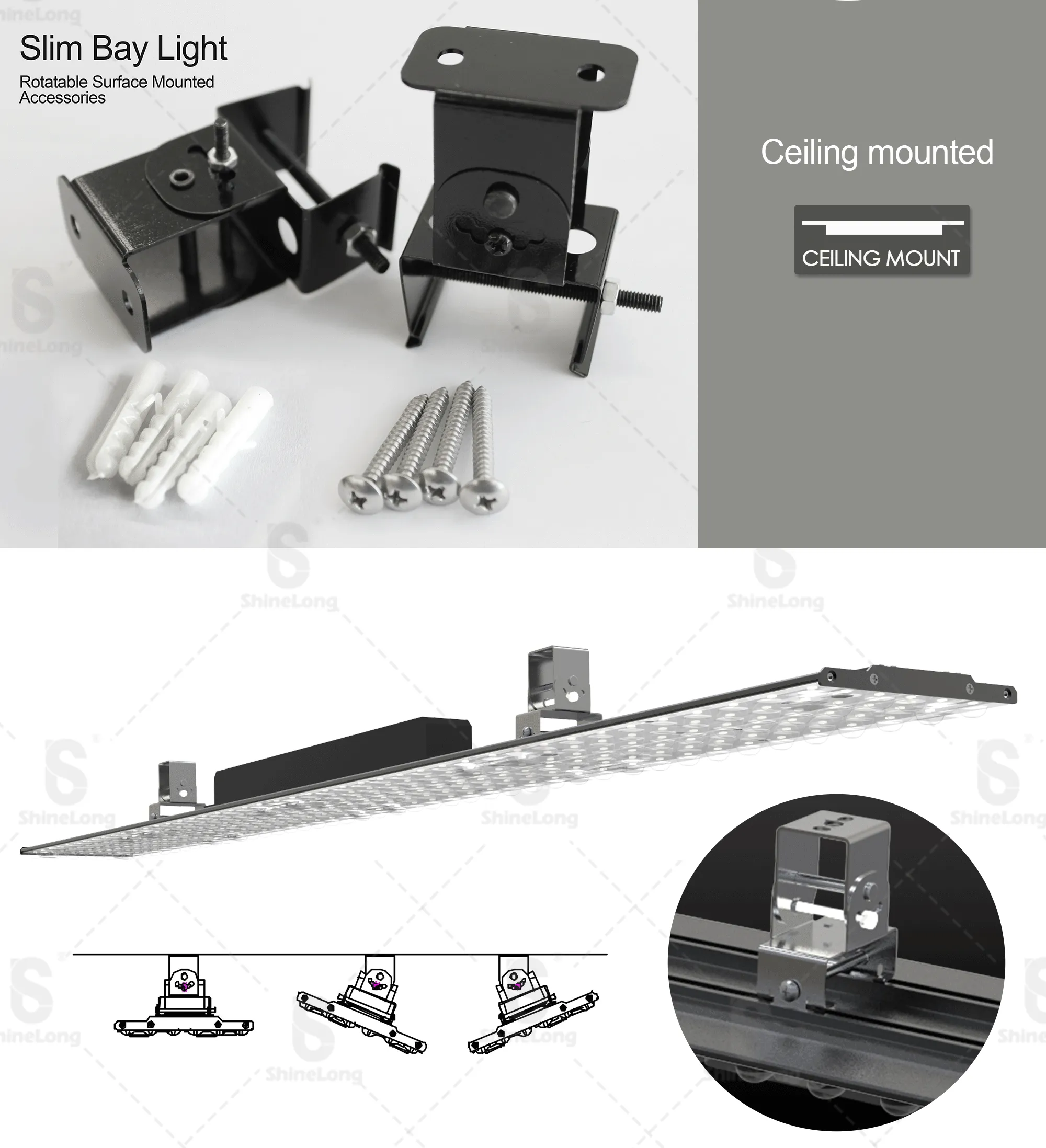

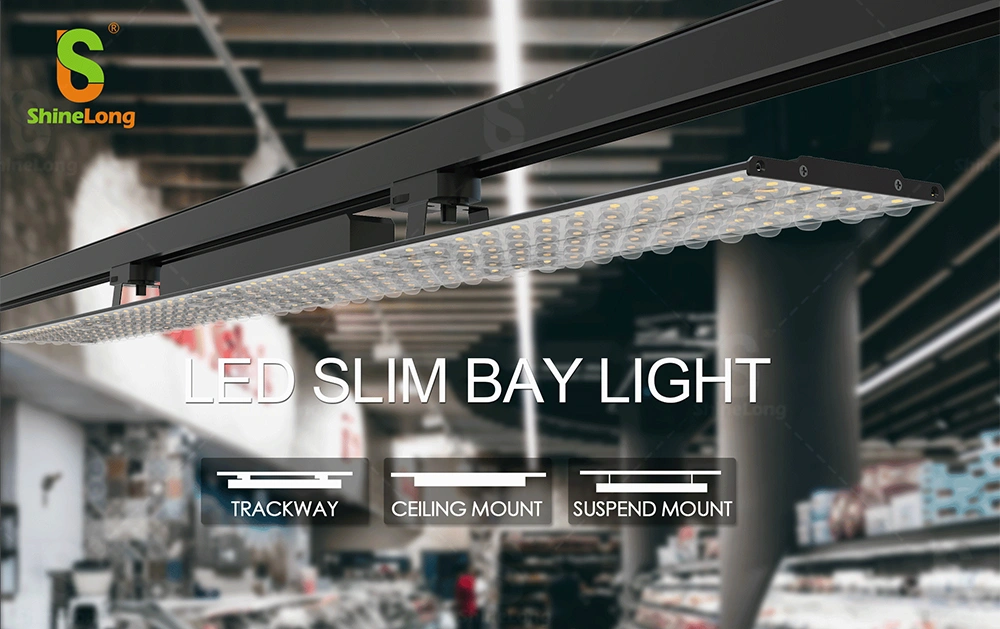

8. Multiple mounting options: hanging, ceiling mounting and track mounting.
9. L80B10 lifetime 50,000 hours (@ Ta = 25°C)
2. UGR less than 19: Uniform beam light color rendering index (UGR) is less than 19, reducing glare.
3. Beam Angle (2*45° Lens): Equipped with two 45 degree lenses to provide precise illumination angle.
4. Black Aluminum + Lens (White optional): Made of high quality aluminum.
5. SMD2835 LED LIGHT SOURCE: using SMD2835 type LEDs with global patent protection.
6. Flicker-free internal driver: protects eyesight and provides a more stable light source.
7. High efficiency (140lm/w±10%): light efficiency up to 140 lumens per watt, reduce energy consumption.
8. Multiple mounting options: hanging, ceiling mounting and track mounting.
9. L80B10 lifetime 50,000 hours (@ Ta = 25°C)
Product Details
Data Sheet
| Light Source | SMD2835 |
| CRI | >80 |
Beam Angle | 2*45° |
| CCT | 3000K/ 4000K/ 5000K/ 6000K |
| AC Input | 200-240V |
| SDCM | < 4 |
| Power Factor | >0.95 |
| Warranty | 5 Years |
| Operating Temperature | -20~+40℃ |
All Models
Article Number | Power (W) | Lumen(lm) | Working Current(mA) |
SL-B40X2-40-X | 40 | 5600 | 1050 |
SL-B40X4-60-X | 60 | 8400 | 1600 |
SL-B40X5-75-X | 75 | 10500 | 2000 |
* Where the first “X” represents diffuser type, it can be F(Frosted), C(Clear)
The second “X” represents CCT, it can be W(3000K/4000K), P(5000K), C(6000K)
The second “X” represents CCT, it can be W(3000K/4000K), P(5000K), C(6000K)
Cover Standard
Frosted 140lm/w
Please note:
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
3. Efficacy tolerance is ±10% and wattage tolerance is ±10%
4. lf CRl> 90, light efficiency will be reduced by 10-15%
Product Performance

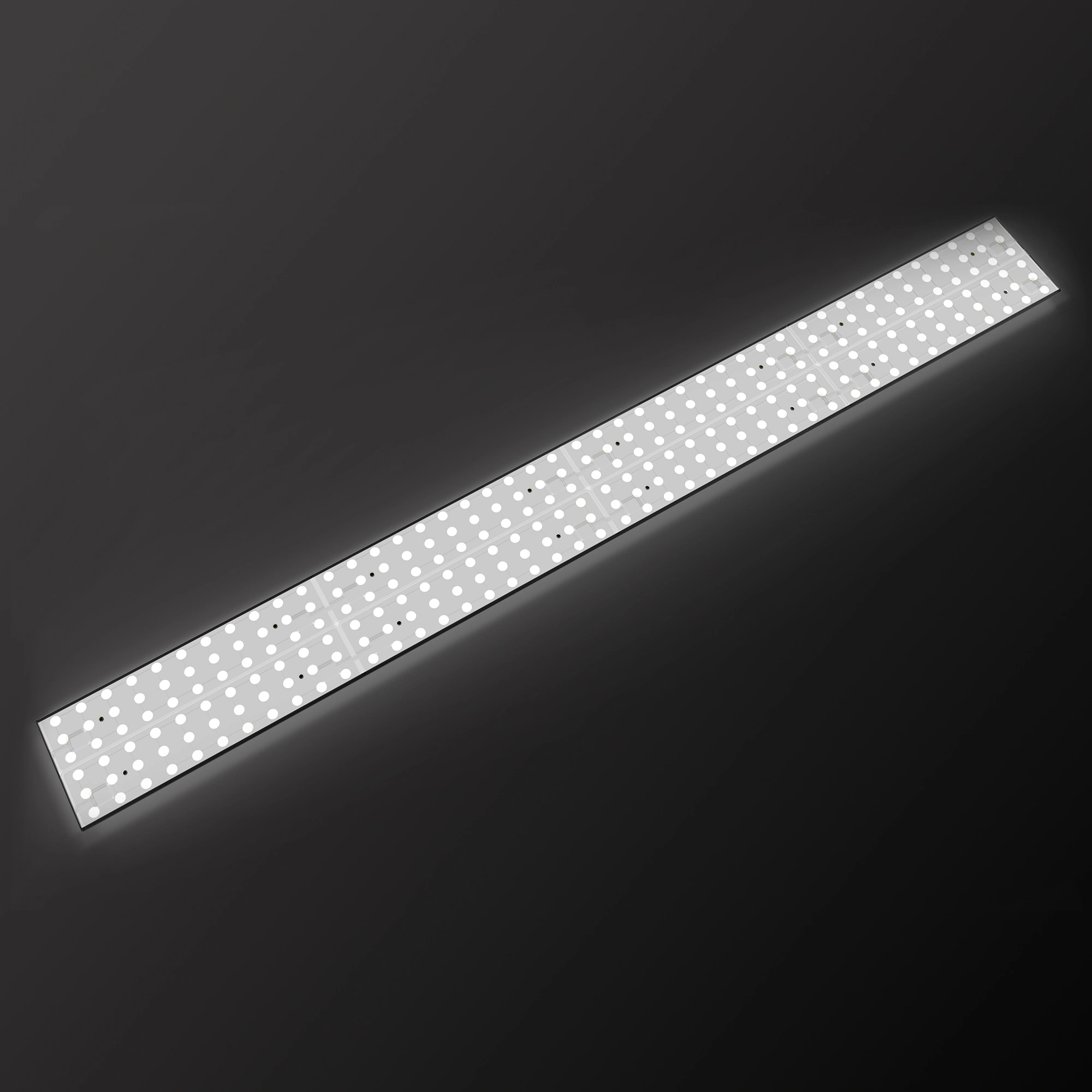

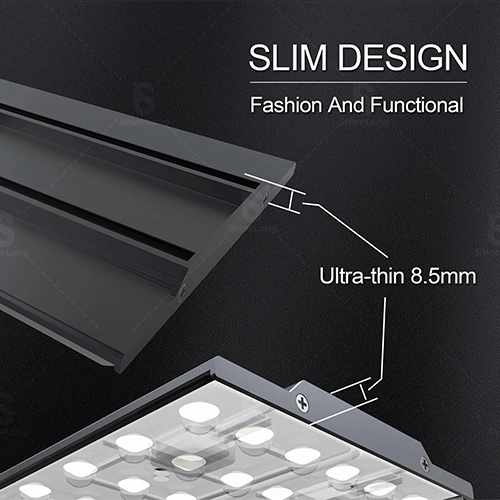

▶ Slim design
The Slimbay Light has an ultra-slim design with a thickness of only 8.5mm.The lightweight design makes it easy to install in a variety of environments, and its slim design effectively saves space. If sleekness in space is a requirement, then the ShineLong Slimbay Light is just right!

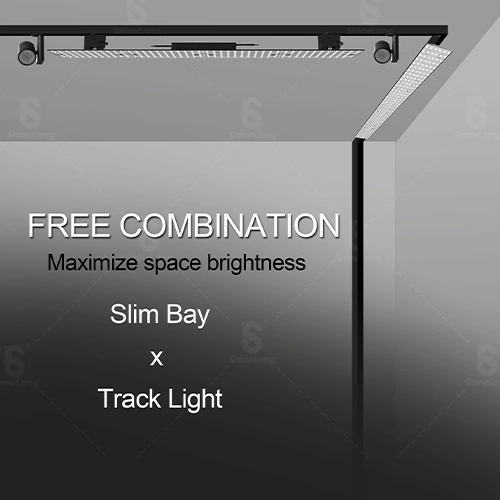

▶ Free combination
Slimbay Linear Light offers the freedom to combine lighting solutions. With its flexible installation, you can combine as many lamps as you need to maximize the brightness of your space. It works perfectly with Track Light to provide efficient and even illumination in a variety of environments.

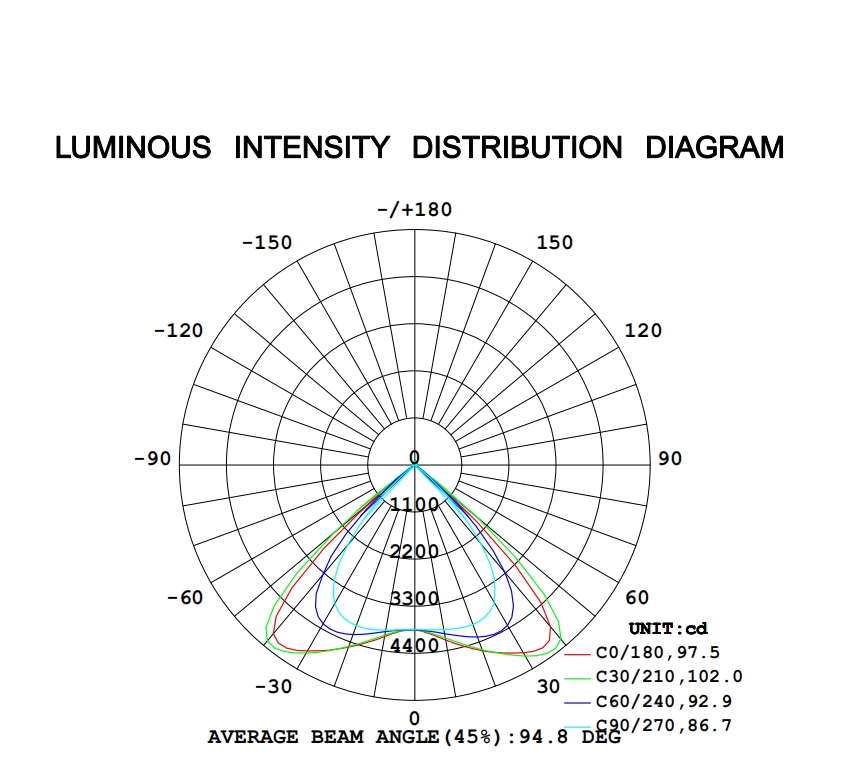

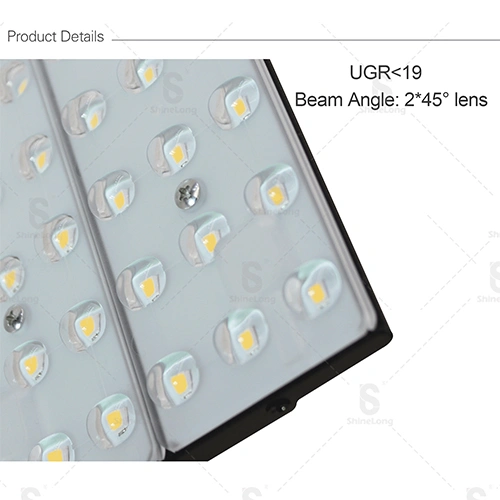

▶ Beam angle
The ShineLong Slimbay Light fixture has a UGR of less than 19, ensuring that it provides adequate illumination without causing glare, thus protecting the eyes and creating a more comfortable working and living environment. At the same time, it utilizes a 2*45° dual angle lens design to provide precise and even beam distribution, ensuring that the light covers the entire space without over-focusing or dark shadow areas.

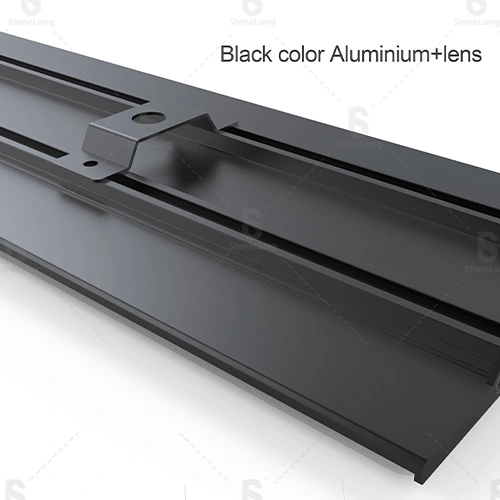

▶ Quality
The Slimbay Linear Light features a minimalist black aluminum housing with a high-quality lens, showcasing the perfect blend of modern and industrial design. Black aluminum not only has a premium texture, it is durable and corrosion-resistant, ensuring that the product maintains its perfect appearance over a long period of time. This combination of materials and design makes the Slimbay Linear Light a stylish decorative piece for your space while providing excellent performance.

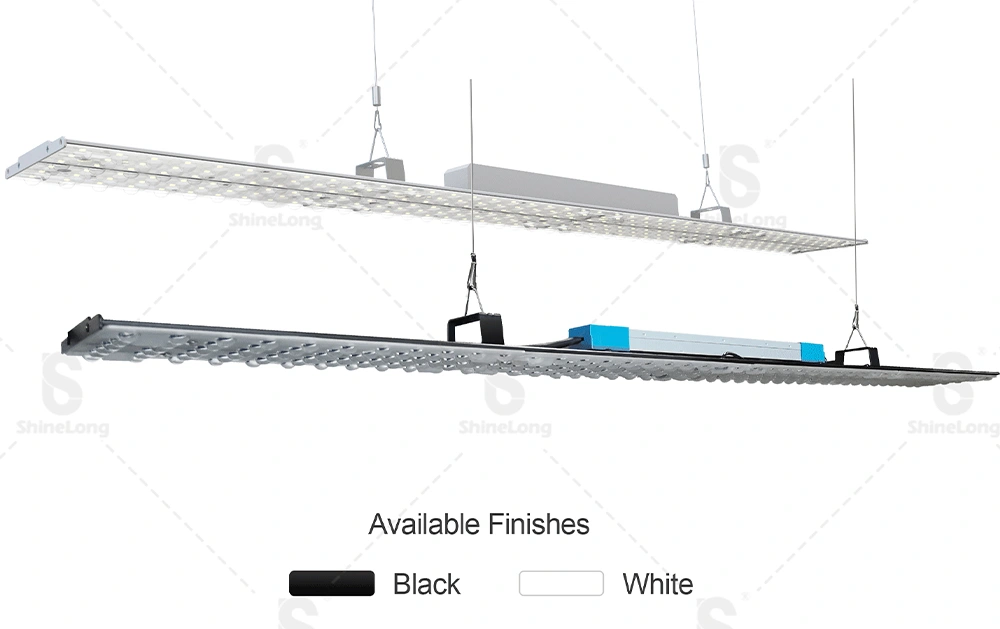

▶ Colors available

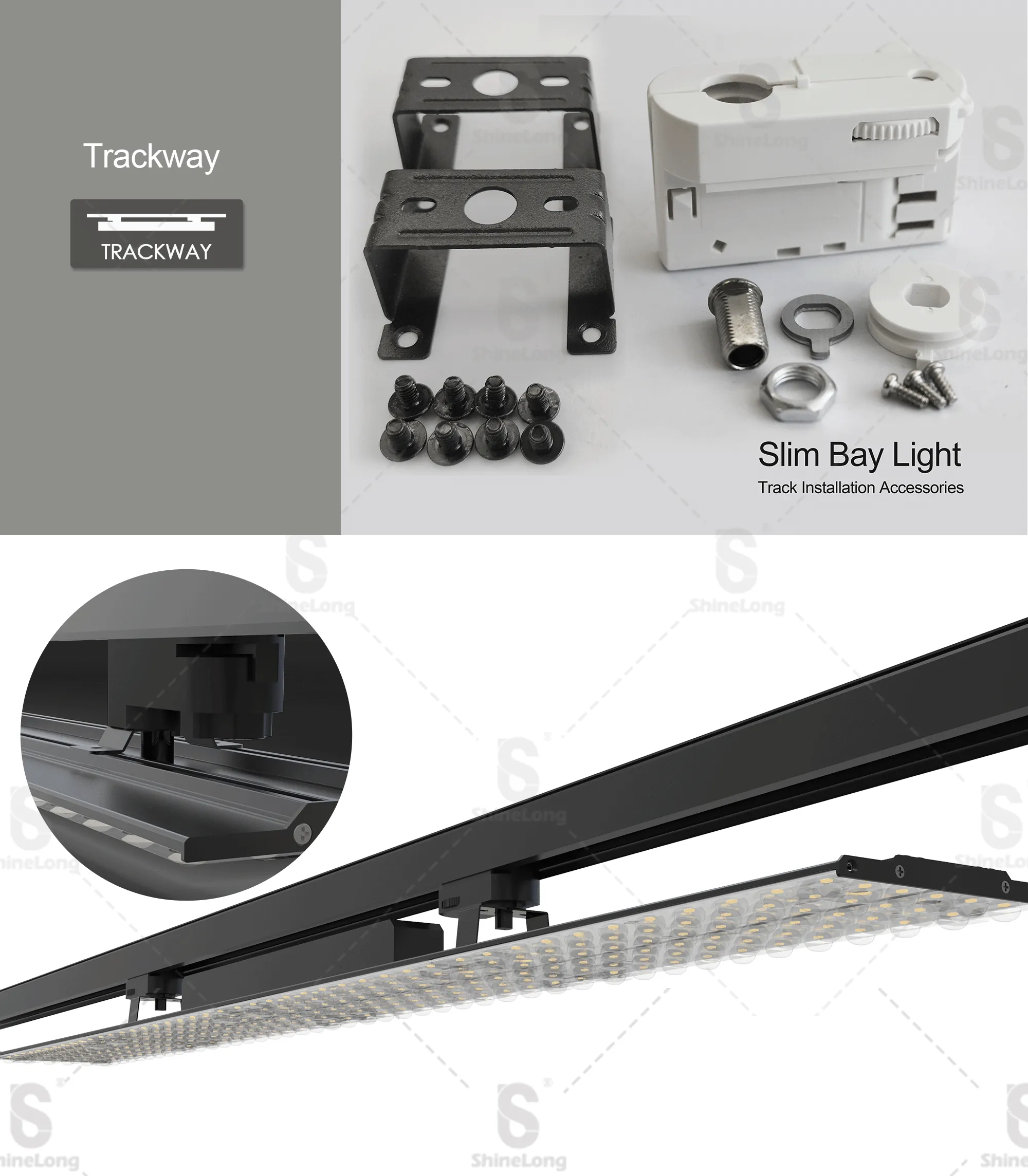

Installation
