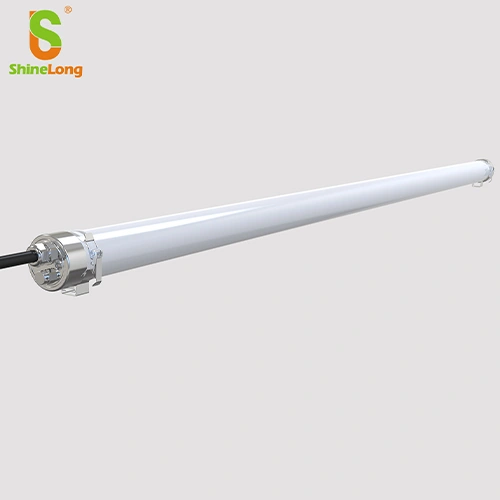

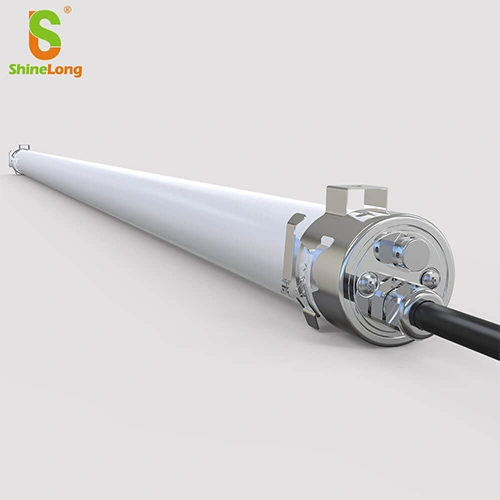

Shinelong Rancher Eco-Mini IP66 IK10 Vapor Tight Waterproof LED Triproof Light
SL-C40AF2-10-XE
Tri-proof light is a kind of lighting equipment designed for harsh environments with waterproof, dustproof and corrosion-resistant features. They are usually made of high-strength materials and can work properly under extreme conditions, ensuring the provision of stable and reliable lighting effects, as well as energy-saving and environmentally friendly, with a long service life, and are suitable for use in industry, warehouses, workshops and other places.
Delivery
EXW, FOB
minimum order
30 pieces
Supply Ability
9999pieces / Month
Country of Origin
Shenzhen, Guangdong, China
Stock Time
7Day
Quantity:
ShineLong Rancher Eco-Mini IP66 IK10 Customizable Length LED Triproof Light
ShineLong EcoRancher Mini IP66 Waterproof LED Triproof Light combines durability and flexibility, and can be customized in length to meet a variety of installation needs. It is IP66 and IK10 rated to withstand harsh environments and ensure long-lasting performance. This energy efficient light is perfect for workshops, car wash garages, food processing, farms, patios, tunnel barns, gas stations, and more.
Key Features
1. Protection level: IP66 waterproof, IK09 protection
2. Material: 94V0 material, corrosion and UV resistant
3. Housing material: full PC housing (frosted cover)
4. Function: with plastic ventilation valve
5. Beam angle: Freely adjustable ±90°. 6.
6. Features: Cost-effective and high efficiency
7. Driver: no strobe built-in driver
8. luminous efficiency: high efficiency, 120~135 lm/w (±10%)
9. Lifespan: L80B10 (ambient temperature 25 ℃) >50,000 hours
10. Warranty: 5 years
2. Material: 94V0 material, corrosion and UV resistant
3. Housing material: full PC housing (frosted cover)
4. Function: with plastic ventilation valve
5. Beam angle: Freely adjustable ±90°. 6.
6. Features: Cost-effective and high efficiency
7. Driver: no strobe built-in driver
8. luminous efficiency: high efficiency, 120~135 lm/w (±10%)
9. Lifespan: L80B10 (ambient temperature 25 ℃) >50,000 hours
10. Warranty: 5 years
Product Details
Data Sheet
| Light Source | SMD2835 |
| CRI | >80 |
Beam Angle | 120° |
| CCT | 3000K/ 4000K/ 5000K/ 6000K |
| AC Input | 200-240V/ 100-277V 50/60Hz |
| DC Output | 30-40V |
| SDCM | < 4 |
| Waterproof | IP66 |
| IK Rate | IK09 |
| Power Factor | >0.95 |
| Warranty | 5 Years |
| Operating Temperature | -20~+40℃ |
All Models
Article Number | Power (W) | Lumen(lm) | Working Current(mA) |
SL-C40AF2-10-XE | 10 | 1200 | 250 |
SL-C40AF4-20-XE | 20 | 2400 | 450 |
SL-C40AF5-30-XE | 30 | 3600 | 700 |
*The"X" represents CCT, it can be W(3000K/4000K), P(5000K), C(6000K)
The number after"AF"represents length of light."2"= 600mm,"4"= 1200mm,"5"= 1500mm
The number after"AF"represents length of light."2"= 600mm,"4"= 1200mm,"5"= 1500mm
Cover Standard Premium
Frosted 120lm/w 135lm/w
Please note:
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
3. Efficacy tolerance is ±10% and wattage tolerance is ±10%
4. lf CRl> 90, light efficiency will be reduced by 10-15%
Product Performance
▶ Customizable length

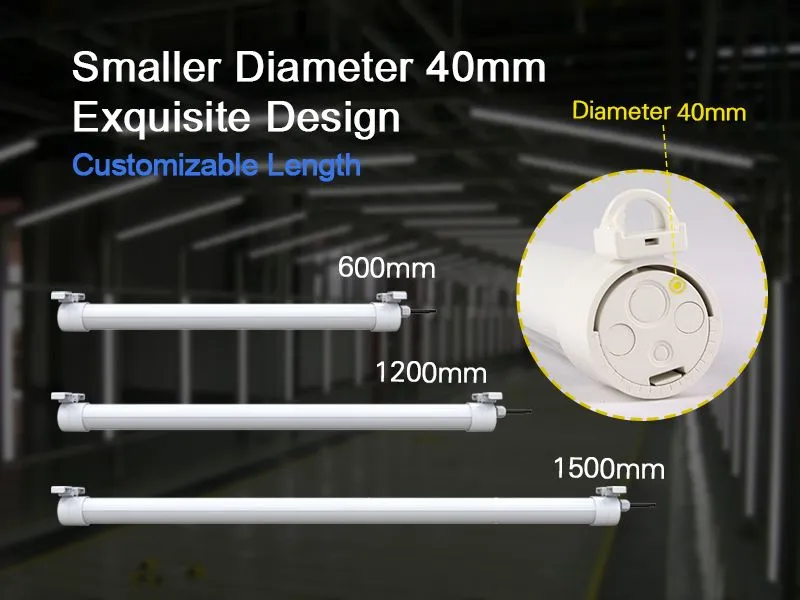

The ShineLong Eco-Rancher Mini IP66 LED triproof light stands out for its compact design and shape. With a diameter of only 40mm, it is one of the slimmer triplex solutions on the market. The smaller diameter not only enhances the aesthetics of the luminaire, but also allows it to fit easily into various installation environments, making it ideal for applications with limited space. The luminaire offers flexible length customization options, with standard lengths including 600mm, 1200mm and 1500mm to meet different project requirements.

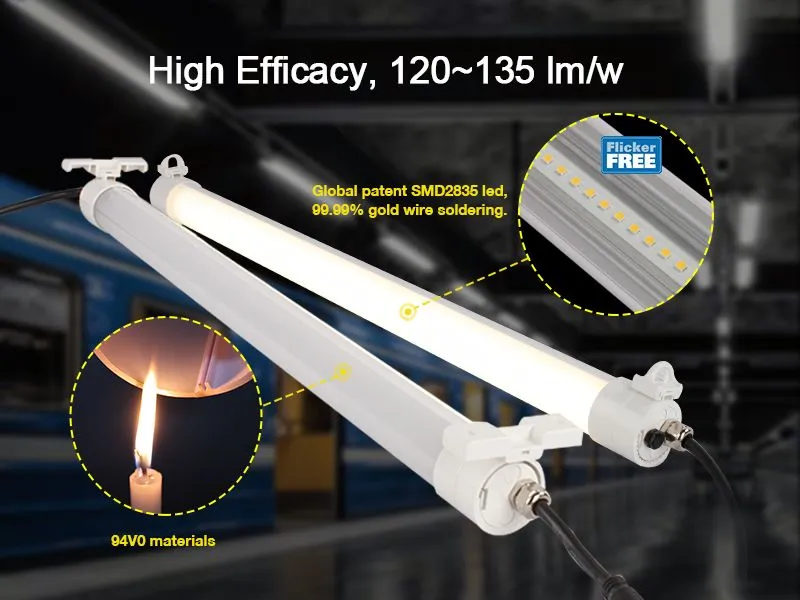

▶ High efficacy

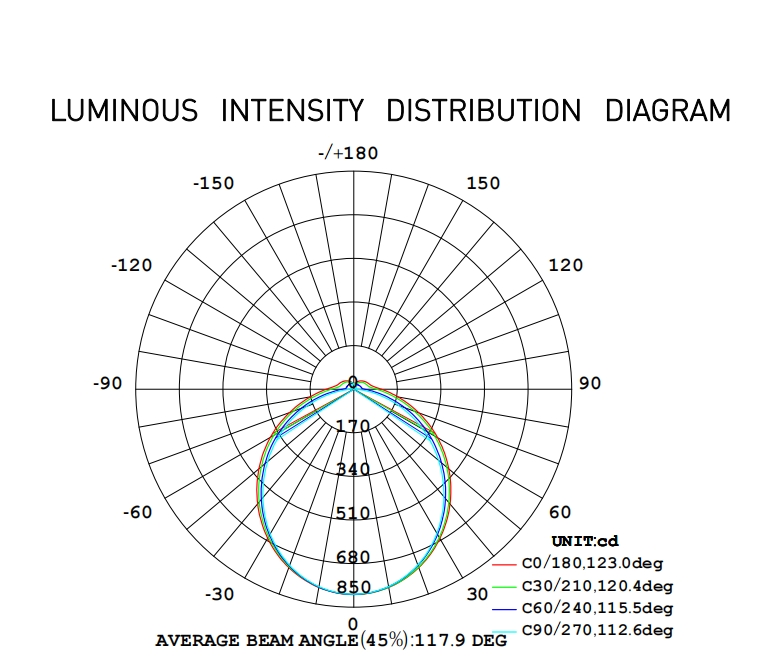

EcoRancher Mini Tubular IP66 IK09 LED tri-proof light has high luminous efficiency, with a luminous efficacy value of 120~135 lm/w. In addition, the luminaire adopts Flicker FREE technology to ensure stable light. The fixture is also equipped with a globally patented SMD2835 LED chip, which utilizes 99.99% pure gold wire soldering technology to ensure the long life and high stability of the lamp beads.
In terms of safety, the rancher eco-mini light utilizes 94V0 flame retardant grade materials with excellent high temperature resistance and flame retardant properties that meet international standards. When used in high temperatures or harsh environments, it still maintains high reliability, providing users with safer lighting protection.
In terms of safety, the rancher eco-mini light utilizes 94V0 flame retardant grade materials with excellent high temperature resistance and flame retardant properties that meet international standards. When used in high temperatures or harsh environments, it still maintains high reliability, providing users with safer lighting protection.

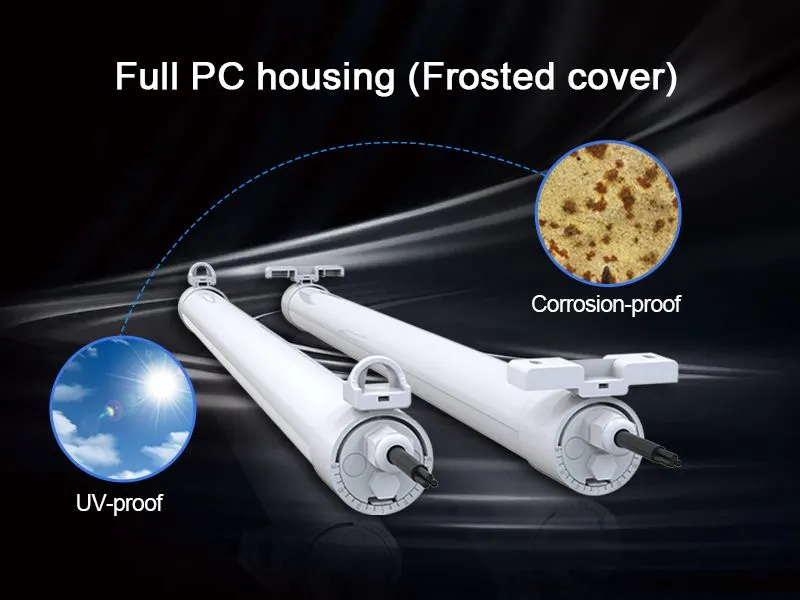

▶ High-quality material
ShineLong Rancher Eco-Mini Vapor Tight Waterproof LED Triproof Light features an all-PC housing with a frosted shade to minimize eye irritation from glare. The all-PC housing has excellent impact and corrosion resistance, and can be used in a variety of harsh environments to maintain long-term stability. In addition to this, the luminaire has excellent UV-proof properties, which protects it from the sun's UV rays over a long period of time and prevents the housing from yellowing and deteriorating, thus prolonging the product's service life.
▶ Suitable for multiple scenarios

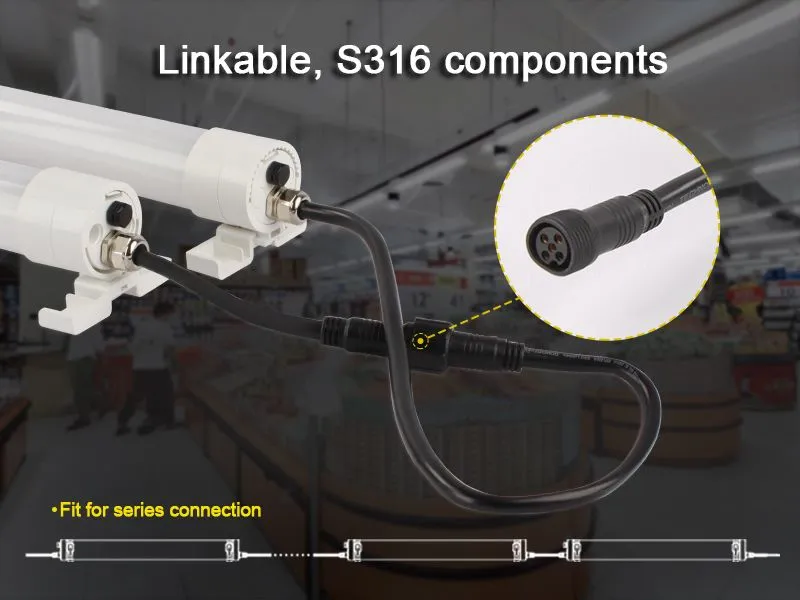

IP66 waterproof IK10 protection rancher eco-Mini LED tri-proof light security light has excellent linkability features that allow for multiple lights in series, quick wiring and power sharing to simplify installation. This linkable design is not only suitable for large area lighting scenarios, but also allows the fixtures to be aligned more neatly, ensuring an aesthetically pleasing and clean installation. The S316 stainless steel components ensure high corrosion resistance.

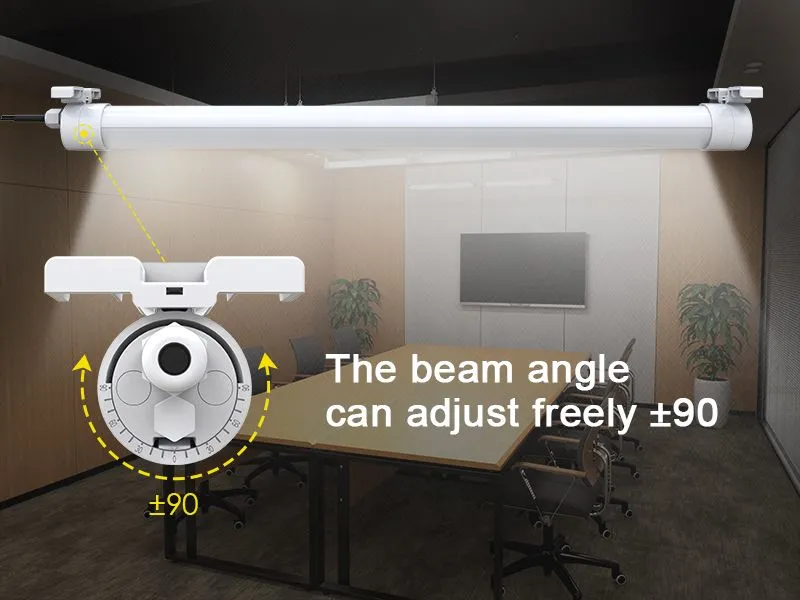

▶ Adjustable beam angle
This LED tri-proof light has a unique adjustable beam angle design, which allows users to flexibly adjust the beam angle to ±90 degrees according to actual lighting needs. By freely adjusting the beam angle, users can more accurately control the lighting range, avoiding excessive light diffusion or insufficient illumination, and reducing unnecessary light waste.

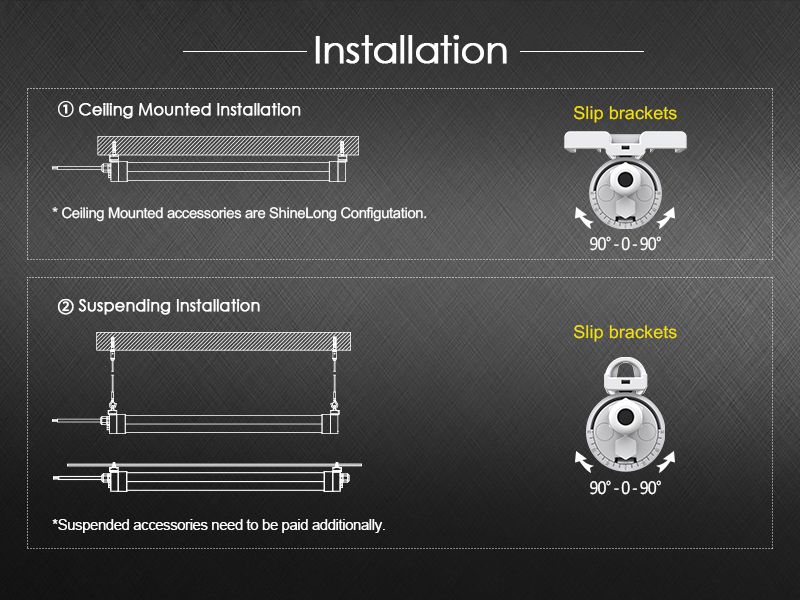

▶ Two mounting options

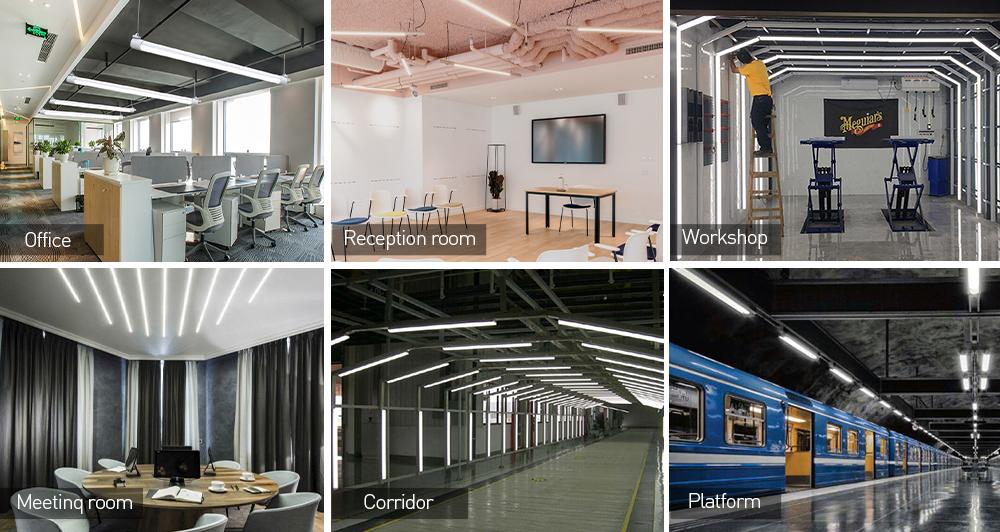

Multiple Application Scenarios
