ShineLong Rancher IP69K 0/1-10V Dimmable LED Triproof Light

SL-P69X2-20-XD
Tri-proof light is a kind of lighting equipment designed for harsh environments with waterproof, dustproof and corrosion-resistant features. They are usually made of high-strength materials and can work properly under extreme conditions, ensuring the provision of stable and reliable lighting effects, as well as energy-saving and environmentally friendly, with a long service life, and are suitable for use in industry, warehouses, workshops and other places.
Delivery
EXW, FOB
minimum order
30 pieces
Supply Ability
9999pieces / Month
Country of Origin
Shenzhen, Guangdong, China
Stock Time
7Day
Quantity:
Contact Now
add to cart

ShineLong Rancher IP69K 0/1-10V Dimmable Vapor Tight LED Tri-proof Light

ShineLong Rancher IP69K 0/1-10V dimmable waterproof and dustproof LED tri-proof light is designed for harsh environments. Its IP69K rating ensures that it can work properly even under high temperature and pressure washing conditions. The luminaire adopts high-efficiency LED light source to provide bright and even lighting effect, and supports 0/1-10V dimming to meet different lighting needs. Whether it's a new construction or renovation project, Rancher fixtures are the ideal choice for you.

Key Features

1. Protection Class: IP69K waterproof, IK10 protected
2. Material: 94V0, housing made of UV-resistant PC and corrosion-resistant PMMA
3. Design: Patented cylindrical design with aluminum plate, stainless steel cap, and clamps
4. Connectivity: Link function with S316 components
5. Certifications: UL Class P listed, anti-flicker driver
6. High Efficiency: 130~145 lm/w (±10%)
7. Aluminum Valve: Equipped with aluminum breather valve
8. Lifespan & Application: L80B10 lifespan of 50,000 hours (@ Ta = 25°C), suitable for both indoor and outdoor applications



Product Details

Data Sheet

  Light Source  SMD2835
  CRI  >80

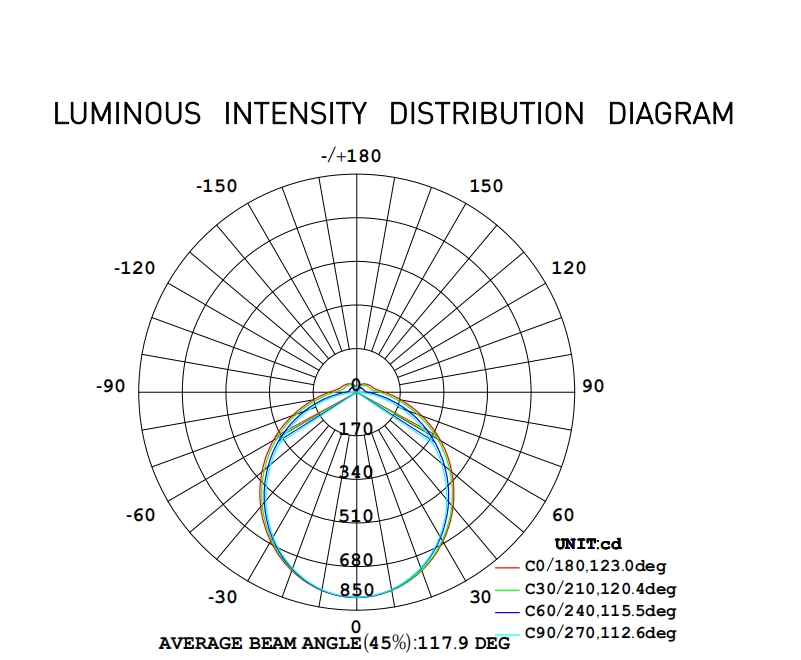

  Beam Angle
  120°

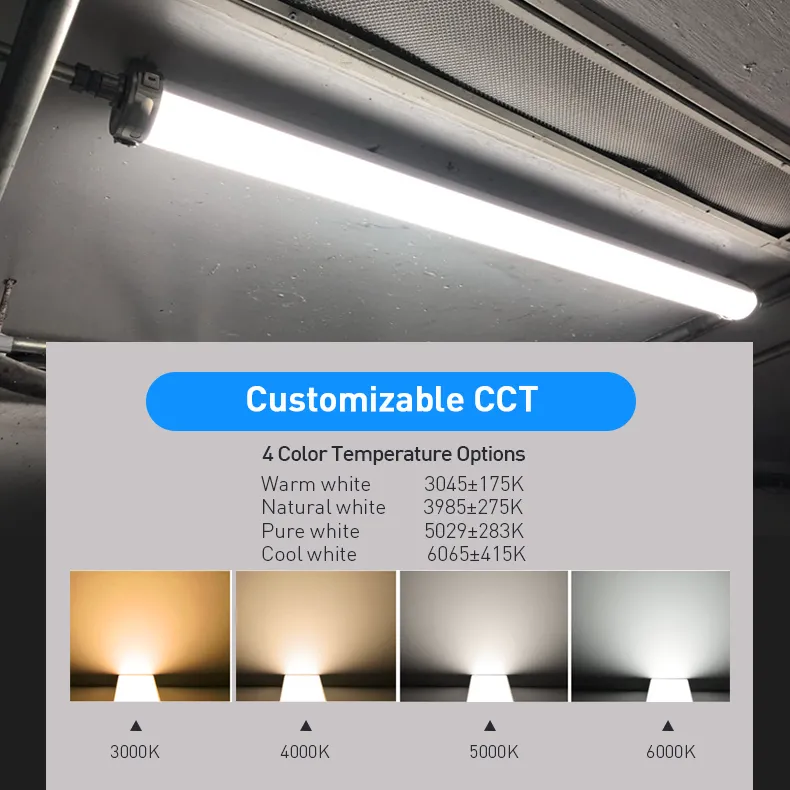

  CCT  3000K/ 4000K/ 5000K/ 6000K
  AC Input  100-277V 50/60Hz
  DC Output  30-40V
  SDCM < 4
  Waterproof  IP69K
  IK Rate  IK10
  Power Factor  >0.95
  Warranty  5 Years
  Operating Temperature  -20~+40℃




                                        All Models

Article Number
Power (W)
Lumen(lm)
Working Current(mA)
SL-P69X2-20-XD
20
2600
450
SL-P69X4-36-XD
36
4680
850
SL-P69X5-45-XD
45
5850
1050
SL-P69X2-30-XD303900700
SL-P69X4-50-XD5065001200
SL-P69X5-50-XD5065001200
SL-P69X5-60-XD6078001400







  * Where the first “X” represents diffuser type, it can be F(Frosted), T(Transparent)

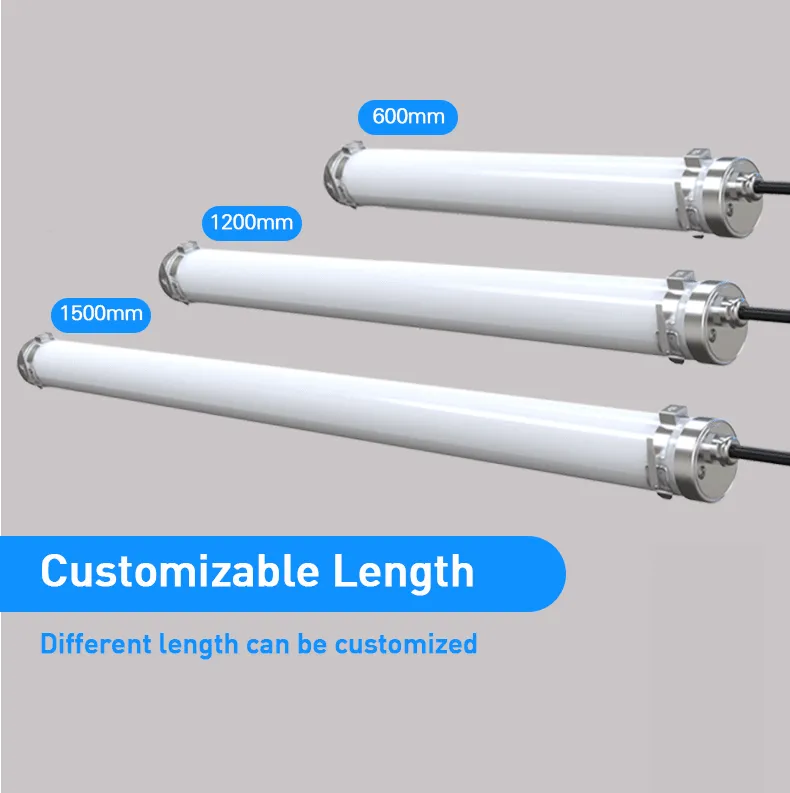

  The number after the first"X"represents length of light."2"= 2ft,"4"= 4ft,"5"= 5ft
  The second “X” represents CCT, it can be W(3000K/4000K), P(5000K), C(6000K)






Cover                              Standard                      Premium

Frosted PC                      130lm/w                        145lm/w

Frosted PMMA                 135lm/w                        150lm/w

Please note:
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
3. Efficacy tolerance is ±10% and wattage tolerance is ±10%
4. lf CRl> 90, light efficiency will be reduced by 10-15%

Product Performance

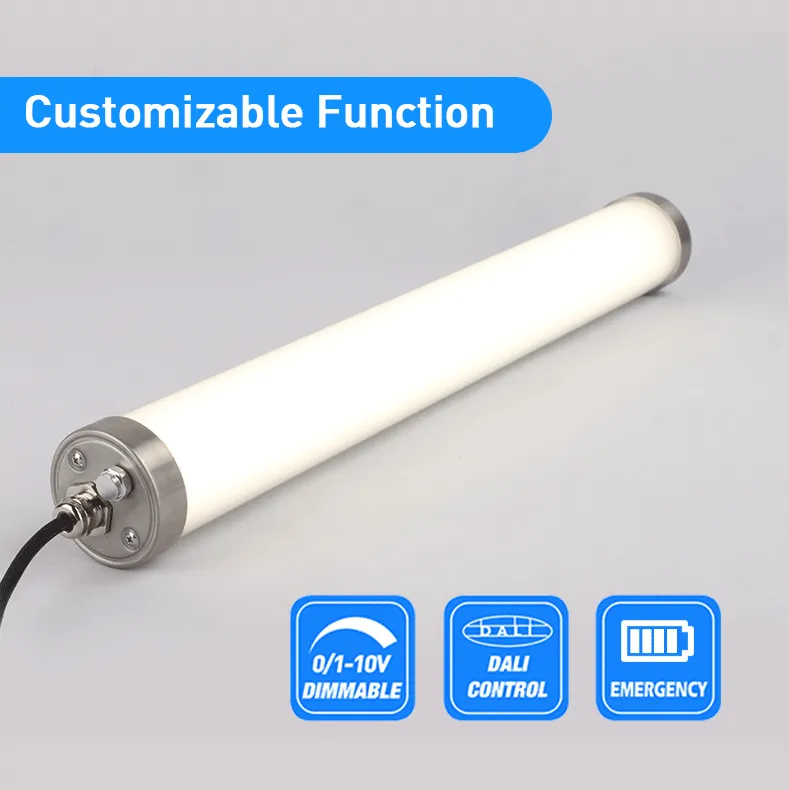

▪ 0/1-10V DIMMABLE FUNCTION:
Allows users to flexibly adjust the light intensity according to actual needs. With a simple dimming control, users can precisely adjust the brightness of the fixture within the range of 0 to 10 volts, realizing stepless changes from full brightness to full darkness. This high degree of flexibility allows the luminaire to adapt to the needs of different scenarios, helping users create the ideal lighting environment.

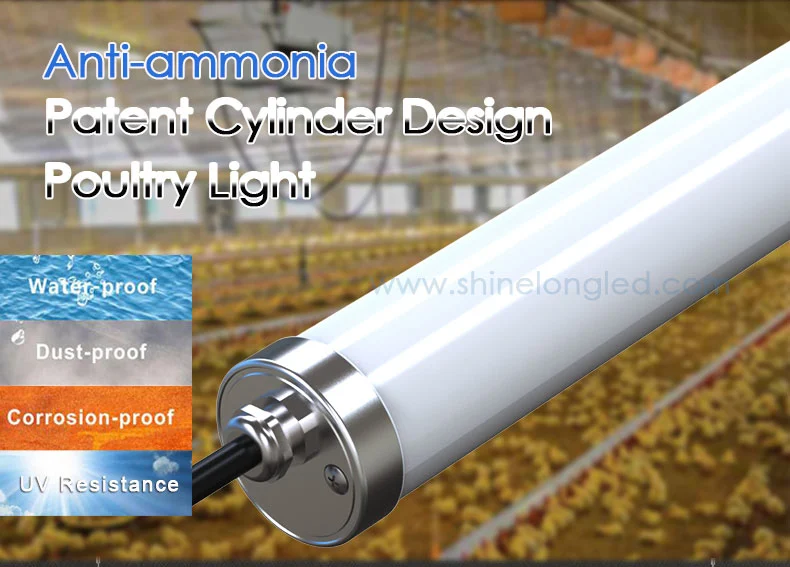

▶ IP69K poultry light

The ShineLong Rancher IP69K LED Triproof Light is especially suitable for livestock farms and other harsh environments, with strong ammonia resistance, it can effectively prevent ammonia corrosion and ensure long and stable use. Its patented cylindrical design improves the robustness of the lamp body, optimizes light efficiency and heat dissipation, and extends the life of the lamp. With waterproof, dustproof and anti-corrosion triple protection, preventing failures caused by water, dust or corrosive gases. Meanwhile, the UV-resistant function ensures that it is not easy to fade or age in outdoor or UV environments.

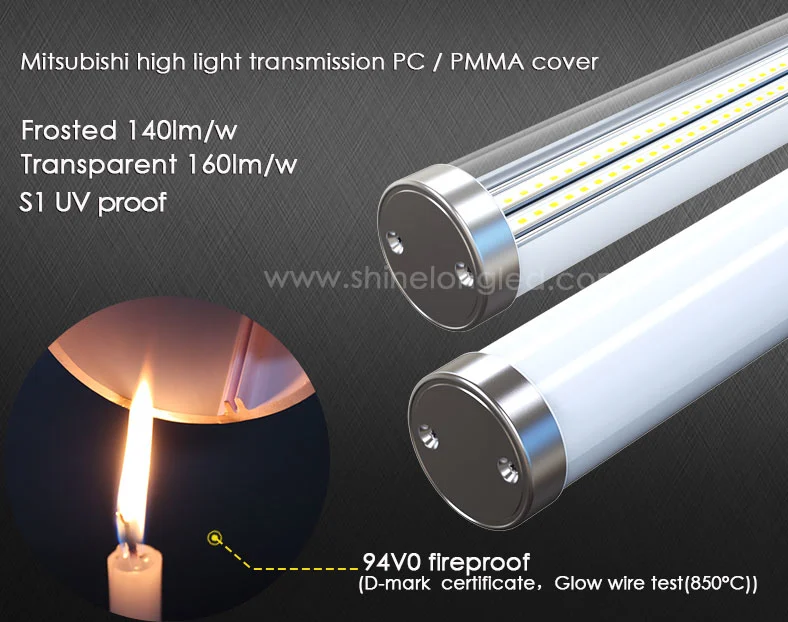

▶ Quality materials

This 1-10V dimming tri-proof poultry light features a Mitsubishi high-transmittance PC/PMMA lampshade, available in frosted (140lm/w) and clear (160lm/w) versions. The lampshade has S1 level UV resistance to prevent aging and fading in long-term use, and the material reaches 94V0 fire rating and passes the D standard certification and 850°C scorch wire test to ensure safety and stability in high temperature environments, making it suitable for lighting needs under harsh conditions.

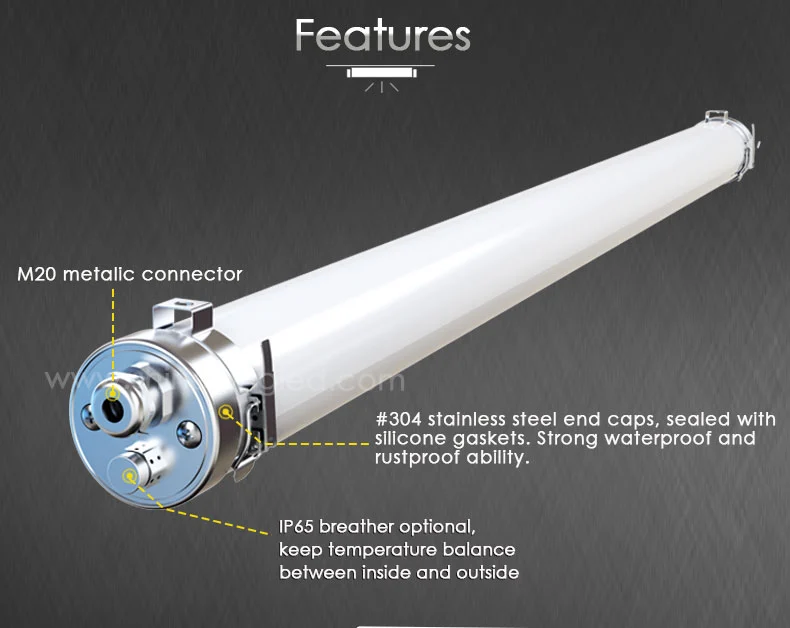

▶ Waterproof and rustproof design

This LED tri-proof fixture for poultry uses M20 metal connectors with #304 stainless steel end caps and silicone sealing gaskets to provide strong waterproof and rustproof performance, ensuring long-term use in harsh environments. An optional IP65 breather valve is also available, which balances the temperature inside and outside the fixture and prevents moisture buildup due to temperature differences, thus further enhancing the protection and durability of the fixture.

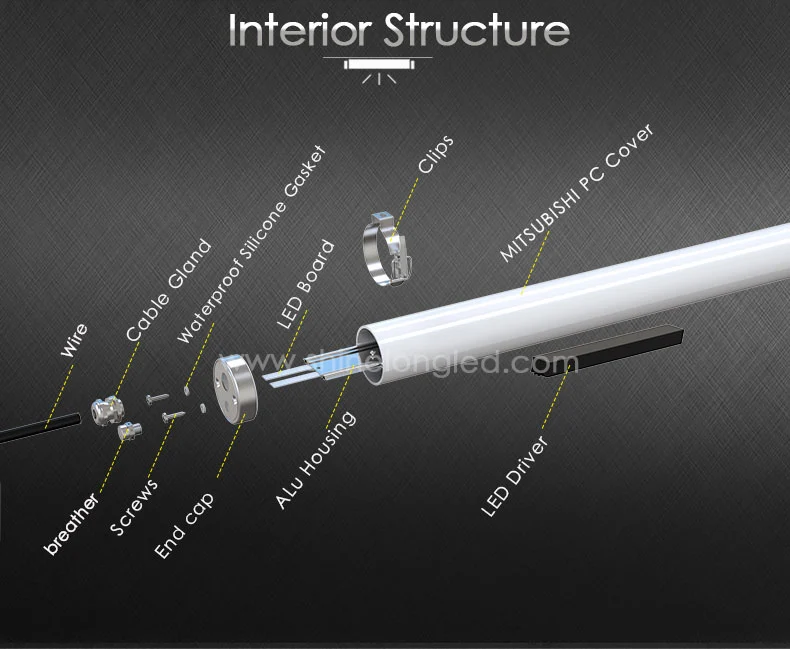

▶ Interior structure

ShineLong Ranchr triproof 0/1-10V dimmable light is precision built internally with a range of high quality components to ensure performance. The luminaire is fitted with air-permeable screws, combined with waterproof silicone gaskets and stainless steel end caps for excellent sealing and waterproofing, and the LED light panel is housed in an aluminum housing to ensure good heat dissipation and a long service life. The Mitsubishi PC lampshade is highly translucent and durable, with an external fixing fixture to stabilize the structure, and a reliable LED driver inside to ensure stable operation in all kinds of harsh environments.

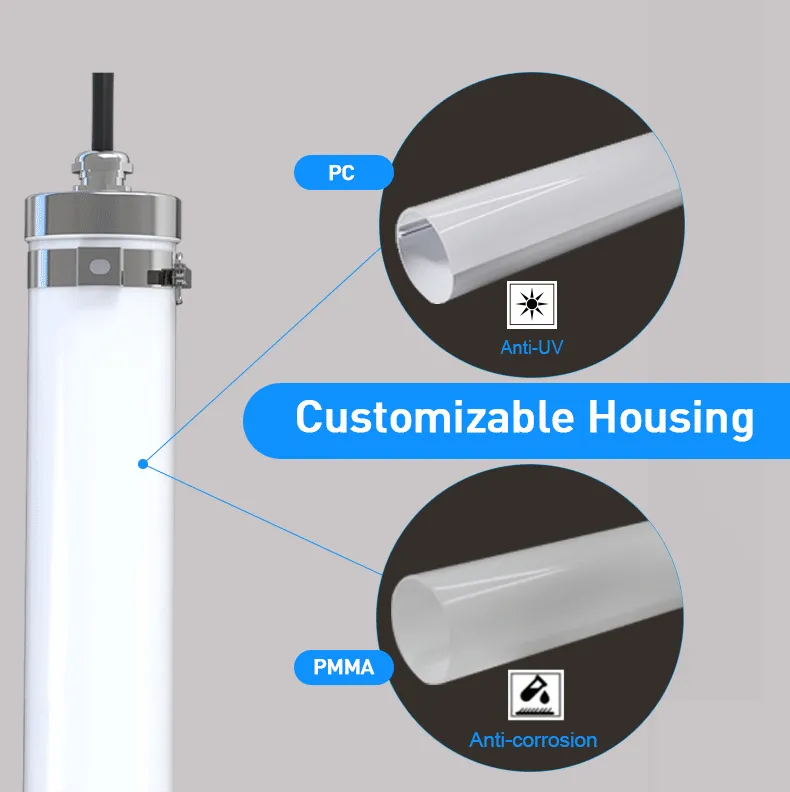

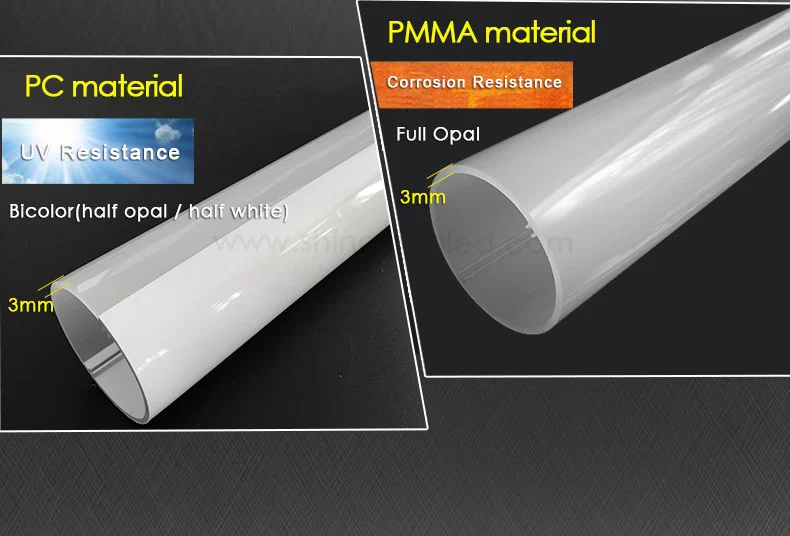

▶ Two materials available

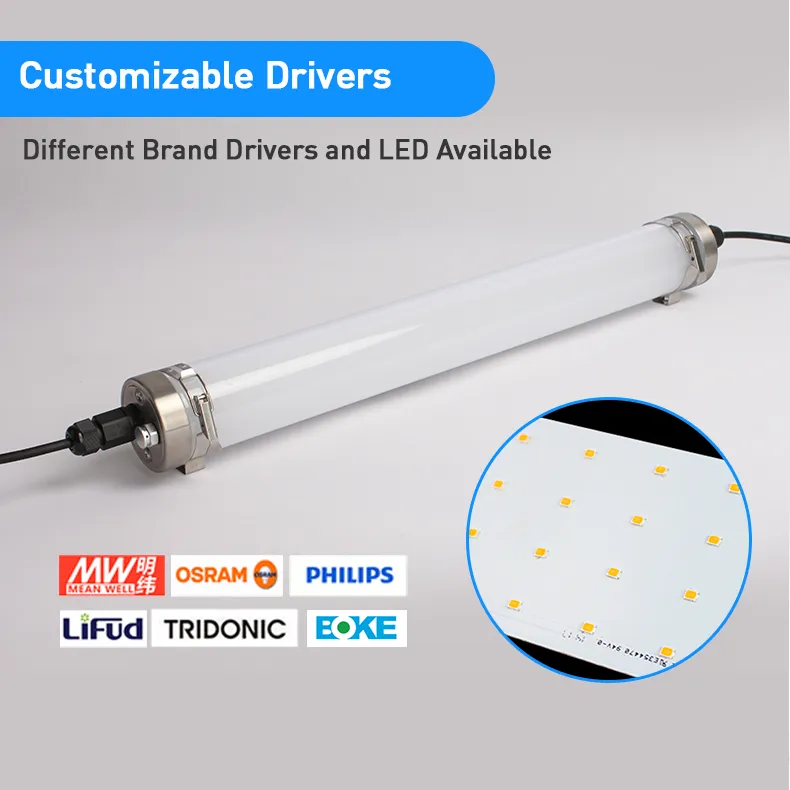

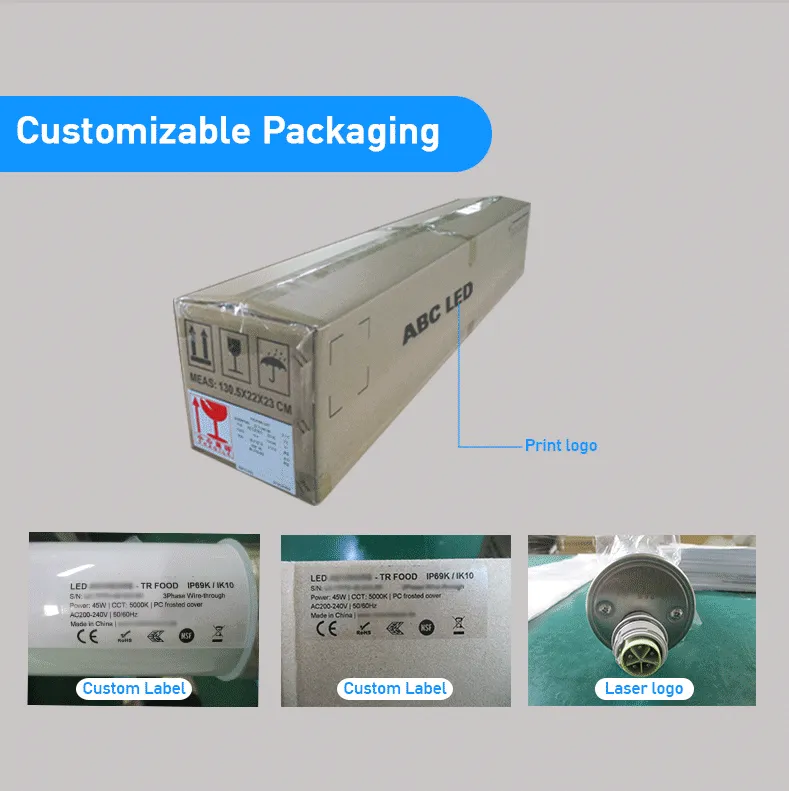

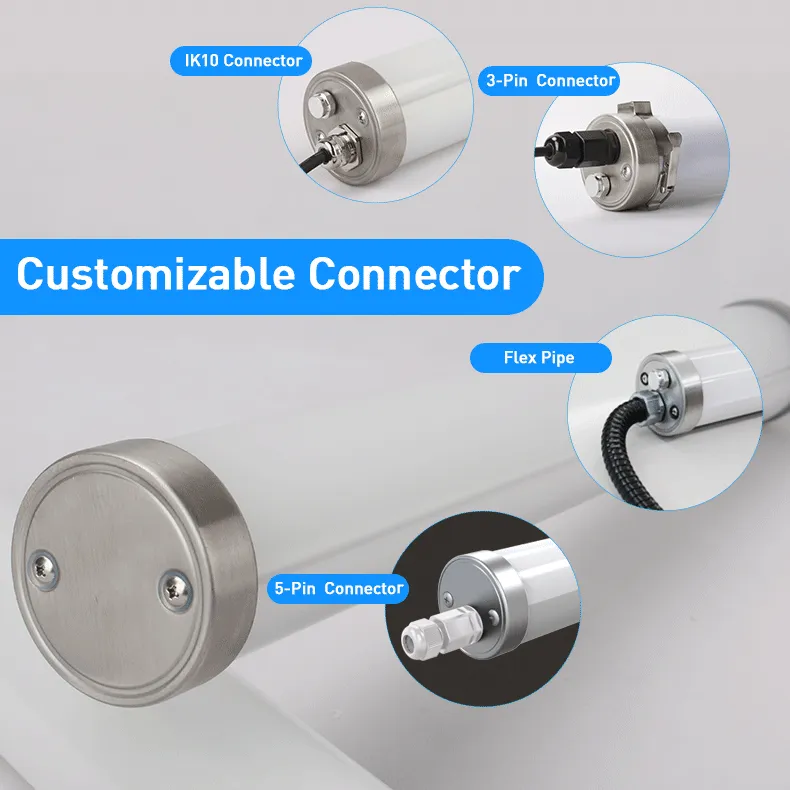

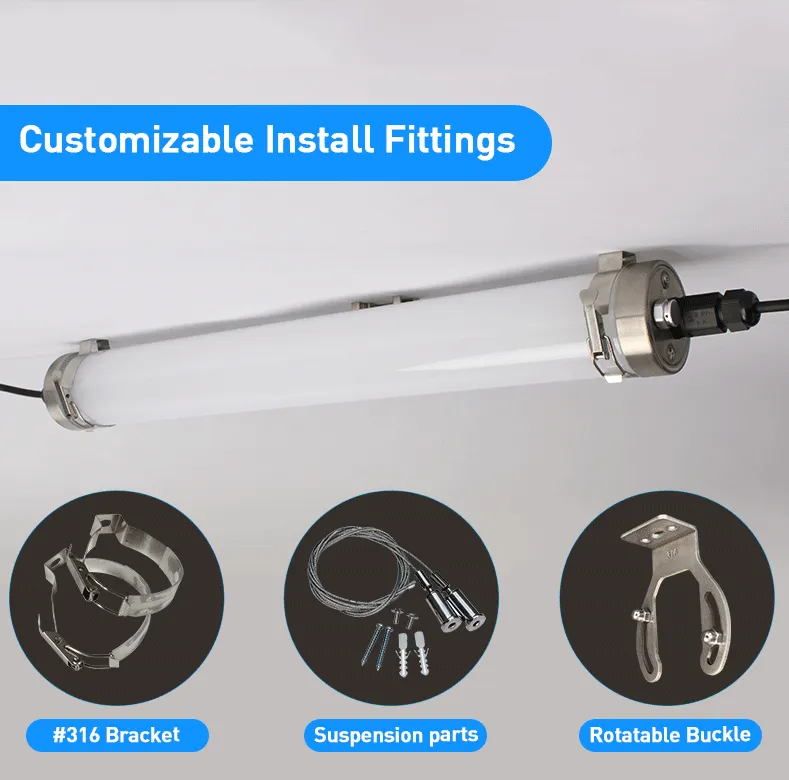

Multiple Customization Options
