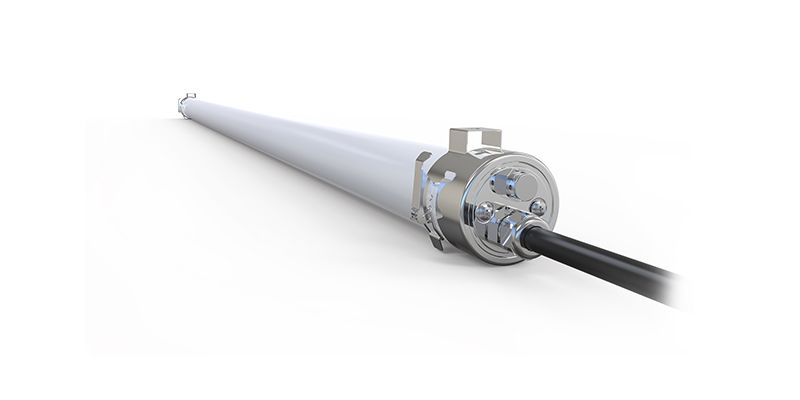

ShineLong Rancher Mini IP66 IK10 C40 LED Triproof Light
SL-C40AF2-10-X
Tri-proof light is a kind of lighting equipment designed for harsh environments with waterproof, dustproof and corrosion-resistant features. They are usually made of high-strength materials and can work properly under extreme conditions, ensuring the provision of stable and reliable lighting effects, as well as energy-saving and environmentally friendly, with a long service life, and are suitable for use in industry, warehouses, workshops and other places.
Delivery
EXW, FOB
minimum order
30 pieces
Supply Ability
9999pieces / Month
Country of Origin
Shenzhen, Guangdong, China
Stock Time
7Day
Quantity:
ShineLong Rancher Mini IP66 IK10 Protection C40 Waterproof LED Triproof Light

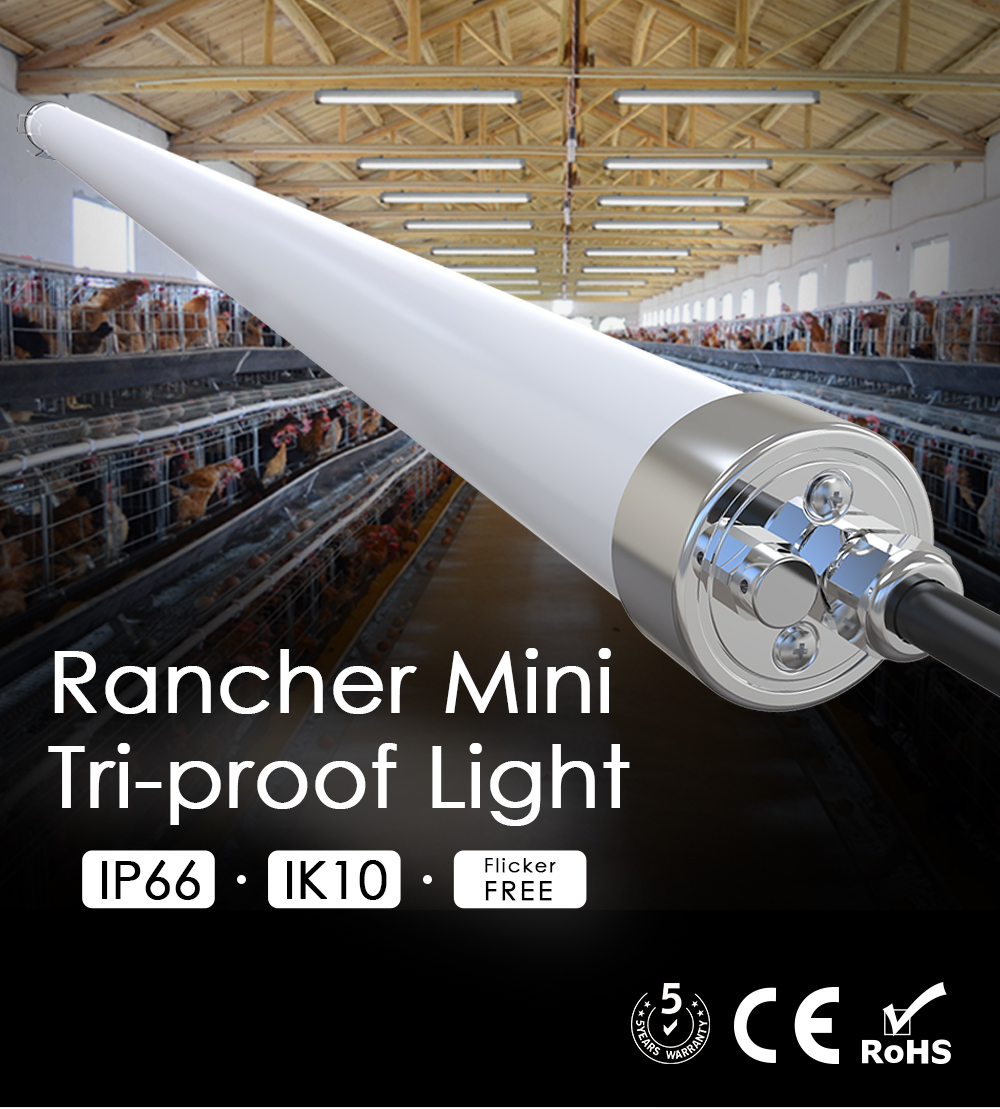

ShineLong Rancher Mini LED Triproof Light is an energy efficient LED tri-proof light with IP66 and IK10 rating protection, waterproof, dustproof and anti-collision performance. Designed for harsh environments, it can be used reliably in industrial plants, garages, warehouses and many other locations. The innovative C40 material housing ensures long term durability, providing users with stable and long lasting lighting.
Key Features
1. Protection level: IP66 waterproof, IK10 protection.
2. Material grade: 94V0 flame retardant material
3. Exterior design: 40mm small diameter and delicate design.
4. Patented structure: Cylindrical design, using PC housing, aluminum substrate, stainless steel end caps and clips
5. Connection: can be connected in series, using S316 stainless steel components
6. drive performance: no strobe built-in driver
7. luminous efficiency: high luminous efficiency, 120 ~ 135 lm / w (+10%)
8. Heat dissipation configuration: aluminum ventilation device
9. Service life: L80B10, 50,000 hours life (@ Ta = 25°C)
10. Material Characteristics: PC material with UV resistance.
2. Material grade: 94V0 flame retardant material
3. Exterior design: 40mm small diameter and delicate design.
4. Patented structure: Cylindrical design, using PC housing, aluminum substrate, stainless steel end caps and clips
5. Connection: can be connected in series, using S316 stainless steel components
6. drive performance: no strobe built-in driver
7. luminous efficiency: high luminous efficiency, 120 ~ 135 lm / w (+10%)
8. Heat dissipation configuration: aluminum ventilation device
9. Service life: L80B10, 50,000 hours life (@ Ta = 25°C)
10. Material Characteristics: PC material with UV resistance.
Product Details
Data Sheet
| Light Source | SMD2835 |
| CRI | >80 |

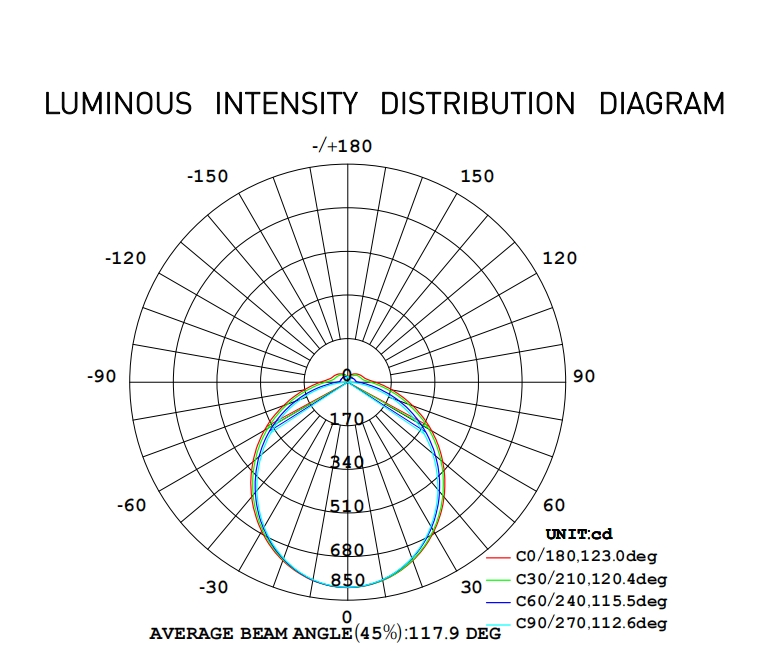

Beam Angle | 120° |
| CCT | 3000K/ 4000K/ 5000K/ 6000K |
| AC Input | 200-240V 50/60Hz |
| DC Output | 30-40V |
| SDCM | < 4 |
| Waterproof | IP66 |
| IK Rate | IK10 |
| Power Factor | >0.95 |
| Warranty | 5 Years |
| Operating Temperature | -20~+40℃ |
All Models
Article Number | Power (W) | Lumen(lm) | Working Current(mA) |
SL-C40AF2-10-X | 10 | 1200 | 250 |
SL-C40AF4-20-X | 20 | 2400 | 450 |
SL-C40AF5-30-X | 30 | 3600 | 700 |
* The number after the"F"represents length of light."2"= 600mm,"4"= 1200mm,"5"= 1500mm
The"X"represents CCT, it can be W(3000K/4000K), P(5000K), C(6000K)
Cover Standard Premium
Frosted 120lm/w 135lm/w
Please note:
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
3. Efficacy tolerance is ±10% and wattage tolerance is ±10%
4. lf CRl> 90, light efficiency will be reduced by 10-15%
Product Performance
▶ Powerful protection

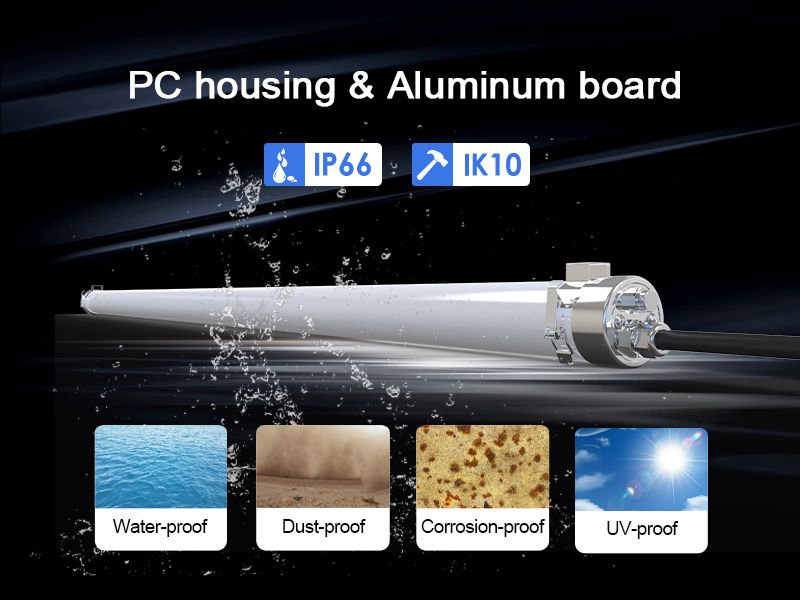

The ShineLong C40 rancher mini triproof light is designed with a rugged PC housing and aluminum plate, combining lightweight and durability. Its IP66 and IK10 ratings provide multiple protection against water, dust, corrosion and UV rays. The waterproof design prevents damage from heavy rain or moisture; the dustproof protection is suitable for dusty places; the anti-corrosion function prolongs the service life; and the UV-resistant design prevents aging in the sun.
▶ Exquisite design

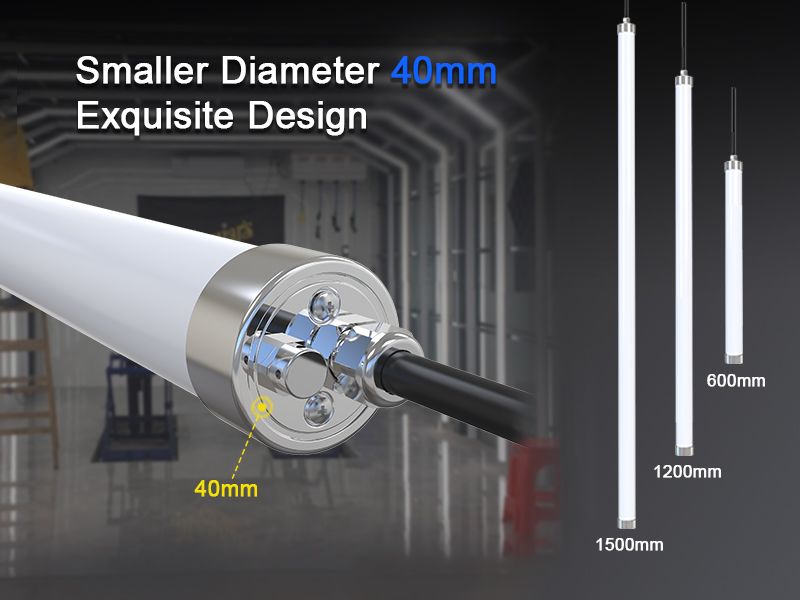

Rancher Mini IP66 IK10 waterproof LED tri-proof light has a compact design with a diameter of only 40mm, which is small and sturdy, suitable for all kinds of lighting needs in small or limited space. Its simple appearance makes it suitable for a wide range of scenarios, and the abundant length options (600mm, 1200mm, 1500mm) fulfill the flexible arrangement of different lighting needs.
▶ High efficacy

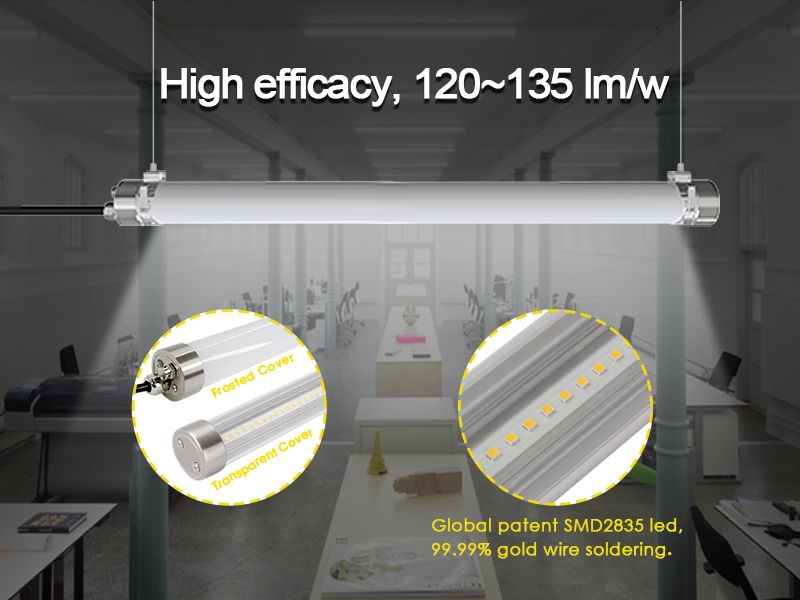

ShineLong IP66 protection rancher mini LED triproof light fixture has a high luminous efficacy with an output of 120~135 lm/w, providing excellent lighting performance and reducing energy consumption. Equipped with frosted and transparent shades, the frosted shades provide soft illumination and avoid glare, which is suitable for areas with high comfort requirements, while the transparent shades ensure higher brightness output, which is suitable for places that require a bright light source.The Rancher Mini adopts the globally-patented SMD2835 LED chip, and uses 99.99% pure gold soldering wires, which enhances the conductivity and stability of the LED, and significantly extends the product's life. The Rancher Mini utilizes a globally patented SMD2835 LED chip and 99.99% pure gold soldering wires to enhance the conductivity and stability of the LEDs, which significantly extends the product's lifespan and provides a high-quality light source option for industrial and commercial lighting.
▶ High-quality material

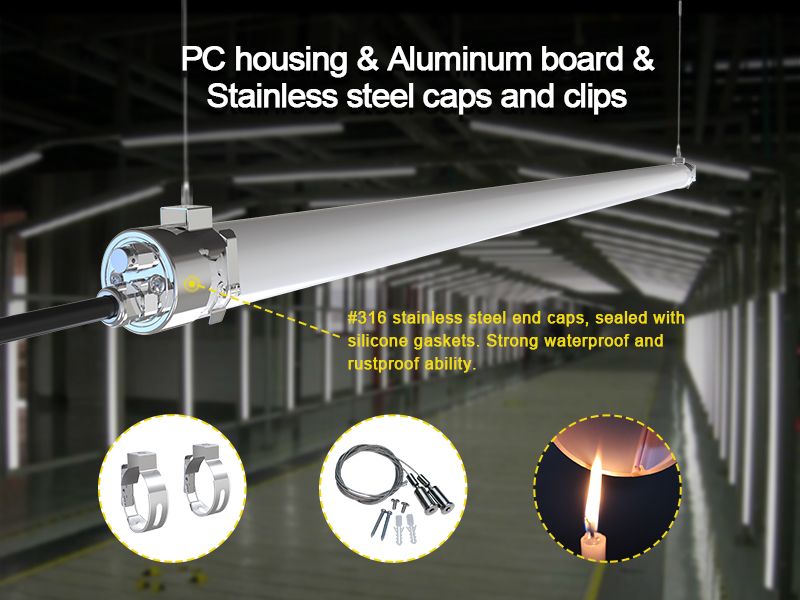

Rancher Mini tri-proof light is designed with a combination of a high-quality PC housing, an aluminum plate and a stainless steel end cap with a clamping clasp, which fully reflects the ruggedness of the construction and the comprehensive protection. Its end cap is made of #316 stainless steel and is coupled with a durable silicone seal to ensure excellent sealing performance of the light. This design not only enhances the waterproof capability, but also possesses extremely strong anti-rust properties. This light is especially suitable for use in wet, salt spray or corrosive gas environments such as car washes, garages, supermarkets, farms, overpasses, tunnels, wash stations, subways, airports and more.

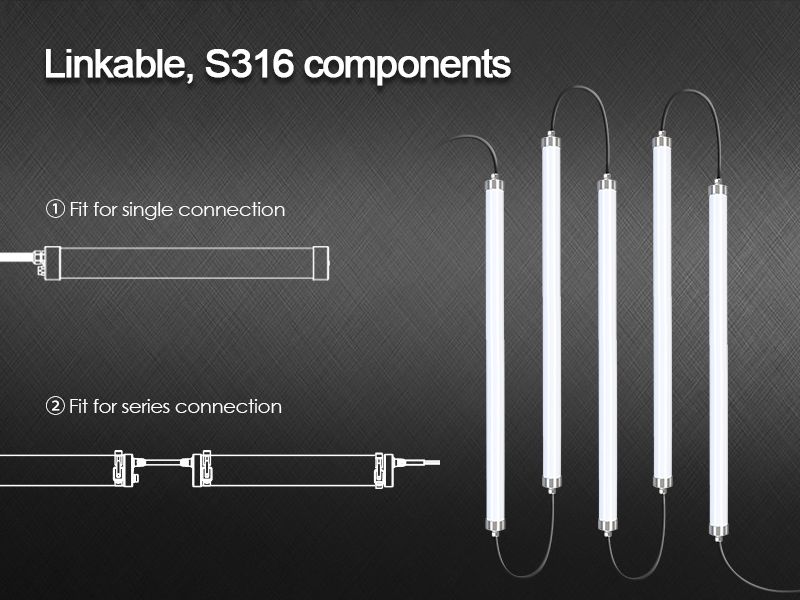

▶ Connection methods

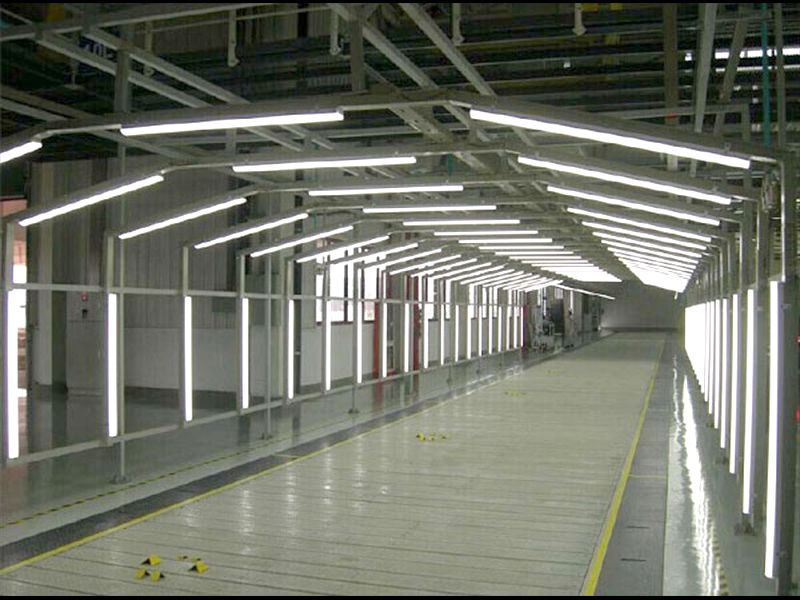

The ShineLong Rancher Mini IP66 Tubular LED triproof light features a tandem-connectable design with #316 stainless steel components to ensure high strength and corrosion resistance. This light is not only suitable for individual connection installation, but also supports multiple lights in series connection. Single-lamp connection can be used for independent lighting areas to realize precise lighting control; series connection is suitable for places that require continuous lighting, such as corridors, production lines or warehouses.

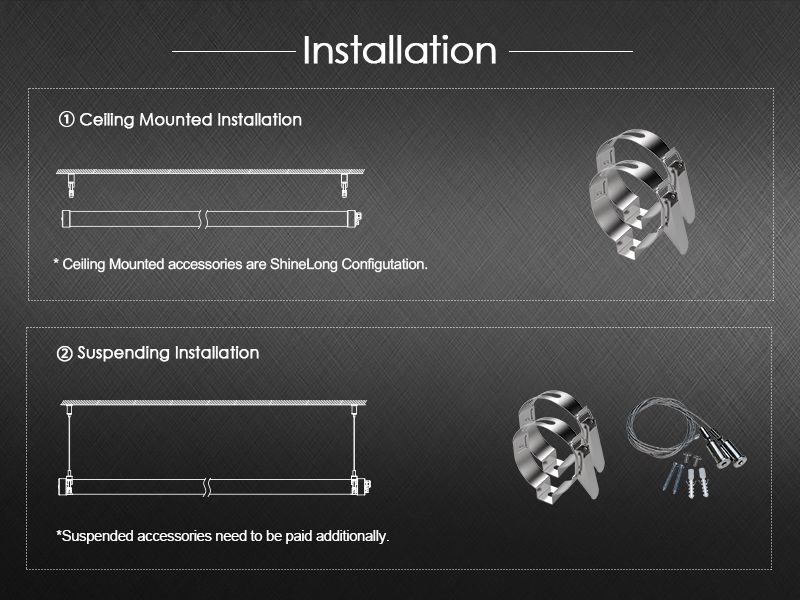

▶ Two mounting options

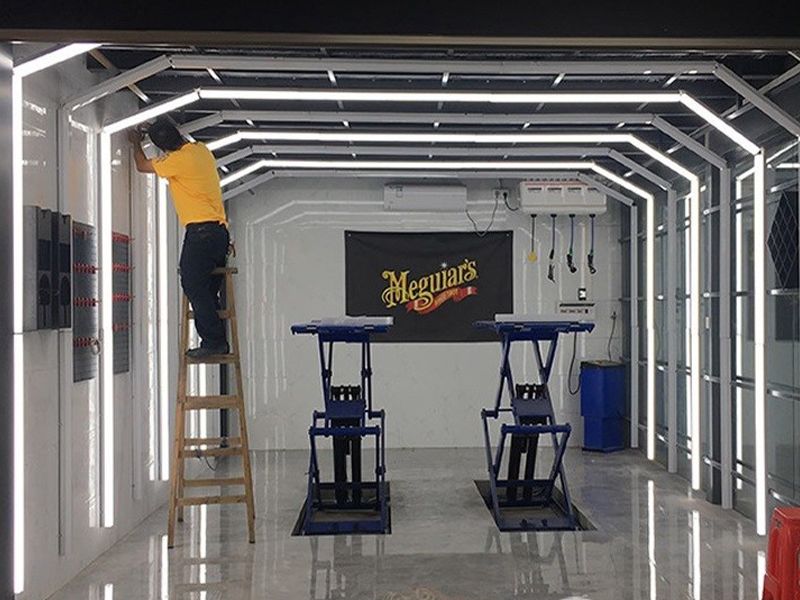

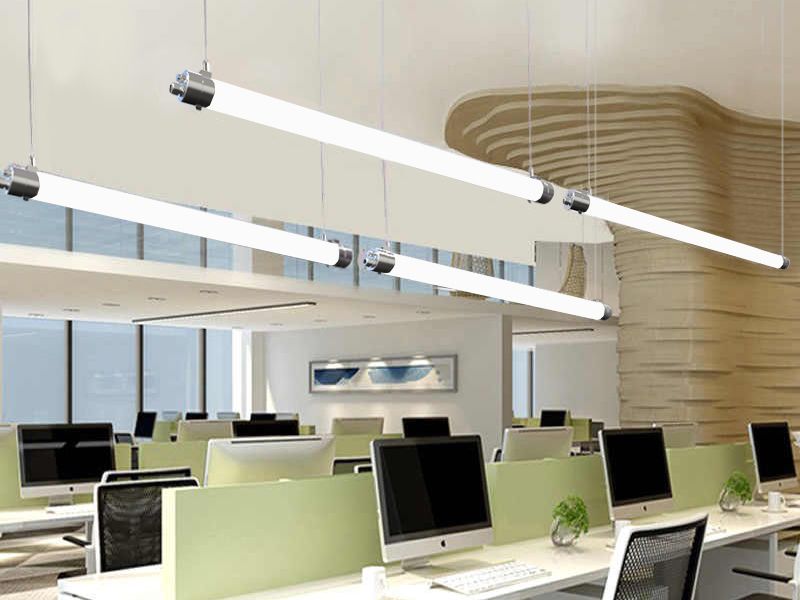

Multiple Usage Scenarios
