ShineLong Single Slim Bay Light Ultra Slim Design Ceiling Lighting LED Linear Light
SL-B40X4-40-XXB
Linear light is a slender LED light with high brightness, energy saving and long life, uniform and soft light and adjustable color temperature. It is waterproof, flexible in installation, customizable and widely used in construction and home decoration.
Delivery
EXW, FOB
minimum order
30 pieces
Supply Ability
9999pieces / Month
Country of Origin
Shenzhen, Guangdong, China
Stock Time
7Day
Quantity:
ShineLong Single Slim Bay Rectangle Ultra Slim 12mm LED Linear Light
The ShineLong Single Slim Bay Light features an ultra-slim design that is simple and stylish. Its flicker-free technology ensures visual comfort over long periods of time. The housing is made of black aluminum for durability and excellent heat dissipation, providing users with a stable and long-lasting experience.
Key Features
1. Ultra Slim Design 12mm, UGR less 16

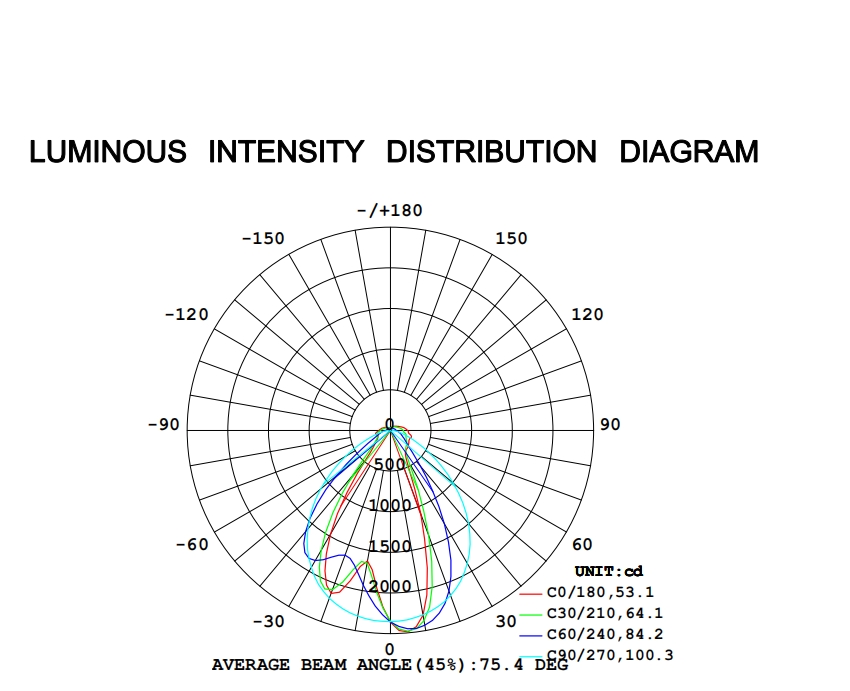

2. Beam Angle: 2*45° lens, IP40 (IP54 optional)
3. High CRI: Ra>80, SDCM<4
4. High Efficacy: 150lm/w ±10%
5. High Power factor: >0.95
6. Flicker free driver, THD<15%
7. Input Voltage: AC200-240V 50/60Hz
8. Material: Black color Aluminium + lens
9. L80B10 Lifespan (Ta=25℃): 50,000hrs, Warranty: 5 years
10. CCT: 3000K: 3045±175K, 4000K: 3985±275K, 5000K: 5029±283K, 6000K: 6065±415K

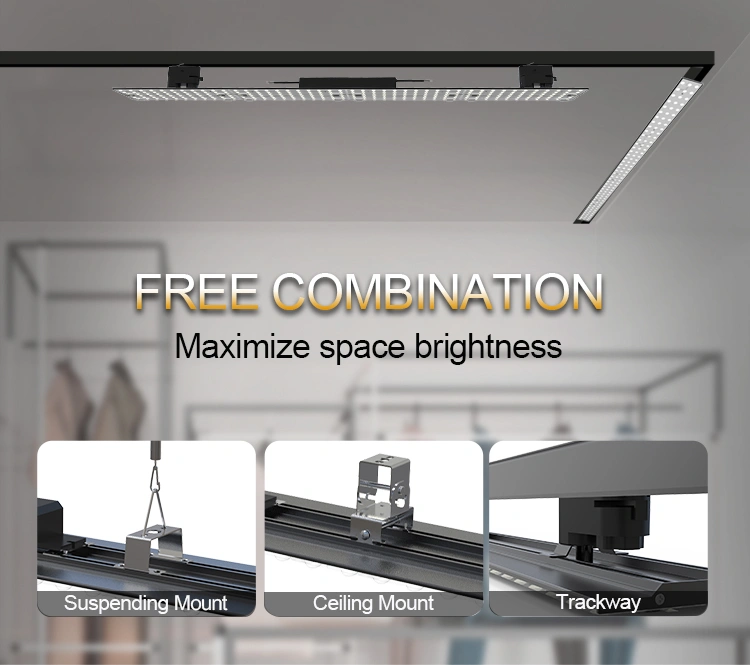

11. Suspending & Ceiling mounted & Trackway for convenient installation and maintenance
12. Application: Supermarket / Store / Warehouse / Library / Museum / Exhibition / Office / Hotel
2. Beam Angle: 2*45° lens, IP40 (IP54 optional)
3. High CRI: Ra>80, SDCM<4
4. High Efficacy: 150lm/w ±10%
5. High Power factor: >0.95
6. Flicker free driver, THD<15%
7. Input Voltage: AC200-240V 50/60Hz
8. Material: Black color Aluminium + lens
9. L80B10 Lifespan (Ta=25℃): 50,000hrs, Warranty: 5 years
10. CCT: 3000K: 3045±175K, 4000K: 3985±275K, 5000K: 5029±283K, 6000K: 6065±415K
11. Suspending & Ceiling mounted & Trackway for convenient installation and maintenance
12. Application: Supermarket / Store / Warehouse / Library / Museum / Exhibition / Office / Hotel
Product Details
Data Sheet
| Light Source | SMD2835 |
| CRI | >80 |
Beam Angle | 2*45° |
| CCT | 3000K/ 4000K/ 5000K/ 6000K |
| AC Input | 200-240V 50/60Hz |
| SDCM | < 4 |
| Power Factor | >0.95 |
| Warranty | 5 Years |
| Operating Temperature | -20~+40℃ |
All Models
Article Number | Power (W) | Lumen(lm) |
SL-B40X2-20-XXB | 20 | 3000 |
SL-B40X4-40-XXB | 40 | 6000 |
SL-B40X5-50-XXB | 50 | 7500 |
* The frist"X"represents lens angle, it can be B(90 degree), C(IP54 90 degree)
The second “X” represents CCT, it can be W(3000K/4000K), P(5000K), C(6000K), D(3000K/4000K/5000K or 4000K/5000K/6000K)
The second “X” represents CCT, it can be W(3000K/4000K), P(5000K), C(6000K), D(3000K/4000K/5000K or 4000K/5000K/6000K)
Cover Standard
Clear 150lm/w
Please note:
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
3. Efficacy tolerance is ±10% and wattage tolerance is ±10%
4. lf CRl> 90, light efficiency will be reduced by 10-15%
Product Performance

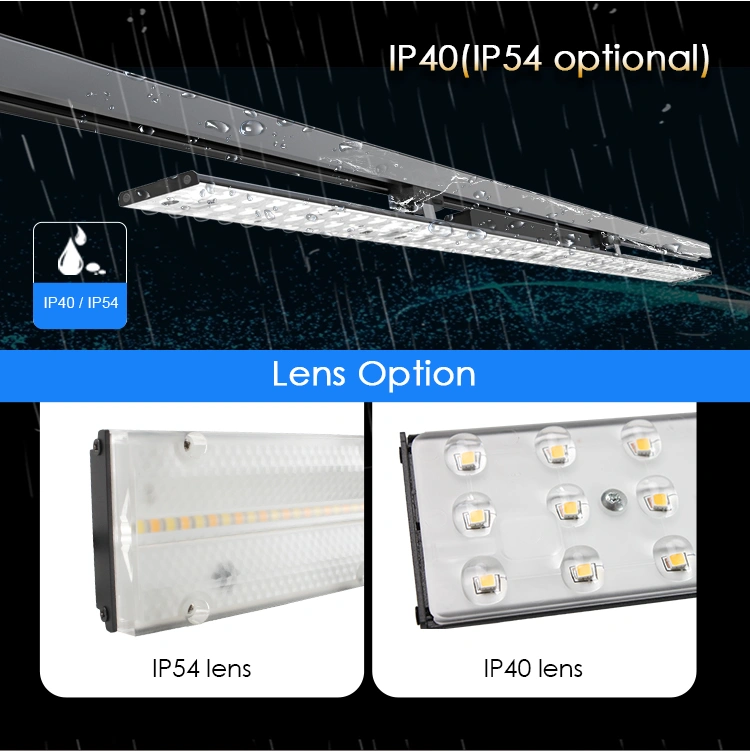

▶ Optional waterproof rating
The Single Slim Bay Linear Light is available with optional waterproof ratings to suit different usage requirements. The default protection rating is IP40 and is suitable for most indoor environments. It protects against solid foreign objects with a diameter of 1mm or more, making it particularly suitable for less dusty environments such as warehouses, supermarkets and office spaces. For a higher level of protection, you can choose the IP54 version. This rating not only protects against dust ingress, but also provides a degree of water resistance against splashing water from all directions, making it suitable for environments with high humidity or occasional splashing water, such as parking lots, industrial halls or certain semi-outdoor areas.

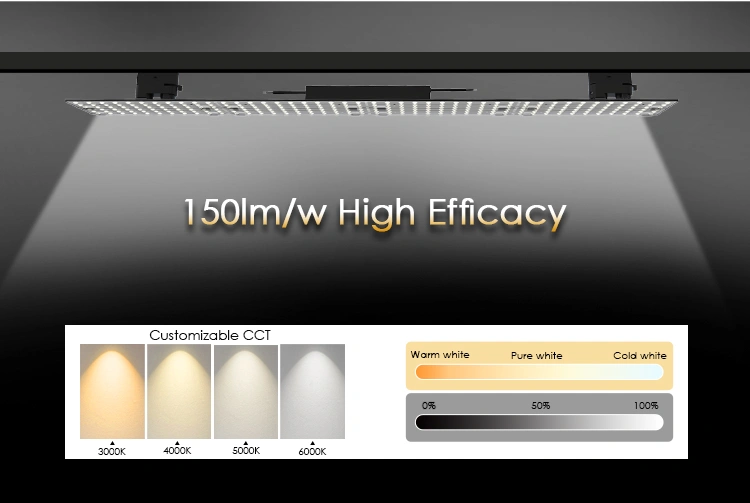

▶ High efficacy
The ShineLong Single Slim Bay Light provides an extremely efficient lighting solution for a wide range of applications with its excellent 150lm/w high luminous efficacy. The luminaire offers a wide range of color temperature options to meet different needs, including warm white (3000K), pure white (4000K), cool white (5000K) and 6000K customized color temperatures to flexibly respond to various lighting environments. Whichever color temperature you need, the Single Slim Bay LED Linear Light ensures the perfect balance of light efficiency and comfort.

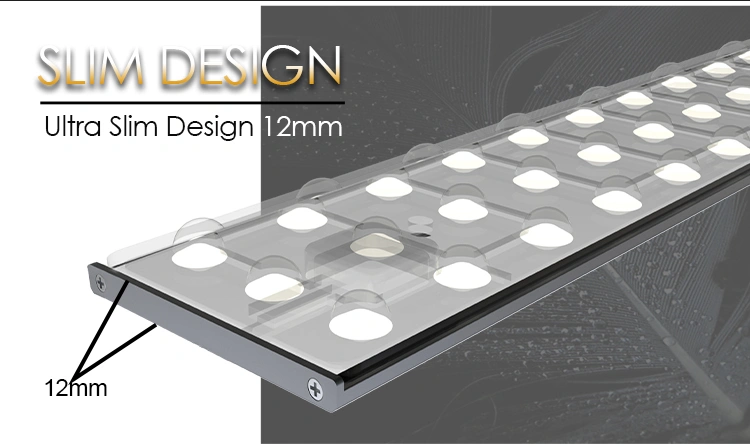

▶ Ultra Slim Design
This LED linear light boasts an ultra-slim design with a thickness of just 12mm, ensuring that it is both aesthetically pleasing and practical in a variety of application scenarios. The ultra-slim profile allows it to easily fit into different ceiling or wall configurations without taking up too much space, making it ideal for commercial and industrial locations where spatial aesthetics are important.

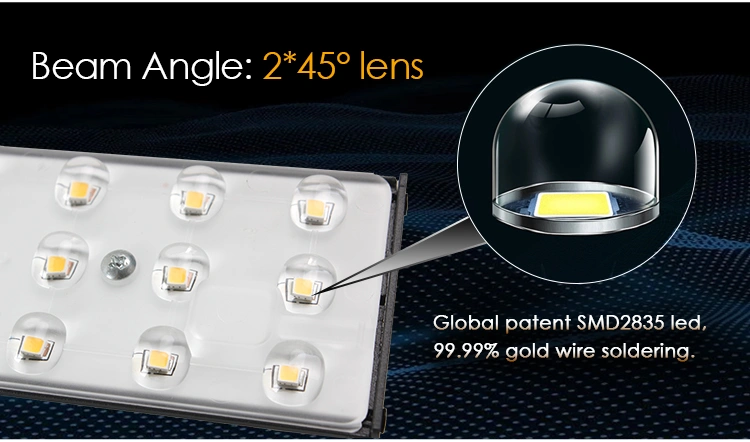

▶ Global patent

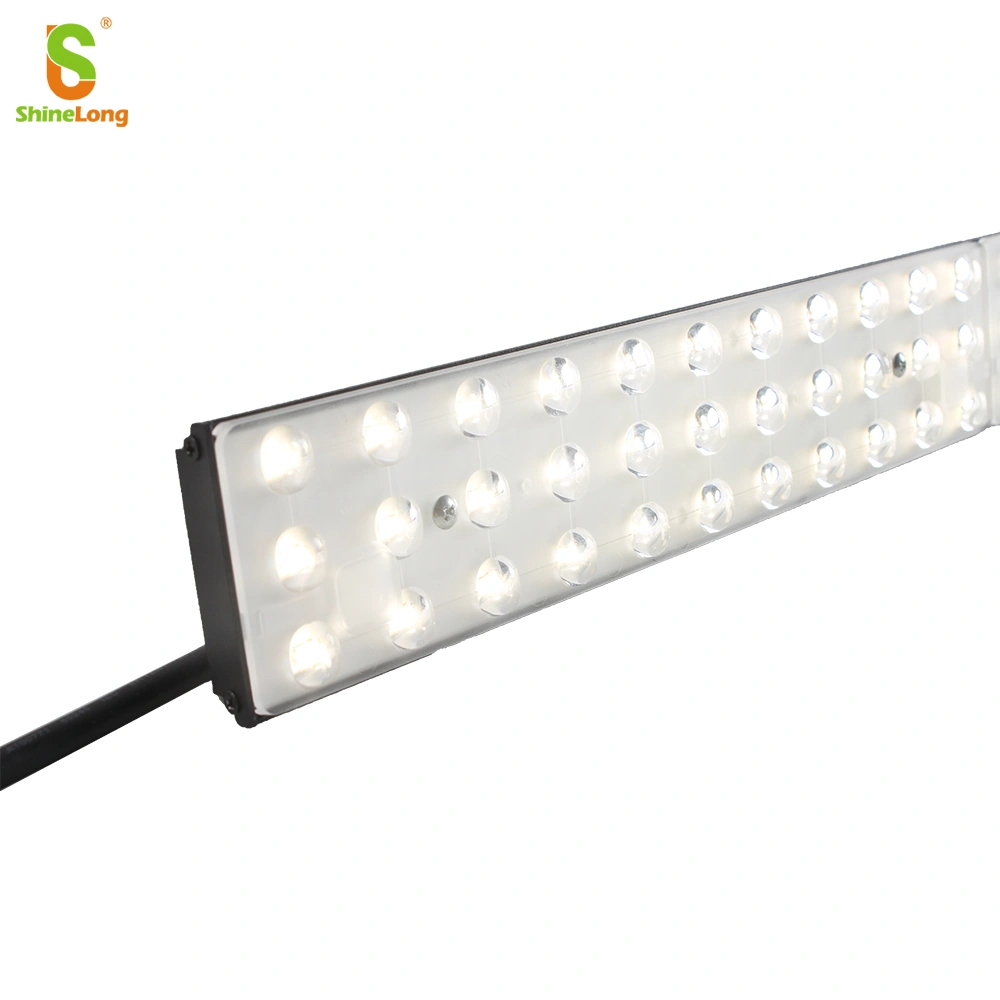

This Single Slim Bay LED Light is equipped with a 2*45° lens, which provides efficient and even illumination through a precise beam angle, ensuring focused and glare-free light. The luminaire utilizes globally patented SMD2835 LED technology, and the LED chips are soldered with 99.99% pure gold wire to ensure superior conductivity and long-lasting durability, significantly extending the life of the luminaire.

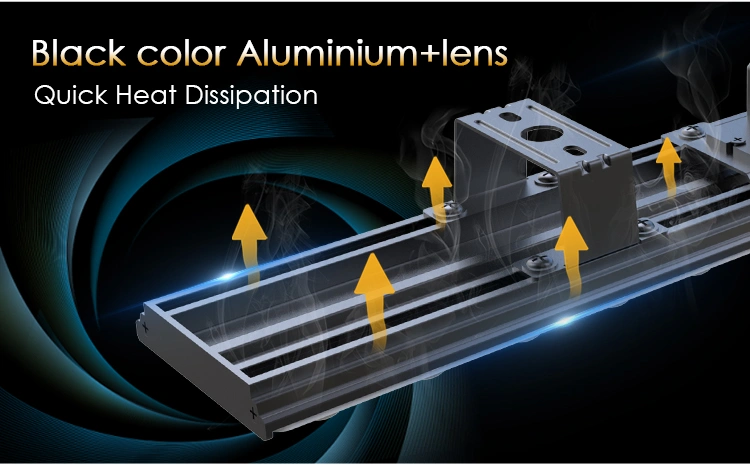

▶ Efficient heat dissipation
Single Slim Bay Light features a black aluminum alloy housing with a high-quality lens, which not only gives the fixture a modern and minimalist design, but also ensures a sturdy and durable structure. Aluminum alloy has an excellent ability to dissipate heat quickly, effectively lowering the operating temperature of the ShineLong single slim bay linear light, extending the life of the LED chip, while maintaining high efficiency and stable performance.

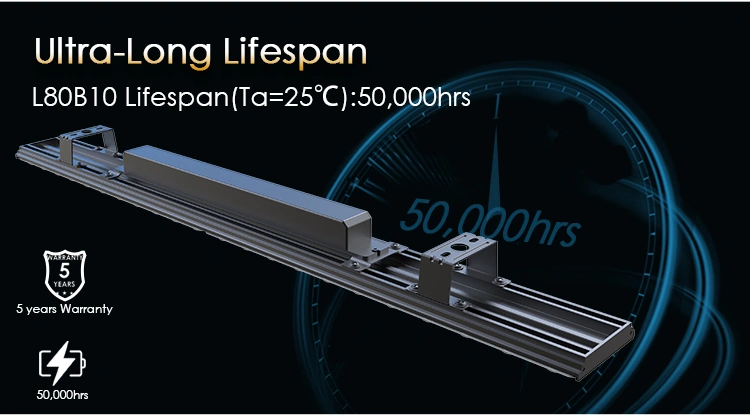

▶ Length of use and warranty
Extremely long lifetime. Up to 50,000 hours under the L80B10 life standard (Ta=25°C) means that at least 80% of the luminous flux can be maintained over the life of the luminaire, and the failure rate of the luminaire is as low as 10%. In addition, the ShineLong comes with a 5-year warranty, ensuring that you will enjoy long-lasting, consistent lighting without the need for frequent replacements or repairs.

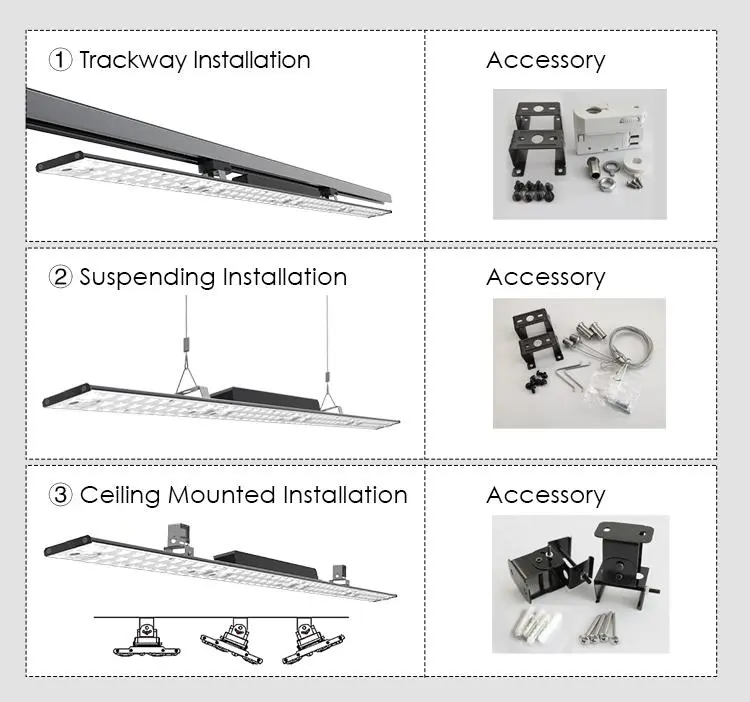

Assembly and installation
