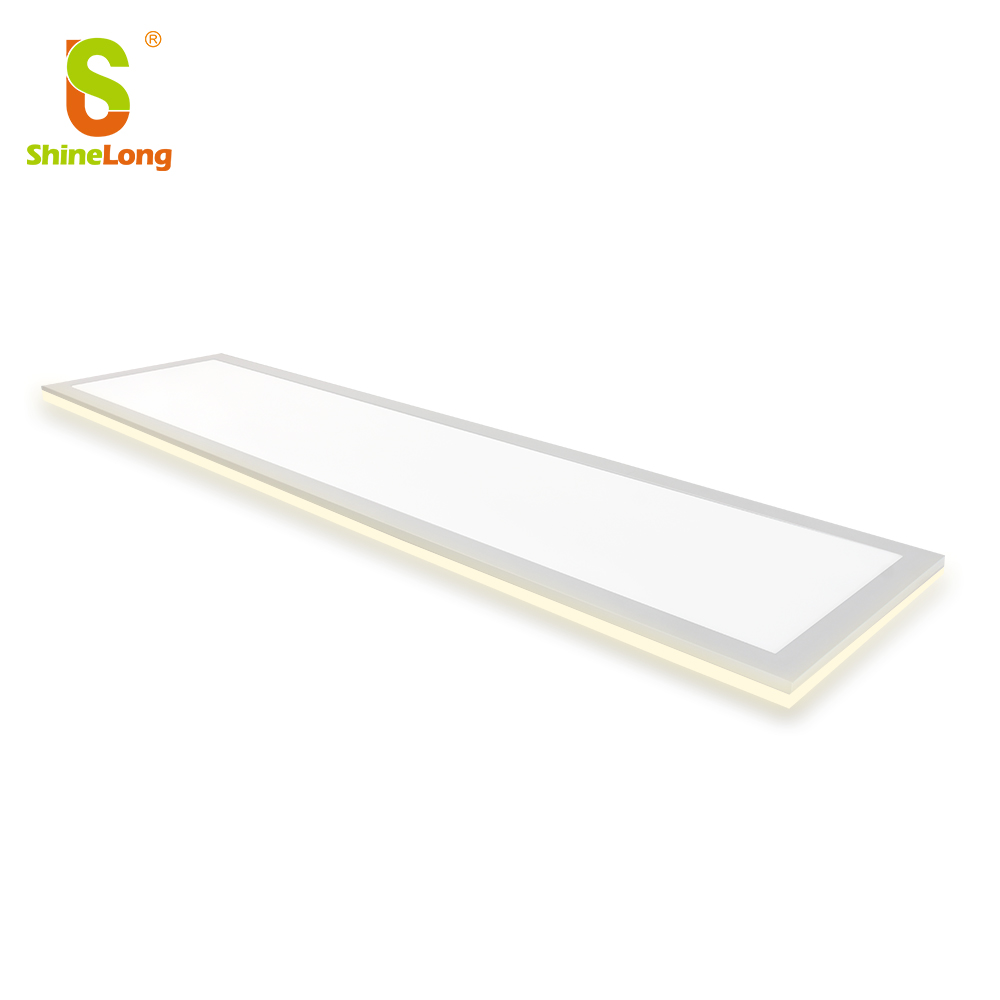

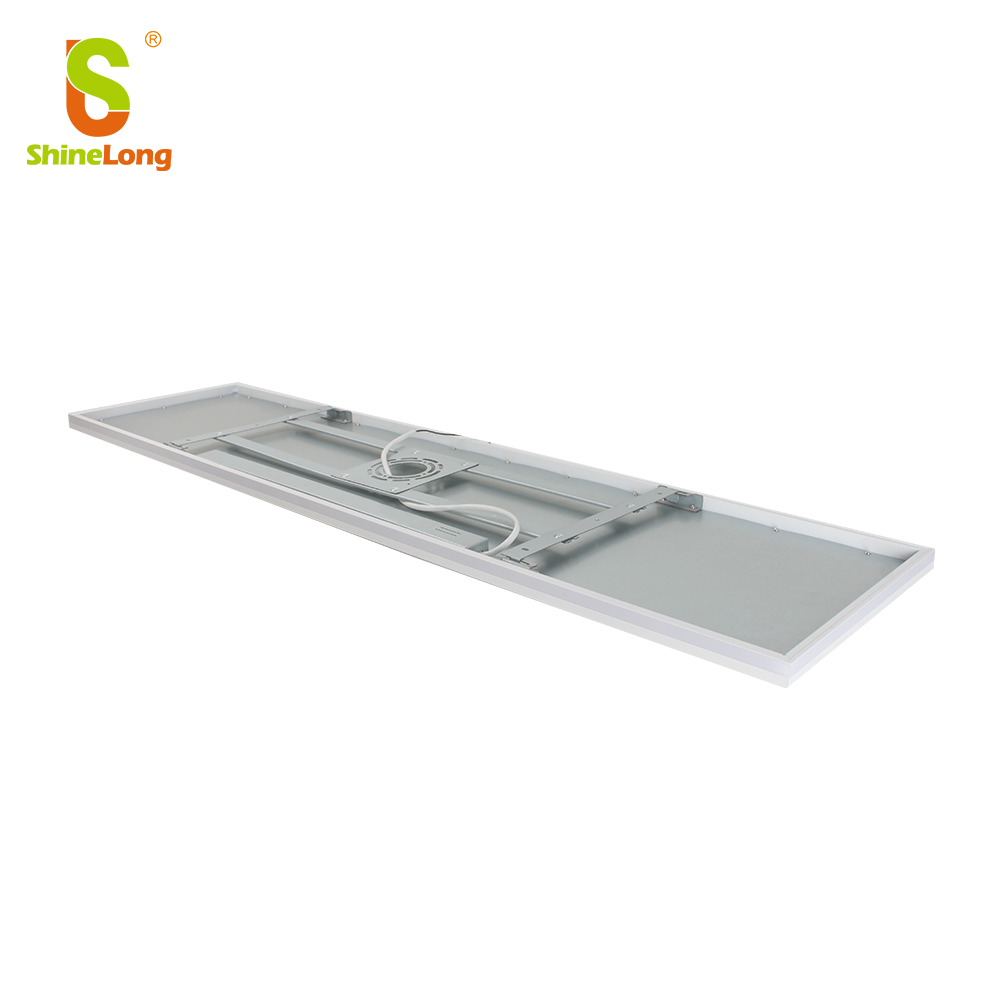

ShineLong Ultra-thin Smart Internal Driver Wifi Bluetooth Tuya CCT Adjustment LED Panel Light
SL-P2240-X-28E
Panel lights are modern lighting fixtures that are commonly used in indoor environments such as offices, stores and homes. They are known for their clean design and even light distribution, which can effectively reduce shadows and glare. Panel lights usually utilize LED light sources, which offer the benefits of energy efficiency and long life. Many panel lights also offer dimming functions, making it easy for users to adjust the brightness as needed to create a comfortable light environment.
Delivery
EXW, FOB
minimum order
30 pieces
Supply Ability
9999pieces / Month
Country of Origin
Shenzhen, Guangdong, China
Stock Time
7Day
Quantity:
ShineLong Switch 5 CCT Adjustment APP Control Smart Internal Driver LED Panel Light
ShineLong Switch 5 CCT Adjustment Smart Internal Driver LED Panel Light uses advanced smart dimming technology to provide five adjustable color temperature options to meet different environments and needs. Remote control via mobile APP, easily adjust the color temperature and brightness to achieve precise lighting effect. Built-in driver design reduces the need for external accessories and improves stability.
Key Features
1. Ultra-thin 23mm smart internal driver LED panel light
2. CE, RoHS Certified, IK06, IP40 approved
3. On/Off switch with 5 CCT adjustment + 2200K ambient light (2700K/3000K/4000K/5000K/6000K options)
4. Supports App Controller (WiFi + Bluetooth): CCT adjustment (2700K-6500K) + RGB ambient light
5. High CRI: Ra>80, SDCM<4
6. High power factor: >0.95
7. Efficacy (IES): 100lm/w ±10%
8. Instant on/off, edge-lit, no dark areas, anti-yellowing

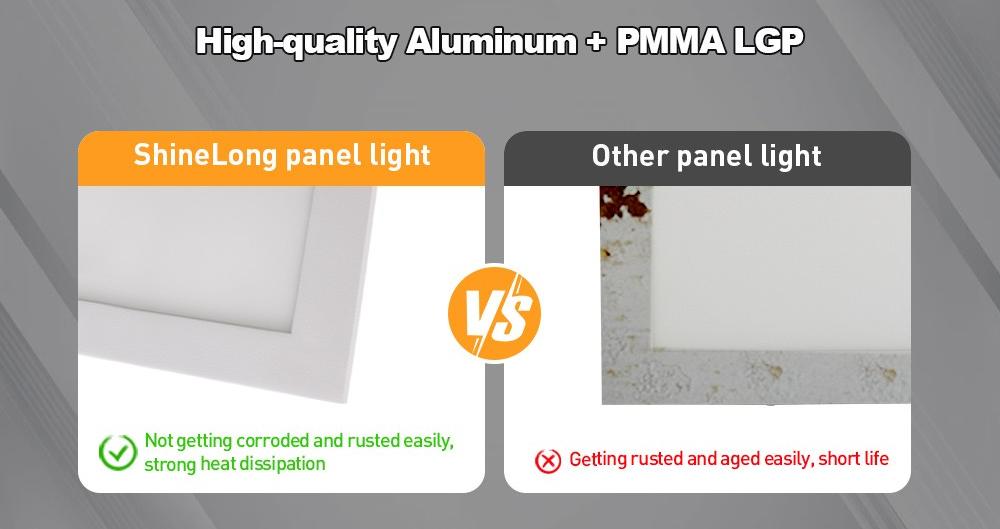

9. Material: High-quality aluminum + PMMA LGP

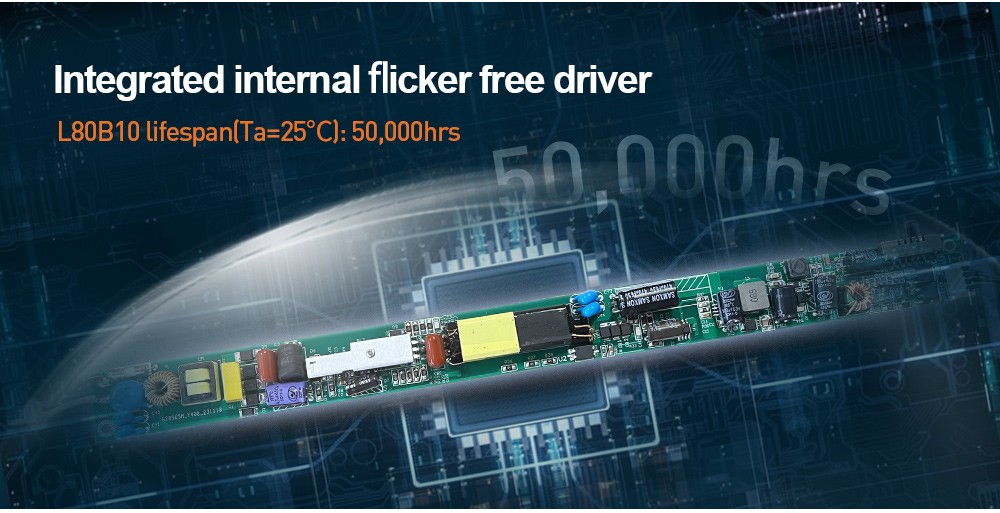

10. Integrated internal flicker-free driver
11. Installation: Ceiling mounting / Surface mounting without frame
12. Input voltage: AC200-240V/AC100-277V 50/60Hz
13. L80B10 lifespan (Ta=25°C): 50,000hrs, Warranty: 5 years

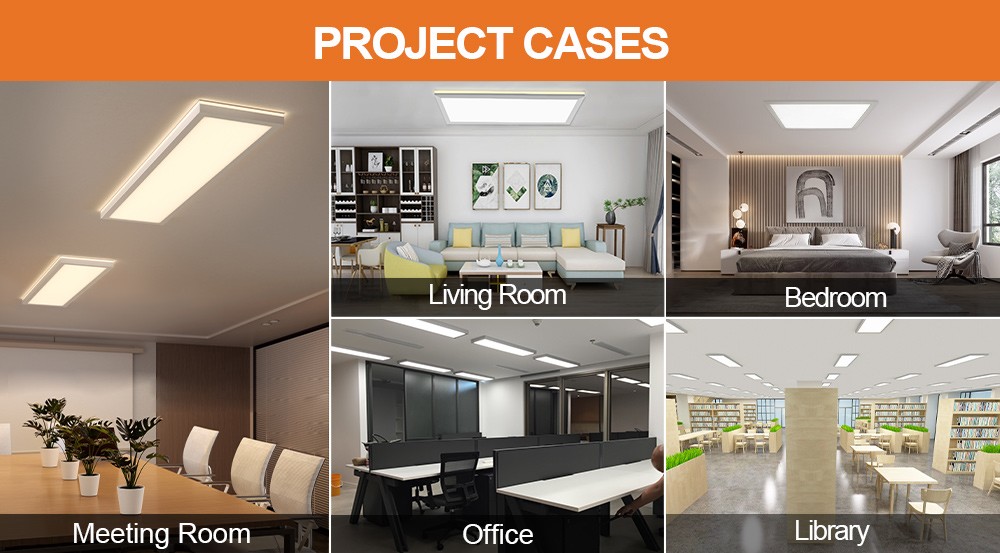

14. Application: Office, Meeting Room, Living Room, Bedroom, Library
2. CE, RoHS Certified, IK06, IP40 approved
3. On/Off switch with 5 CCT adjustment + 2200K ambient light (2700K/3000K/4000K/5000K/6000K options)
4. Supports App Controller (WiFi + Bluetooth): CCT adjustment (2700K-6500K) + RGB ambient light
5. High CRI: Ra>80, SDCM<4
6. High power factor: >0.95
7. Efficacy (IES): 100lm/w ±10%
8. Instant on/off, edge-lit, no dark areas, anti-yellowing
9. Material: High-quality aluminum + PMMA LGP
10. Integrated internal flicker-free driver
11. Installation: Ceiling mounting / Surface mounting without frame
12. Input voltage: AC200-240V/AC100-277V 50/60Hz
13. L80B10 lifespan (Ta=25°C): 50,000hrs, Warranty: 5 years
14. Application: Office, Meeting Room, Living Room, Bedroom, Library
Product Details
Data Sheet
| Light Source | SMD4014/ SMD2835 (5050) |
| CRI | >80 |

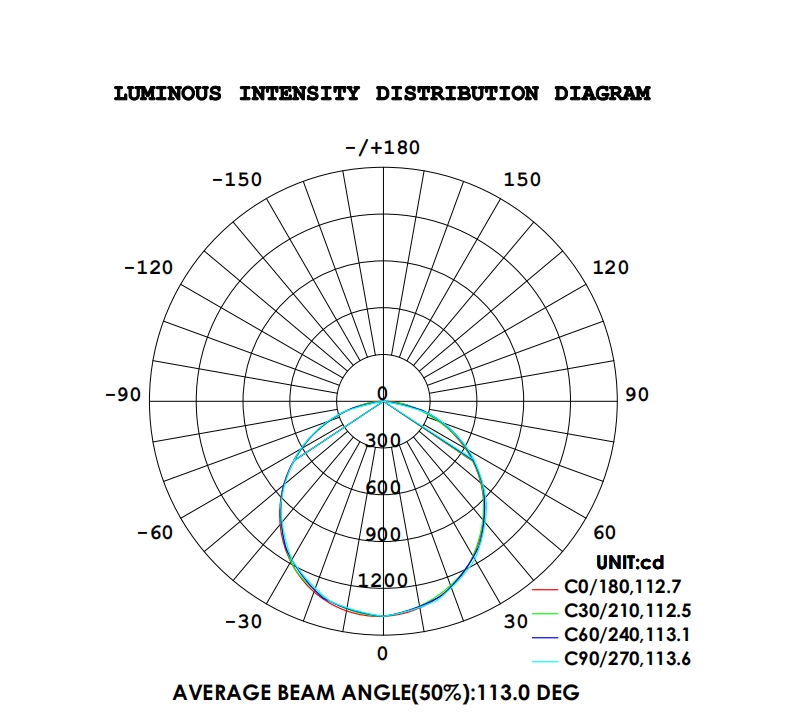

Beam Angle | 120° |
| CCT | 3000K/ 4000K/ 5000K/ & 4000K/ 5000K/ 6000K |
| AC Input | 200-240V/ 100-277V 50/60Hz |
| DC Output | 30-40V |
| SDCM | < 4 |
| Waterproof | IP40 |
| IK Rate | IK06 |
| Power Factor | >0.95 |
| Warranty | 5 Years |
| Operating Temperature | -20~+40℃ |
All Models
Article Number | Dimension (mm) | Power (W) | Lumen (lm) |
SL-P2240-X-28E | 612*612*23 | 40 | 4000 |
SL-P1440-X-28E | 312*1212*23 | 40 | 4000 |
SL-P2440-X-28E | 612*1212*23 | 40 | 4000 |
* Where the “X” represents CCT, it can be W(3000K/4000K), P(5000K), C(6000K), D(DIP Switch CCT)
Cover Standard
Frosted 100lm/w
Please note:
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
3. Efficacy tolerance is ±10% and wattage tolerance is ±10%
4. lf CRl> 90, light efficiency will be reduced by 10-15%
Product Performance
▶ Long lasting and durable
This smart indoor LED ceiling panel light with integrated built-in non-strobe driver is especially suitable for applications with high light environment requirements, such as offices, classrooms or hospitals. Rigorously tested to meet the L80B10 standard, this panel light can run continuously for more than 50,000 hours at an ambient temperature of 25°C, demonstrating excellent durability and stability.The L80B10 standard means that the luminous flux maintenance rate is at least 80% over the lifetime, with less than 10% of the fixtures likely to experience significant light degradation.

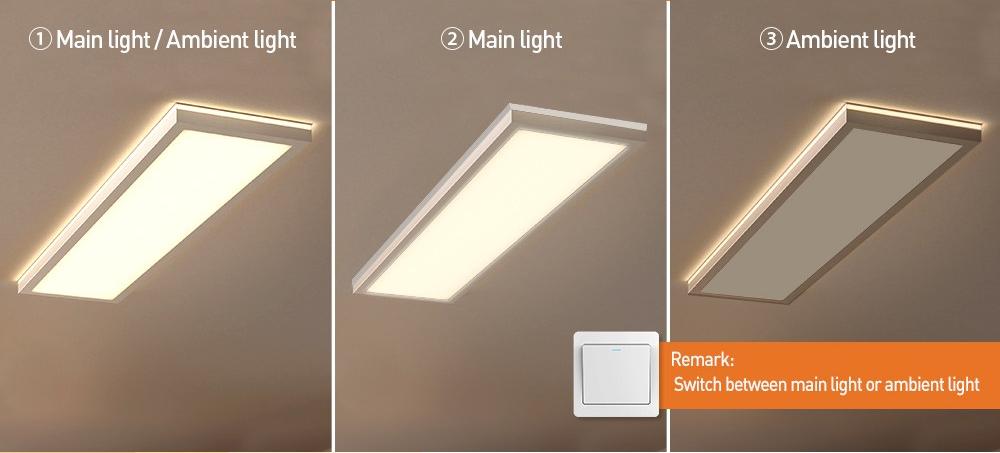

▶ Switch light freely

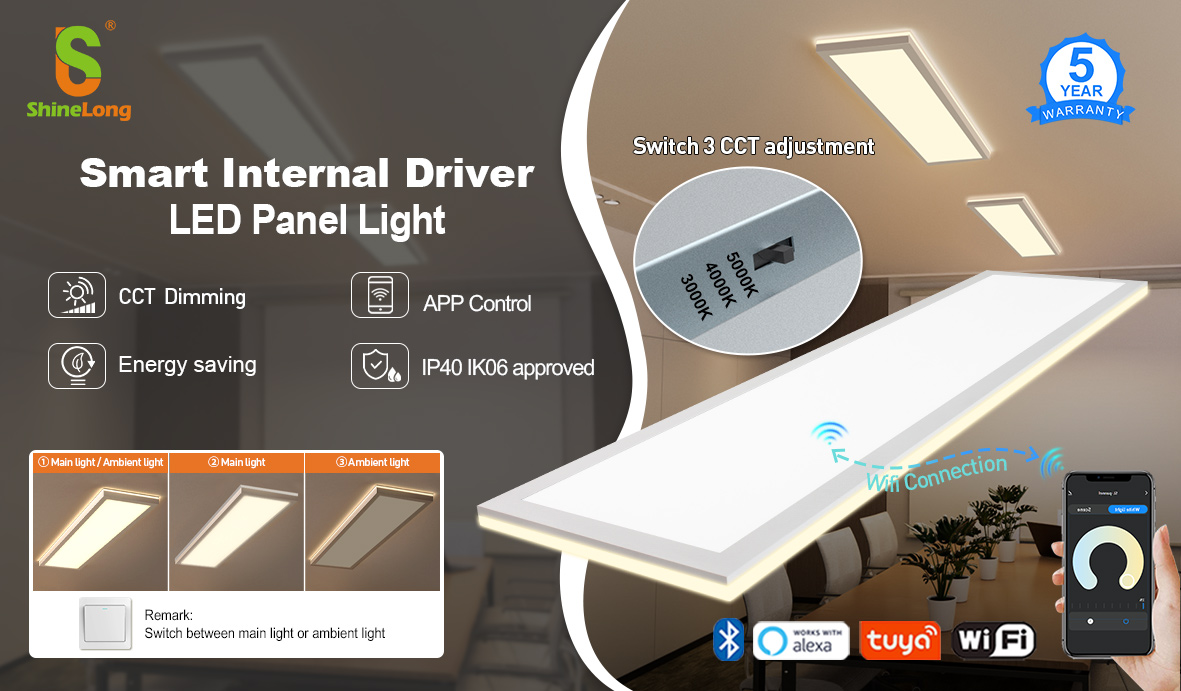

ShineLong ultra-thin sense of atmosphere switch control LED panel light is designed to be flexible, providing switching function between main light and ambient light, adapting to the lighting needs of different scenes. The main light mode provides bright and sufficient light, which is ideal for occasions that require high brightness, such as meetings, teaching, etc., to ensure a clear and visible working environment. The ambient light mode, on the other hand, brings a soft, warm light effect, adding a cozy atmosphere to the space, suitable for scenes that require relaxation, such as rest areas or public spaces.

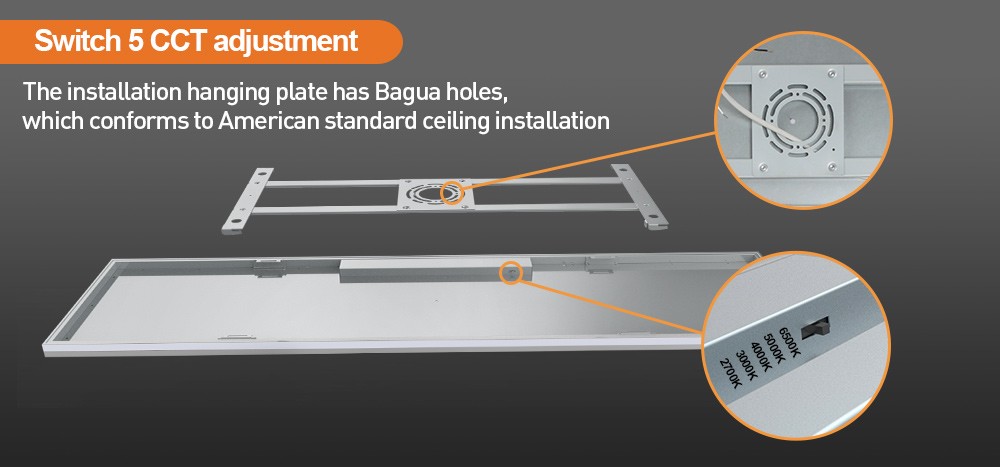

▶ 5 levels of color temperature adjustment
Smart internai driver switch 5 CCT adjustment APP control LED panel light is equipped with 5-level color temperature adjustment function, users can choose the appropriate color temperature according to different spaces and needs, from warm soft light to bright cold light, adjust the lighting atmosphere at will. The range of color temperature adjustment is wide. Installation, this lamp hanging plate is cleverly designed, using the U.S. standard “gossip hole” structure, making the installation process more convenient and solid.
▶ Side-emitting design

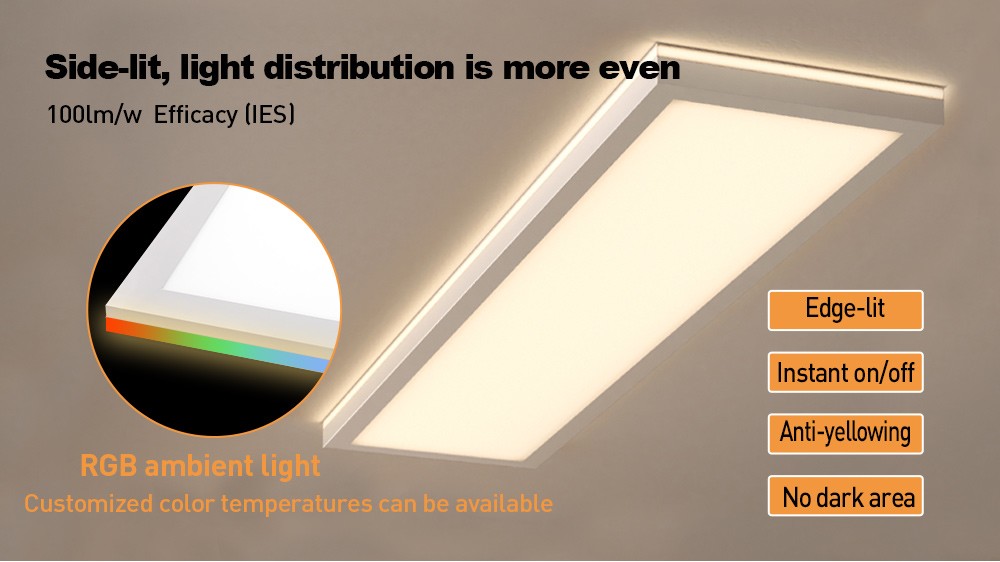

This IP40 IK06 high brightness ceiling natural daylight LED panel light adopts side-illuminated design to ensure even light distribution and no dark areas, bringing a soft and comfortable lighting experience. Its luminous efficacy reaches 100lm/w (IES standard), which ensures brightness while realizing high energy efficiency, helping users to reduce energy consumption. Edge-lit technology makes the light more even and perfectly illuminates the whole space whether it is installed on the ceiling or the wall. In addition, the luminaire supports instant on/off switching for quick response without waiting. To enhance the ambient effect, it is also equipped with RGB ambient light, which is suitable for creating atmosphere in various scenes.
▶ High quality materials and structural design

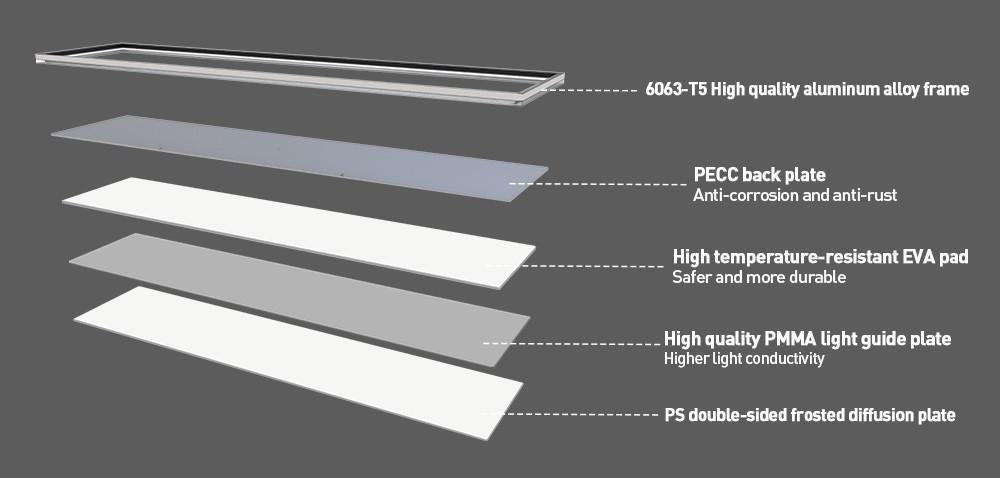

ShineLong ultra-thin panel light on/off switch control Wifi & Bluetooth LED panel light is made of 6063-T5 high quality aluminum alloy frame, which is sturdy and durable, both aesthetically pleasing and with excellent antioxidant and corrosion resistance. The back plate is made of PECC material, which is suitable for use in humid or harsh environments. To enhance the safety and durability of the luminaire, high temperature resistant EVA gaskets have been incorporated into the design. The interior of the luminaire is equipped with a high-quality PMMA light guide plate, which has a higher light-conducting efficiency for even light distribution. The exterior is equipped with a double-sided frosted PS diffuser plate, which effectively disperses light and reduces glare, providing a soft and even lighting experience.
▶ Quality assurance
Multiple Application Options
