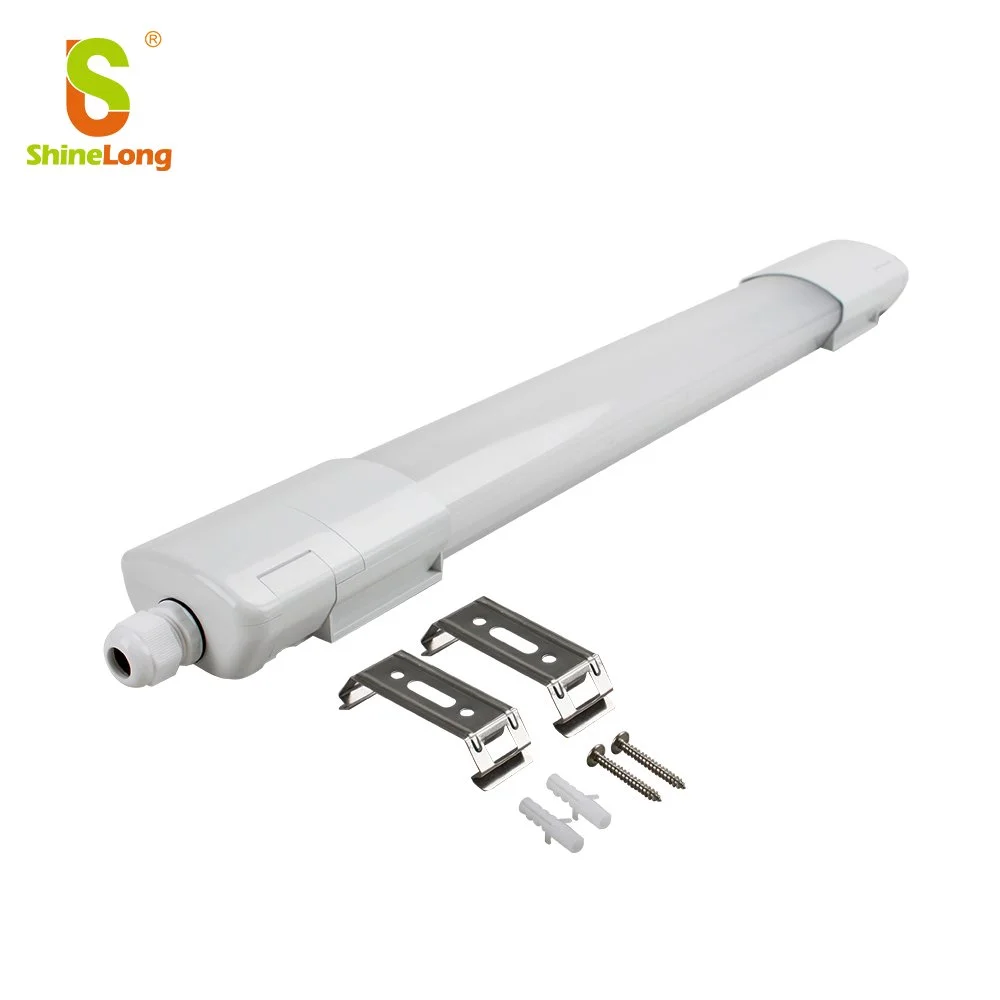

ShineLong Utilee IP65 Linkable Tool Free CE Commercial Lighting PC LED Triproof Light
SL-P65X2-20-X-D
Tri-proof light is a kind of lighting equipment designed for harsh environments with waterproof, dustproof and corrosion-resistant features. They are usually made of high-strength materials and can work properly under extreme conditions, ensuring the provision of stable and reliable lighting effects, as well as energy-saving and environmentally friendly, with a long service life, and are suitable for use in industry, warehouses, workshops and other places.
Delivery
EXW, FOB
minimum order
30 pieces
Supply Ability
9999pieces / Month
Country of Origin
Shenzhen, Guangdong, China
Stock Time
7Day
Quantity:
ShineLong Utilee PC Internal Driver IP65 Waterproof IK09 LED Tri-proof Light
ShineLong Utilee PC Built-in Driver IP65 Waterproof IK09 LED Tri-proof Light is designed for efficient lighting in commercial and industrial environments. This luminaire provides high quality lighting with excellent performance of waterproof, dustproof and impact resistance for parking lots, warehouses, production facilities, underpasses, supermarkets and various public places.
Key Features
1. Certification Standard: CE, RoHS
2. Ingress Protection: IP65 waterproof, IK09 protection
3. Installation characteristics: can be connected in series, without tools, with removable end caps and quick connectors
4. Cost Effectiveness: Superior price/performance ratio
5. Lighting Quality: No dark areas, sulphur-free sealing, anti-yellowing, non-cracking
6. Material: Full PC housing (frosted cover), with S304 stainless steel clips
7. Luminous efficacy: up to 120lm/w ±10%, up to 150lm/w
8. Color rendering index: high color rendering (Ra>80), color tolerance less than 4 (SDCM<4)
9. Driver: high efficiency built-in driver
10. Input voltage: AC200-240V, 50/60Hz
11. Power factor: >0.95
12. Lifetime and Warranty: L80B10 (Ta=25°C) life expectancy over 50,000 hours, 5 years warranty.
13. Installation: support for hanging and ceiling mounting, easy to install and maintain
14. Application: Parking lots, warehouses, train stations, corridors and bridges.
2. Ingress Protection: IP65 waterproof, IK09 protection
3. Installation characteristics: can be connected in series, without tools, with removable end caps and quick connectors
4. Cost Effectiveness: Superior price/performance ratio
5. Lighting Quality: No dark areas, sulphur-free sealing, anti-yellowing, non-cracking
6. Material: Full PC housing (frosted cover), with S304 stainless steel clips
7. Luminous efficacy: up to 120lm/w ±10%, up to 150lm/w
8. Color rendering index: high color rendering (Ra>80), color tolerance less than 4 (SDCM<4)
9. Driver: high efficiency built-in driver
10. Input voltage: AC200-240V, 50/60Hz
11. Power factor: >0.95
12. Lifetime and Warranty: L80B10 (Ta=25°C) life expectancy over 50,000 hours, 5 years warranty.
13. Installation: support for hanging and ceiling mounting, easy to install and maintain
14. Application: Parking lots, warehouses, train stations, corridors and bridges.
Product Details
Data Sheet
| Light Source | SMD2835 |
| CRI | >80 |

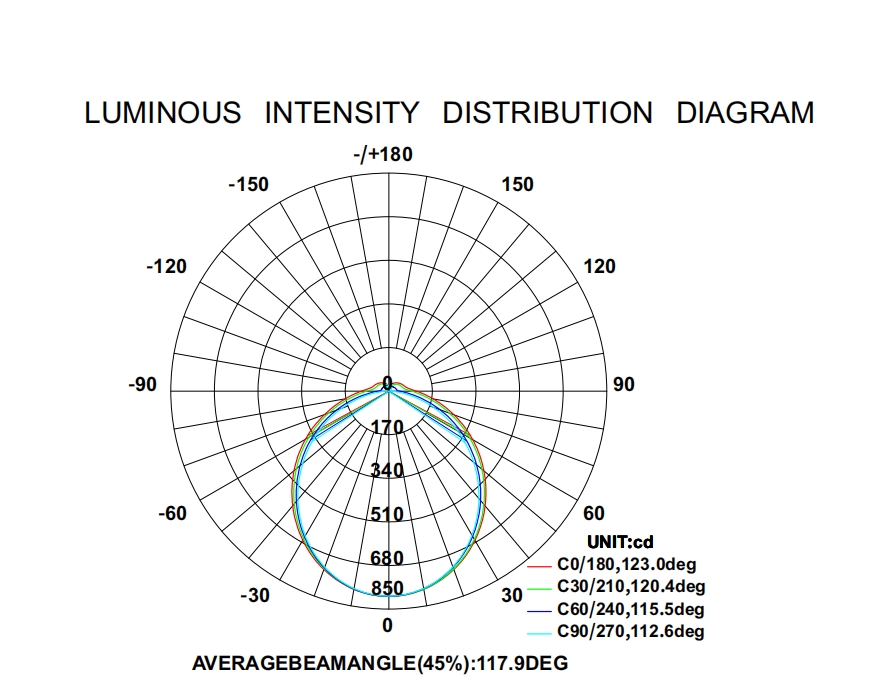

Beam Angle | 120° |
| CCT | 3000K/ 4000K/ 5000K/ 6000K |
| AC Input | 200-240V 50/60Hz |
| DC Output | 30-40V |
| SDCM | < 4 |
| Waterproof | IP65 |
| IK Rate | IK09 |
| Power Factor | >0.95 |
| Warranty | 5 Years |
| Operating Temperature | -20~+40℃ |
All Models
Article Number | Power (W) | Lumen(lm) |
SL-P65X2-20-X-D | 20 | 2400 |
SL-P65X4-30-X-D | 30 | 3600 |
SL-P65X5-40-XD | 40 | 4800 |
* Where the first “X” represents diffuser type, it can be F(Frosted), T(Transparent)
The second"X"represents CCT, it can be W(3000K/4000K), P[5000K), C(6000K)
Cover Standard Premium
Frosted 120lm/w 150lm/w
Please note:
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
3. Efficacy tolerance is ±10% and wattage tolerance is ±10%
4. lf CRl> 90, light efficiency will be reduced by 10-15%
Product Performance

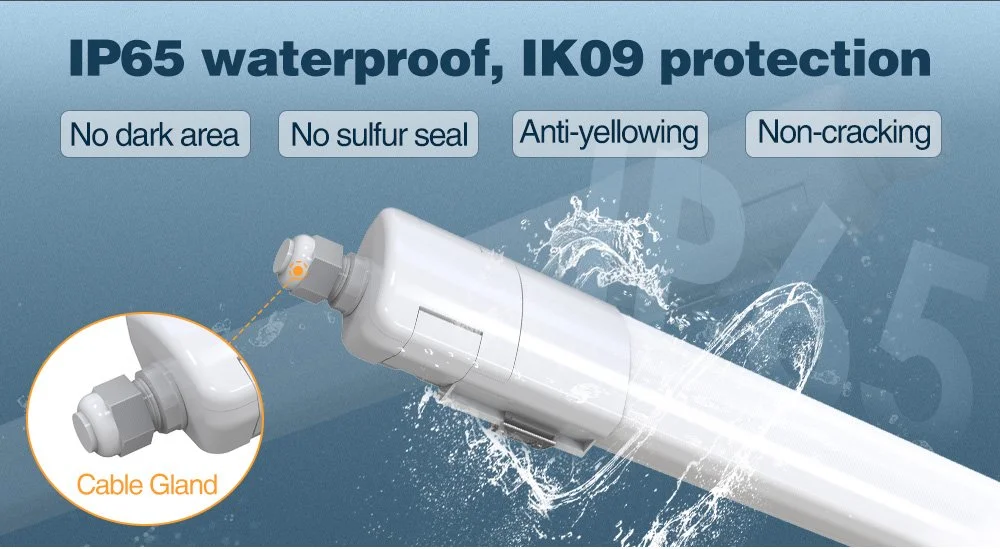

▶ Extreme protection
ShineLong Utilee PC IP65 IK09 LED triproof light features an IP65 waterproof rating and IK09 protection. The fixture is made of high quality materials that are anti-yellowing and anti-cracking, and the dark area-free design delivers even and bright illumination, eliminating shadows and uneven light. The anti-sulfuration seal prevents sulfuration corrosion, especially suitable for industrial applications in sulfur-containing environments. The high-quality Cable Gland provides additional protection for the wiring connection, preventing moisture and dust intrusion and making the installation safer and more reliable.

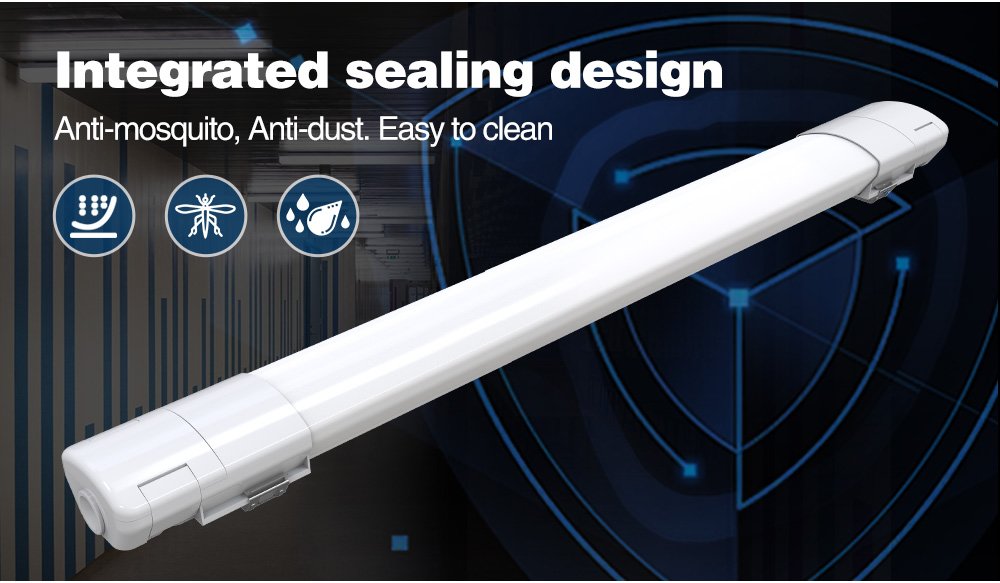

▶ Integrated sealing design
The IP65 Utilee PC Energy Saving Customizable Length LED tri-proof light features an integrated sealing design that provides superior protection for a variety of applications. This sophisticated sealing structure effectively prevents dust and mosquitoes from entering the interior of the lamp body, which is especially suitable for food processing factories, warehouses, parking lots, and other places that require a high level of hygienic environment. Thanks to the high quality materials and smooth outer surface, this luminaire is also very easy to clean, stains and dust can be removed with a simple wipe.

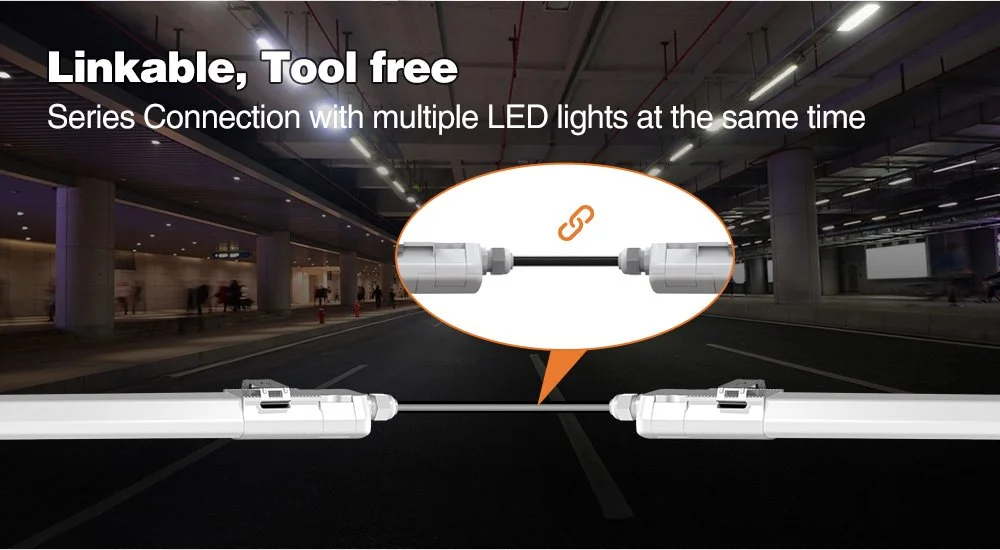

▶ Simple and convenient
Tool Free CE IP65 Commercial Lighting Utilee PC LED triproof light is designed with convenience and efficiency in mind, supporting multiple lamps connected in series without any additional tools required for the installation process. In addition, the series connection design ensures stable power supply to each fixture, enhancing the reliability of the entire lighting system. The unique linkable structure allows users to easily connect multiple fixtures in series. By connecting multiple luminaires at once, not only does it simplify wiring, but it also reduces installation costs.

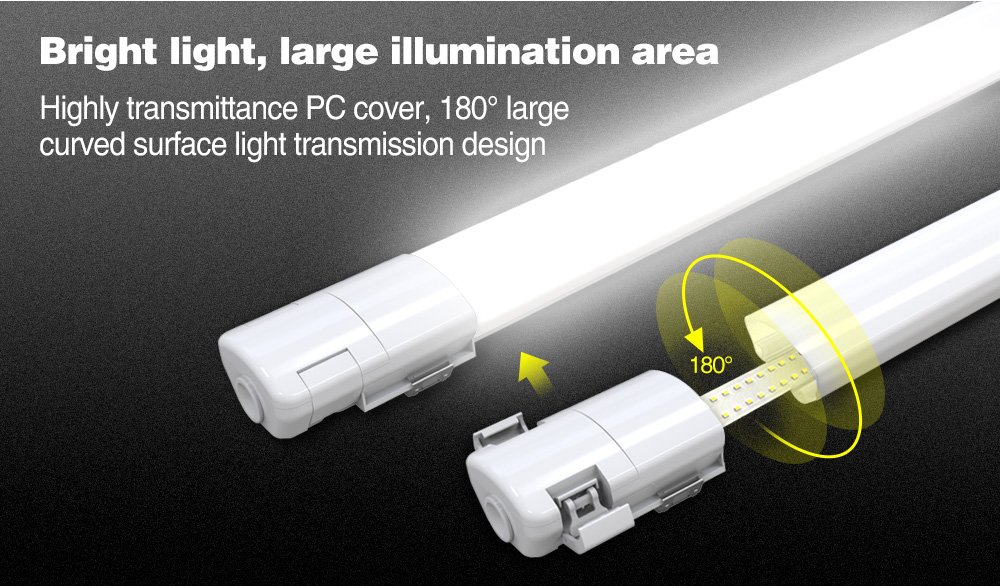

▶ 180° large curved light transmission design
ShineLong IP65 Linkable CE RoHS Utilee PC LED triproof light is designed to realize large area and high brightness lighting. It adopts PC material cover with excellent light transmittance, together with 180° large curved surface light transmittance structure, which brings users a broad and even lighting effect. The high light transmittance PC cover minimizes light loss, making the light brighter and clearer and ensuring that every corner of the lighting area is evenly covered.

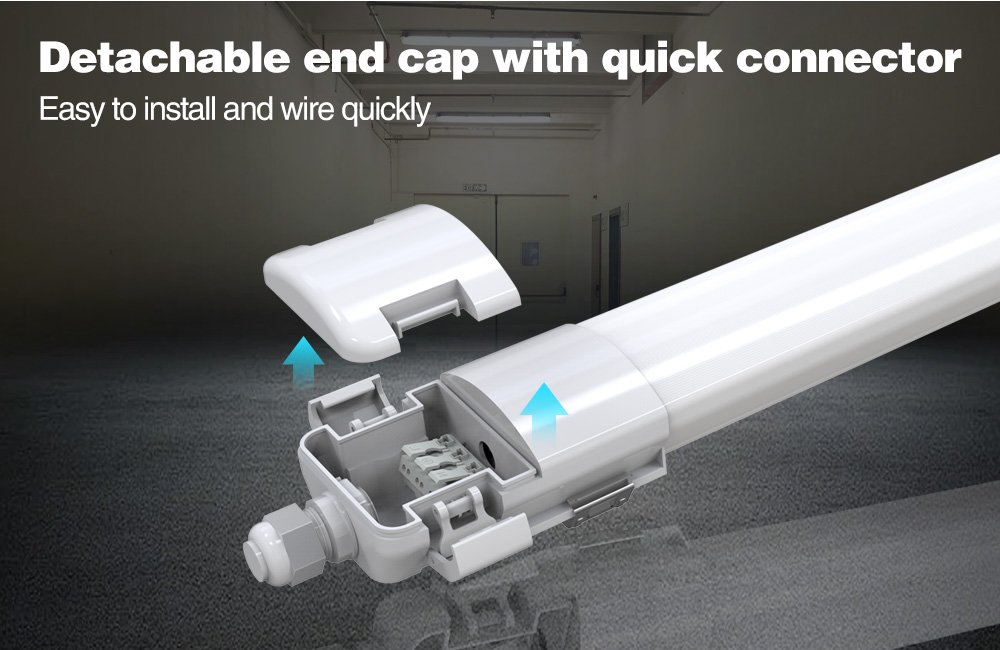

▶ Quick installation and wiring
Utilee PC IP65 Waterproof IK09 Protection Internal Driver LED tri-proof light is designed with convenient removable end caps and quick connectors to ensure that users realize ease and speed in the installation and wiring process. The removable end caps not only provide easy access to internal components, but also allow for quick replacement or maintenance of the fixture when needed. The quick connectors make wiring a simple task, allowing users to simply plug in and connect. The design is particularly suited to commercial and industrial environments such as retail stores, warehouses and factory floors where fixtures need to be replaced frequently or undergo regular maintenance.

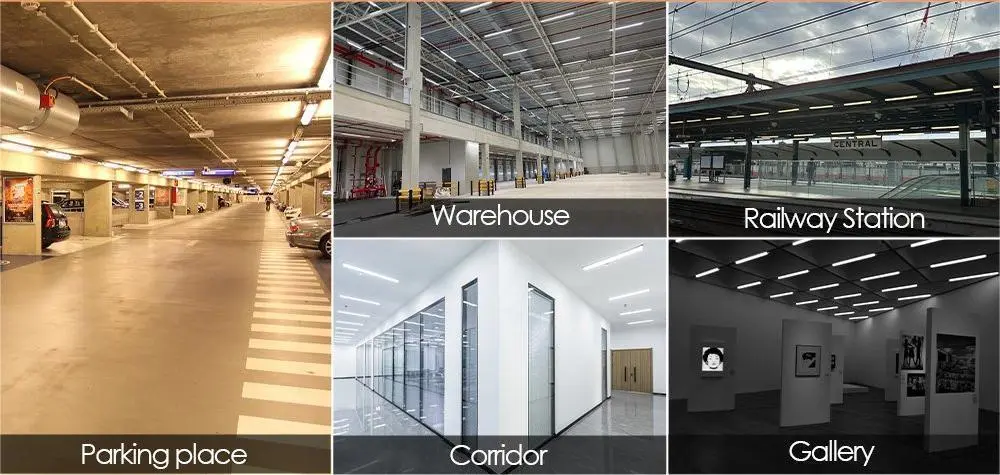

Practical Applications
