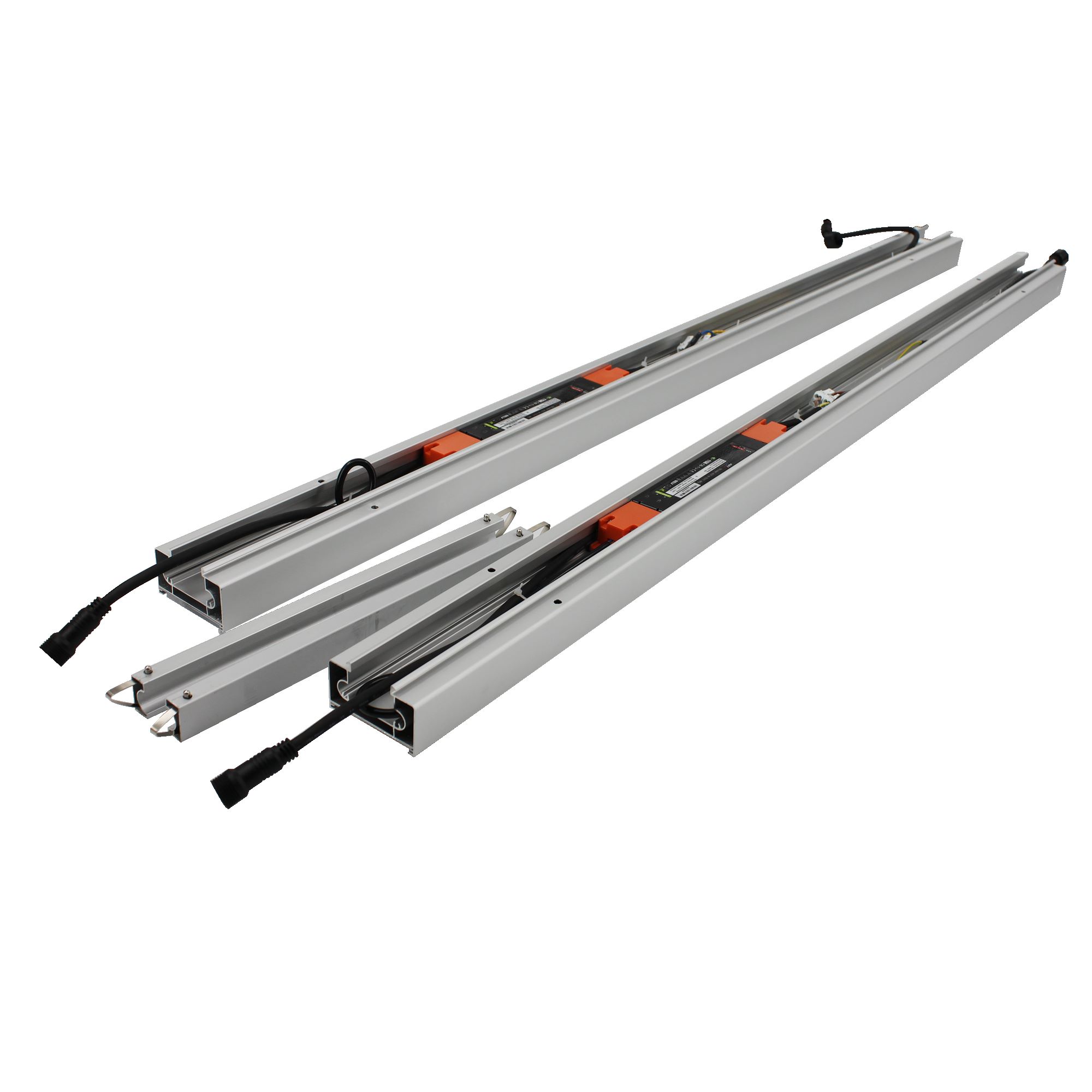

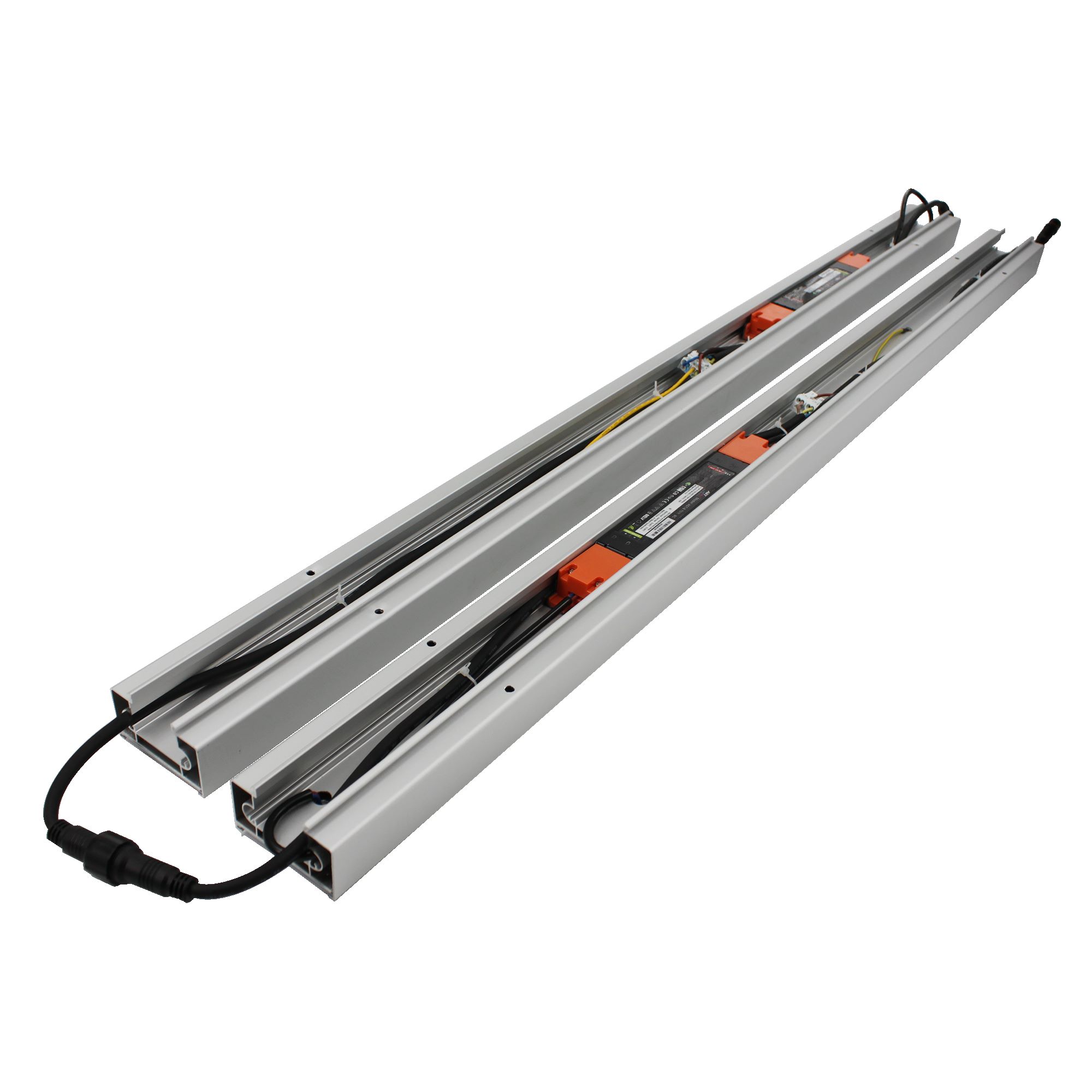

ShineLong K-Lens 1-10V Dimmable Internal Driver Beam Angle Optional Linear Light
SL-A40X2-20-XD
Linear light is a slender LED light with high brightness, energy saving and long life, uniform and soft light and adjustable color temperature. It is waterproof, flexible in installation, customizable and widely used in construction and home decoration.
Delivery
EXW, FOB
minimum order
30 pieces
Supply Ability
9999pieces / Month
Country of Origin
Shenzhen, Guangdong, China
Stock Time
7Day
Quantity:

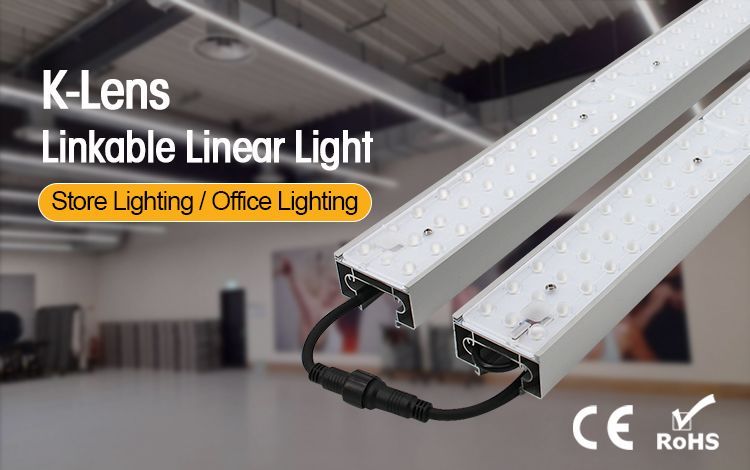

ShineLong Internal Driver 1-10V Dimmable K-Lens Linkable Linear Light
ShineLong K-lens Dimmable Linear Light is an energy efficient lighting product for a variety of commercial and industrial environments. The luminaire supports 0/1-10V dimming function, providing flexible brightness adjustment to meet the needs of different scenes.
Key Features
1. 0/1-10V dimming function: supports precise brightness adjustment.
2. IP40 protection level: prevent solid foreign objects from entering, suitable for indoor use.
3. IK09 Impact Protection Grade: High impact resistance, with strong breakage resistance.
4. Optional beam angle: 45° or 90°: flexible beam angle selection to adapt to different lighting needs.
5. SMD2835 LED light source: energy efficient light source with global patent protection.
6. Aluminum housing + asymmetric and symmetric lenses + S304 stainless steel clips: high-strength material combination to ensure durability and stability.
2. IP40 protection level: prevent solid foreign objects from entering, suitable for indoor use.
3. IK09 Impact Protection Grade: High impact resistance, with strong breakage resistance.
4. Optional beam angle: 45° or 90°: flexible beam angle selection to adapt to different lighting needs.
5. SMD2835 LED light source: energy efficient light source with global patent protection.
6. Aluminum housing + asymmetric and symmetric lenses + S304 stainless steel clips: high-strength material combination to ensure durability and stability.
Product Details
Data Sheet
| Light Source | SMD2835 |
| CRI | >80 |
| Beam Angle | 45°/ 90° |
| CCT | 3000K/ 4000K/ 5000K/ 6000K |
| AC Input | 200-240V, 50/ 60Hz |
| DC Output | 30-40V |
| SDCM | < 4 |
| Waterproof | IP40 |
| IK Rate | IK09 |
| Power Factor | >0.95 |
| Lifespace | 50,000 Hours (@ Ta＝25℃） |
| Efficacy Standard | 140lm/w (±10%) |
| Warranty | 5 Years |
| Operating Temperature | -20~+40℃ |
All Models
Article Number | Power (W) | Lumen(lm) | Working Current(mA) |
SL-A40X2-20-XD | 20 | 2800 | 450 |
SL-A40X4-36-XD | 36 | 5040 | 950 |
SL-A40X5-45-XD | 45 | 6300 | 1200 |
* Where the first"X"represents diffuser type, it can be T(Transparent)
The second"x"represents CCT, it can be W(3000K/4000K), P(5000K), C(6000K)
Cover Standard
Transparent 140lm/w
Please note:
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
3. Efficacy tolerance is ±10% and wattage tolerance is ±10%
4. lf CRl> 90, light efficiency will be reduced by 10-15%
Product Performance

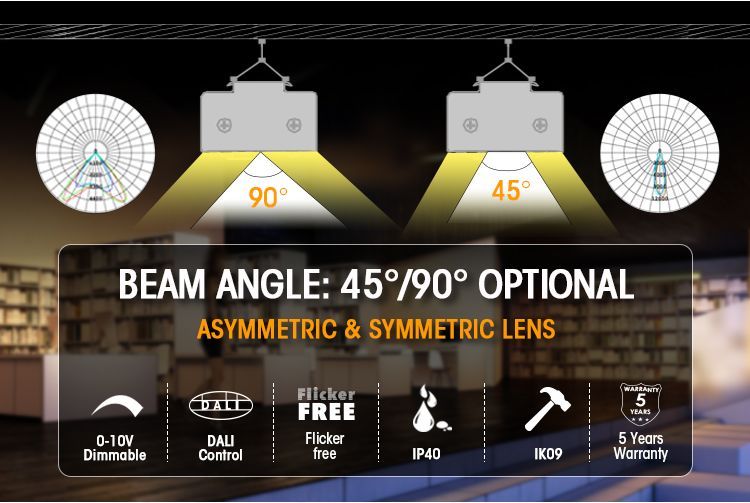

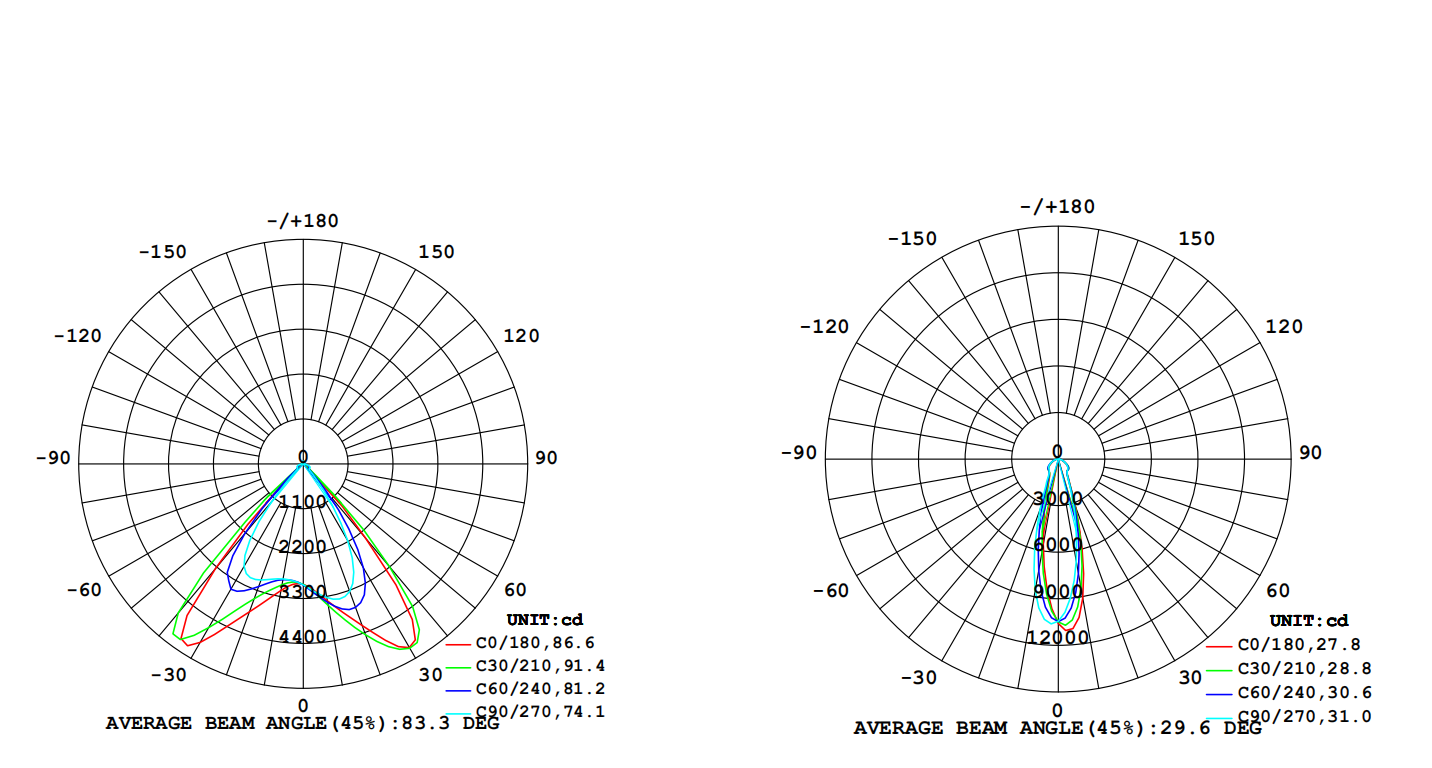

▶ Optional beam angle
The 1-10V Dimmable K-Lens Linear Light offers an adjustable beam angle of 45° or 90° to flexibly adapt to different spatial needs. Whether you need symmetrical or asymmetrical light distribution, ShineLong K-Lens Linear Light can fulfill it, precisely controlling the direction and intensity of the light to enhance the overall visual comfort and atmosphere of the space.
▶ High efficacy
The 1-10V Dimmable K-Lens Linear Light utilizes an SMD2835 LED light source with global patent protection to ensure high quality and reliable performance output. With a luminous efficacy of up to 140lm/w, this linear light provides excellent brightness while maintaining excellent energy efficiency and reducing energy costs.

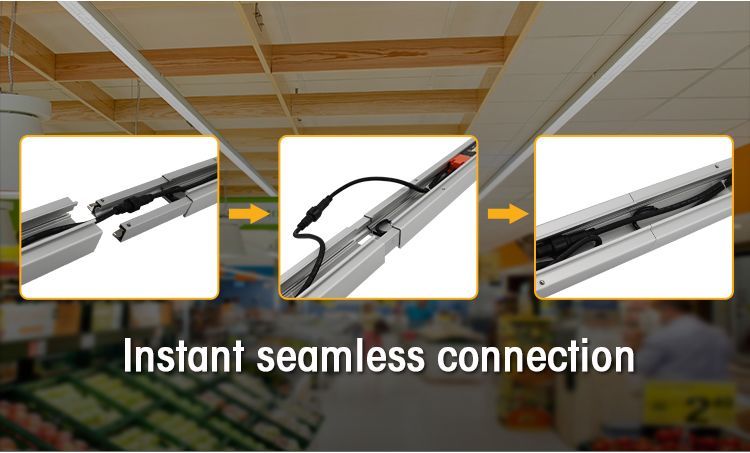

▶ Easy connection
The unique design of the ShineLong K-Lens Linear LED Light delivers instant seamless connectivity, ensuring that fixtures can be spliced together quickly and smoothly during installation. Seamless connections can be made between multiple lights, completely eliminating light spots or dark areas created by traditional luminaires at the splicing point, ensuring continuity and consistency of the lighting effect, as well as significantly reducing installation time and labor costs.

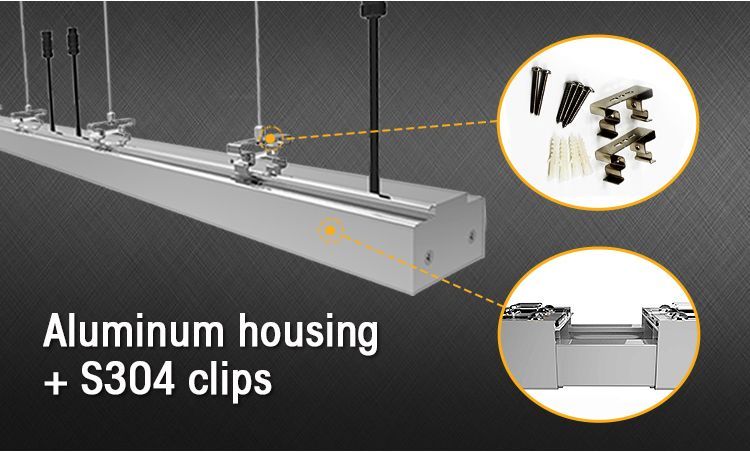

▶ High-quality materials
The ShineLong Linear Light not only excels in performance, but its design and materials are equally impressive. The high-quality aluminum housing ensures a lightweight fixture with enhanced durability and heat dissipation for long-term use. In addition, the 1-10V Dimmable K-Lens Linear Light is equipped with a stainless steel S304 fixture, which is corrosion-resistant and suitable for a wide range of environments, as well as enhancing overall structural robustness and longevity.
▶ Installation optional
Package
