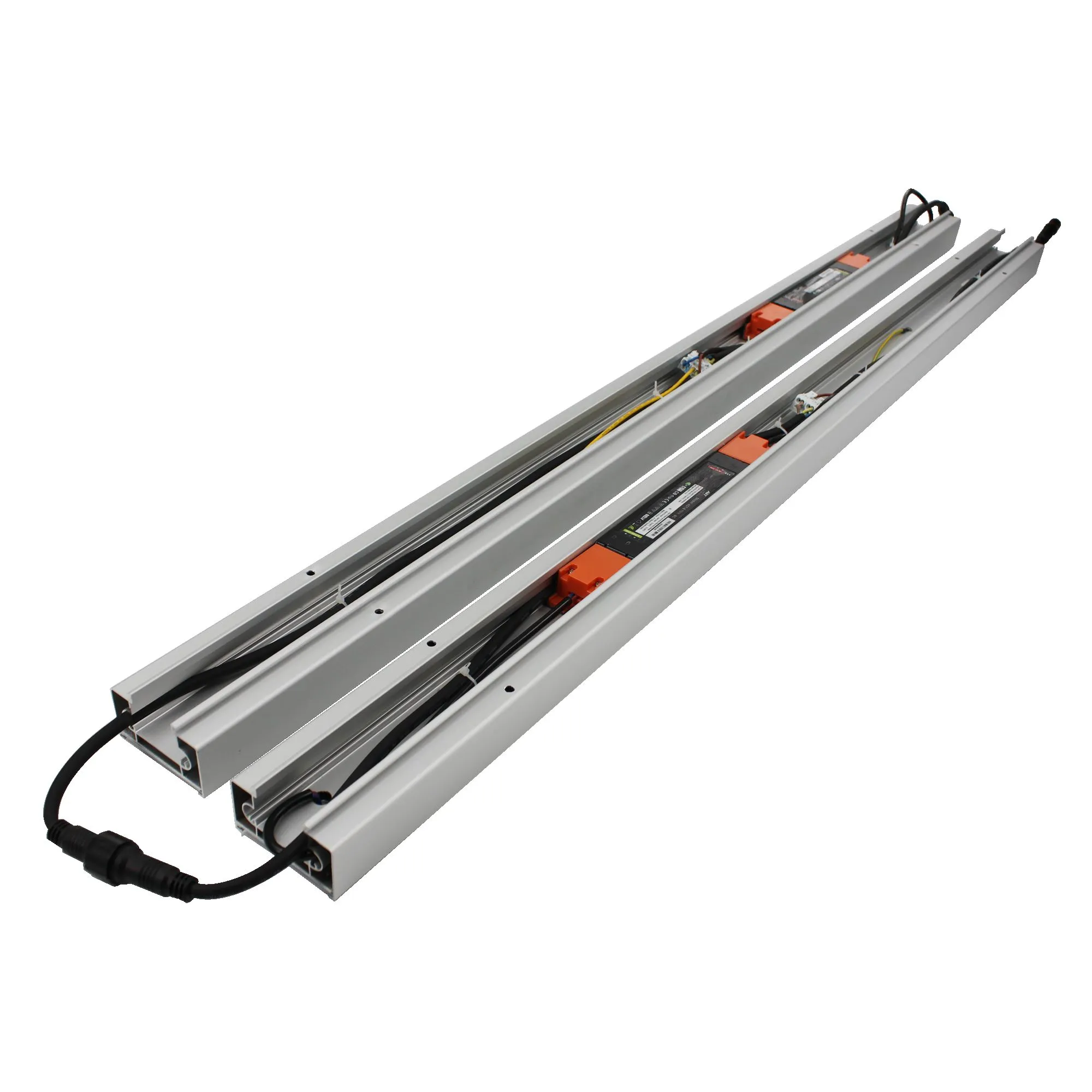

ShineLong K-Lens Dali Control Instant Seamless Connection Internal Driver Linear LED Light
SL-A40X2-20-XL
Linear light is a slender LED light with high brightness, energy saving and long life, uniform and soft light and adjustable color temperature. It is waterproof, flexible in installation, customizable and widely used in construction and home decoration.
Delivery
EXW, FOB
minimum order
30 pieces
Supply Ability
9999pieces / Month
Country of Origin
Shenzhen, Guangdong, China
Stock Time
7Day
Quantity:
ShineLong Dali Control K-Lens Internal Driver Flicker Free Linear Light
The Dali Control K-lens Linear Light is a high performance linear LED light. With its DALI control function, the light fixture offers flexible light adjustment and fits perfectly into any space and environment.
Key Features
1. Superior protection: IP40 waterproof and IK09 impact resistant rating
2. Instant and Seamless Connections: Support for instant and seamless connections ensures easy installation

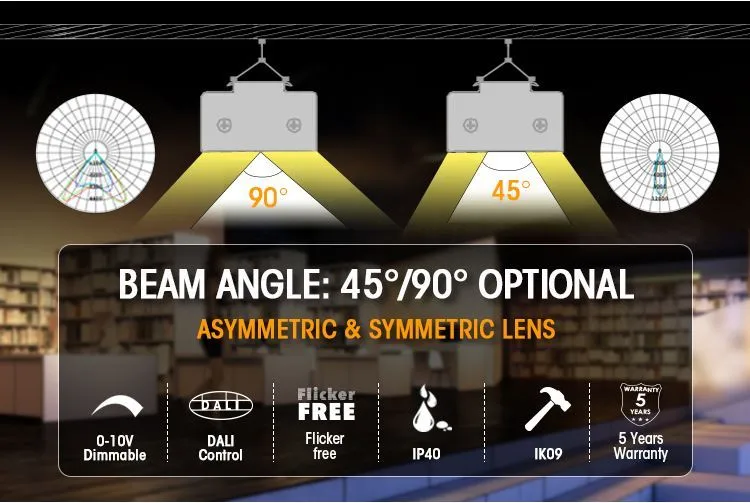

3. Multiple beam angle options: 45° and 90° beam angle options available
4. Rugged design: Aluminum housing with asymmetric and symmetric lenses and S304 mounting clips
5. Patented LED light source: Equipped with SMD2835 LED light source with worldwide patent protection
6. Strobe-free driver: Built-in strobe-free driver to enhance lighting comfort
7. High luminous efficacy: Achieve 140lm/w (±10%) luminous efficacy level
8. Long life: L80B10 has a life expectancy of 50,000 hours at 25°C
Product Details
Data Sheet
All Models
Article Number | Power (W) | Lumen(lm) | Working Current(mA) |
SL-A40X2-20-XL | 20 | 2800 | 450 |
SL-A40X4-36-XL | 36 | 5040 | 950 |
SL-A40X5-45-XL | 45 | 6300 | 1200 |
* Where the first"X"represents diffuser type, it can be T(Transparent)
The second"x"represents CCT, it can be W(3000K/4000K), P(5000K), C(6000K)
Efficacy Version
Cover Standard
Transparent 140lm/w
Light Source | SMD2835 |
CRI | ＞80 |
Beam Angle | 45/90° |
CCT | 3000K/4000K/5000K/6000K |
AC Input | 200-240V 50/60Hz |
DC Output | 30-40V |
SDCM | ＜4 |
Waterproof | IP 40 |
IK Rate | IK 09 |
Power Factor | ＞0.95 |
Warranty | 5 Years |
Operating Temperature | -20~+40℃ |

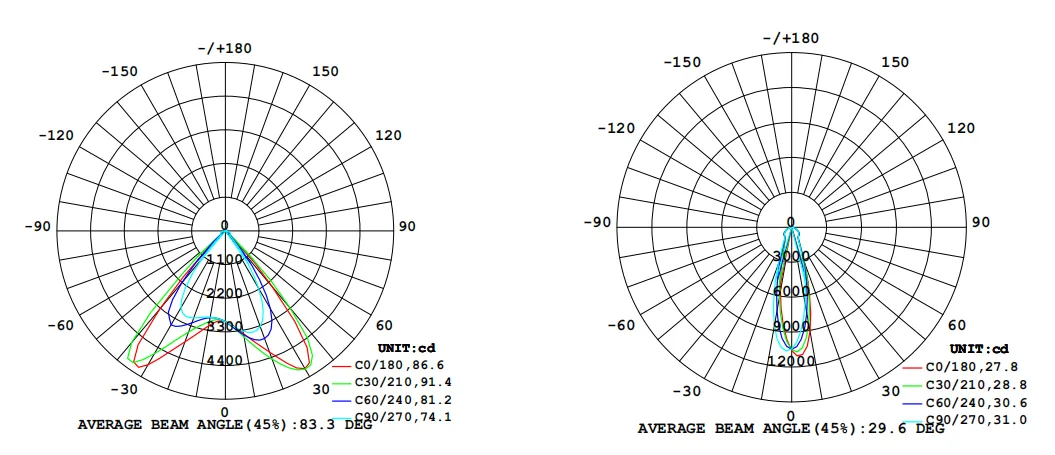

Luminous Intensity Distribution Diagram
Please note:
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
3. Efficacy tolerance is ±10% and wattage tolerance is ±10%
4. lf CRl> 90, light efficiency will be reduced by 10-15%
Product Performance

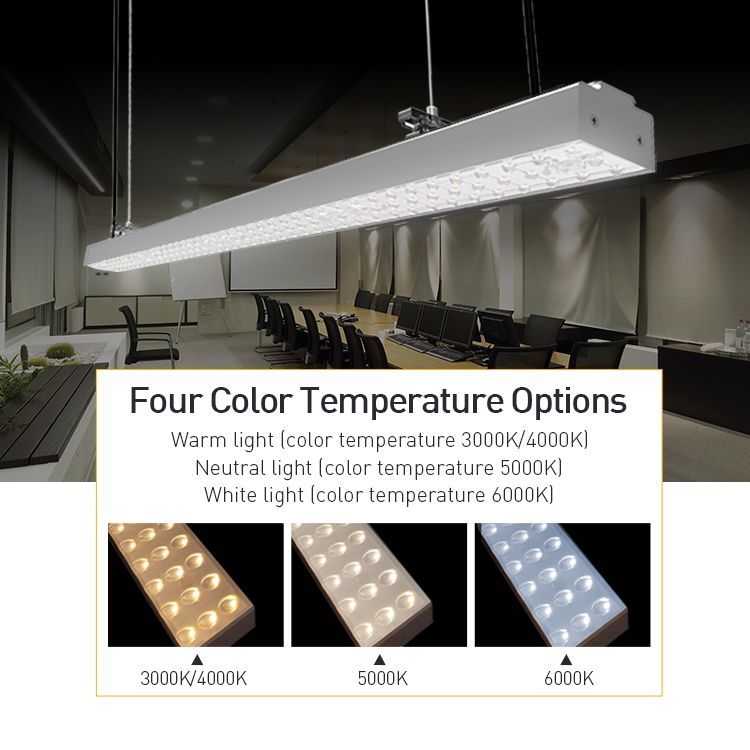

▶ Four color temperature options
ShineLong Dali Control K-Lens Linear Light is an efficient and flexible lighting solution designed to meet the lighting needs of different scenarios. It is available in four color temperature options. Warm light (3000K/4000K) is suitable for places such as bedrooms, living rooms or dining rooms. Neutral color light (5000K), on the other hand, provides bright but not harsh lighting for work areas. White light (6000K) provides optimal illumination for environments that require high levels of brightness and is suitable for store displays, studios or office areas.

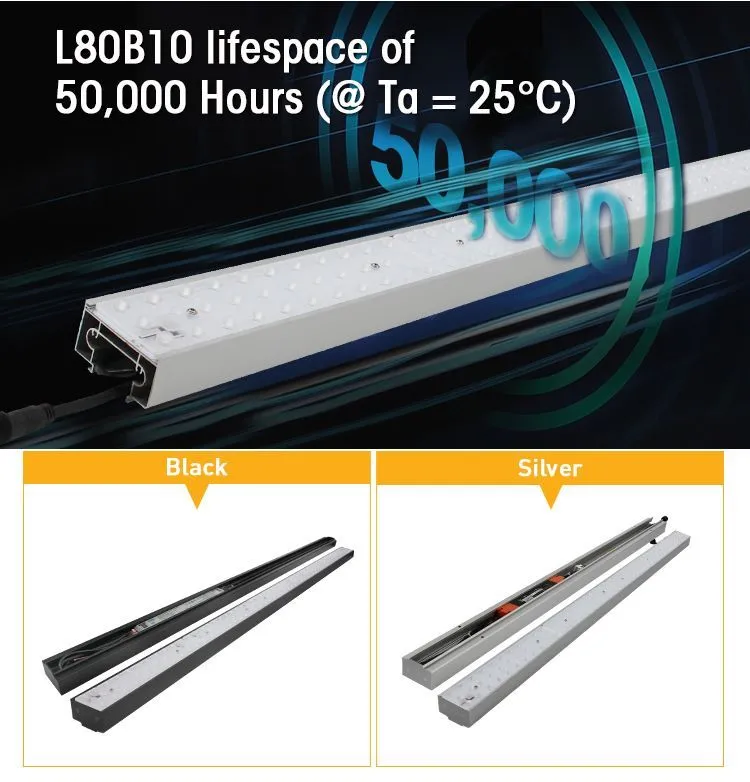

▶ Long usage hours
The K-Lens Dali Control Linear Light not only excels in lighting performance, but also impresses in durability and design. It boasts the L80B10 lifetime standard, with a life expectancy of up to 50,000 hours at an ambient temperature of 25°C. This Linear Light is also available in two stylish color options, black and silver, making it easy to blend in and enhance the overall aesthetic, no matter what your decor.

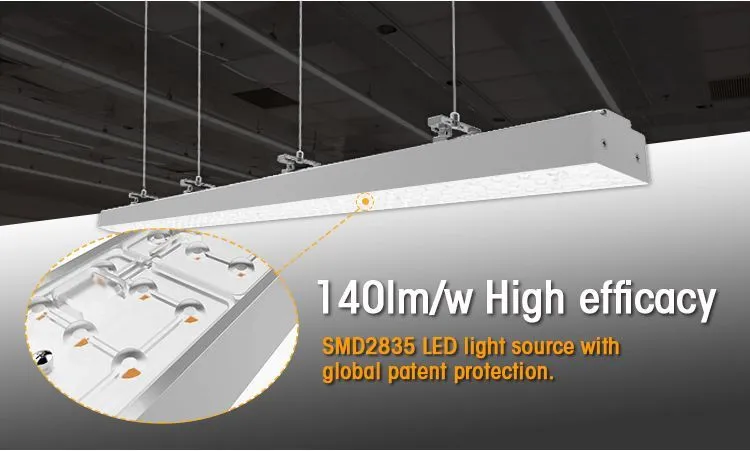

▶ High efficacy
The 1-10V Dimmable K-Lens Linear Light utilizes an SMD2835 LED light source with global patent protection to ensure high quality and reliable performance output. With a luminous efficacy of up to 140lm/w, this linear light provides excellent brightness while maintaining excellent energy efficiency and reducing energy costs.

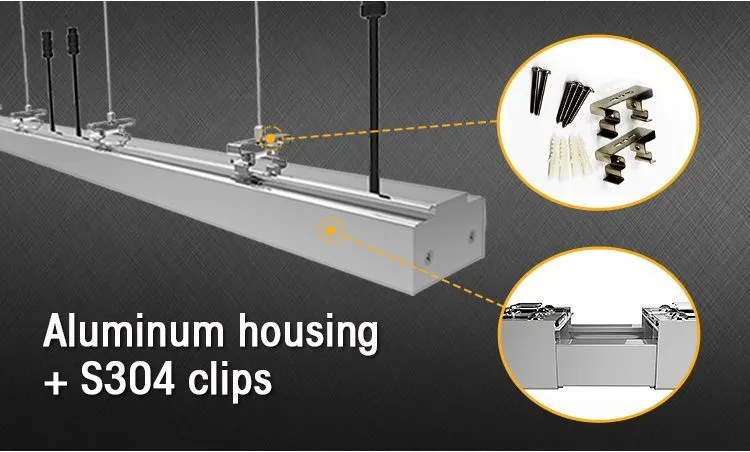

▶ High-quality materials
The ShineLong Linear Light not only excels in performance, but its design and materials are equally impressive. The high-quality aluminum housing ensures a lightweight fixture with enhanced durability and heat dissipation for long-term use. In addition, the 1-10V Dimmable K-Lens Linear Light is equipped with a stainless steel S304 fixture, which is corrosion-resistant and suitable for a wide range of environments, as well as enhancing overall structural robustness and longevity.

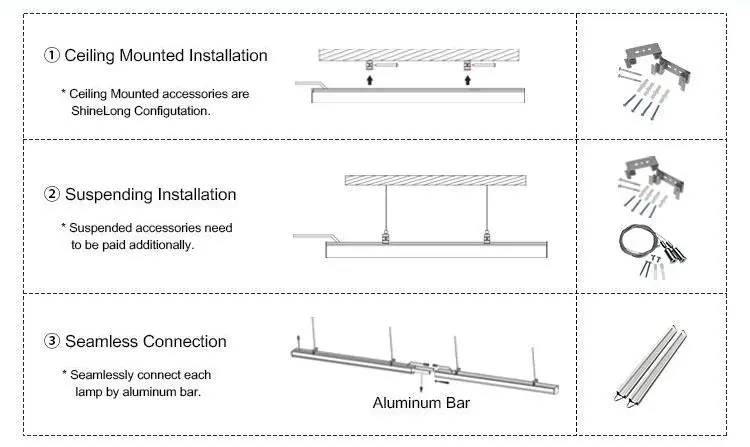

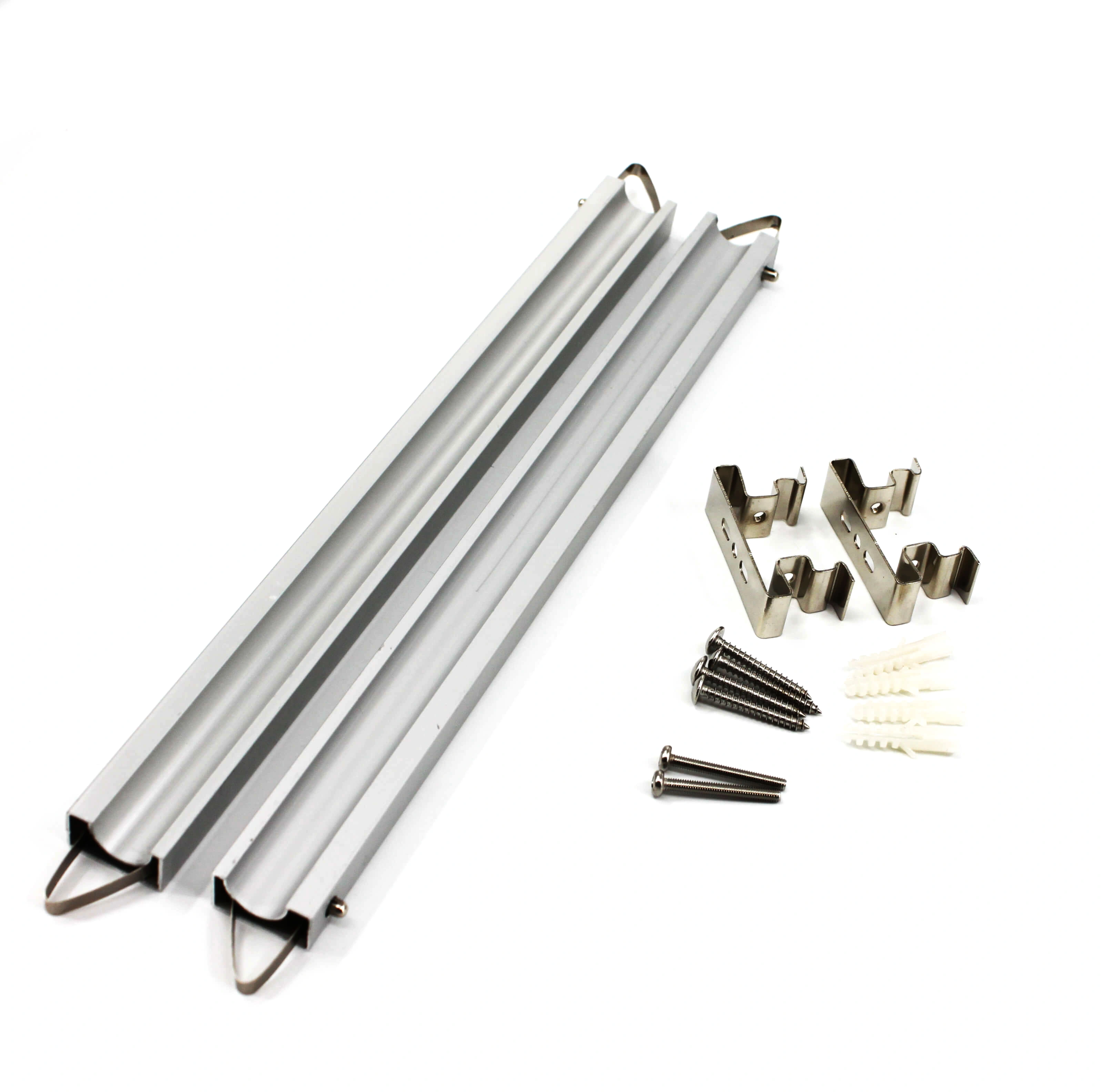

▶ Installation optional

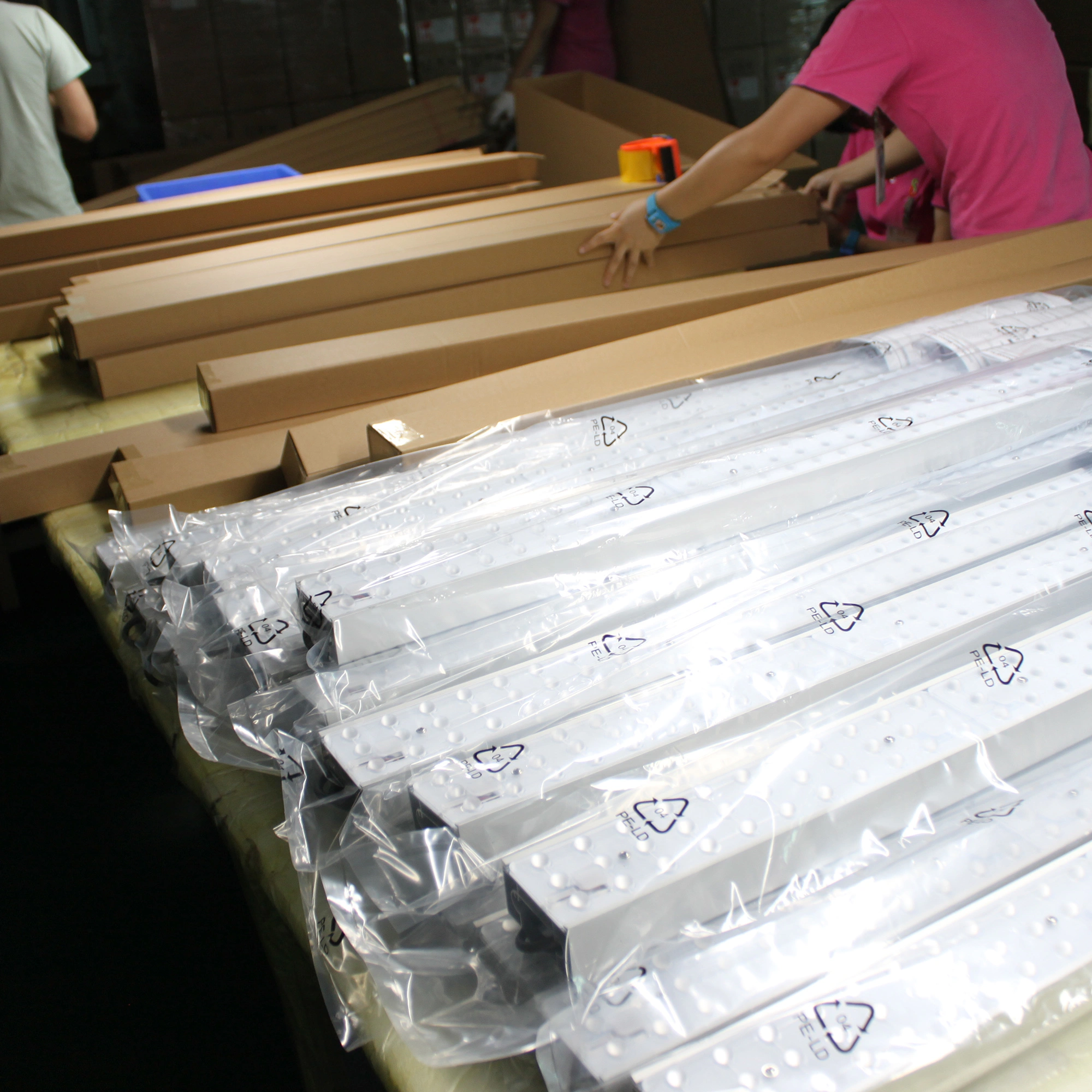

Package
