railway station led display

ShineLong 0/1-10V Dim led ip65 tri-proof led light for Railway Station Corridor Gallery

SL-A65X2-30-X
Delivery
EXW FOB
minimum order
30 pieces
Supply Ability
100000pieces / Month
Country of Origin
China guangdong shenzhen
Stock Time
7Day
Quantity:
Contact Now
add to cart
  • Product Name: Led Triproof Light
  • Power: 30w/40w/50w/60w/80w
  • Length: 600mm/1200mm/1500mm
  • Material: Aluminium Body+ PC Cover
  • Beam angle: 120
  • LEDs: 208
  • SDCM:<4

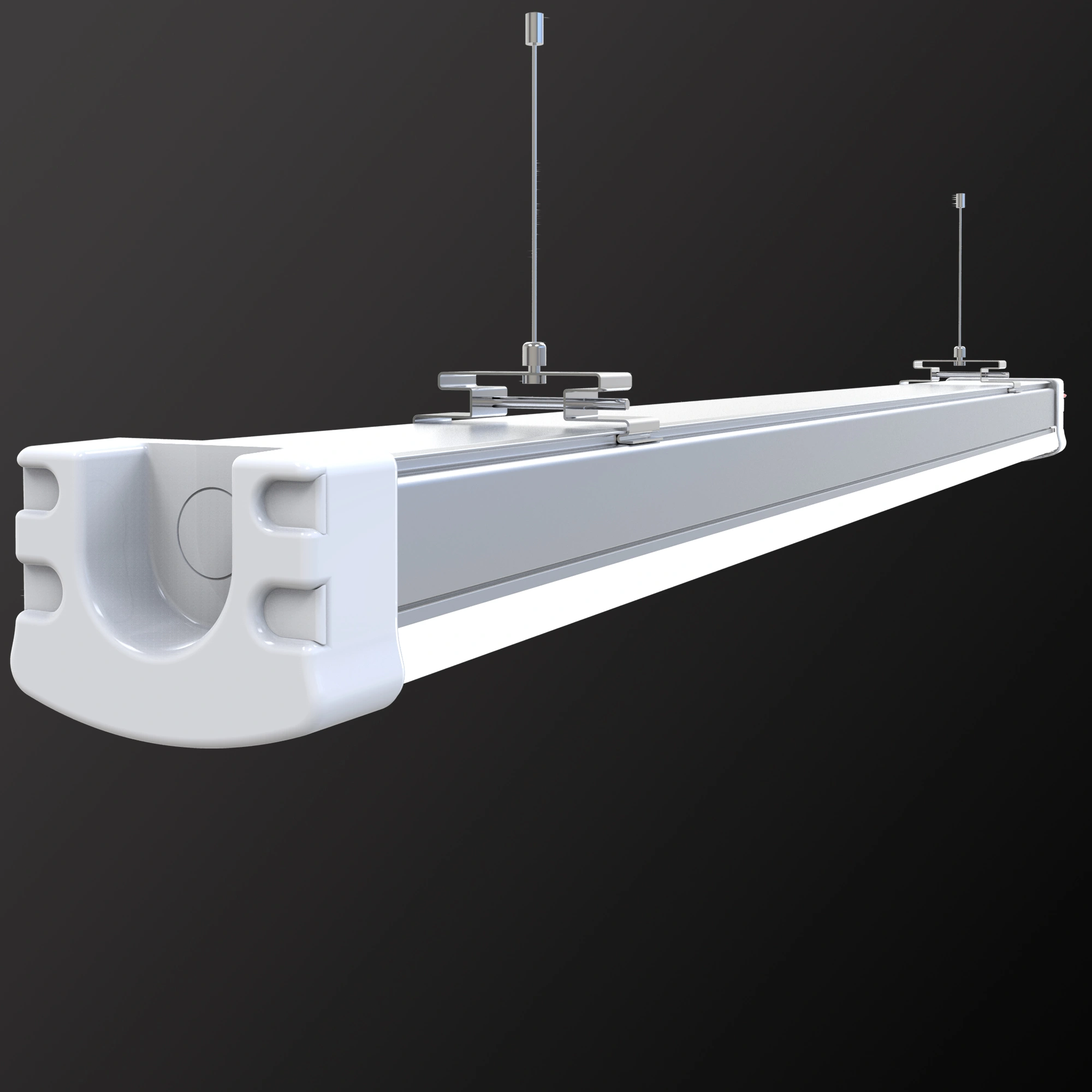

  • Installation: Suspending & Ceiling mounted
  • CRI:>80
  • Lighting solutions service: Lighting and circuitry design
  • Lifespan (hours): 50000
  • Working Time (hours): 50000
  • Color Temperature(CCT): 4000/5000/6000
  • Input Voltage(V): AC100-277/200-240
  • Lamp Luminous Efficiency(lm/w): 110
  • Warranty(Year): 5
  • Color Rendering Index(Ra): 85
  • Certification:GS CE-EMC CB ERP RoHS Reach

Products Description

With 11+ years of continuous improvement and innovation
Factory wholesale super bright 1.5m 50w 4000K ip65 waterproof led triproof light with 1.6m cables evolved to be one of

ShineLong`s proudest products because of its high quality and superior performance.

Not only does it offer an extensive application range from commercial to industrial for any retrofit or new installation,

but it is also a genuine champion for being energy-efficient and cost-effective.

1. IP65 Water-proof , Dust-Proof , Moisture-proof
2. High Impact IK10 Test
3. Easy for series connection,ideal products for saving Labor cost
4. SDCM<4 , Meets ANSI and Erp Regulations, L80B50 (Ta = 25℃)>75000Hrs
5. Suitable for 3G/5G 1.5mm2 US/EU Cable (Max 12mm). No need to consider the cable length before instalation.
6. With ENEC/UL/SAA No Flickering Led Power Supply , 5 years warranty
7. Comply with UL,DLC ,SAA, TUV-GS ,CE requirements
8. 0.6M/1.2M/1.5M/1.8M/2.4M/3M , 20W/30W/40W/50W/60W/80W/100W/120W are available

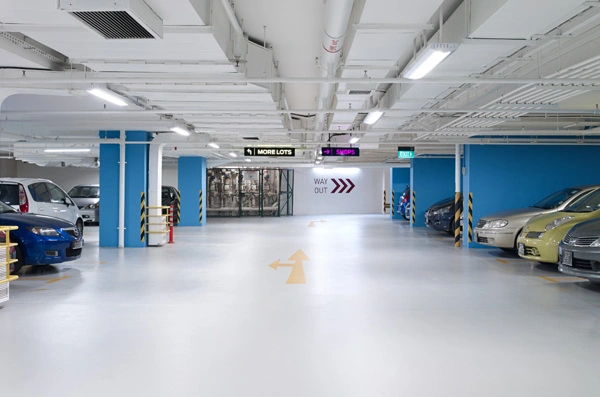

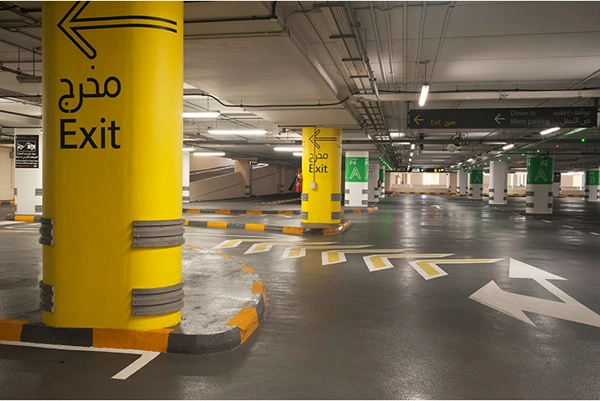

9.Widely Application : Warehouse/Supermarket/Parking Lot /Corridor ...

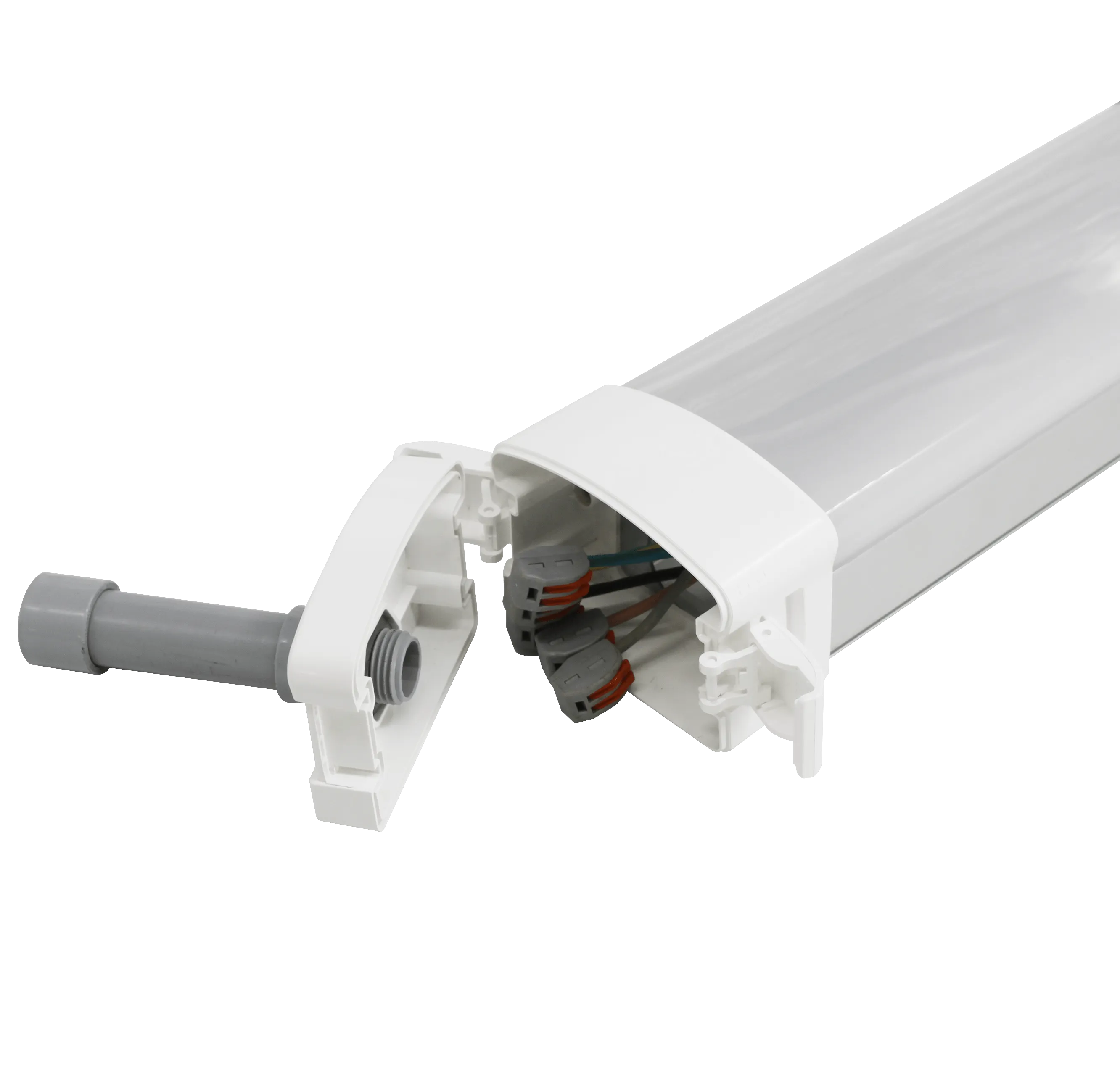

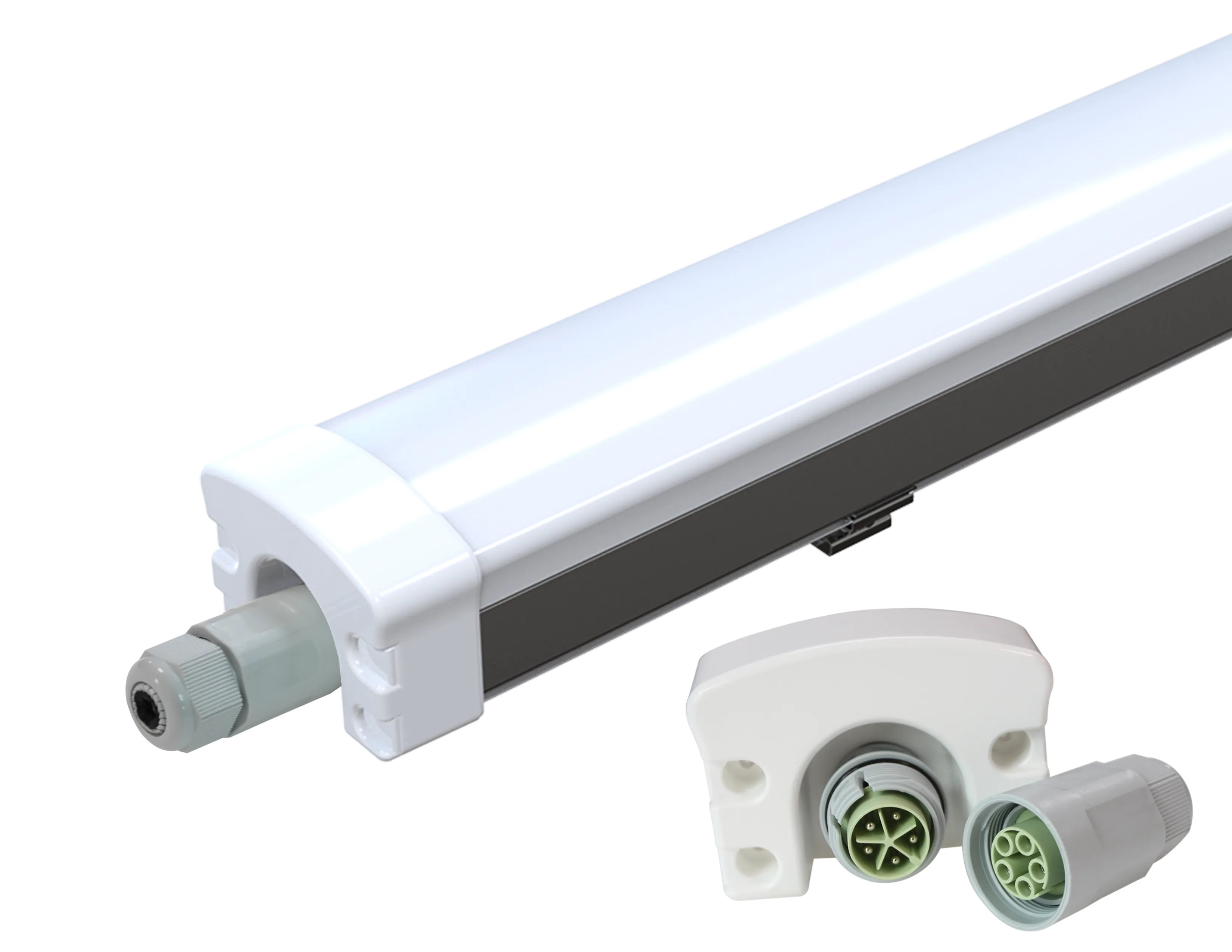

sealed end cap :
ip65 breather optional keep temperature balance between inside and outside .
lead in wire :
3*18AWG UL/3*1.0mm2
VDE listed rubber cable Max series linkable 2500w.

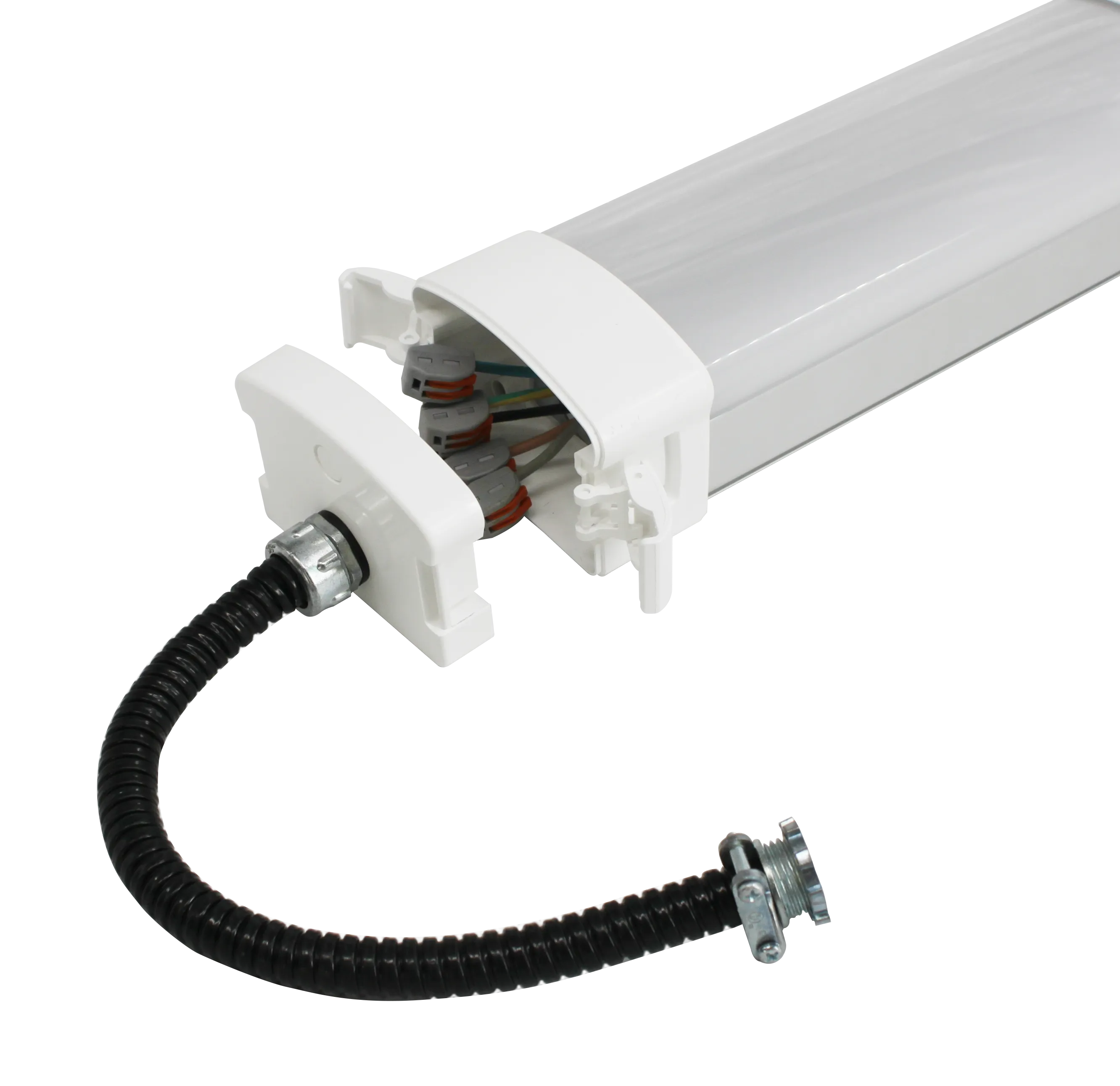

waterproof connector :
protection from dust and water.

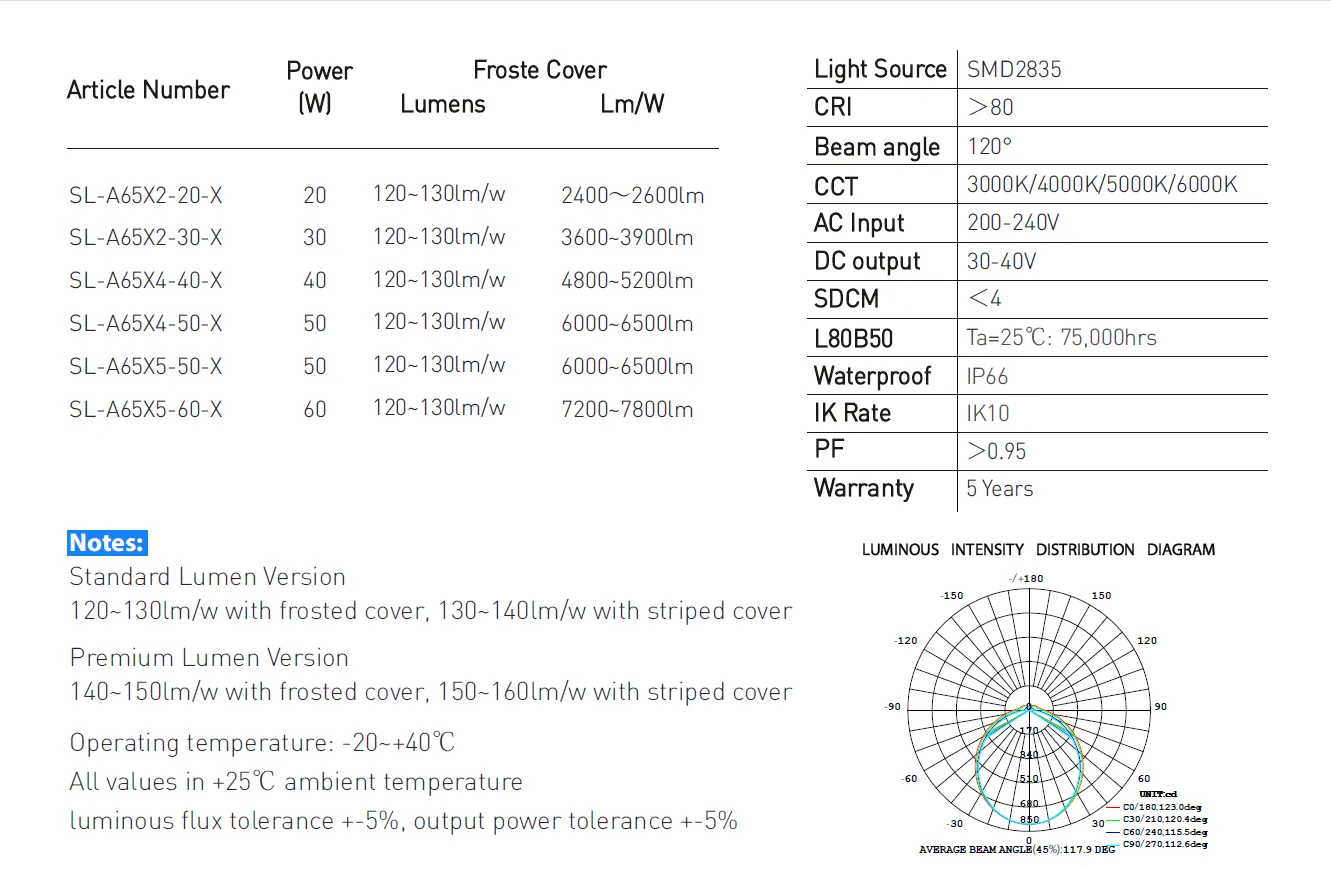

Product detail

Item Number
SL-A65X2-XX-X
SL-A65X4-XX-X
SL-A65X5-XX-X
Size
600*94*69mm
1200*94*69mm
1500*94*69mm
Power
20W
30W
40W
50W
50W
60W
LEDs
156 pcs
180 pcs
260 pcs
312 pcs
312 pcs
416 pcs
Bean Angle
120°
CRI
>80
AC Input
100-277V / 220-240V
Color Temperature
3000K/4000K/5000K/6000KSDCM<4
Efficiency
Frosted PC cover: 110~120lm/w, Striped PC cover: 120~130lm/w
Lumen Output (LM)
2200-2600
3300-3900
4400-5200
5500-6500
5500-6500
6600-7800
Other functions of the product:
1.Non-Dim 2. 0/1-10V Dim
3.Microwave Sensor4.Microwave Sensor Dim
5.Emergency Battery (3hrs) 5.UP to 140~160lm/w

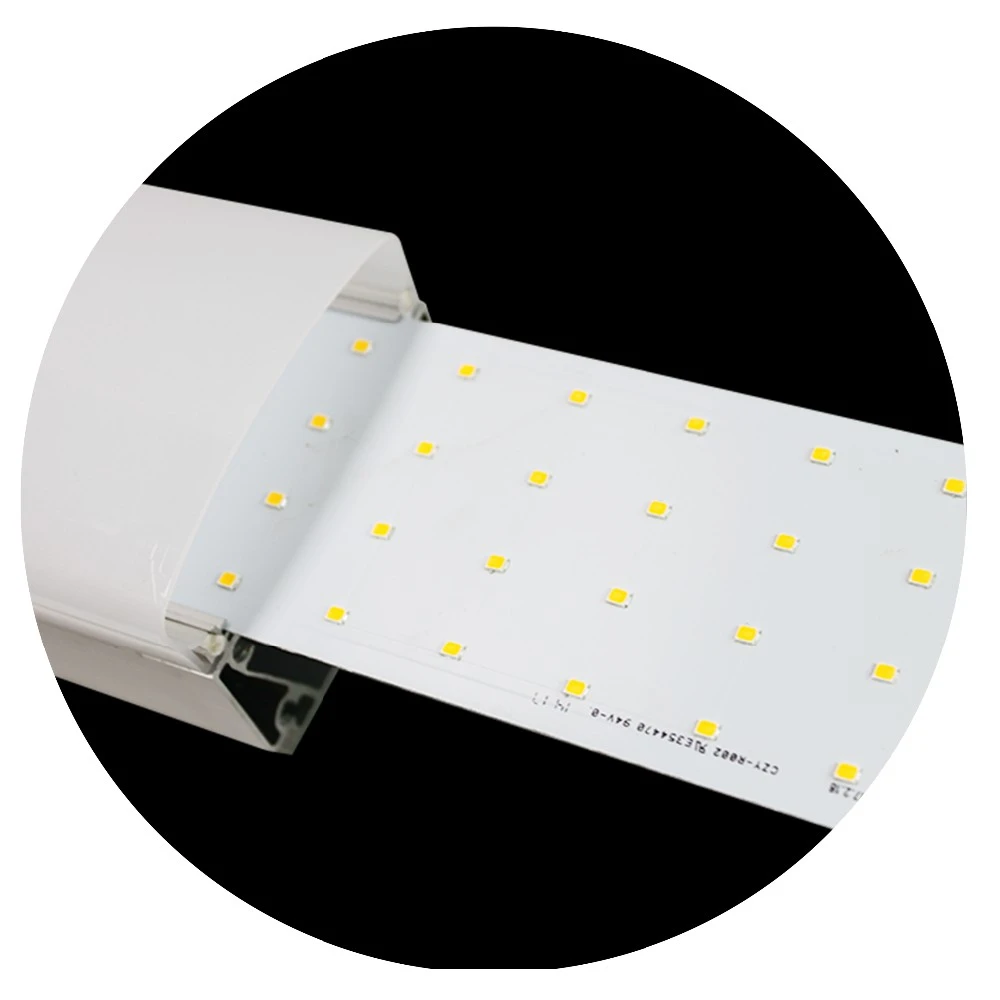

SMD2835 led 99.99% gold wire soldering :
ul listed PCB board 1.0mm thickness.

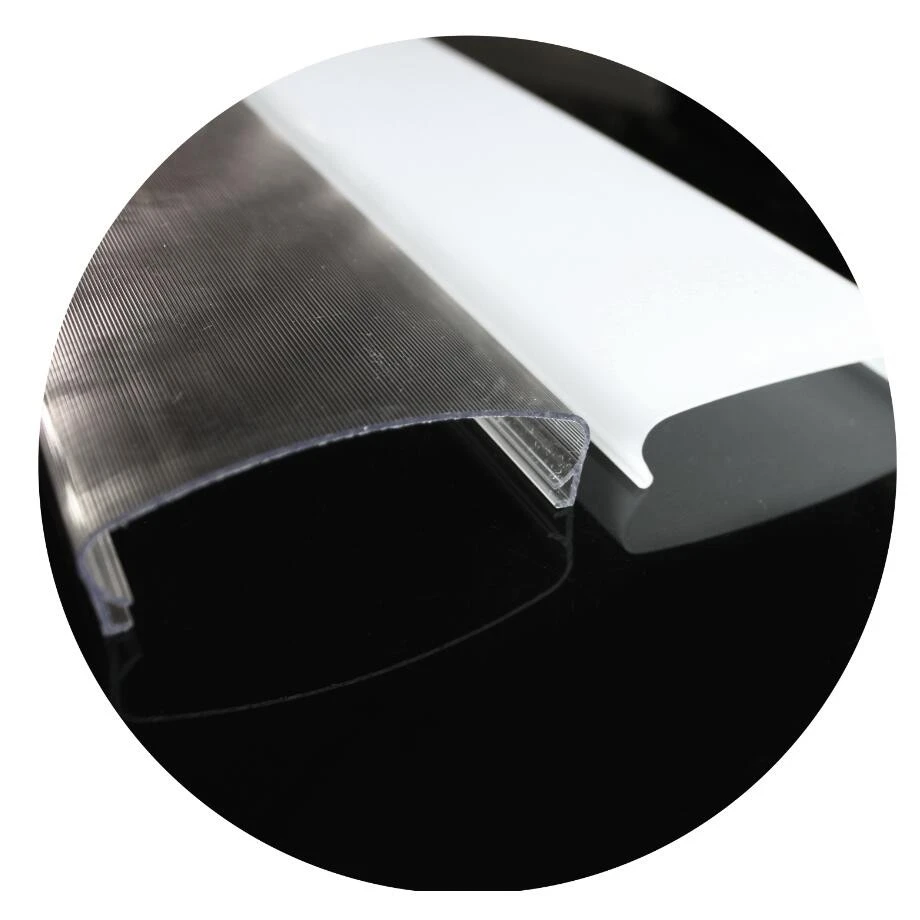

Frosted and striped :
mitsubishi high light transmission PC cover.

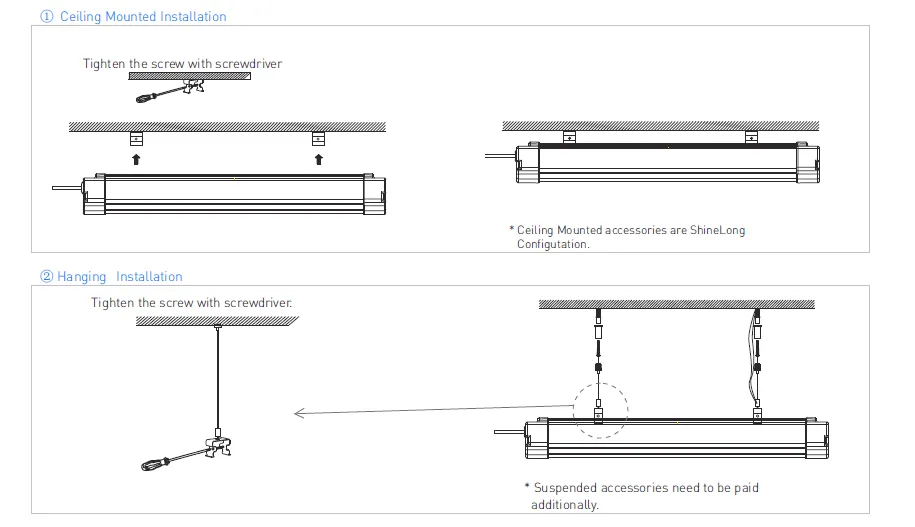

Installation

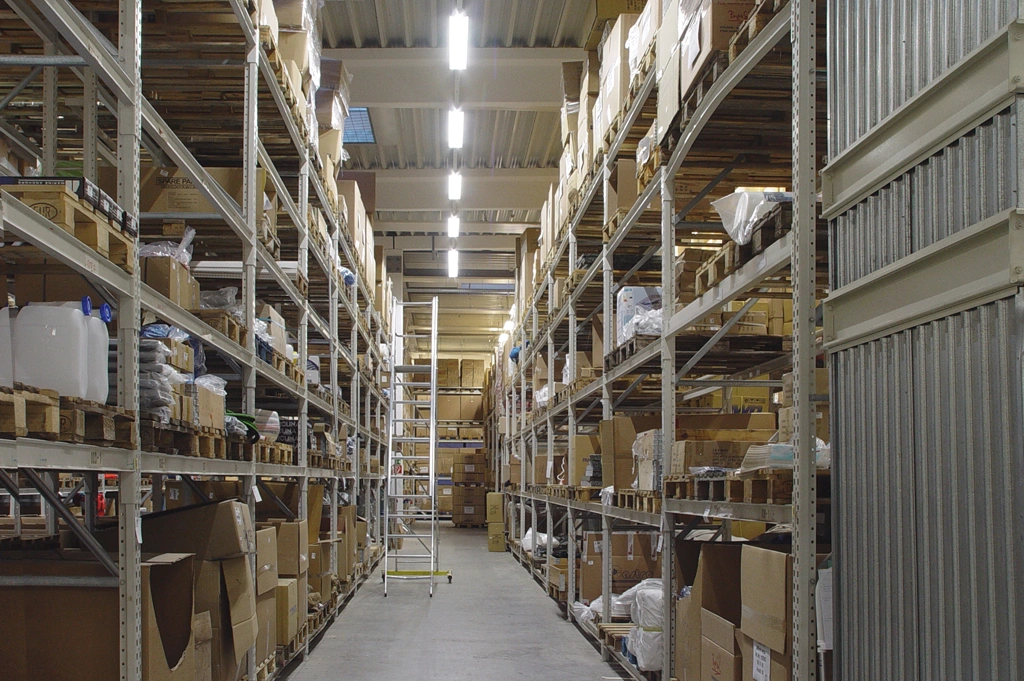

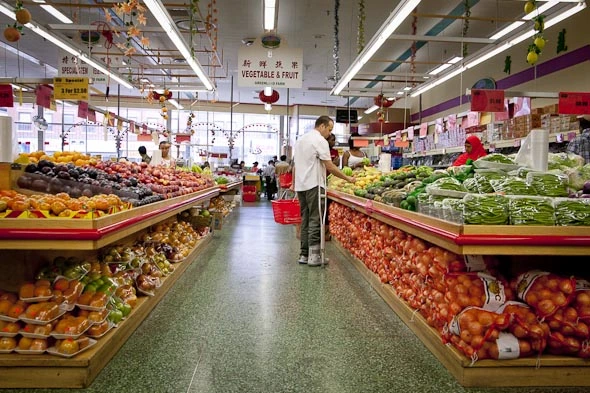

Applications

led tri-proof light:
1.ip65 water tri-proof , dust -proof .
2.SAA CE UL etc approved .

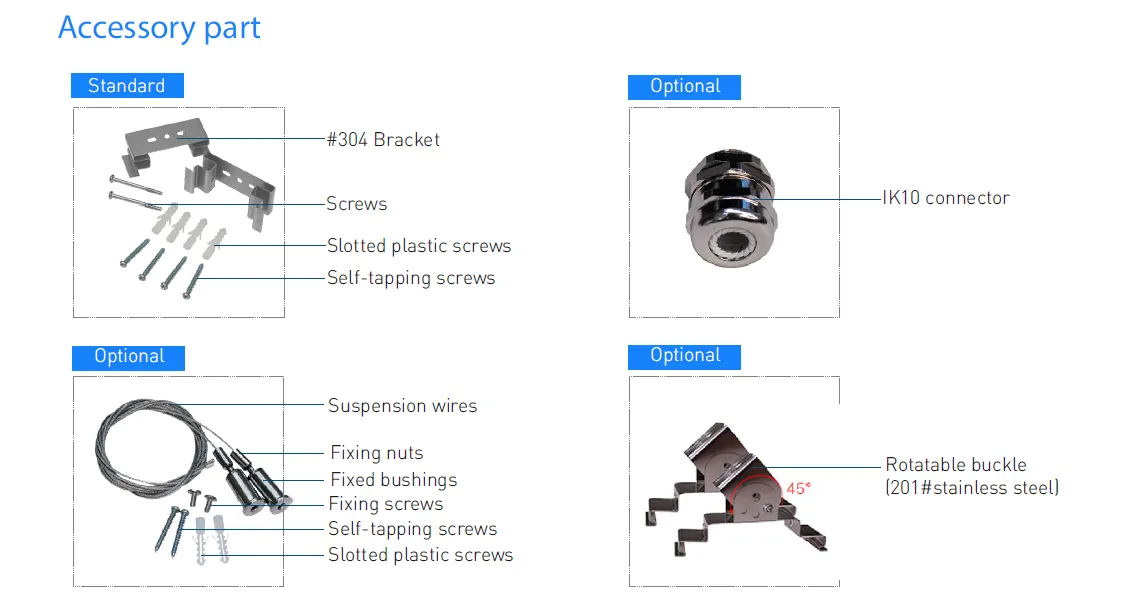

3.easy replacement and installation with brackets .

Certifications

Our serivce:

1.Quick delivery time .
2.We promise 50000 hours lifespan of our products ,5 years warranty .
3.To provide low-moq samples and bulk orders .
4.Quick considerate and professional response in hours .
5,Customize products,packing ,carton print and stricker for client brand .
6.Free text for les,integrating sphere and clients different projects.
7.Protection Of Your Sales Area,Ideas Of Design And All Of Your Private Information

Company Profile

FAQ:

Q1. Can I Have A Sample Order For Led Light?
A: Yes, We Welcome Sample Order To Test And Check Quality. Mixed Samples Are Acceptable.
Q2. What About The Lead Time?
A:Sample Needs working 3-5days , Mass Production Time Needs working 1-2 Weeks For Order Quantity More Than.

Q3. Do You Have Any Moq Limit For Led Light Order?
A: Low Moq, 1Pc For Sample Checking Is Available.

Q4. How Do You Ship The Goods And How Long Does It Take To Arrive?
A: We Usually Ship By Dhl, Ups, Fedex Or Tnt. It Usually Takes 3-5 Days To Arrive. Airline And Sea Shipping Are Also Optional.
