1200mm led tube light

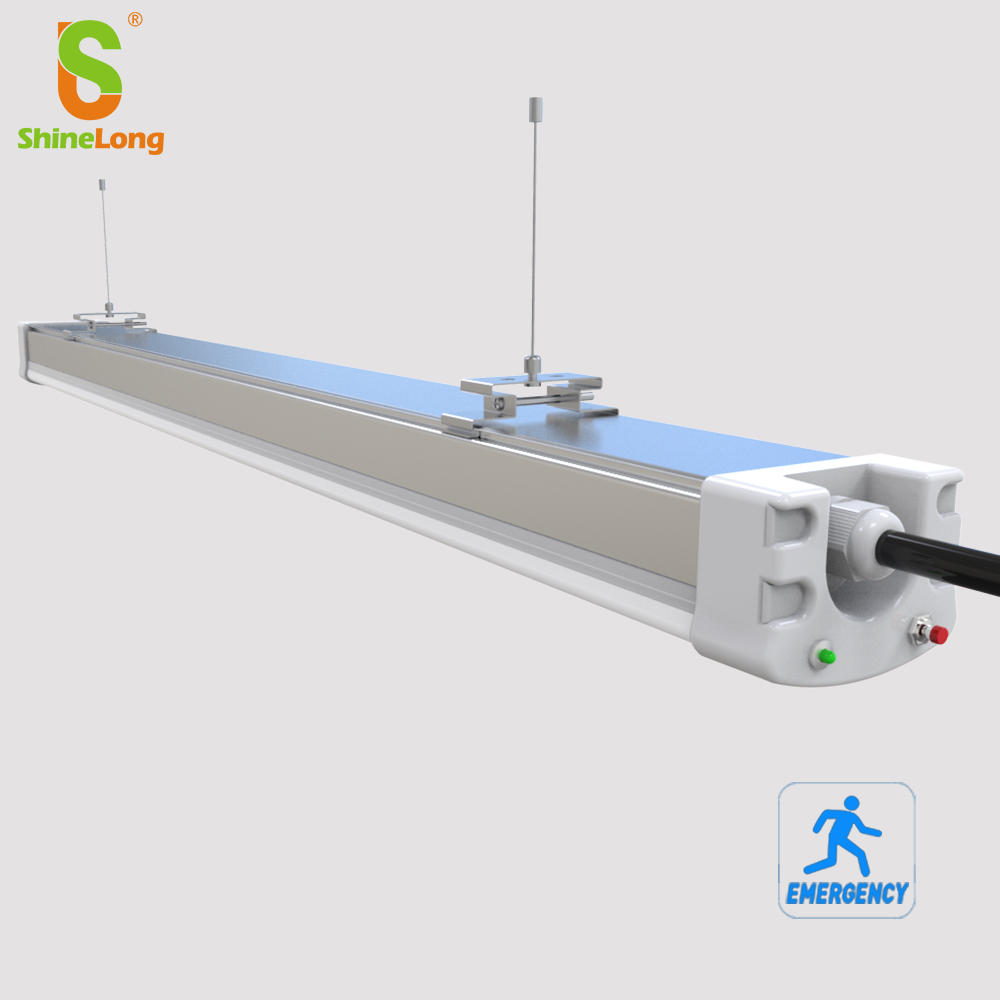

ShineLong Emergency Battery (3hrs) led EU 1200mm led tri-proof tube ip65 batten light

SL-A65X5-60-X
Delivery
EXW FOB
minimum order
30 pieces
Supply Ability
600000pieces / Month
Country of Origin
China guangdong shenzhen
Stock Time
7Day
Quantity:
Contact Now
add to cart
  • Product Name: Led Triproof Light
  • Power: 20W/30W/40W/50W/60W
  • Material: Aluminium Body+ PC Cover
  • Length: 600mm/1200mm/1500mm
  • Beam angle: 120 Degree
  • Installation: Surface Mounted Suspended
  • SDCM:<4
  • CRI: >80
  • LEDs: 416

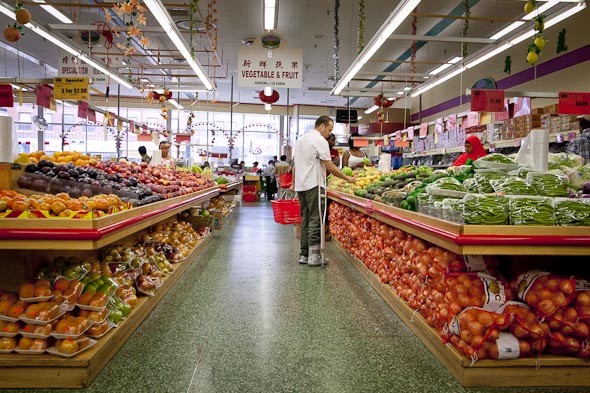

  • application: Exhibition Hall Supermarket
  • Lighting solutions service: Lighting and circuitry design
  • Lifespan (hours): 50000
  • Working Time (hours): 50000
  • Color Temperature(CCT): 4000/5000/6000
  • Input Voltage(V): AC100-277/200-240
  • Lamp Luminous Efficiency(lm/w): 110
  • Warranty(Year): 5
  • Color Rendering Index(Ra): 85
  • Certification: CE/FCC/TUV/ROHS
  • Model Number: SL-A65X5-60-X

Products Description:


1. IP65 Water-proof , Dust-Proof , Moisture-proof
2. High Impact IK10 Test
3. Easy for series connection,ideal products for saving Labor cost
4. SDCM<4 , Meets ANSI and Erp Regulations, L80B50 (Ta = 25℃)>75000Hrs
5. Suitable for 3G/5G 1.5mm2 US/EU Cable (Max 12mm). No need to consider the cable length before instalation.
6.Widely Application : Warehouse/Supermarket/Parking Lot /Corridor ...

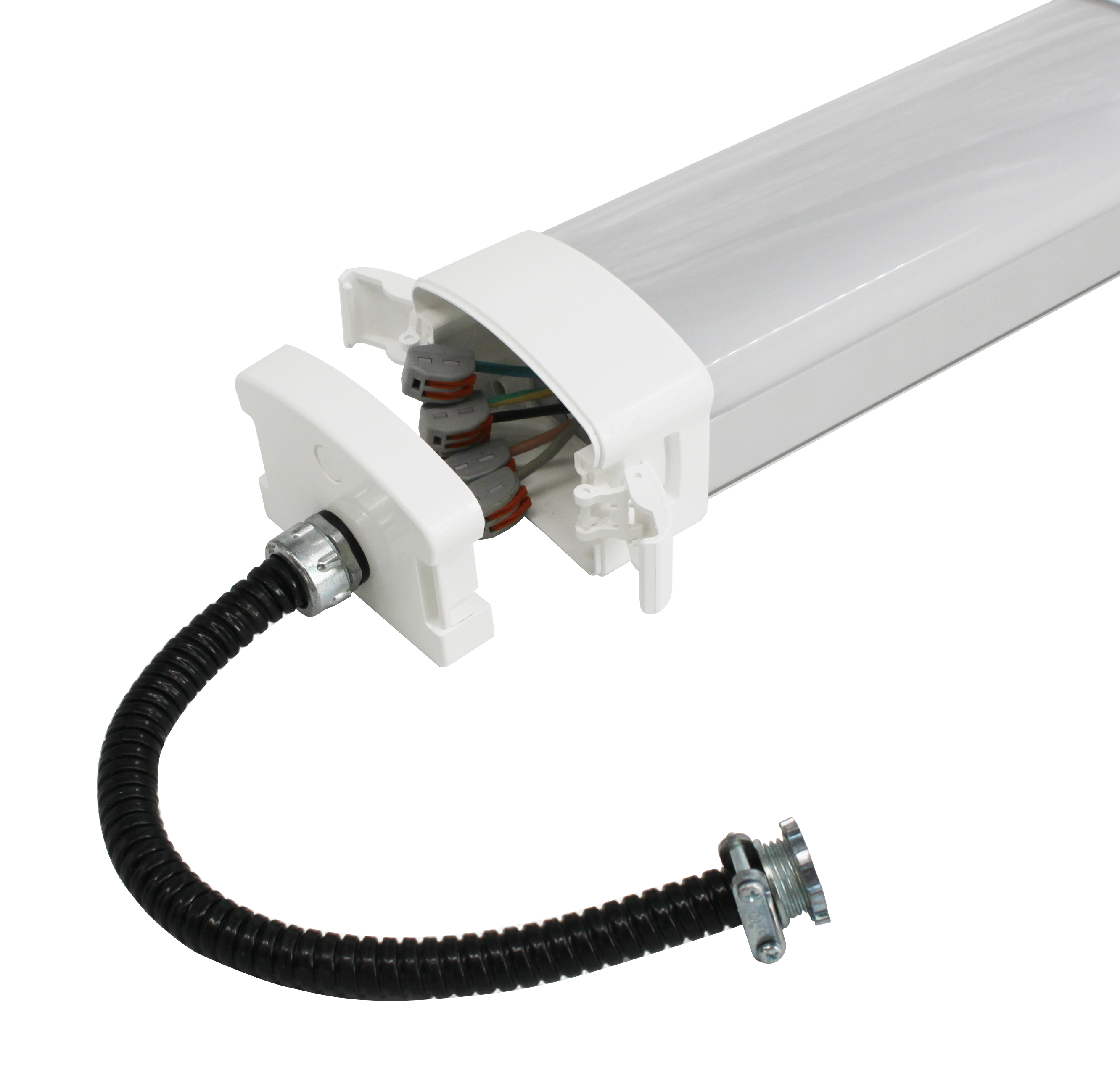

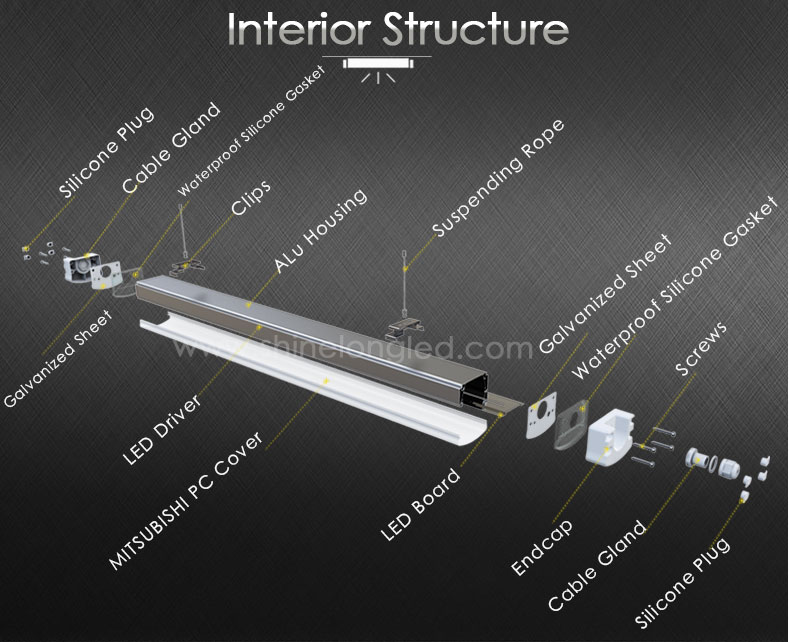

sealed end cap :
ip65 breather optional keep temperature balance between inside and outside .

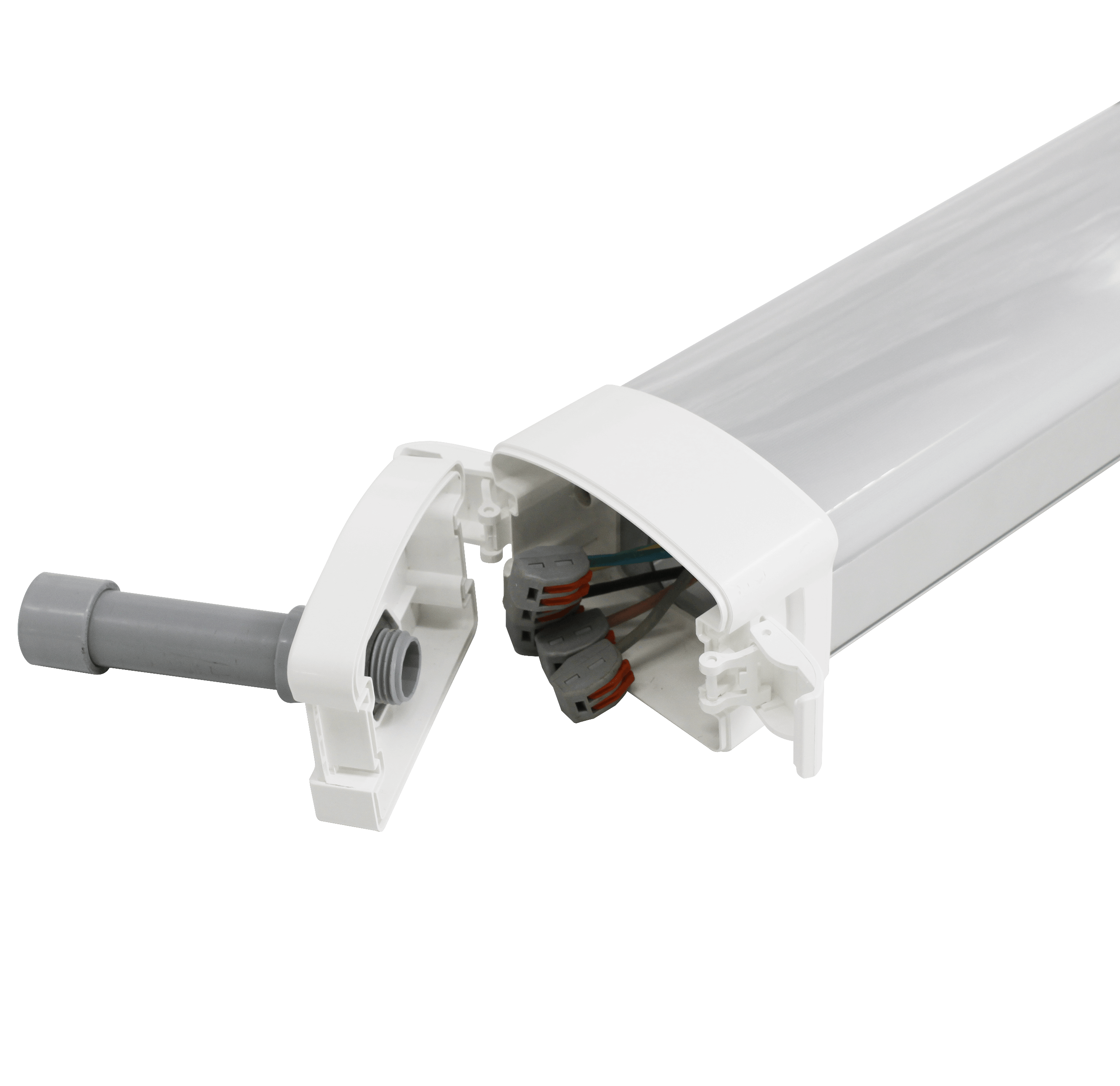

lead in wire :
3*18AWG UL/3*1.0mm2
VDE listed rubber cable Max series linkable 2500w.

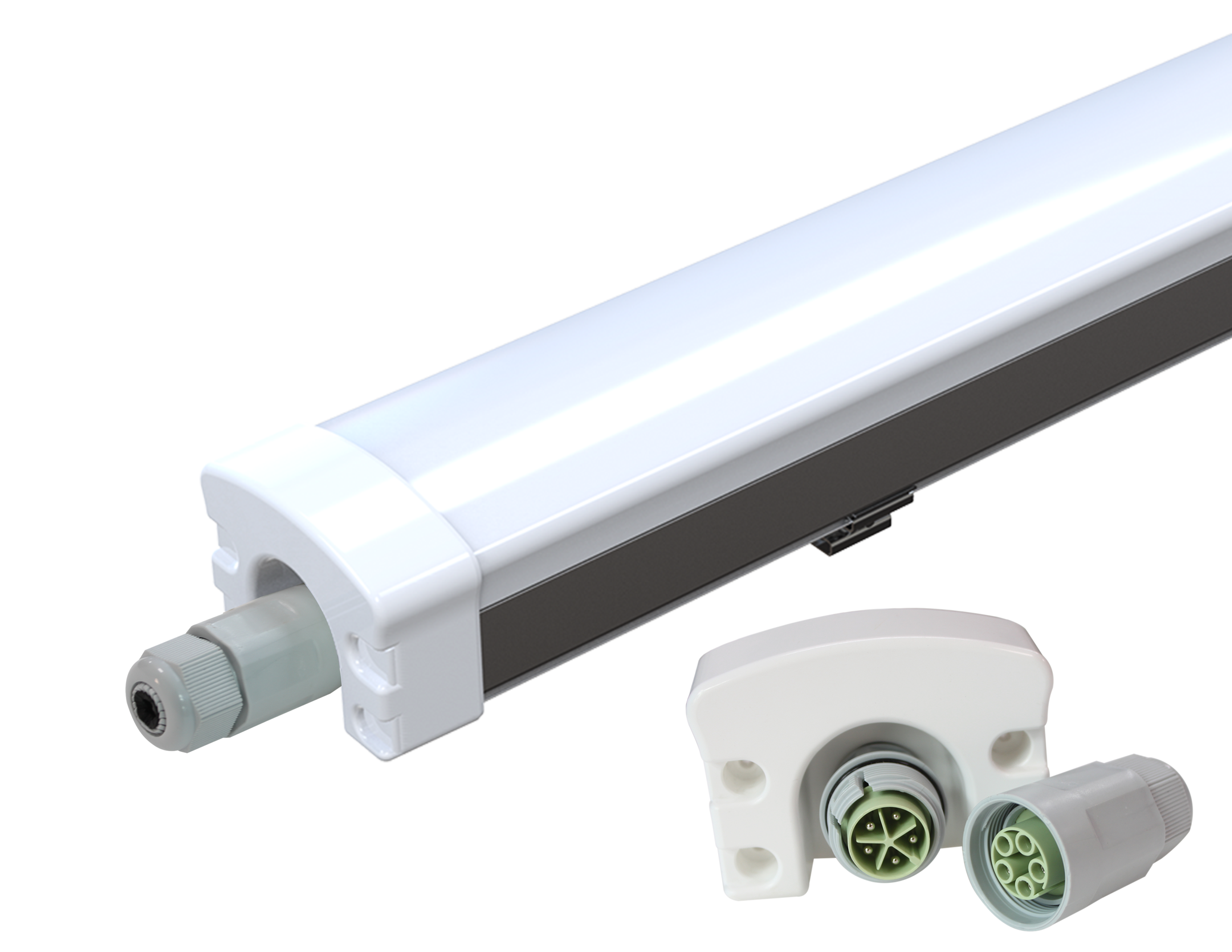

waterproof connector :
protection from dust and water.

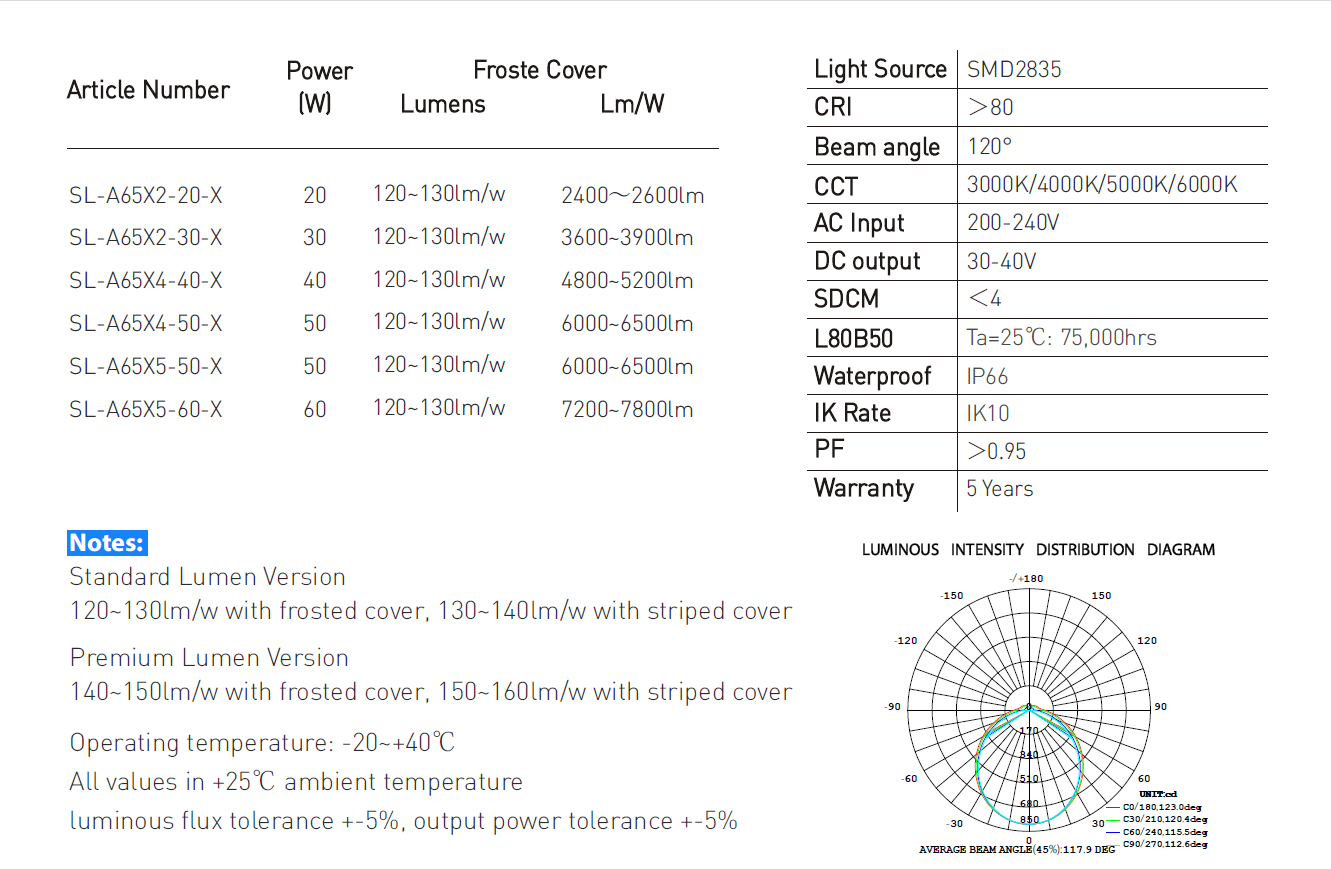

Product detail

Item Number
SL-A65X2-XX-X
SL-A65X4-XX-X
SL-A65X5-XX-X
Size
600*94*69mm
1200*94*69mm
1500*94*69mm
Power
20W
30W
40W
50W
50W
60W
LEDs
156 pcs
180 pcs
260 pcs
312 pcs
312 pcs
416 pcs
Bean Angle
120°
CRI
>80
AC Input
100-277V / 220-240V
Color Temperature
3000K/4000K/5000K/6000KSDCM<4
Efficiency
Frosted PC cover: 110~120lm/w, Striped PC cover: 120~130lm/w
Lumen Output (LM)
2200-2600
3300-3900
4400-5200
5500-6500
5500-6500
6600-7800
Other functions of the product:
1. Non-Dim 2. 0/1-10V Dim
3.Microwave Sensor4.Microwave Sensor Dim
5. Emergency Battery (3hrs) 6. UP to 140~160lm/w

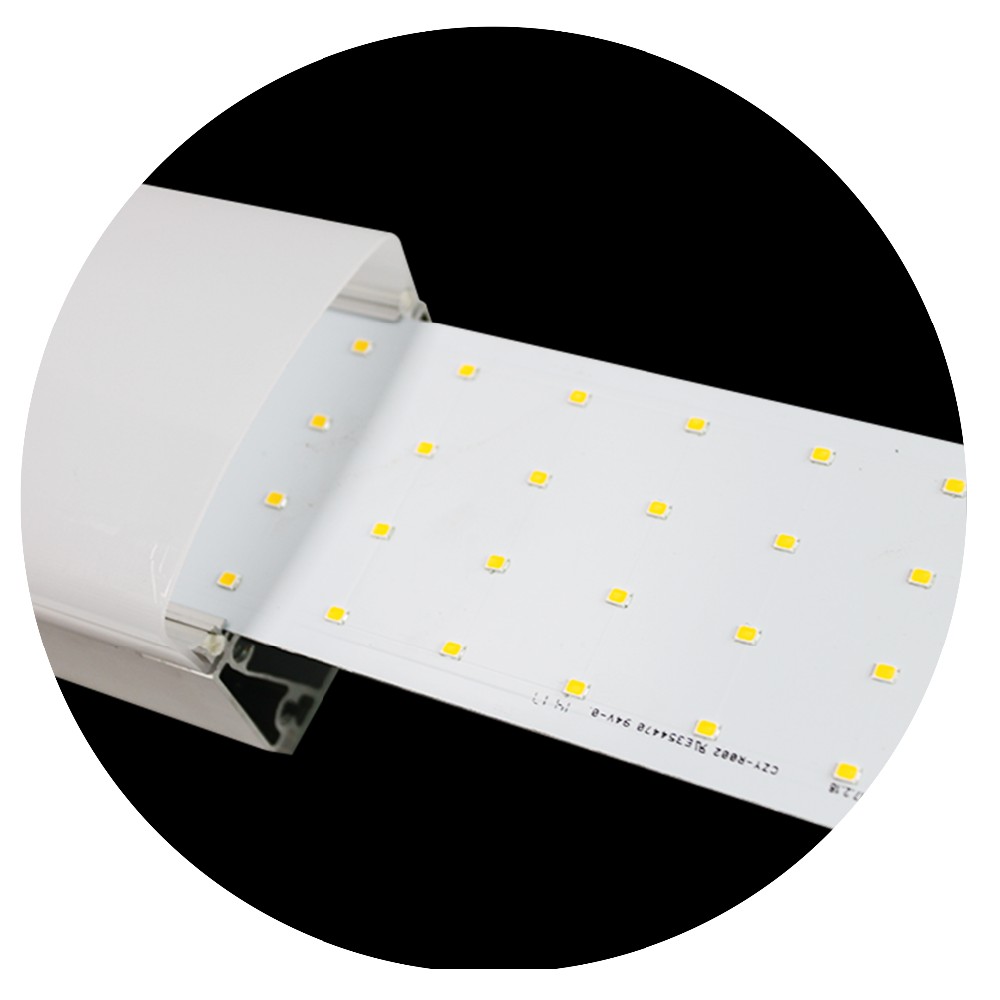

SMD2835 led 99.99% gold wire soldering :
ul listed PCB board 1.0mm thickness.

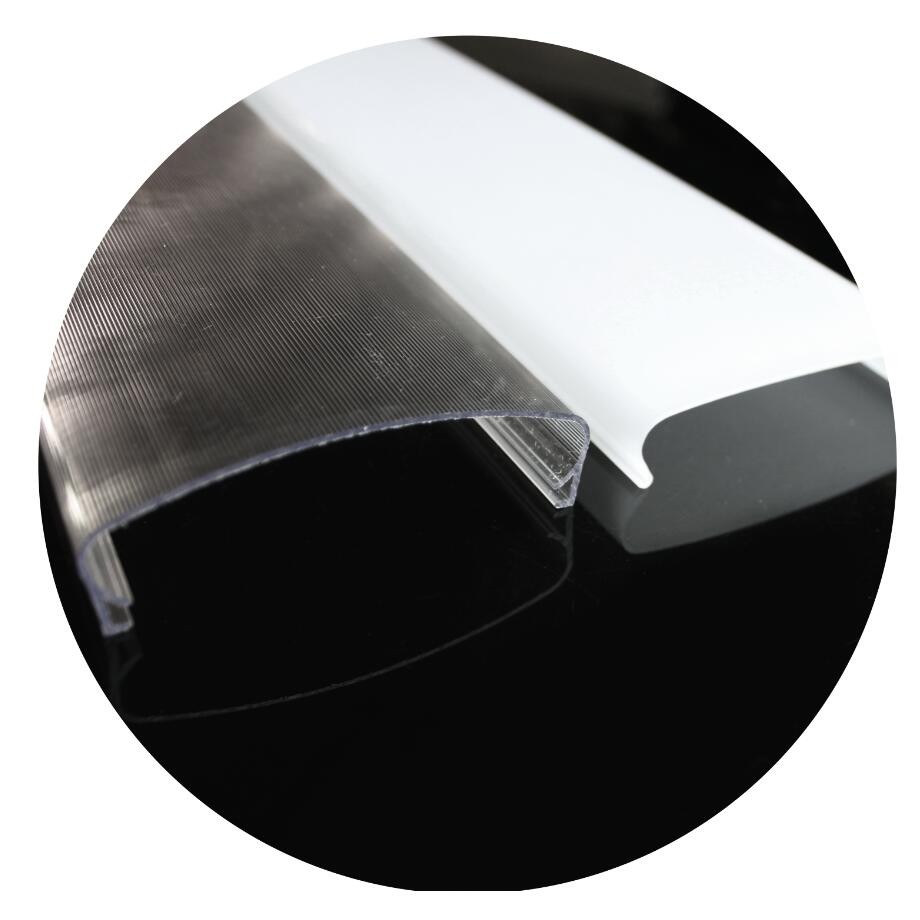

Frosted and striped :
mitsubishi high light transmission PC cover.

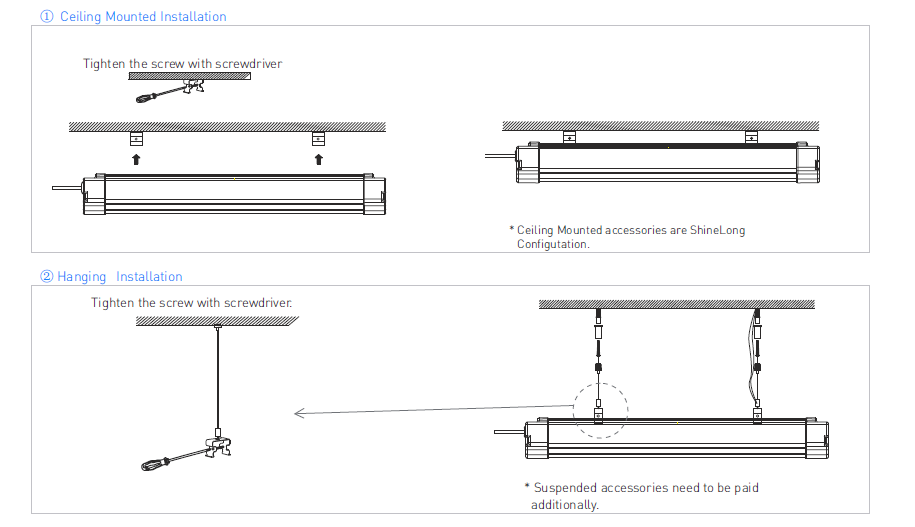

Installation:

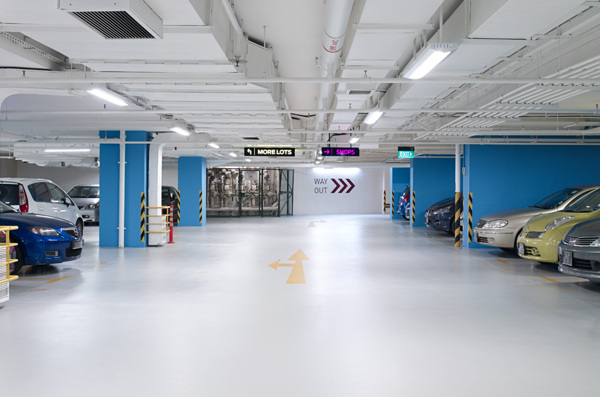

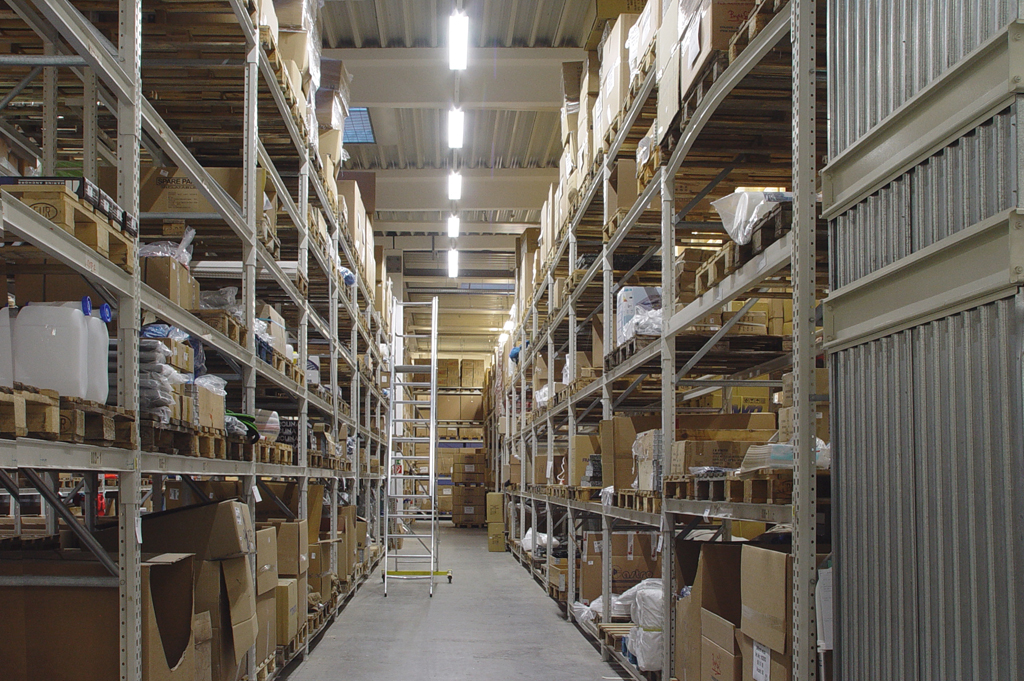

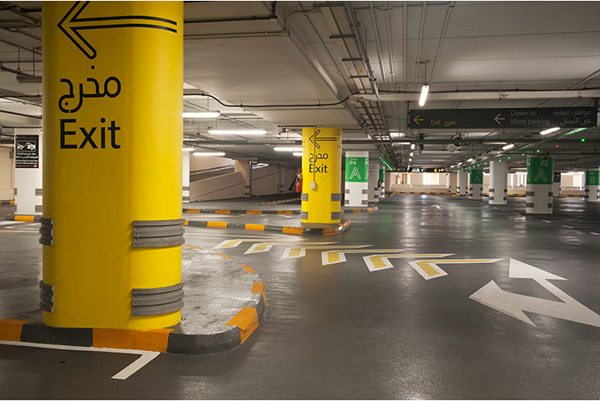

Applications

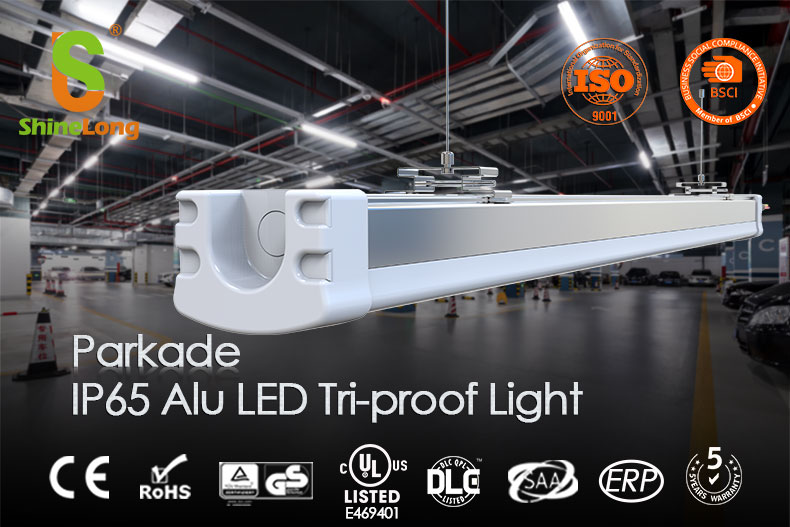

led tri-proof light:
1.ip65 water tri-proof , dust -proof .
2.SAA CE UL etc approved .

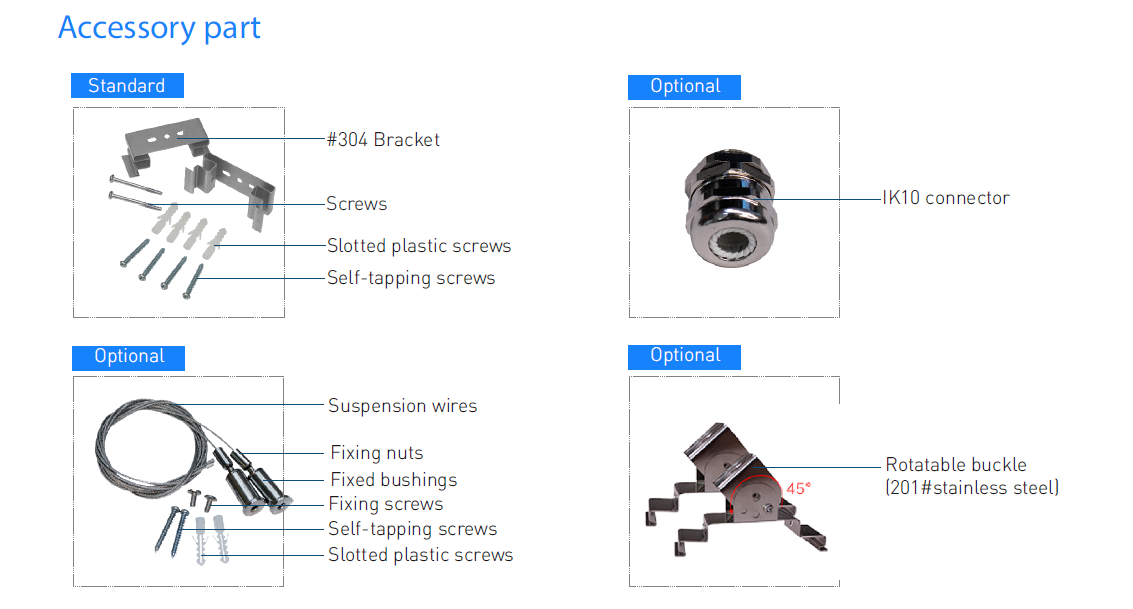

3.easy replacement and installation with brackets .

Certifications:

Our serivce:

1.Quick delivery time .
2.We promise 50000 hours lifespan of our products ,5 years warranty .
3.To provide low-moq samples and bulk orders .
4.Quick considerate and professional response in hours .
5,Customize products,packing ,carton print and stricker for client brand .
6.Free text for les,integrating sphere and clients different projects.
7.Protection Of Your Sales Area,Ideas Of Design And All Of Your Private Information.

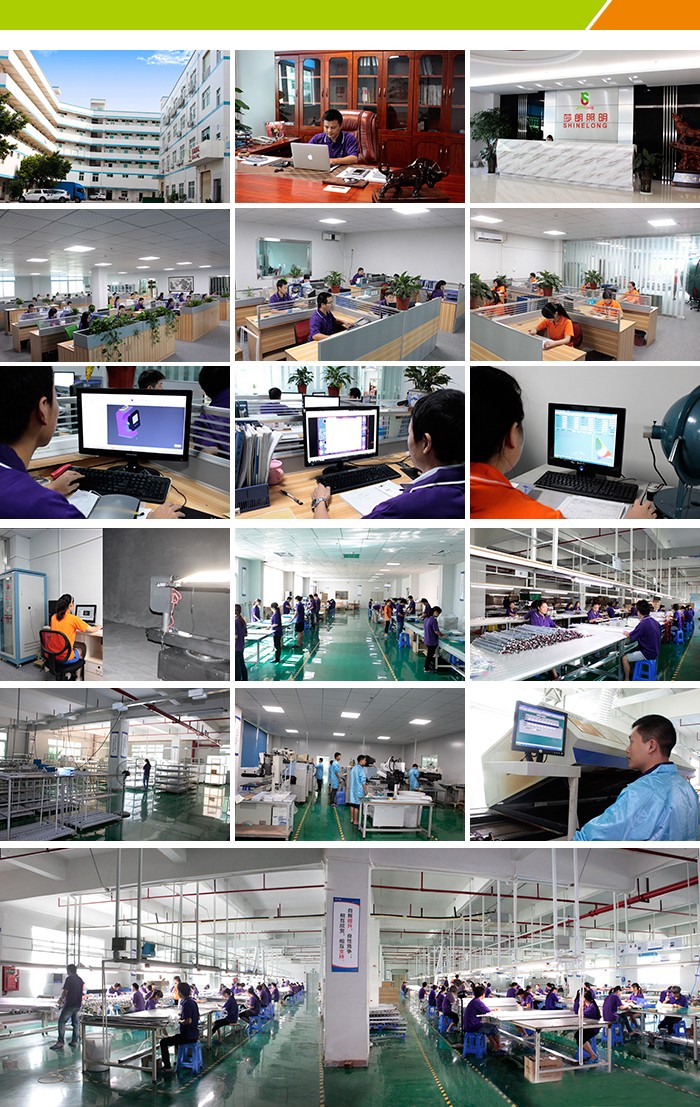

Company Profile:

FAQ:

Q1. Can I Have A Sample Order For Led Light?
A: Yes, We Welcome Sample Order To Test And Check Quality. Mixed Samples Are Acceptable.
Q2. What About The Lead Time?
A:Sample Needs working 3-5days , Mass Production Time Needs working 1-2 Weeks For Order Quantity More Than.

Q3. Do You Have Any Moq Limit For Led Light Order?
A: Low Moq, 1Pc For Sample Checking Is Available.

Q4. How Do You Ship The Goods And How Long Does It Take To Arrive?
A: We Usually Ship By Dhl, Ups, Fedex Or Tnt. It Usually Takes 3-5 Days To Arrive. Airline And Sea Shipping Are Also Optional.
