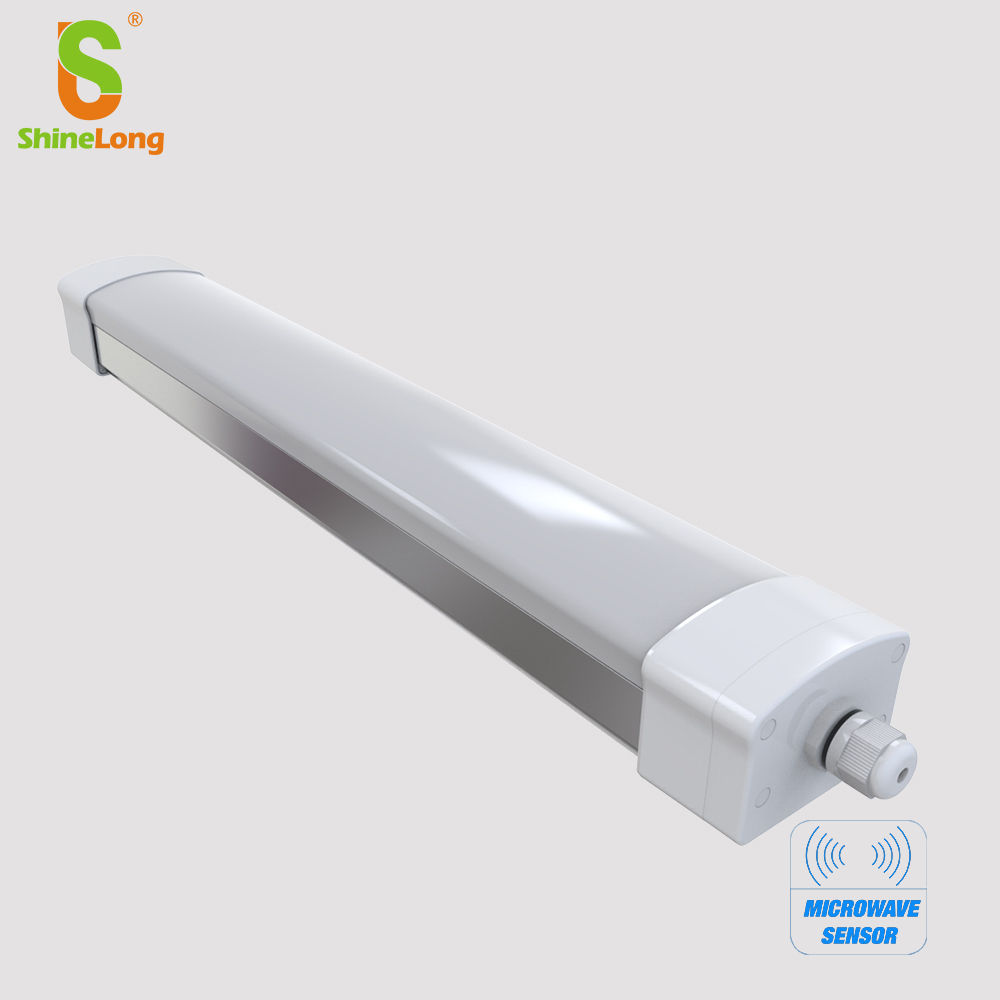

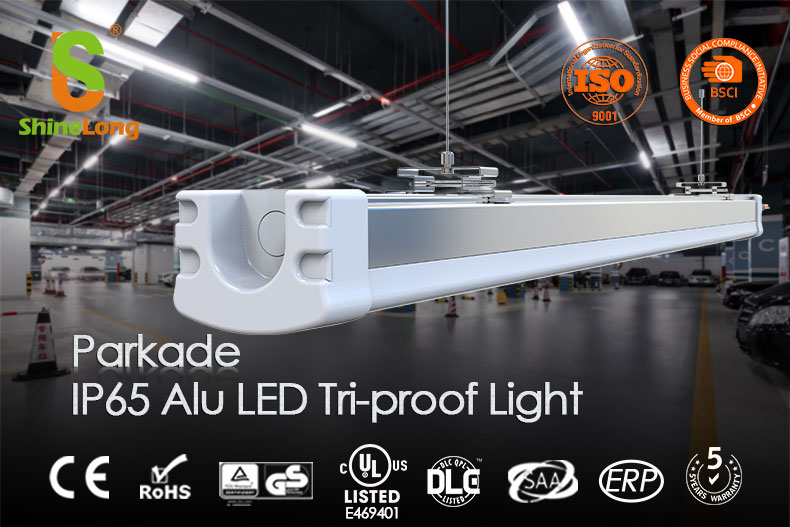

ShineLong Microwave Sensor led EU parking garage light fixtures led garage light fixtures

• Product Name: Led Triproof Light
• Power: 20W/30W/40W/50W/60W
• Length: 600mm/1200mm/1500mm
• Material: Aluminium Body+ PC Cover
• Beam angle: 120 Degree
• Installation: Surface Mounted Suspended
• CRI: >80
• LEDs: 312
• SDCM:<4
• Lighting solutions service:Lighting and circuitry design
• Lifespan (hours):50000
• Working Time (hours):50000
• Color Temperature(CCT): 4000/5000/6000
• Input Voltage(V): AC100-277/200-240
• Lamp Luminous Efficiency(lm/w):110
• Warranty(Year): 5
• Color Rendering Index(Ra): 85
• Type: LED
• Certification:CE/FCC/TUV/ROHS
• Model Number:SL-A65X4-50-X

Products Description:

1. IP65 Water-proof , Dust-Proof , Moisture-proof
2. High Impact IK10 Test
3. Easy for series connection,ideal products for saving Labor cost
4. SDCM<4 , Meets ANSI and Erp Regulations, L80B50 (Ta = 25℃)>75000Hrs
5. Suitable for 3G/5G 1.5mm2 US/EU Cable (Max 12mm). No need to consider the cable length before instalation.
6.Widely Application : Warehouse/Supermarket/Parking Lot /Corridor ...

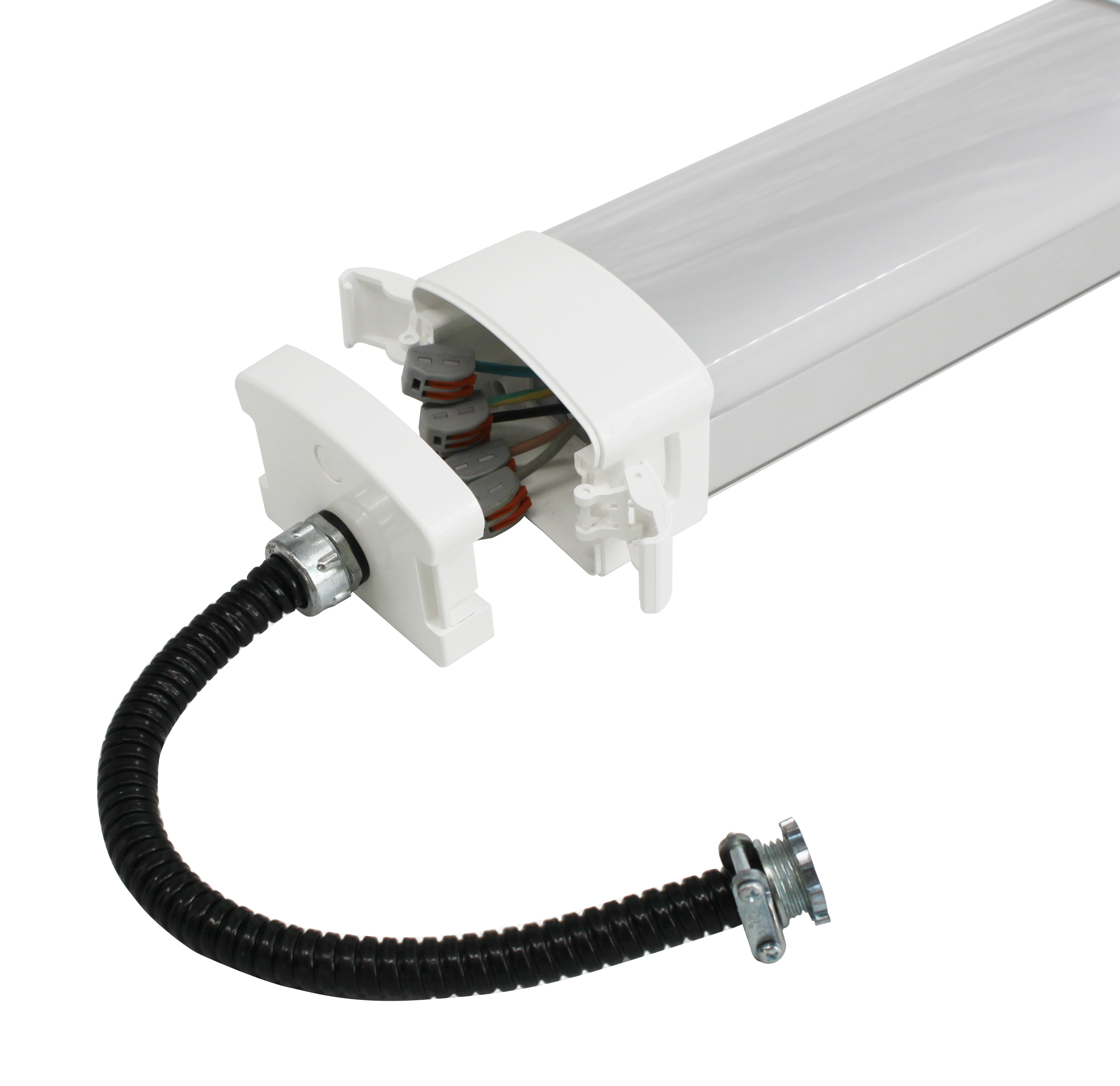

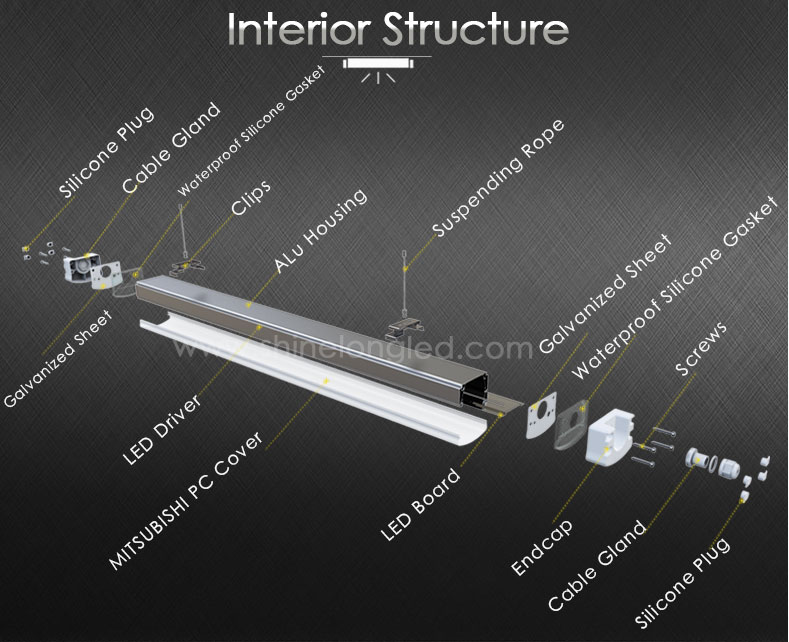

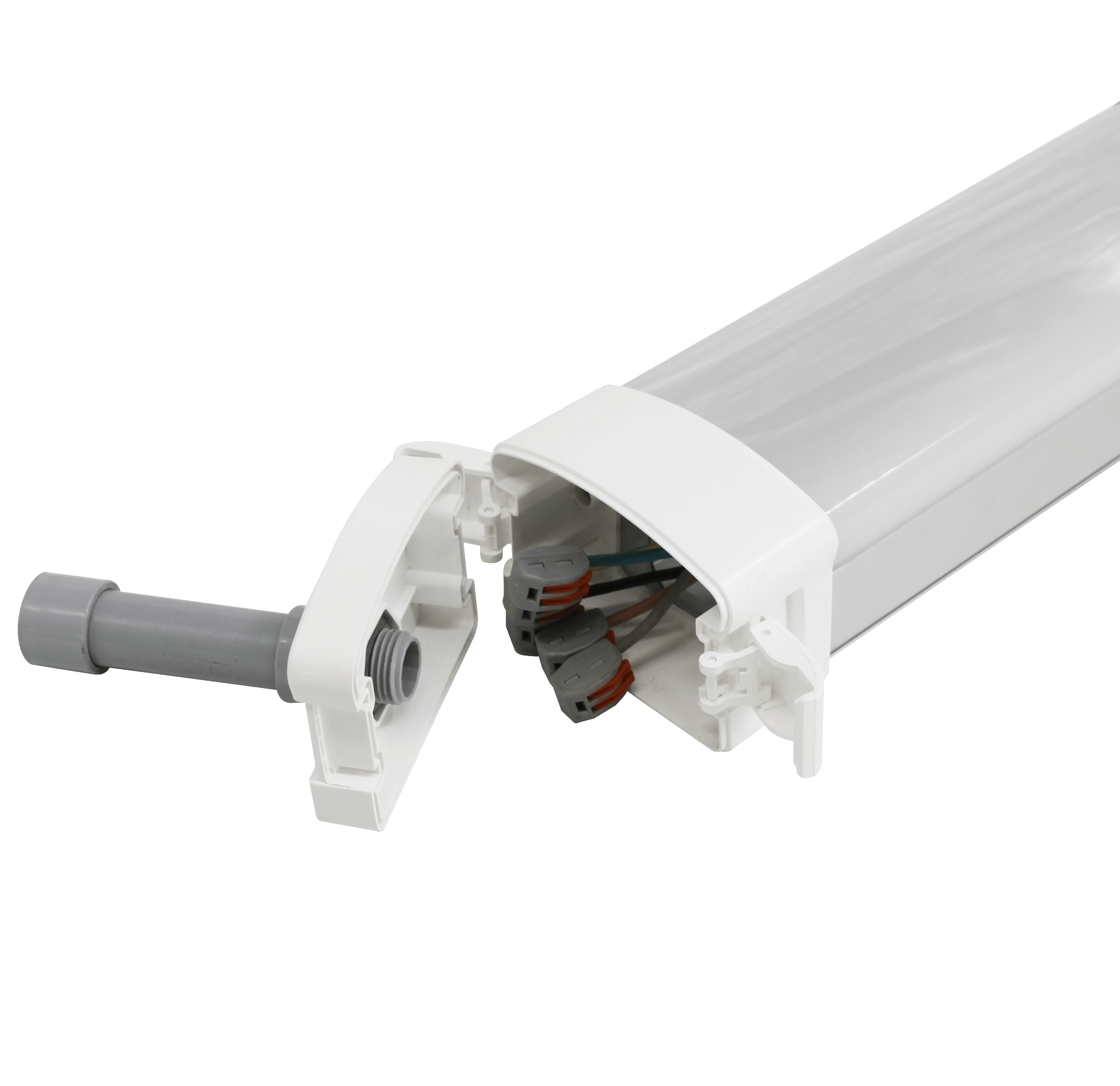

sealed end cap :

ip65 breather optional keep temperature balance between inside and outside .

lead in wire :

3*18AWG UL/3*1.0mm²

VDE listed rubber cable Max series linkable 2500w.

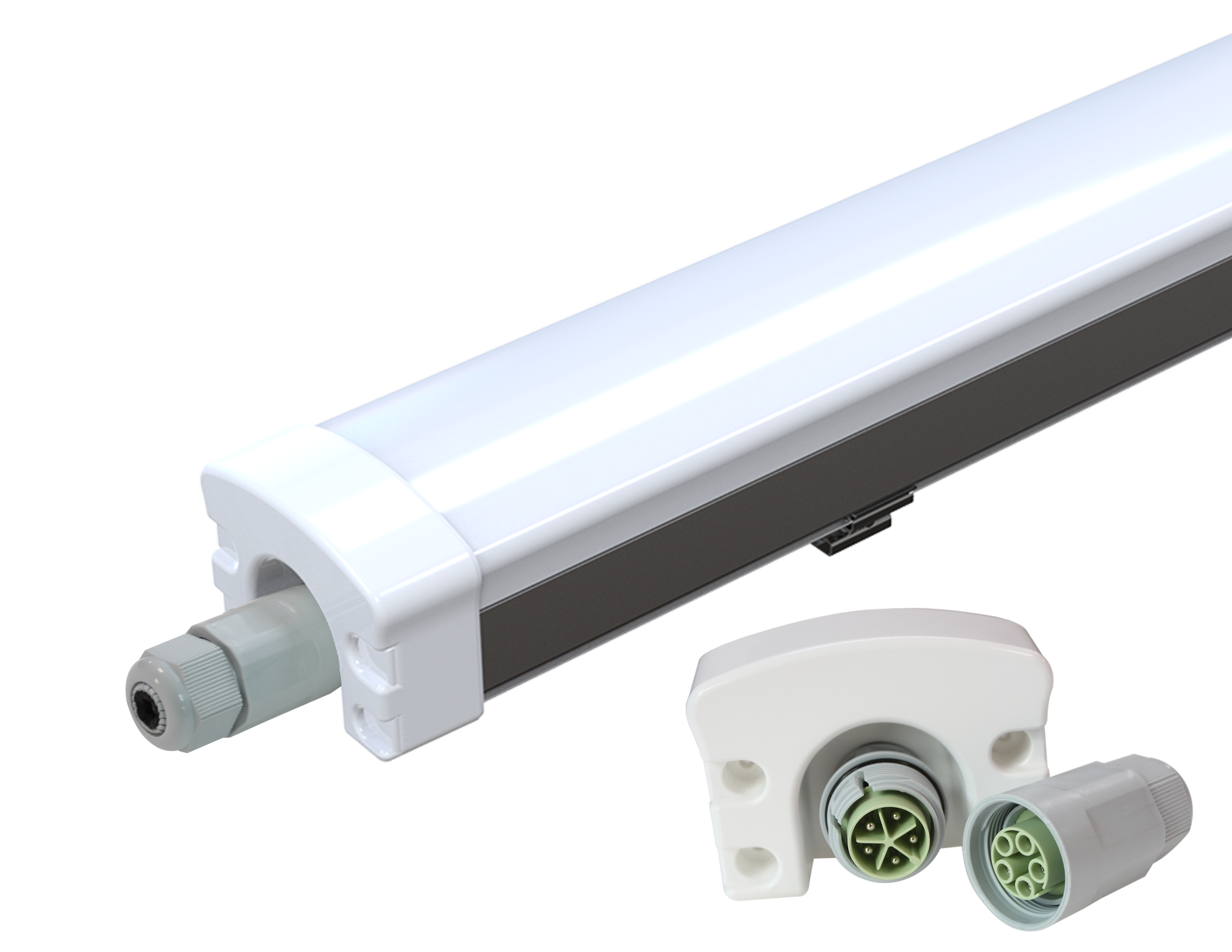

waterproof connector :

protection from dust and water.

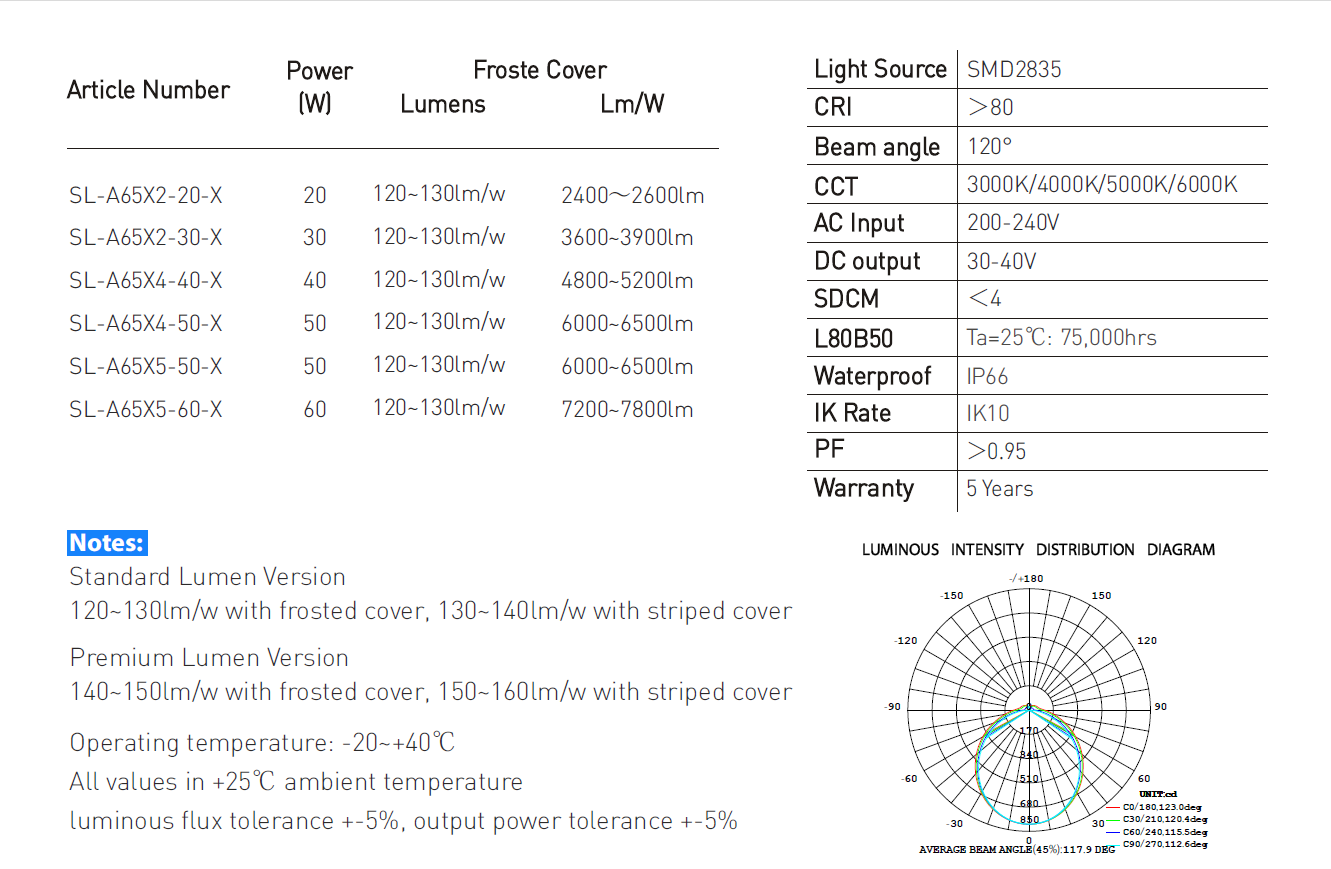

Product detail:

Item Number	SL-A65X2-XX-X			SL-A65X4-XX-X			SL-A65X5-XX-X
Size	600*94*69mm			1200*94*69mm			1500*94*69mm
Power	20W	30W	40W	50W	50W	60W
LEDs	156 pcs	180 pcs	260 pcs	312 pcs	312 pcs	416 pcs
Bean Angle	120°
CRI	>80
AC Input	100-277V / 220-240V
Color Temperature	3000K/4000K/5000K/6000KSDCM<4
Efficiency	Frosted PC cover: 110~120lm/w, Striped PC cover: 120~130lm/w
Lumen Output (LM)	2200-2600	3300-3900	4400-5200	5500-6500	5500-6500	6600-7800

Other functions of the products:

1. Non-Dim 2. 0/1-10V Dim

3.Microwave Sensor4.Microwave Sensor Dim

5. Emergency Battery (3hrs) 5.UP to 140~160lm/w

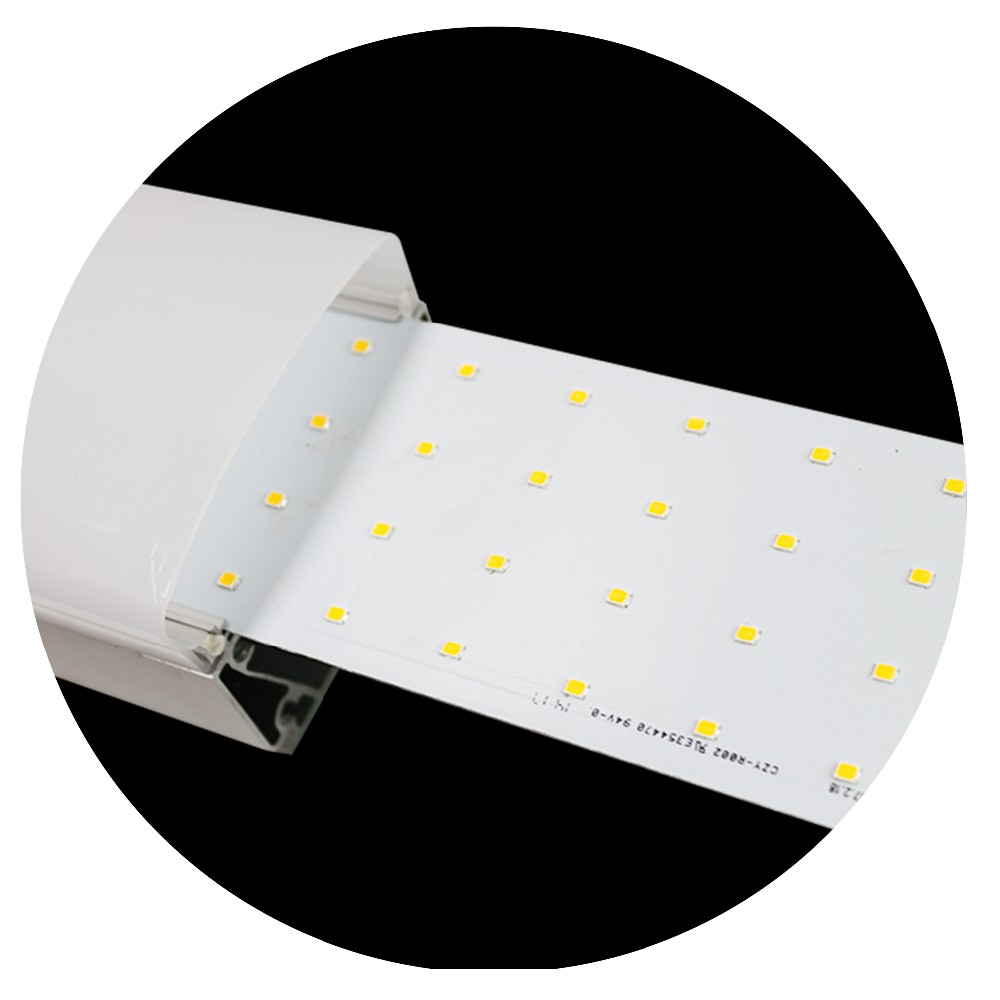

SMD2835 led 99.99% gold wire soldering :

ul listed PCB board 1.0mm thickness.

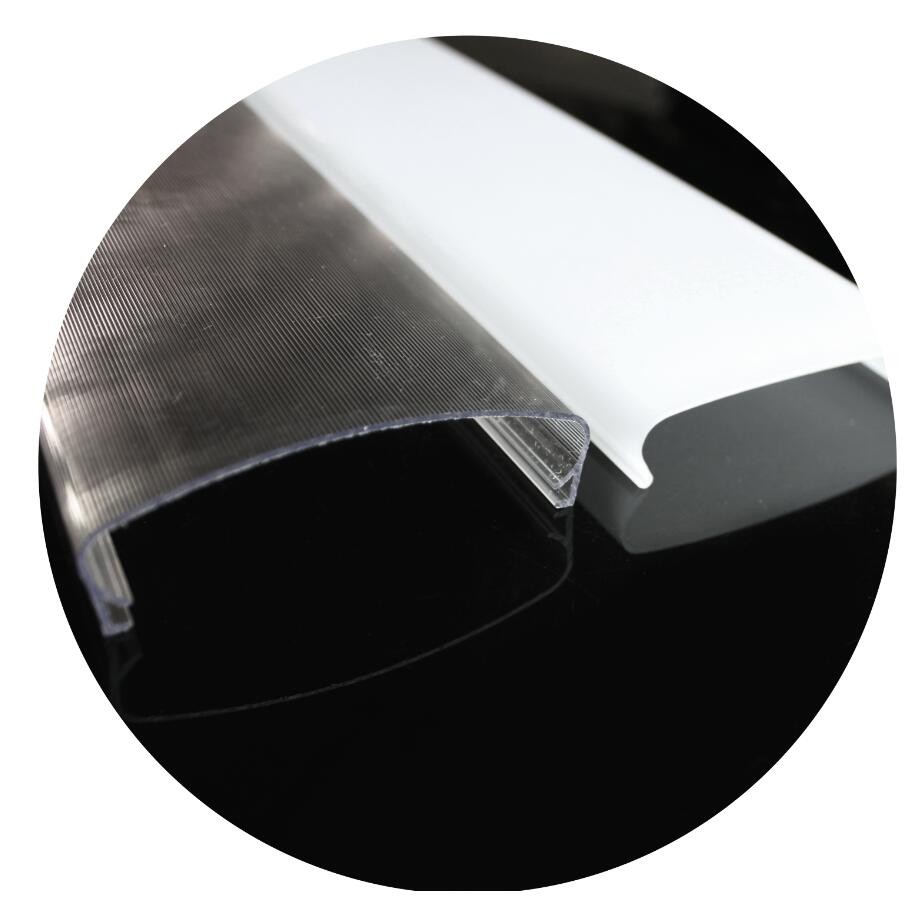

Frosted and striped :

mitsubishi high light transmission PC cover.

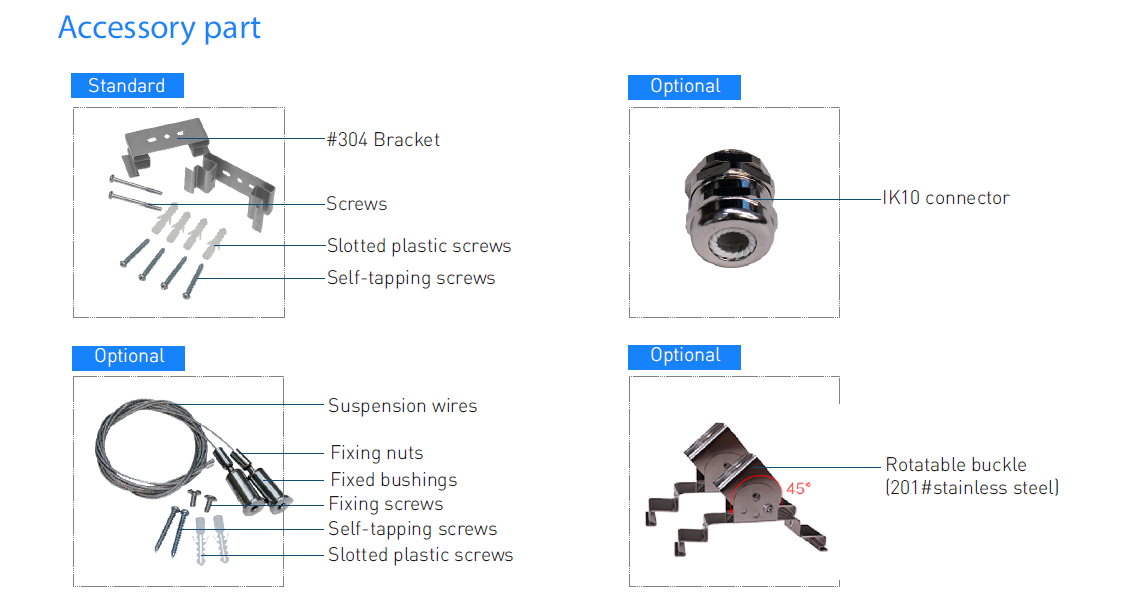

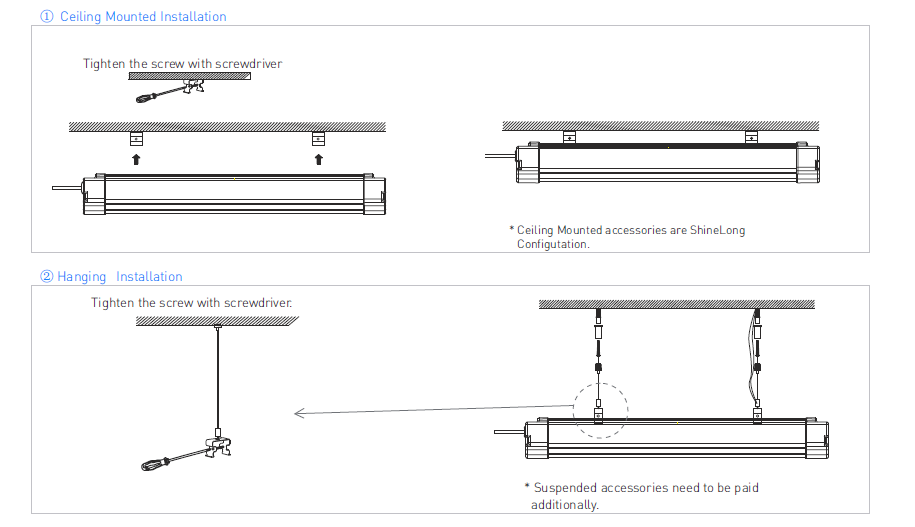

Installation:

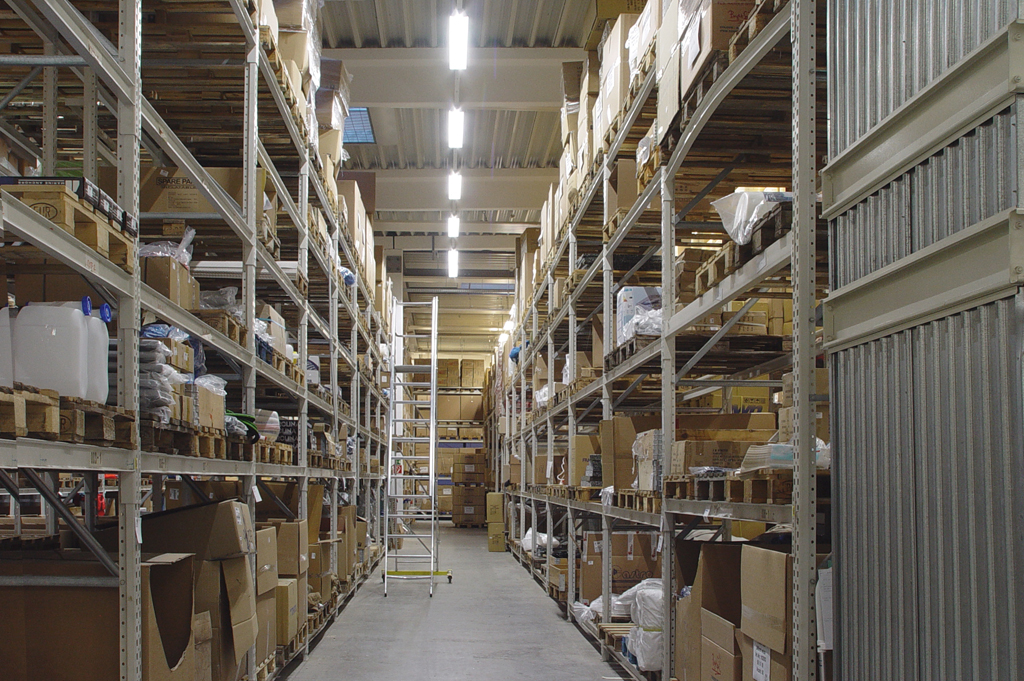

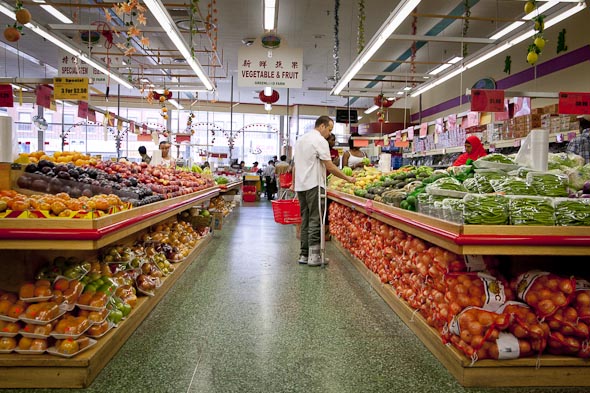

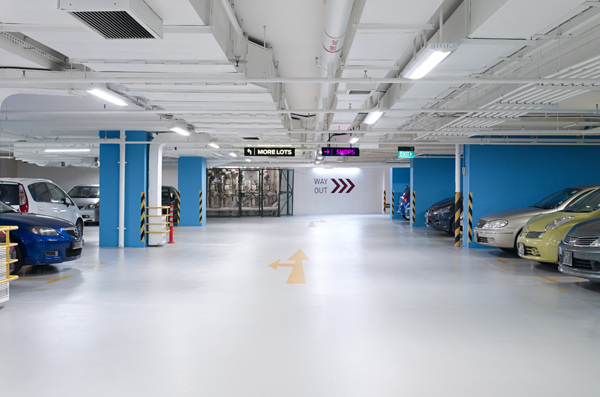

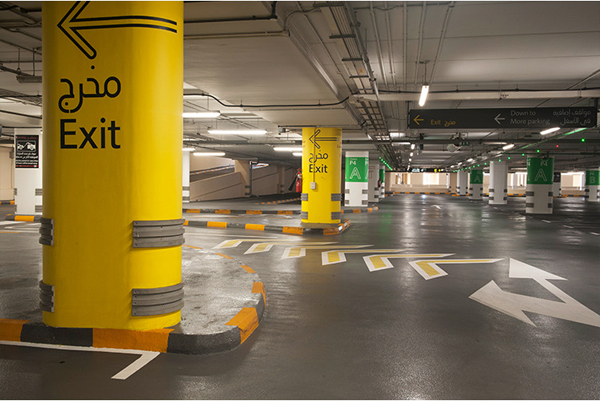

Applications:

led tri-proof light:

1.ip65 water tri-proof , dust -proof .

2.SAA CE UL etc approved .
3.easy replacement and installation with brackets .

Certifications:

​​​​​​

Our serivces:

1.Quick delivery time .

2.We promise 50000 hours lifespan of our products ,5 years warranty .

3.To provide low-moq samples and bulk orders .

4.Quick considerate and professional response in hours .

5,Customize products,packing ,carton print and stricker for client brand .

6.Free text for les,integrating sphere and clients different projects.

7.Protection Of Your Sales Area,Ideas Of Design And All Of Your Private Information.

Company Profile:

FAQ:

Q1. Can I Have A Sample Order For Led Light?
A: Yes, We Welcome Sample Order To Test And Check Quality. Mixed Samples Are Acceptable.

Q2. What About The Lead Time?

A:Sample Needs working 3-5days , Mass Production Time Needs working 1-2 Weeks For Order Quantity More Than.

Q3. Do You Have Any Moq Limit For Led Light Order?
A: Low Moq, 1Pc For Sample Checking Is Available.

Q4. How Do You Ship The Goods And How Long Does It Take To Arrive?
A: We Usually Ship By Dhl, Ups, Fedex Or Tnt. It Usually Takes 3-5 Days To Arrive. Airline And Sea Shipping Are Also Optional.
