ShineLong Parkade IP66 IK10 Dali Control LED Tri-proof Light

SL-A65X2-20-XL
Tri-proof light is a kind of lighting equipment designed for harsh environments with waterproof, dustproof and corrosion-resistant features. They are usually made of high-strength materials and can work properly under extreme conditions, ensuring the provision of stable and reliable lighting effects, as well as energy-saving and environmentally friendly, with a long service life, and are suitable for use in industry, warehouses, workshops and other places.
Delivery
EXW, FOB
minimum order
30 pieces
Supply Ability
9999pieces / Month
Country of Origin
Shenzhen, Guangdong, China
Stock Time
7Day
Quantity:
Contact Now
add to cart

ShineLong IP66 IK10 Protection Dali Control Parkade LED Tri-proof Light

ShineLong Parkade IP66 IK10 protection DALI control LED tri-proof light is an ideal lighting solution designed for parking lots and underground garages. Its excellent waterproof, dustproof and impact resistant performance ensures stability and efficiency in harsh environments. Supporting DALI intelligent dimming system for energy saving and intelligent control, it is suitable for a wide range of commercial and industrial locations.

Key Features

1. Protection level: IP66 waterproof, IK10 impact protection, use of 94V0 flame retardant materials
2. Unique design: Mitsubishi PC material, equipped with aluminum PCB and lamp body
3. Light source: SMD2835 LED light source, with global patent protection.
4. Driver: ENEC certified non-strobe driver, THD <15%.
5. High efficiency: luminous efficacy 130 ~ 150 lm / w (+10%)
6. Lifetime: L80B10 life of 50,000 hours (Ta = 25 ° C)
7. No dark area, no vulcanization sealing, anti-yellowing, anti-cracking

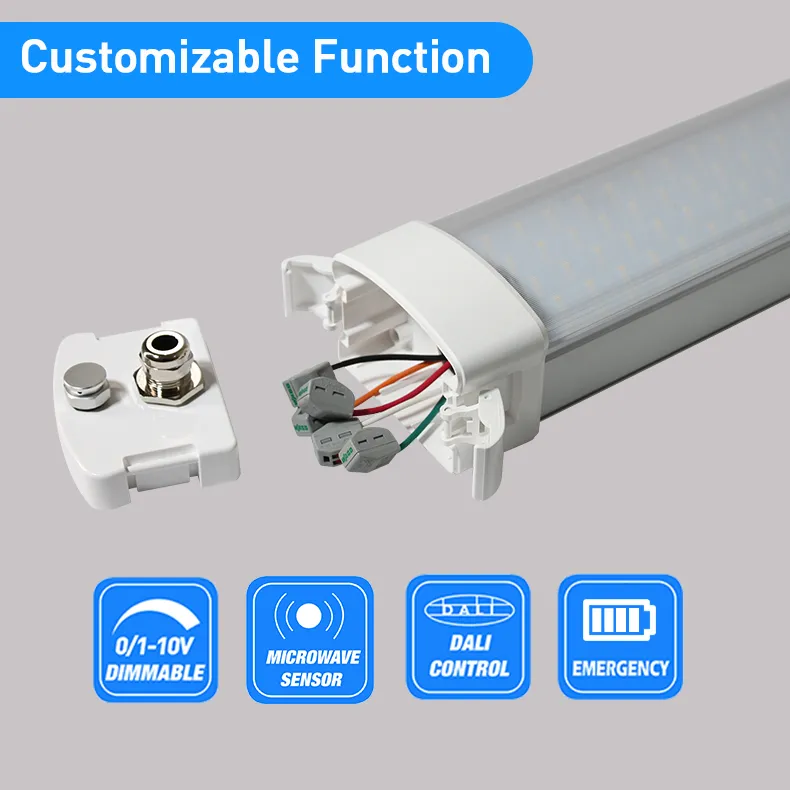

8. Support dimming, optional motion sensor and emergency lighting function

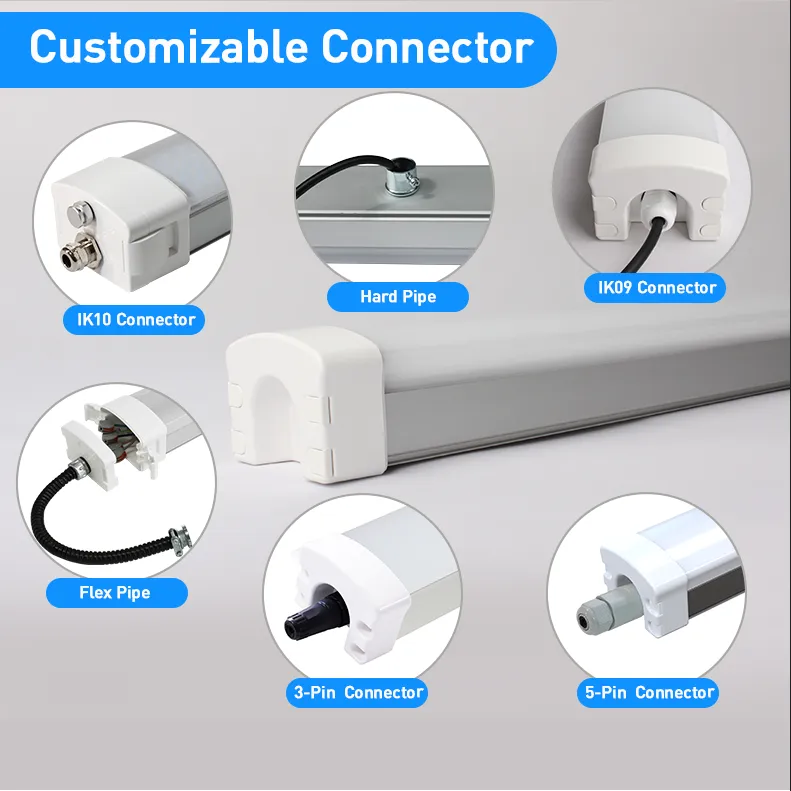

9. Power options: support for side, back, cable installation or plug and play installation




Product Details

Data Sheet

  Light Source  SMD2835
  CRI  >80

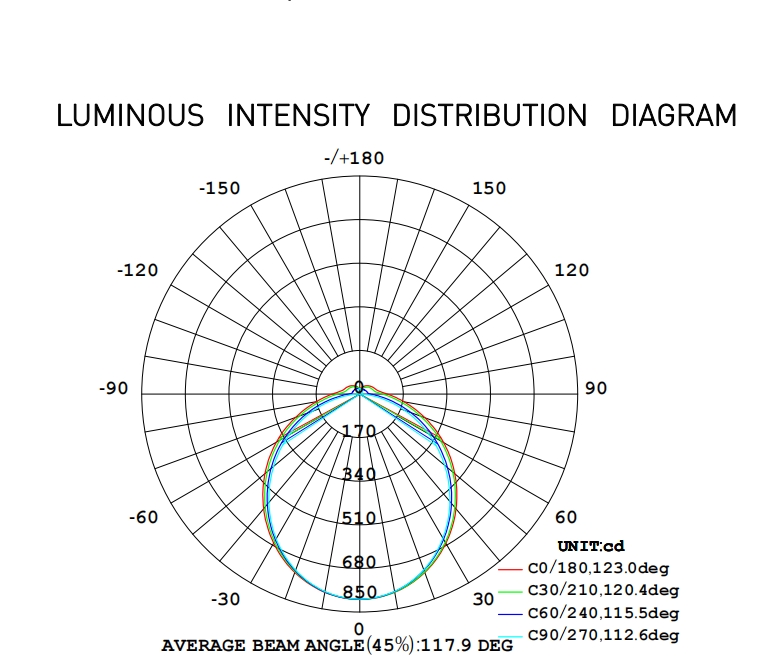

  Beam Angle
  120°
  CCT  3000K/ 4000K/ 5000K/ 6000K
  AC Input  200-240V
  DC Output  30-40V
  SDCM < 4
  Waterproof  IP66
  IK Rate  IK10
  Power Factor  >0.95
  Warranty  5 Years
  Operating Temperature  -20~+40℃



                                        All Models

Article Number
Power (W)
Lumen(lm)
Working Current(mA)
SL-A65X2-20-XL
20
2600
450
SL-A65X2-30-XL
30
3900
750
SL-A65X4-40-XL
40
5200
950
SL-A65X4-50-XL5065001200
SL-A65X5-50-XL5065001200
SL-A65X5-60-XL6078001400







  * Where the first “X” represents diffuser type, it can be F(Frosted), S(Striped)
  The number after the first"X"represents length of light."2"= 600mm,"4"= 1200mm,"5"= 1500mm
  The second “X” represents CCT, it can be W(3000K/4000K), P(5000K), C(6000K)






Cover                              Standard                      Premium

Frosted                            130lm/w                        150lm/w

Striped                             140lm/w                        160lm/w

Please note:
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
3. Efficacy tolerance is ±10% and wattage tolerance is ±10%
4. lf CRl> 90, light efficiency will be reduced by 10-15%

Product Performance

▪ DALI (Digital Addressable Control Interface) Control Function:
DALI is a digital communication protocol used to control lighting equipment, which can realize point-to-point control of lamps and lanterns, enabling users to adjust the light freely according to the actual demand.
Through DALI control, users can realize the dimming function and adjust thebrightness precisely, and the DALI system also supports group control, so that multiple lamps and lanterns can be grouped and managed uniformly. Users can also set up different lighting scenes according to specific occasions. Meanwhile, the timer controlfunction allows the luminaires to be switched on and off automatically according to a preset time, further improving energy efficiency. The status feedback function of the DALI system enables real-time monitoring of the luminaires' operating status, timely detection of faults and easy maintenance.

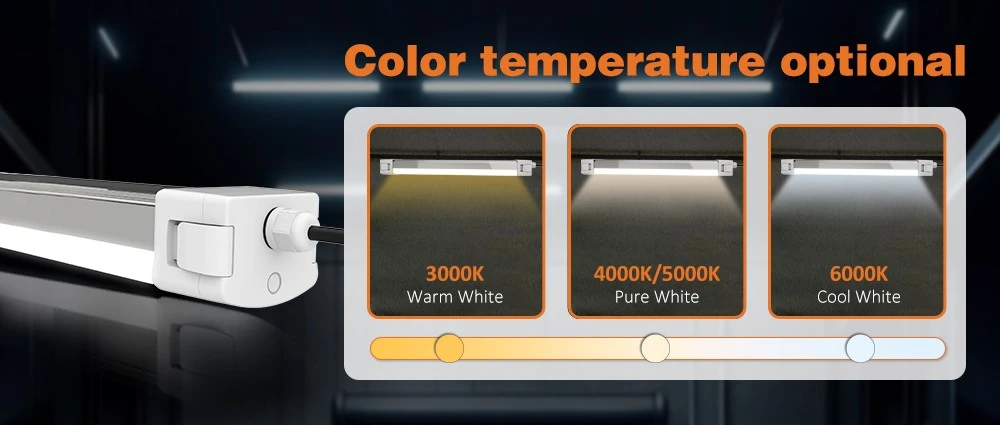

▶ Color temperature optional

ShineLong parkade IP66 DALI control LED tri proof light offers a wide range of color temperatures to meet the lighting needs of different environments. 3000K warm white light creates a warm, soft light suitable for spaces such as hotels and recreational areas, while 4000K and 5000K pure white light is suitable for environments that require clear light such as office areas, schools or shopping malls. For industrial areas, warehouses or parking lots where high brightness and clarity are required, the cool white light of 6000K provides bright and clear illumination to enhance safety.

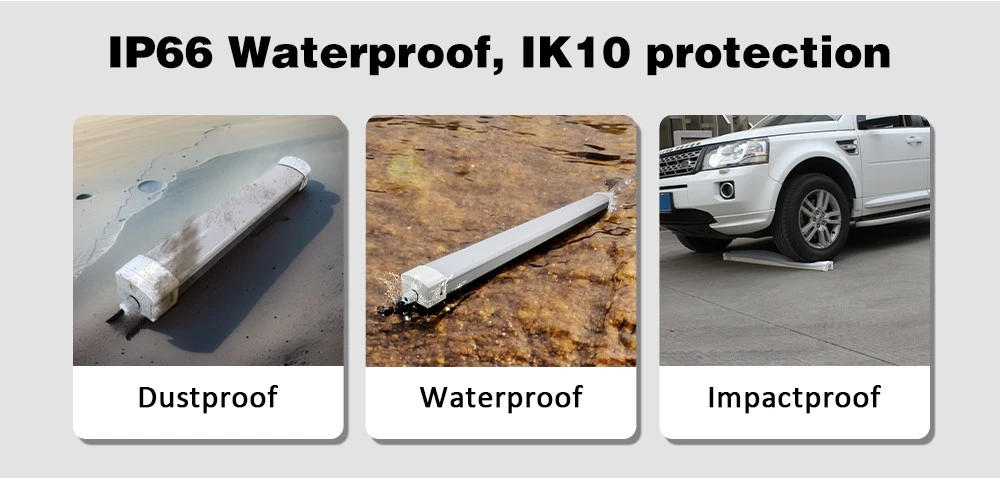

▶ Powerful protection

The ShineLong IP66 garage LED tri-proof light has an excellent protection rating and is designed for harsh environments. Its IP66 waterproof rating is impervious to rain or high-pressure water. Meanwhile, the excellent dustproof performance can completely resist the intrusion of dust. In addition, Parkade's IK10 rating gives it high impact resistance, allowing it to withstand strong external impacts or vibrations without being easily damaged. This combination of waterproof, dustproof, and impact resistance provides increased safety and durability.

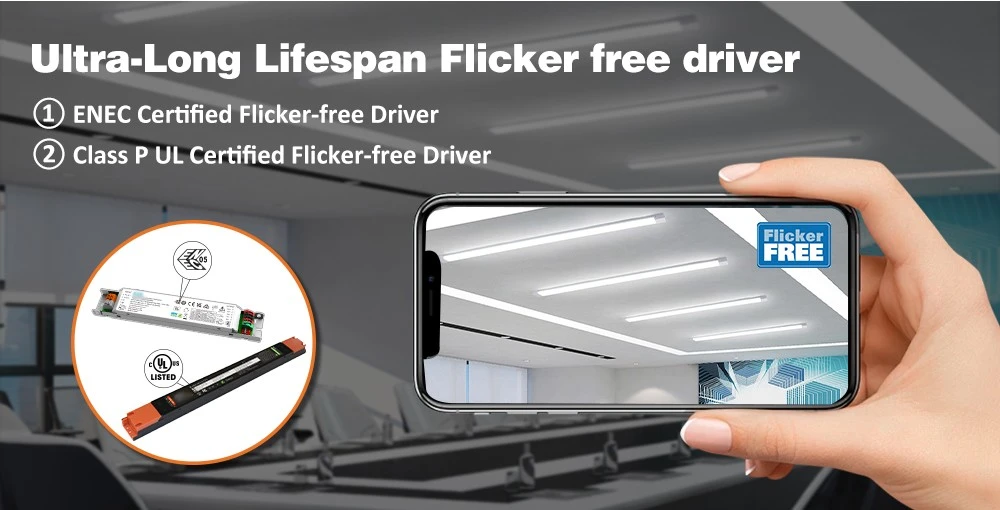

▶ Flicker free

Parkade LED light's driver is ENEC certified and Class P UL certified, which meets strict international safety and quality standards and guarantees the reliability of the product.The IP66 LED DALI control dimmable triproof light utilizes a high quality strobe-free driver to ensure stable lighting. The flicker-free design reduces eye fatigue and effectively avoids flickering effects on screens and camera equipment.

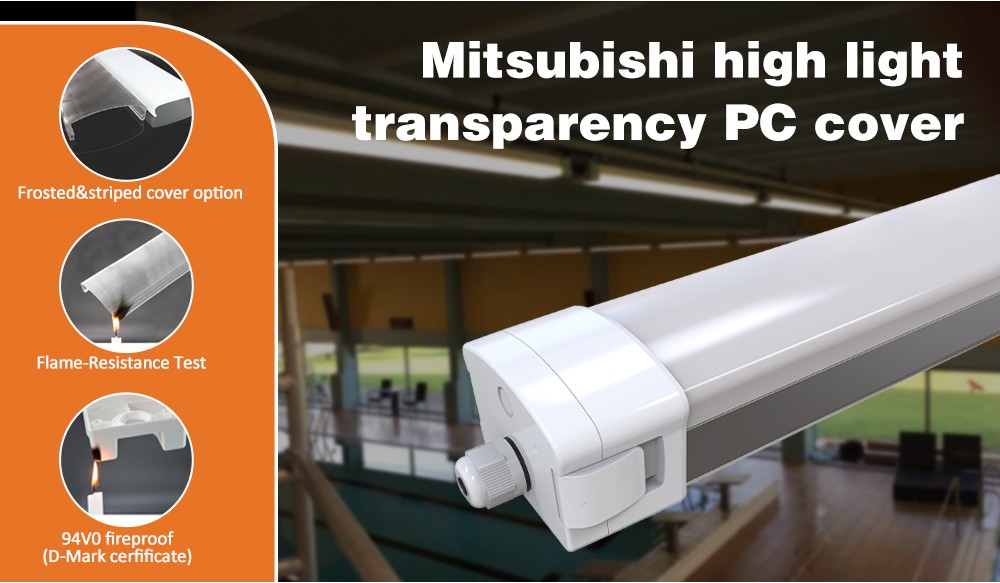

▶ High-quality material

IP66 waterproof IK10 protection parkade tri proof light is equipped with a high transmittance PC lampshade manufactured by Mitsubishi, which ensures even light distribution and optimal brightness output. The lampshade is available in both frosted and striped options, allowing the user to choose the appropriate light diffusion according to actual needs. The materials of this luminaire have been rigorously tested for flame retardancy and have reached the 94V0 flame retardancy standard, and have been certified by D-Mark to ensure that they will not promote combustion in the event of contact with high temperatures or sources of ignition, providing an extremely high level of safety for users.

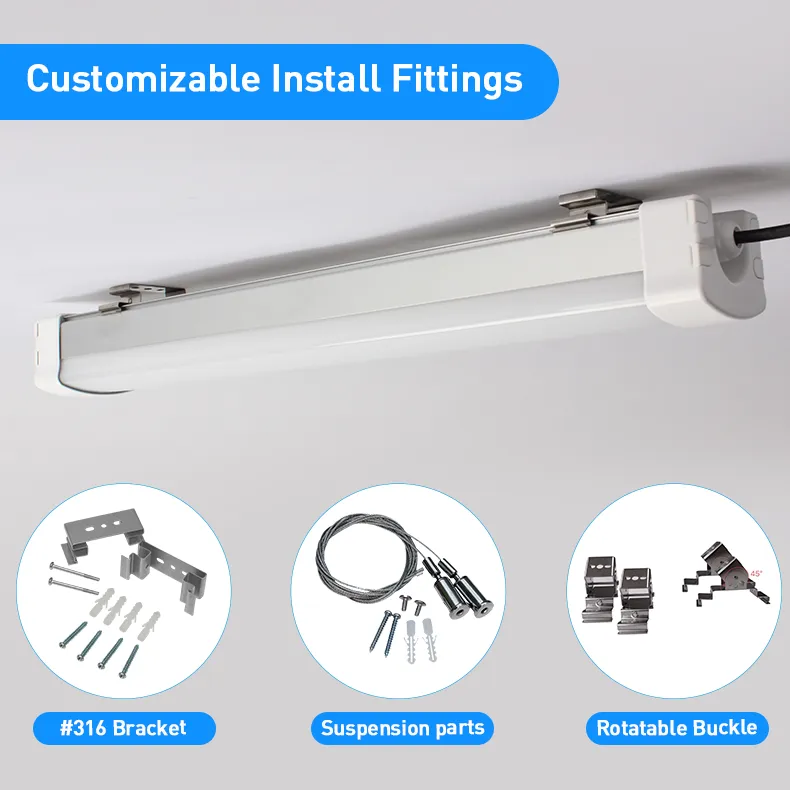

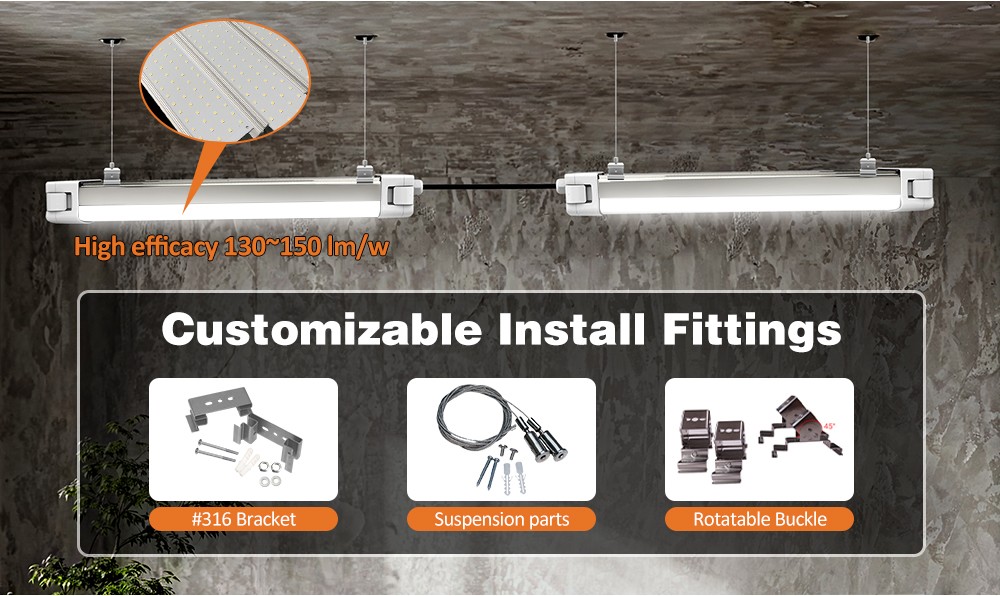

▶ Customizable instal fittings

Parkade aluminum PCB & housing IP66 DALI control dimmable LED light has a luminous efficiency of up to 130-150 lumens/watt, which significantly reduces power consumption. In addition, this light also supports a variety of mounting methods. Mounting accessories can be customized according to the user's actual needs, including #316 stainless steel bracket, with excellent corrosion resistance, ideal for outdoor or humid industrial environments. Suspension components and swivel clips are also available to make installation easier and more convenient. Users can choose the appropriate installation method according to the space structure and installation requirements.

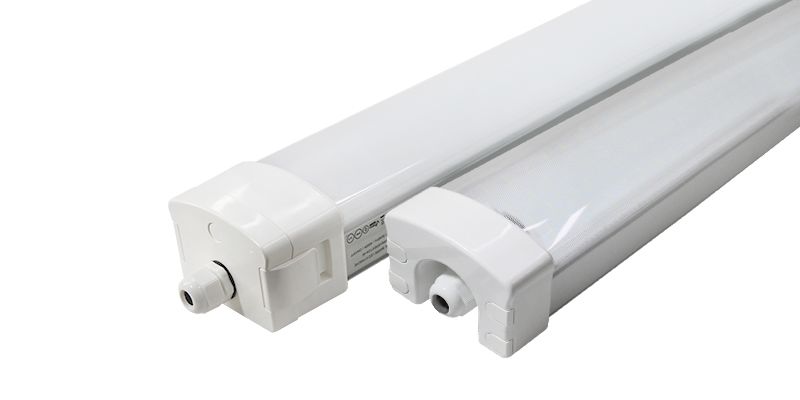

▶ Two options

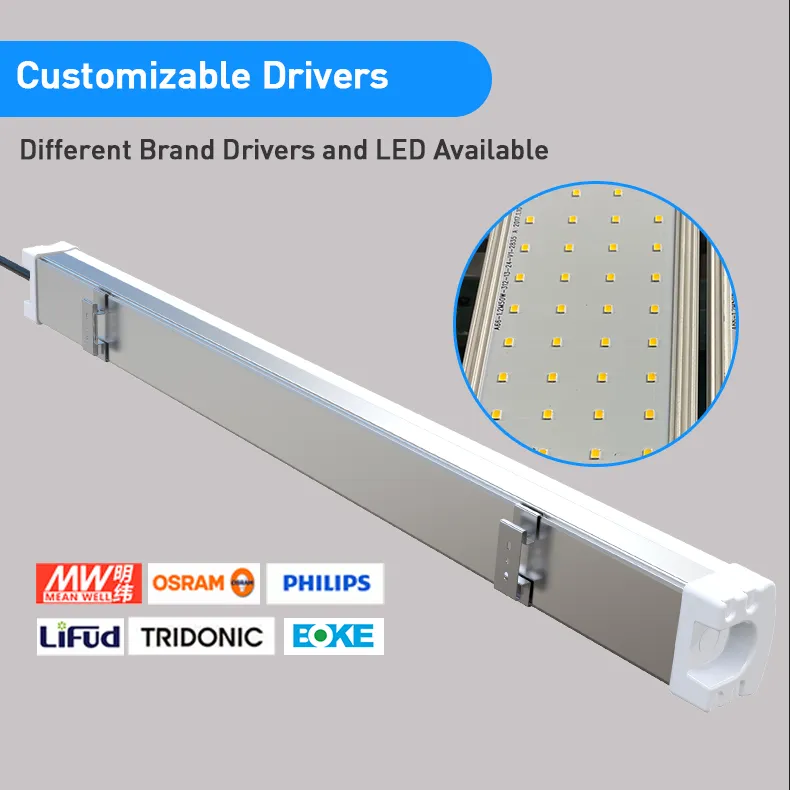

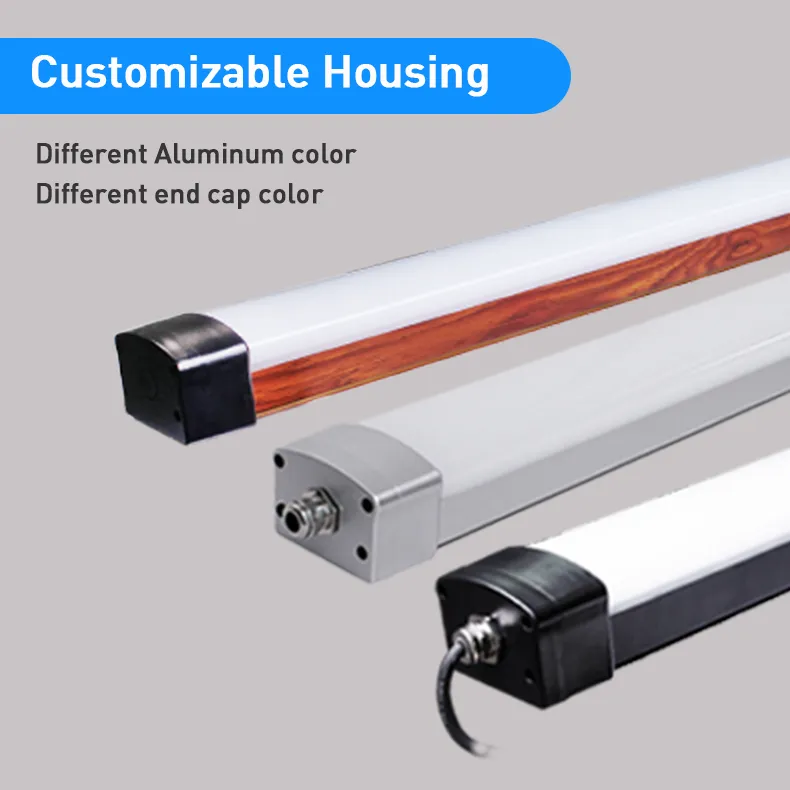

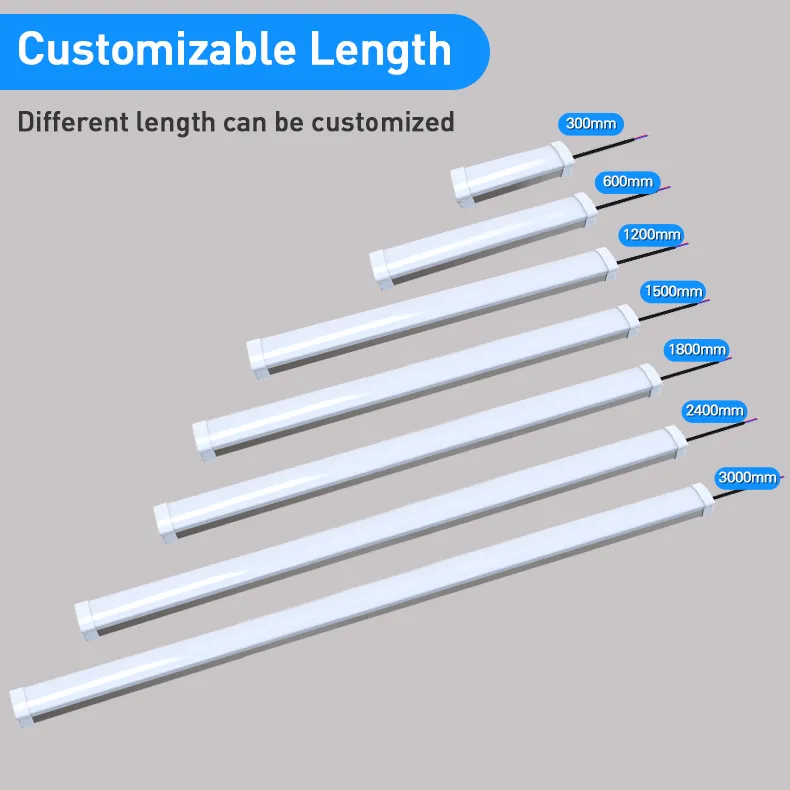

Multiple Customization Options
